Titan Epic 447EX | Gear Box Assembly Diagram
Shop Titan Epic 447EX Gear Box Replacement Parts
Find Epic 447EX Gear Box replacement parts for your Titan electric airless paint sprayer at AllTitanParts. Browse the gearbox assembly diagram to identify drive components, gears, bearings, washers, mounting hardware, and other specified service parts. Whether you are investigating unusual mechanical noise, repairing worn drive components, or restoring proper power transmission between the motor and pump, use the manufacturer parts illustration to identify the correct replacement for your Titan Epic 447EX.
Gear Box Overview
Buy Titan Epic 447EX Gear Box Parts Online
The Titan Epic 447EX Gear Box category focuses on the mechanical drive assembly associated with the Titan Epic 447EX electric airless paint sprayer. The gear box works between the electric motor and the pumping mechanism, transmitting mechanical power needed to operate the fluid section.
During operation, the electric motor generates rotational motion. The drive mechanism transfers this motion through the specified gear box components to the pump. Proper alignment, component condition, and manufacturer-approved lubrication are important to reliable mechanical performance.
Gearbox problems may develop because of worn drive components, damaged gears, excessive mechanical resistance, loose mounting hardware, or insufficient lubrication where applicable. Symptoms can include grinding noises, unusual vibration, loss of mechanical drive, or reduced pump operation.
However, these symptoms do not always indicate a defective gear box. Motor problems, fluid section damage, and loose frame components may produce similar operating symptoms. A systematic inspection helps identify the actual cause before replacement parts are purchased.

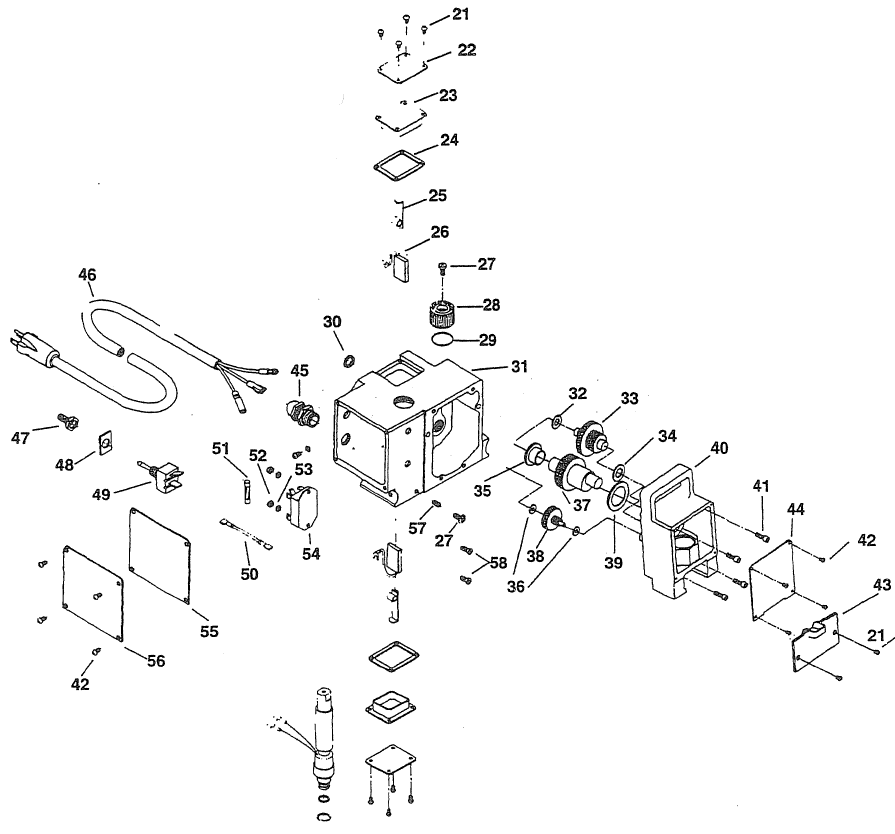

The Titan Epic 447EX Gear Box diagram helps customers locate the appropriate mechanical components and identify their manufacturer part numbers. Always confirm the applicable equipment configuration, diagram reference, and original part number before ordering.
Mechanical Operation
How the Titan Epic 447EX Gear Box Drives the Pump
The gearbox is part of the mechanical power transmission system. It connects motor output to the pumping mechanism through the manufacturer's specified drive arrangement.
Motor Output
The electric motor generates the rotational power needed to operate the sprayer's drive mechanism.
Gear Transmission
The gear box transfers motor output through its designated mechanical drive components.
Pump Drive
The connected drive mechanism supplies the motion required by the fluid section.
Fluid Pressurization
The pump uses mechanical input to pressurize coating material for delivery through the spray system.
Replacement Component Guide
Titan Epic 447EX Gear Box Assembly Components
The following component groups describe common mechanical drive service areas. Confirm the exact gear box construction, individual part numbers, and separately available components using the applicable Titan Epic 447EX assembly diagram.
Gear Box Housing
The gearbox housing supports and protects the internal mechanical drive components.
Inspect for cracks, damaged mounting locations, deformation, or evidence of internal component failure. Confirm whether the housing is available separately.
Drive Gears
Drive gears transfer rotational motion through the mechanical transmission system.
Worn or damaged gear teeth may contribute to unusual noise, vibration, or loss of drive. Replacement gears must match the manufacturer's specifications.
Gear Shafts and Drive Components
Shafts and related drive components transmit motion between connected mechanical parts.
Inspect for wear, bending, damaged engagement surfaces, and excessive movement where accessible under the approved service procedure.
Bearings and Bushings
Where fitted, bearings or bushings support rotating components and help maintain correct alignment.
Unusual noise or excessive movement may indicate wear. Confirm the required component type and installation procedure.
Thrust Washers and Spacers
Specified washers and spacers help maintain mechanical positioning and clearances.
Incorrect thickness or placement can affect alignment and wear. Match the exact diagram reference and part number.
Gear Box Covers and Plates
Where included, covers and plates protect designated components and provide access for approved service operations.
Inspect for damage, missing fasteners, and incorrect installation. Use only the specified replacement components.
Seals and Gaskets
Where specified, sealing components help maintain the gearbox's intended internal operating conditions.
Confirm sealing material, dimensions, and compatibility before replacing gaskets or seals.
Mounting Screws and Fasteners
Mounting hardware secures the gearbox and associated mechanical components.
Use the manufacturer-specified thread size, length, strength classification, and installation procedure.
Troubleshooting Guide
Common Titan Epic 447EX Gear Box Problems and Symptoms
Gearbox symptoms can overlap with motor and pump problems. Inspect the connected systems and follow the manufacturer's troubleshooting instructions before replacing components.
| Gear Box Symptom | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Grinding or unusual mechanical noise | Gears, bearings, shafts, connected drive components | Stop operation and inspect the drive system for damage or excessive wear. |
| Motor runs but pump does not cycle | Gear engagement, drive transmission, pump mechanism | Check the mechanical connection between the motor and fluid section. |
| Excessive vibration | Gear alignment, mounting hardware, motor, pump | Inspect mounting security and investigate worn or damaged mechanical components. |
| Mechanical drive binds or stalls | Gear damage, shaft alignment, pump resistance | Stop operation and diagnose the source of mechanical resistance. |
| Abnormal gearbox heating | Mechanical load, lubrication condition, bearings | Allow the equipment to cool and inspect according to the service manual. |
| Loose gearbox mounting | Bolts, washers, mounting surfaces, frame | Inspect for missing or damaged hardware and follow the specified installation procedure. |
| Visible damage to gearbox housing | Housing, mounting points, covers | Arrange qualified inspection and replace structurally damaged components as specified. |
Repair Planning
Repairing or Replacing the Titan Epic 447EX Gear Box
The appropriate repair depends on the nature of the damage, the manufacturer's service instructions, and whether the affected components are available individually.
Individual Component Replacement
Where supported by the manufacturer, worn gears, washers, or other serviceable components may be replaced individually.
Complete Assembly Replacement
Extensive damage or non-serviceable internal components may require replacement of the complete specified assembly.
Connected System Inspection
Inspect the motor and fluid section to identify conditions that could cause abnormal gearbox loading.
Correct Reassembly
Follow manufacturer requirements for component positioning, lubrication, clearances, and fastener installation.
Parts Identification Guide
How to Find the Correct Titan Epic 447EX Gear Box Parts
Confirm Your Model
Verify Titan Epic 447EX identification and record available equipment information.
Review the Gear Box Diagram
Locate the relevant component in the applicable exploded assembly illustration.
Match the Part Number
Identify the manufacturer part number and compare it with the replacement product listing.
Verify Compatibility
Confirm dimensions, component specifications, required quantity, and documented replacements.
Preventive Maintenance
Titan Epic 447EX Gear Box Maintenance Recommendations
Monitor Mechanical Noise
Investigate unusual grinding, rattling, or changes in operating sound before further damage occurs.
Inspect Mounting Hardware
Check specified fasteners and mounting components according to the equipment service instructions.
Follow Lubrication Requirements
Use only the lubricant type, quantity, and service procedure specified by the manufacturer. Do not assume the gearbox requires routine lubrication.
Inspect for Housing Damage
Check accessible gearbox surfaces for cracks, deformation, and other visible defects.
Investigate Mechanical Resistance
Do not continue operating the sprayer if the drive binds, stalls, or produces abnormal mechanical resistance.
Use Correct Replacement Parts
Match replacement gears, washers, shafts, and hardware to the applicable manufacturer parts list.
Compatibility and Ordering
Choosing Compatible Titan Epic 447EX Gear Box Replacement Parts
Gearbox components require accurate mechanical fitment. Similar-looking gears, bearings, shafts, washers, and fasteners may differ in dimensions, materials, and operating requirements.
- Confirm the equipment model: Verify Titan Epic 447EX identification.
- Locate the correct diagram: Use the applicable gear box assembly illustration.
- Match manufacturer part numbers: Do not rely on component appearance alone.
- Verify mechanical specifications: Confirm dimensions, gear configuration, and installation requirements.
- Check serviceability: Determine whether the component is available individually or as part of an assembly.
- Review documented replacements: Confirm manufacturer-approved supersessions.
- Check quantities: Identify the number of components needed for the repair.
- Review current availability: Verify the individual product listing before ordering.
Do not assume that gear box parts from the Titan Epic 440E or other Titan sprayer models are interchangeable with the Epic 447EX unless the manufacturer documents compatibility.
Related Titan Epic Parts
Shop Related Titan Epic 447EX Repair Assemblies
Titan Epic 447EX Gear Box
Browse gearbox components and mechanical drive replacement parts.
Epic 447EX UNITEC Motor Complete
Explore the electric motor assembly associated with the Epic 447EX drive system.
Epic 447EX Frame Assembly
Find supporting frame components and mounting hardware.
Titan Epic 447EX Parts
Explore the complete model category for additional repair assemblies and parts diagrams.
Titan Epic 447EX Gear Box Repair Safety
Before inspecting or servicing the gearbox, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Allow hot components to cool and ensure that moving parts have stopped. Do not operate the sprayer with damaged gears, loose mechanical components, or a cracked gearbox housing. Follow the applicable Titan service manual for disassembly, lubrication, reassembly, and testing.
Titan Epic 447EX Mechanical Drive Parts
Order Titan Epic 447EX Gear Box Parts Online
Browse the Titan Epic 447EX Gear Box category at AllTitanParts. Use the assembly diagram to identify the correct drive components, verify manufacturer part numbers, and review replacement products for your repair.
Shop Epic 447EX Gear Box PartsFrequently Asked Questions
Titan Epic 447EX Gear Box FAQ
What is the Titan Epic 447EX Gear Box?
The gear box is part of the mechanical drive system that transfers power from the electric motor to the sprayer's pumping mechanism.
Where can I buy Titan Epic 447EX Gear Box parts?
Visit the Titan Epic 447EX Gear Box category at AllTitanParts to review available replacement components.
How do I identify the correct Epic 447EX gearbox part?
Confirm the equipment model, review the applicable gearbox diagram, and match the component reference to the manufacturer part number.
What causes grinding noises in the Titan Epic 447EX Gear Box?
Possible causes include worn gears, damaged bearings, incorrect alignment, or problems in connected drive components. Stop operation and investigate the source.
Can damaged gearbox gears stop the pump from operating?
Yes. Damage in the mechanical drive system may interrupt power transmission between the motor and pump.
Can I replace individual Titan Epic 447EX gearbox gears?
Individual replacement may be possible where the manufacturer identifies gears as separately serviceable. Verify the parts diagram and repair instructions.
Does the Titan Epic 447EX Gear Box require lubrication?
Follow the manufacturer's lubrication instructions for the specific gearbox. Do not add lubricant unless the applicable service procedure requires it.
What causes excessive vibration in the gearbox?
Possible causes include loose mounting hardware, worn mechanical components, incorrect alignment, or problems in the motor or pump.
Can the gearbox cause the motor to stall?
Yes. Excessive mechanical resistance in the gearbox or connected pump may overload the motor. Diagnose the cause before further operation.
Are Epic 447EX Gear Box parts compatible with Epic 440E parts?
Compatibility must be verified using manufacturer part numbers and model-specific technical documentation. Similar-looking components may not be interchangeable.
When should I replace the complete gearbox?
Complete replacement may be appropriate when the gearbox has extensive damage or when the manufacturer specifies assembly replacement rather than individual component repair.
How can I maintain the Titan Epic 447EX Gear Box?
Follow the applicable service schedule, monitor unusual noise and vibration, inspect accessible mounting hardware, and use only manufacturer-specified lubrication procedures.
What should I check before ordering gearbox replacement parts?
Verify the Titan Epic 447EX model, original part number, diagram reference, component specifications, and any documented replacement information.
How can I get help finding Epic 447EX Gear Box parts?
Contact AllTitanParts at 713-931-0006 with your Titan Epic 447EX model information, gearbox diagram reference, and original component part number.
Titan Epic 447EX Gear Box Parts Assistance
Need Help Finding Epic 447EX Gear Box Replacement Parts?
Have your Titan Epic 447EX model information, gearbox assembly diagram reference, and original manufacturer part number ready when requesting assistance.
713-931-0006
