Titan Elite E20 | Filter Block Replacement Components
Shop Titan Elite E20 Filter Block Parts
Find listed replacement components for the Titan Elite E20 Filter Block at AllTitanParts. Browse sealing parts, filter hardware, fittings and valve components using the numbered assembly diagram. Verify the required part number and equipment configuration before ordering.
Assembly Overview
Identify the Correct Filter Block Component

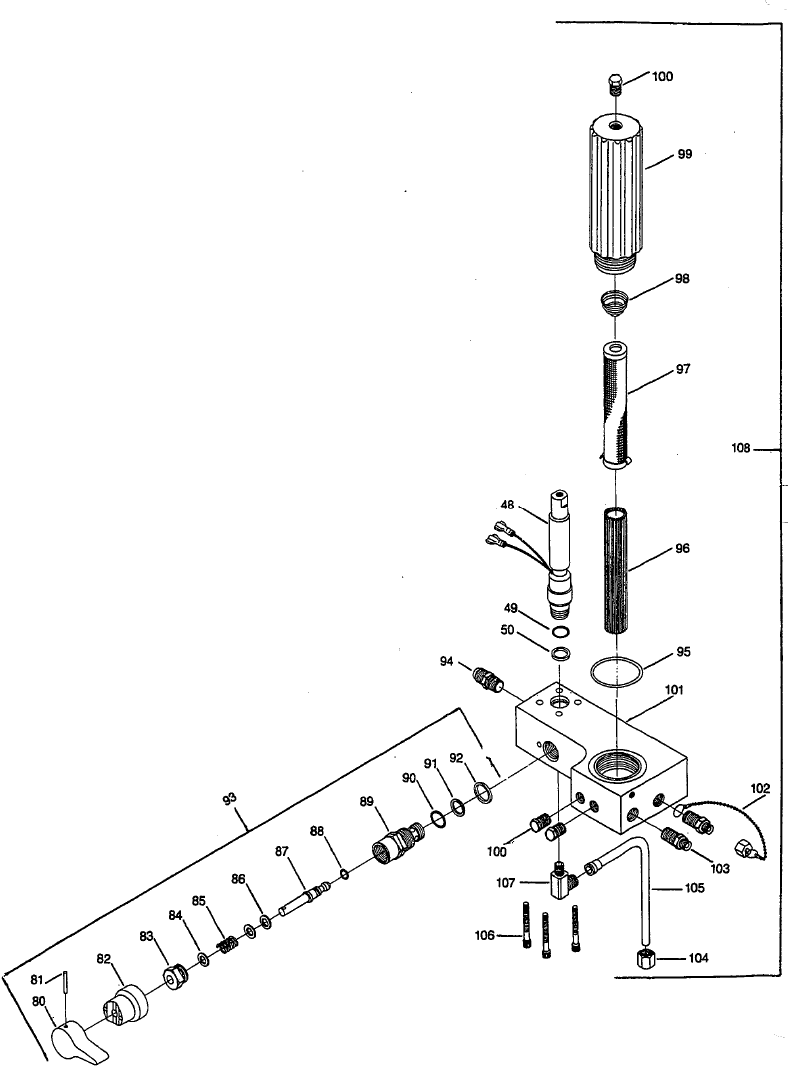

Titan's original Elite E20 manual identifies the filter housing, spring, cartridge, core and seal within the filter block breakdown. It also documents associated bypass valve, outlet and pressure-switch components.
Use the applicable illustration to identify the part requiring service. Read the individual product listing to confirm supplied contents and compatibility before purchase.
Listed Replacement Components
Elite E20 Filter Block Parts Directory
| Diagram Reference | Part Number | Listed Description |
|---|---|---|

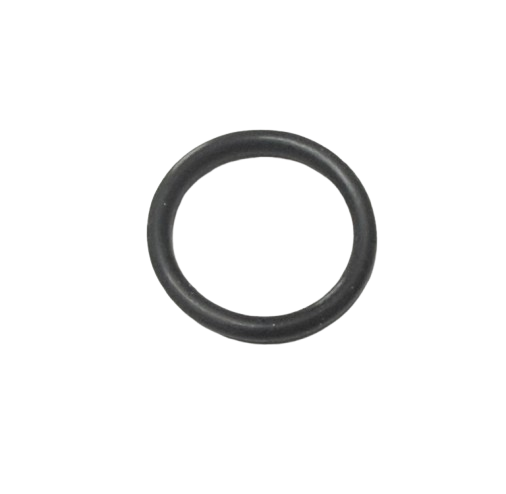

| 49 | 700-499 | O-Ring |
| 80 | 700-697 | Valve Handle |
| 88 | 221-008 | O-Ring |
| 91 | 761-722 | O-Ring |
| 93 | 700-258 | Prime/Spray Valve Assembly |
| 95 | 761-456 | O-Ring |
| 98 | 730-083 | Filter Spring |
| 99 | 761-451 | Filter Housing |
| 102 | 730-222 | Outlet Cap |
| 103 | 490-006 | Fitting |
| 105 | 750-039 | Pressure Release |
Descriptions reflect the category listings. Check product details for current availability and supplied quantities.
Original Number Reference
Compare Updated Listings with Your Manual
The original manual identifies the valve handle as 761-697 and the bypass valve assembly as 761-757. The category lists different numbers at those positions. Confirm the applicable replacement relationship before ordering when your documentation shows an older number.
Component Identification
Distinguish the Pressure Release Tube from the Valve
Titan's manual identifies 750-039 as the Pressure Release Tube. It is separately listed from the bypass valve assembly. Use the part number and diagram position to identify the correct component when product names are abbreviated.
Parts Buying Guide
Prepare Your Filter Block Parts Order
Identify Your Equipment
Record the model, product number and available serial information.
Find the Diagram Item
Locate the component in the applicable assembly illustration.
Verify the Replacement
Compare the original number with the listing and documented fitment.
Review Package Contents
Check which components are supplied and order the quantity needed.
Maintenance Reference
Follow the Elite E20 Filter Service Instructions
Titan's pump-filter procedure calls for cleaning or replacing the cartridge and inspecting the seal. Consult the complete instructions before service and diagnose the equipment before purchasing additional replacements.
Browse Related Elite E20 Parts
Elite E20 Filter Block Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Never open a pressurized filter housing or attempt to stop a high-pressure leak with your hand.
Order Your Elite E20 Filter Block Replacements
Select the component that matches your equipment diagram and repair requirements.
Shop Filter Block PartsFrequently Asked Questions
Titan Elite E20 Filter Block FAQ
Does this category include a complete filter block?
Review the individual listing. The category identifies the service assembly and contains separate replacement components.
Are the listed O-rings interchangeable?
Use the exact number for the specified assembly position. A shared component name does not establish matching dimensions or material.
What if my manual shows a different valve number?
Confirm the documented replacement relationship and compatibility before purchase.
What details help identify the correct part?
Provide your equipment identification, original component number and filter block diagram reference.
