Titan Elite E20 | Fluid Section Replacement Components
Shop Titan Elite E20 Fluid Section Parts
Find listed replacement components for the Titan Elite E20 Fluid Section at AllTitanParts. Browse the piston rod, O-rings, intake components, splash guard and mounting hardware. Use the numbered assembly diagram to identify the replacement your repair requires.
Assembly Overview
Identify the Correct Elite E20 Pump Part

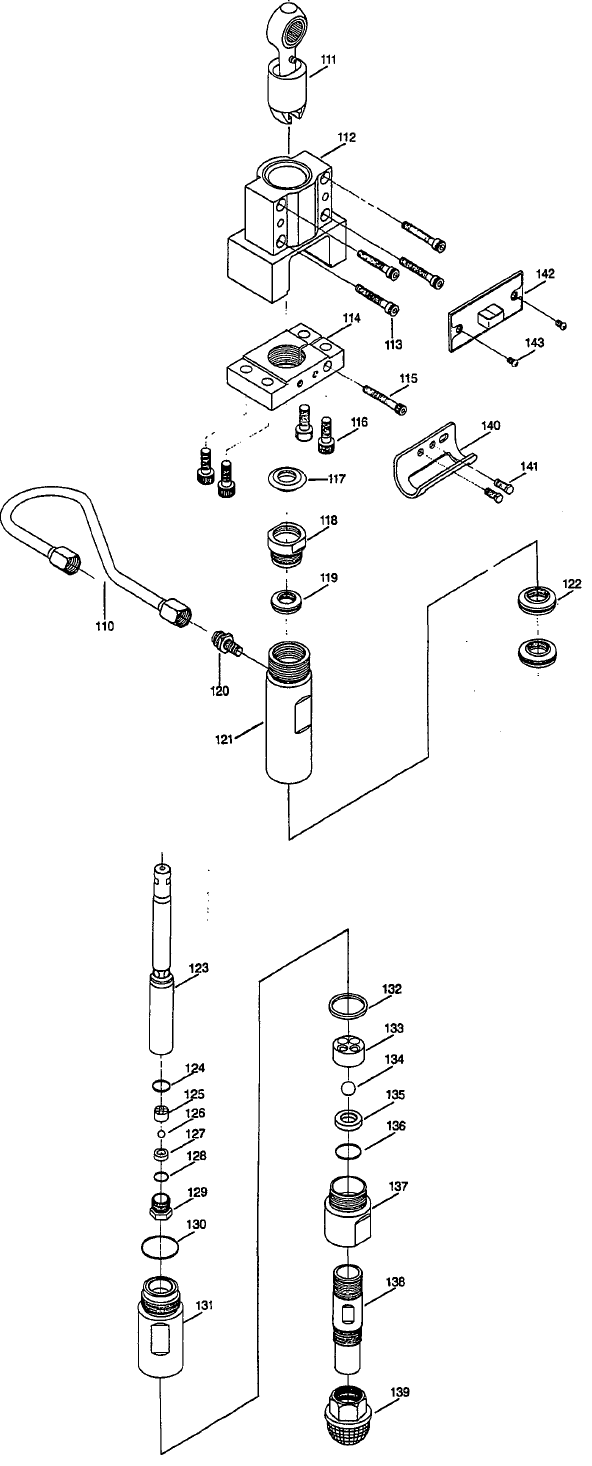

Titan's original Elite E20 fluid section breakdown identifies the piston rod, housings, packings, valve balls, seats, foot valve housing and intake components. Match the component being serviced to its specified diagram position.
Review the exact part number, equipment compatibility and supplied contents before purchase. The category contains selected replacements rather than every item shown in the factory breakdown.
Listed Replacement Parts
Elite E20 Fluid Section Parts Directory
| Diagram Reference | Part Number | Listed Description |
|---|---|---|
| 113 | 761-115 | Screw |
| 115 | 761-149 | Screw |
| 117 | 761-162 | Splash Guard |
| 123 | 761-117 | Piston Rod |
| 128 | 761-057 | PTFE O-Ring |
| 130 | 761-103 | O-Ring |
| 138 | 761-153 | Down Tube |
| 139 | 710-046 | Inlet Screen |
| 141 | 710-033 | Pail Bracket Bolt |
Check individual listings for availability, supplied quantities and compatibility.
Manufacturer Repair Reference
Check the Elite E20 Repacking Requirements
The original Elite E20 manual identifies Repacking Kit 761-175 and marks its included components in the fluid section list. Confirm current availability, contents and any documented replacement number when requesting this kit.
Parts Buying Guide
Prepare an Accurate Fluid Section Parts Order
Identify Your Equipment
Record the model, product number and available serial information.
Locate the Diagram Item
Find the component in the applicable fluid section illustration.
Verify the Replacement
Compare the original number with the listing and documented fitment.
Review Package Contents
Check supplied quantities and whether related components are included.
Service Reference
Diagnose Valve and Packing Problems Before Purchase
Titan's manual explains that debris can prevent the inlet or outlet ball from seating correctly. Follow the specified inspection procedure to determine whether cleaning or replacement is required.
Use the complete pump repair instructions for packing replacement, including seal orientation and reassembly requirements. Test the completed repair before returning the equipment to regular operation.
Browse Related Elite E20 Parts
Elite E20 Fluid Section Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Never loosen a pressurized connection or attempt to stop a high-pressure leak with your hand.
Order Your Elite E20 Fluid Section Replacements
Select the component that matches your equipment diagram and diagnosed repair.
Shop Fluid Section PartsFrequently Asked Questions
Titan Elite E20 Fluid Section FAQ
Does this category supply a complete fluid section?
Review the individual listing. The category identifies the assembly being serviced and contains separate replacement components.
Can I use Elite E15 parts on an Elite E20?
Confirm documented compatibility for the exact component. Similar model names do not establish interchangeability.
Are the listed O-rings interchangeable?
Use the specified part number for each diagram position. A shared component name does not confirm matching dimensions or material.
What information helps identify a replacement?
Provide your equipment identification, original part number and fluid section diagram reference.
