Titan Elite E20 | Frame Replacement Components
Shop Titan Elite E20 Frame Parts
Find listed replacement hardware for the Titan Elite E20 Frame at AllTitanParts. This category includes the Titan 0294635 Plug and Titan 761-178 Hexagonal Flange Screw. Match your required component to the frame diagram before ordering.

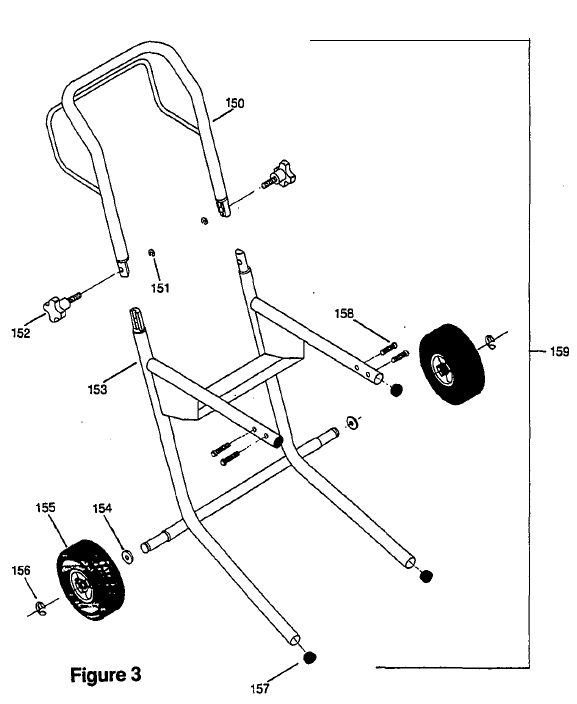

Frame Assembly Overview
Identify the Correct Frame Component
Titan's original Elite E20 frame breakdown identifies the handle, knobs, frame legs, wheels, washers, snap rings, plugs and screws. It lists the complete frame under P/N 761-400, with the reference 158 screws excluded from that assembly.
Use the applicable illustration to identify the component requiring replacement. The category contains selected hardware listings rather than every item shown in the factory breakdown.
Listed Replacement Hardware
Titan Elite E20 Frame Parts Directory
| Diagram Reference | Listed Part Number | Component |
|---|---|---|
| 157 | 0294635 | Plug |
| 158 | 761-178 | Hexagonal Flange Screw |
Check each product listing for supplied quantity, current availability and compatibility.
Original Part Number Reference
Compare the Plug Listing with Your Manual
The original manufacturer manual identifies reference 157 as 710-199 Plug. The category lists 0294635 Plug at that position. Confirm the applicable replacement relationship before ordering when your documentation carries the older number.
The manual specifies two plugs and four reference 158 screws for the frame breakdown. These assembly quantities do not establish the number supplied in an individual product package.
Parts Buying Guide
Prepare an Accurate Elite E20 Frame Parts Order
Identify Your Equipment
Record the model, product number and available serial information.
Locate the Diagram Item
Match the required hardware to its frame illustration reference.
Verify the Replacement
Compare the original number with the listing and documented fitment.
Check Your Quantity
Review package contents and order the number of replacements needed.
Browse Related Elite E20 Assembly Parts
Elite E20 Frame Service Safety
Follow the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Read the applicable repair instructions and warnings before removing equipment components.
Order Your Titan Elite E20 Frame Hardware
Select the listed plug or screw that matches your equipment and repair requirements.
Shop Elite E20 Frame PartsFrequently Asked Questions
Titan Elite E20 Frame FAQ
Does this category include a complete replacement frame?
Review the individual product listing. The category identifies the service assembly and currently lists separate hardware components.
Can I select a screw or plug by appearance?
Use the documented part number and assembly reference. Similar appearance does not establish matching dimensions or fitment.
What if my manual shows a different plug number?
Request confirmation of the current replacement and its compatibility before purchasing.
What information helps identify the correct hardware?
Provide your equipment identification, original part number and frame diagram reference.
Need Help Matching Elite E20 Frame Parts?
Contact AllTitanParts with your equipment and component details before ordering.
713-931-0006
