Titan Elite E20 | Gear Box Replacement Components
Shop Titan Elite E20 Gear Box Parts
Find listed replacement components for the Titan Elite E20 Gear Box at AllTitanParts. Use the numbered diagram to identify the item required for your repair, then verify its part number and equipment compatibility before ordering.
Assembly Overview
Locate the Correct Gear Box Service Item
Titan's original Elite E20 gear box breakdown includes drive components and associated electrical hardware. The service section identifies gears, housings, bearings, washers, switches and motor starter components.
The category contains selected replacements. Review the individual listing to establish whether you are purchasing a component or an assembly and what the package includes.
Listed Replacement Parts
Elite E20 Gear Box Parts Directory

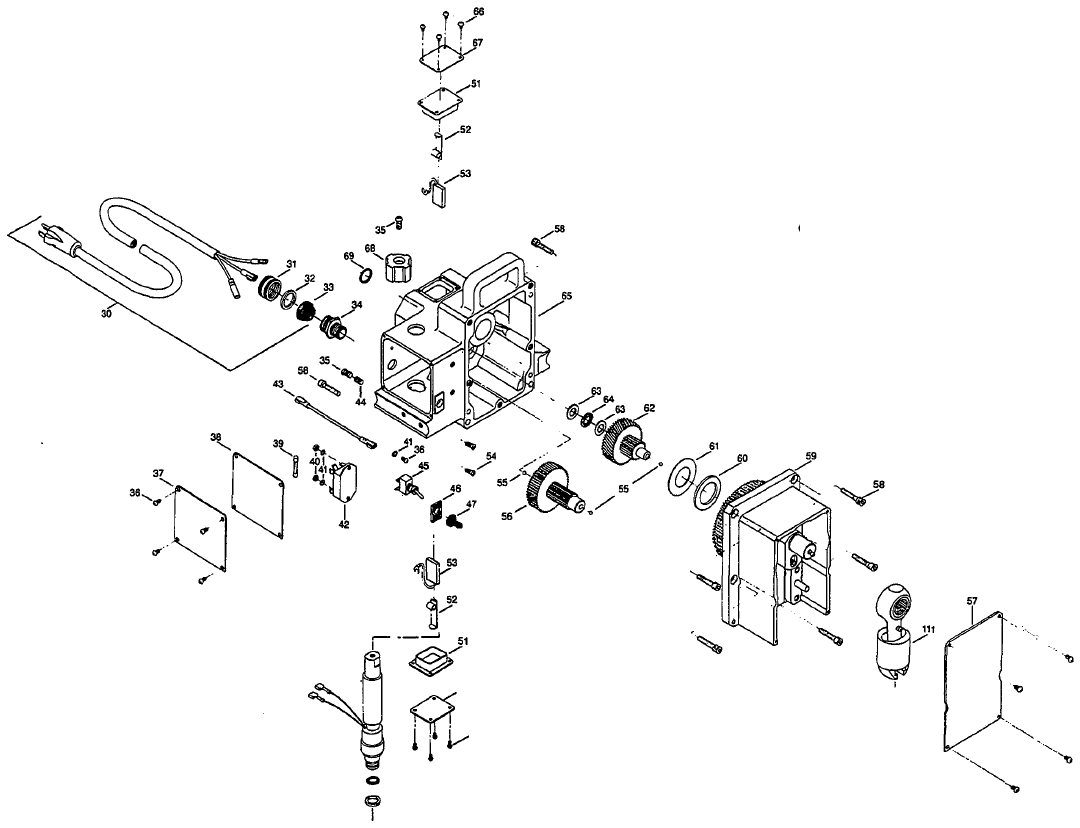

| Diagram Reference | Part Number | Listed Description |
|---|---|---|
| 35 | 0509219 | Screw |
| 39 | 710-050 | 20 Amp Fuse |
| 41 | 9822113 | Lock Washer |
| 42 | 700-657A | Motor Starter |
| 45 | 700-646 | Toggle Switch |
| 46 | 700-775 | Plate |
| 61 | 700-680 | Thrust Washer |
| 67 | 702-053 | Plate |
| 68 | 700-771 | Pressure Control Knob |
Verify supplied quantities, availability and applicable diagram references before purchase.
Motor Starter Replacement Reference
Titan 700-657A Replaces 700-657
AllTitanParts identifies 700-657A as replacing the earlier 700-657 Motor Starter. Confirm your equipment's electrical configuration and the replacement listing before ordering.
Parts Buying Guide
Prepare an Accurate Gear Box Parts Order
Record Equipment Details
Have the model, product number, serial information and voltage ready.
Find the Diagram Item
Locate the component in the illustration for your equipment version.
Confirm the Replacement
Compare the original number with the listing and any documented update.
Review and Purchase
Check package contents and order the quantity needed for your repair.
Service Preparation
Follow the Elite E20 Repair Instructions
Titan's manual includes gear repair, switch replacement and motor starter service procedures. Diagnose the equipment before replacing parts, follow the applicable instructions and test the completed repair before regular operation.
Browse Related Elite E20 Parts
Elite E20 Gear Box Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Follow all warnings concerning electrical hazards, moving components and high-pressure fluid.
Order Your Elite E20 Gear Box Replacements
Select the component that matches your equipment diagram and diagnosed repair.
Shop Elite E20 Gear Box PartsFrequently Asked Questions
Titan Elite E20 Gear Box FAQ
Does this category supply a complete gear box?
Review the individual listing. The category identifies the service assembly and contains separate replacement components.
What if my original number differs from the listing?
Confirm a documented replacement relationship and equipment compatibility before ordering.
Can similar-looking hardware be used interchangeably?
Select by the exact part number and specified assembly position. Appearance alone does not establish matching dimensions or fitment.
What details help identify the right component?
Provide your equipment identification, voltage, original part number and gear box diagram reference.
Need Help Matching a Gear Box Part?
Contact AllTitanParts with your equipment and component details before ordering.
713-931-0006
