Titan Elite E20 | UNITEC Motor Assembly Components
Shop Titan Elite E20 UNITEC Motor Complete Parts
Find listed replacement components for the Titan Elite E20 UNITEC Motor Complete assembly at AllTitanParts. This category includes the 700-681 Motor Mount Screw and 700-721 O-Ring. Match each item to the applicable motor diagram and confirm the required quantity before ordering.
Motor Assembly Overview
Identify the Correct UNITEC Motor Component

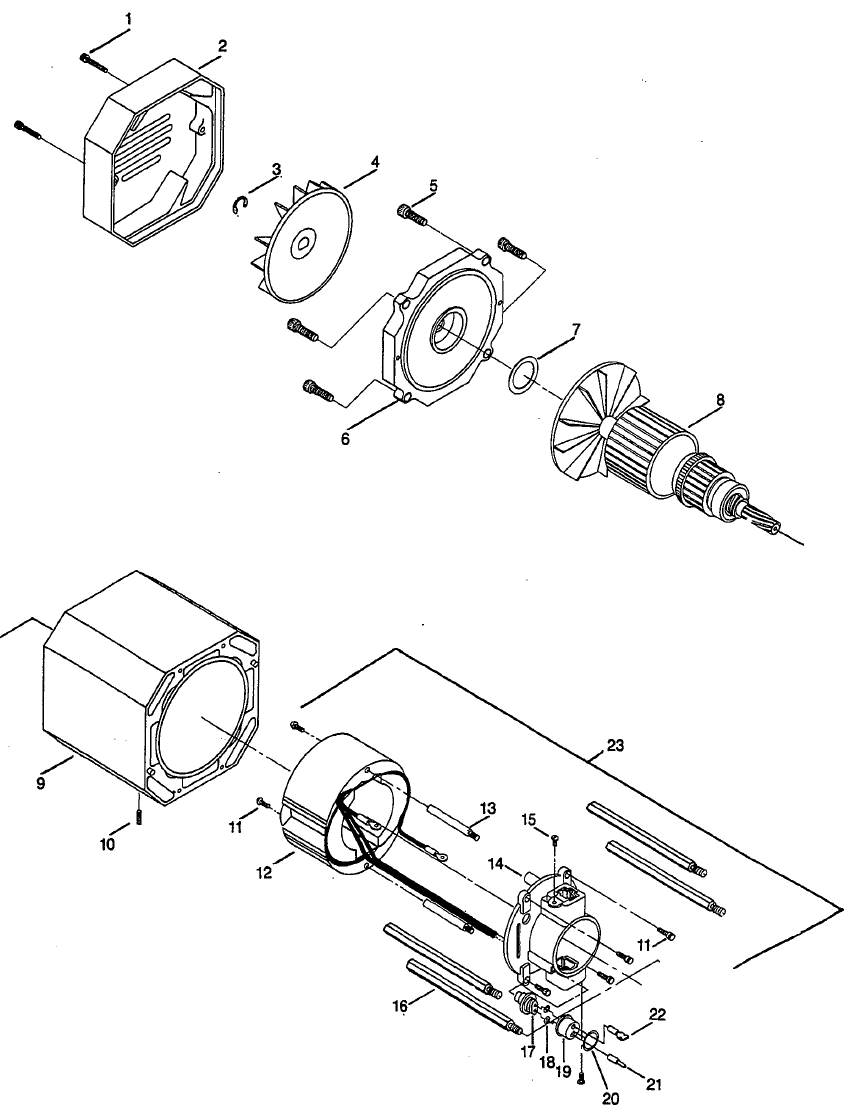

Titan's original Elite E20 manual provides motor diagrams covering the armature, fan, rear housing, outer housing, field components and associated hardware. These references help identify the component requiring service.
The category title identifies the assembly being serviced. Review individual product descriptions to confirm supplied contents rather than assuming that a complete motor is included.
Listed Replacement Components
Elite E20 UNITEC Motor Parts Directory
| Diagram Reference | Part Number | Listed Component |
|---|---|---|
| 5 | 700-681 | Motor Mount Screw |
| 18 | 700-721 | O-Ring |
Check each listing for current availability, compatibility and supplied quantity.
Factory Diagram Reference
Match Hardware to Its Specified Location
The original motor breakdown specifies four 700-681 screws at reference 5 and two 700-721 O-rings at reference 18. These are assembly quantities, so check the number supplied per product listing before purchasing.
Locate the O-ring in the motor illustration rather than selecting it by a general sealing description. A shared part name does not establish the correct application.
Electrical Configuration
Confirm Your Motor Version Before Ordering
Titan's original manual identifies different armature and field components for 120V and 220V units. Verify the equipment nameplate and applicable documentation when requesting electrical replacements or a complete motor.
Parts Buying Guide
Prepare Your Elite E20 Motor Parts Order
Record Equipment Details
Have your model, product number, serial information and voltage ready.
Locate the Diagram Item
Identify the required component in the matching motor illustration.
Verify the Replacement
Compare the original number with the listing and documented fitment.
Review Your Quantity
Check package contents and order the replacements your repair requires.
Browse Related Elite E20 Parts
Elite E20 Motor Service Safety
Complete the manufacturer's pressure-relief procedure and unplug the sprayer before servicing. Follow the applicable motor repair instructions and all warnings concerning electrical hazards and moving components.
Order Your Elite E20 UNITEC Motor Components
Select the listed replacement that matches your motor diagram and repair requirements.
Shop UNITEC Motor PartsFrequently Asked Questions
Elite E20 UNITEC Motor Complete FAQ
Does this category supply a complete motor?
Read the individual product listing. The category identifies the motor assembly and currently lists separate replacement components.
Can I select an O-ring by appearance alone?
Use the exact part number and specified diagram position. Appearance does not establish matching dimensions or material.
How many screws or O-rings should I purchase?
Compare the required repair quantity with the number supplied in each product package.
What details help identify the right replacement?
Provide your equipment identification, voltage, original part number and motor diagram reference.
Need Help Matching an Elite E20 Motor Part?
Contact AllTitanParts with your equipment and component details before ordering.
