Maintain Your Titan Advantage 600 Fluid Section
The Titan Advantage 600 fluid section is the pumping assembly responsible for drawing coating material from the suction system and delivering it under pressure to the spray hose and gun. It contains the pump manifold, reciprocating piston, upper and lower packings, inlet and outlet valves and fluid filtration components.
During operation, the piston moves within the pump manifold. The inlet and outlet valve assemblies help control the direction of fluid movement, while the packings seal the moving piston and reduce leakage. The manifold filter removes debris from pressurized coating material before it travels toward the spray hose.
The PRIME/SPRAY valve provides the designated flow path for priming and spraying. Its operation should be distinguished from the electronic pressure-control system.
Worn piston surfaces, damaged packings, leaking valve seats, contaminated valve balls or clogged filters may contribute to pressure loss, irregular spray patterns, difficulty priming or visible fluid leakage.
AllTitanParts provides genuine Titan replacement components and service kits to help identify the affected part and plan a targeted repair.
Shop Essential Titan Advantage 600 Fluid Section Replacement Parts
Find factory-referenced components and service kits for pump sealing, fluid filtration, piston movement and priming.
Titan 0551677 Repacking Kit
Factory fluid-section repacking kit for replacing specified worn sealing and valve components. Titan identifies the included diagram items in its manual.
Part number: 0551677
SHOP REPACKING KITS →Titan 0551605 Filter Assembly
OEM filter assembly containing the factory-referenced filter seal, support spring, adapter, filter spring, filter and housing.
Part number: 0551605
SHOP FILTER PARTS →Titan 705-120A Piston Assembly
Complete OEM piston assembly identified in the factory diagram. Includes the specified piston rod and outlet valve components.
Part number: 705-120A
SHOP PISTON PARTS →Titan 0507690 PRIME/SPRAY Valve
Genuine Titan valve assembly that directs fluid through the designated priming or spraying flow path.
Part number: 0507690

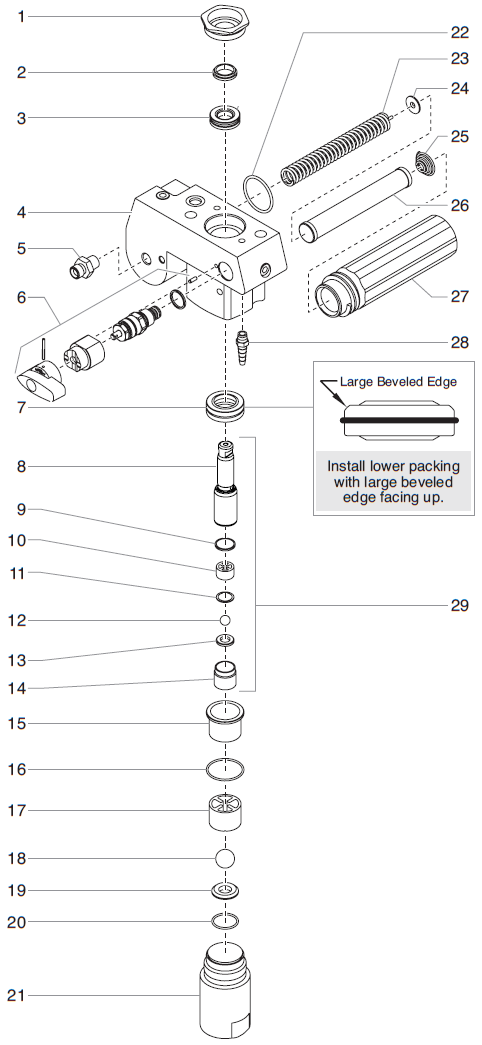

SHOP PRIME/SPRAY VALVES →Titan Advantage 600 Fluid Section Assembly Parts Diagram
The Titan Advantage 600 factory fluid-section diagram identifies 29 numbered positions, with configuration-specific inlet valve housings at item 21. The following references help match individual components to their original diagram positions.
| Item | Titan Part Number | Factory Description | Original Qty. |
|---|---|---|---|
| 1 | 705-104 | Retainer Nut | 1 |
| 2 | 705-105 | Piston Guide | 1 |
| 3 | Repacking Kit Component | Upper Packing Assembly | 1 |

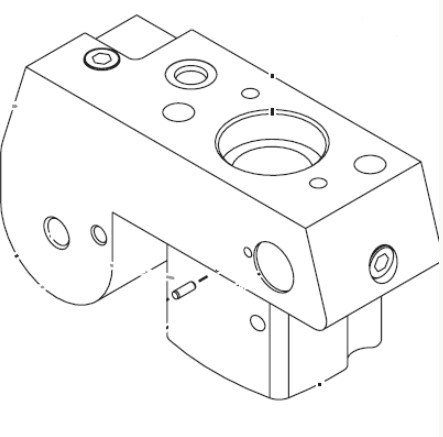

| 4 | 0551681 | Pump Manifold, includes item 22 | 1 |

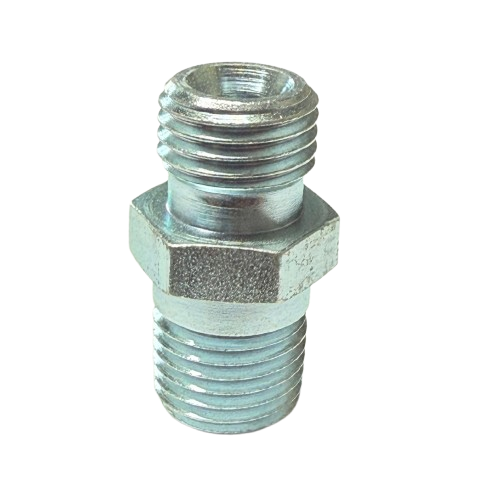

| 5 | 227-006 | Outlet Fitting, 1/4 inch | 1 |
| 6 | 0507690 | PRIME/SPRAY Valve Assembly | 1 |
| 7 | Repacking Kit Component | Lower Packing Assembly | 2 |
| 8 | 800-452 | Piston Rod | 1 |
| 9 | 800-348 | Outlet Valve Seal | 1 |

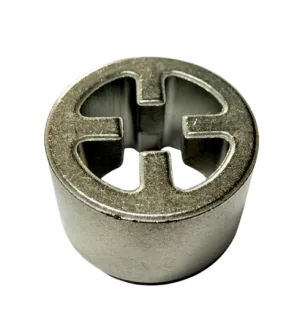

| 10 | 800-441 | Outlet Valve Cage | 1 |
| 11 | 0507454 | Nylon Washer | 1 |
| 12 | 9841502 | Outlet Valve Ball | 1 |

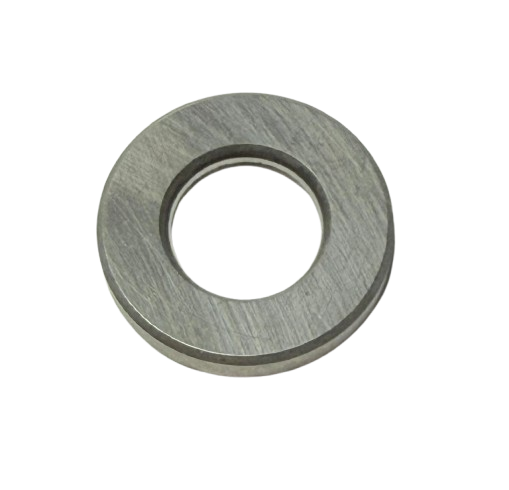

| 13 | 0294516 | Outlet Valve Seat | 1 |
| 14 | 800-336 | Outlet Valve Retainer | 1 |

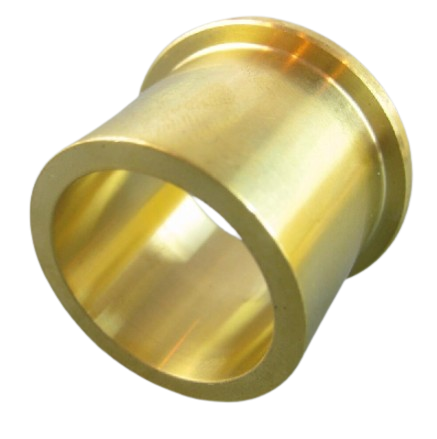

| 15 | 0555002 | Piston Bushing | 1 |
| 16 | 762-103 | Nylon Washer | 1 |
| 17 | 800-442 | Inlet Valve Cage | 1 |
| 18 | 51519 | Inlet Valve Ball | 1 |
| 19 | 00310 | Inlet Valve Seat | 1 |

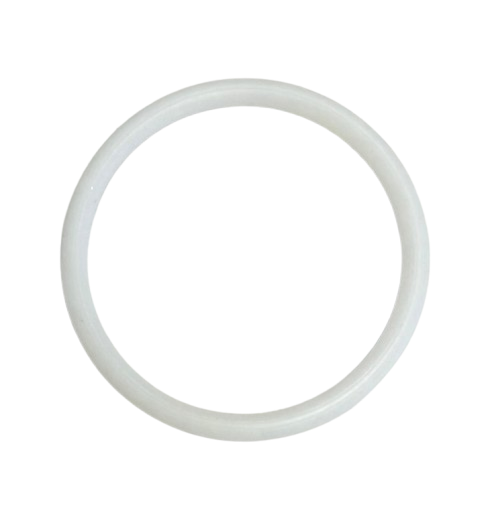

| 20 | 9871218 | PTFE O-Ring | 1 |
| 21 | 0551661 | Inlet Valve Housing, Long Tube, Upright Cart | 1 |
| 21 | 0551662 | Inlet Valve Housing, Short Tube, Upright Cart | Alternative |
| 21 | 0551663 | Inlet Valve Housing, Low Boy Cart | 1 |

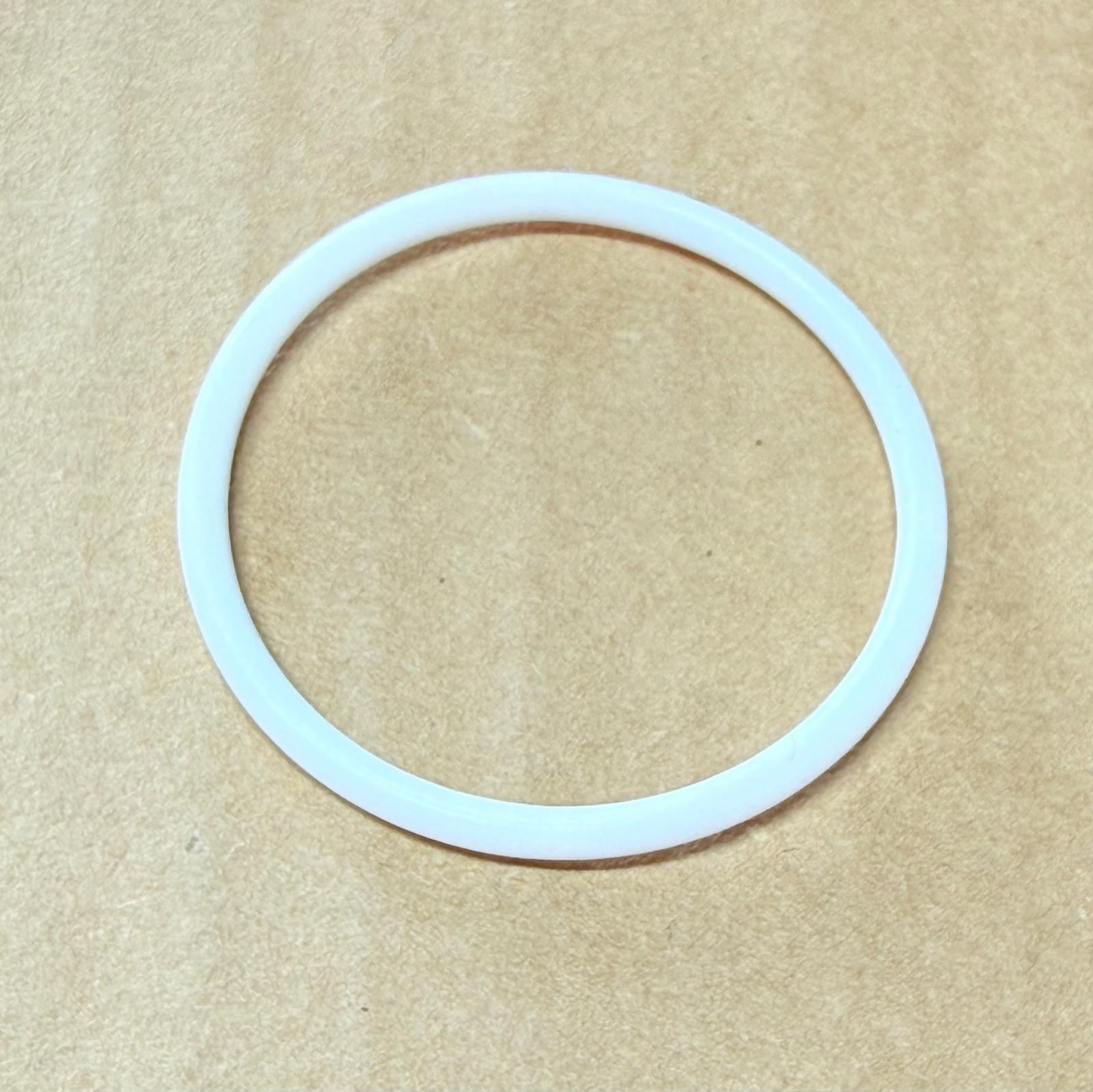

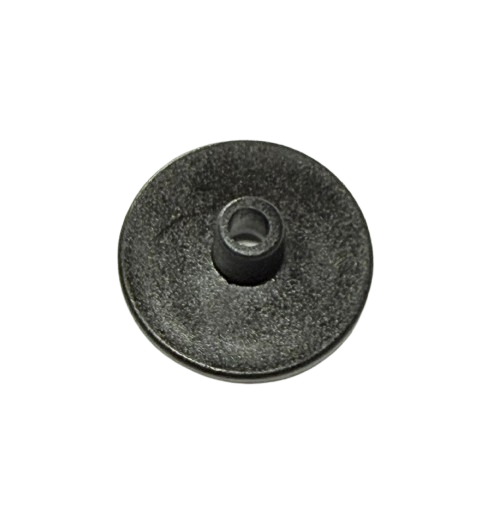

| 22 | 704-297 | Filter Seal | 1 |
| 23 | 757-105 | Filter Support Spring | 1 |
| 24 | 702-251 | Adapter | 1 |

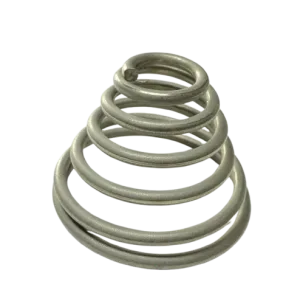

| 25 | 730-083 | Filter Spring | 1 |
| 26 | 730-067 | Filter | 1 |
| 27 | 704-252 | Filter Housing | 1 |

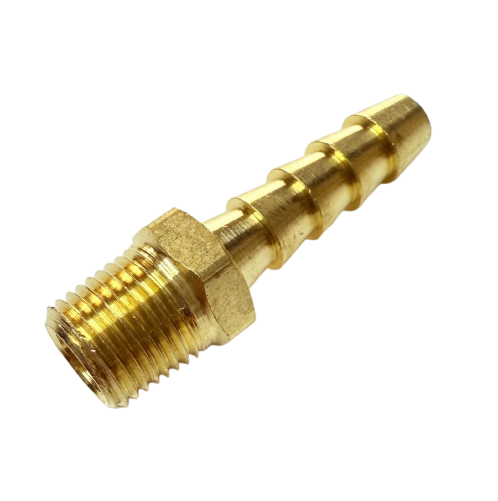

| 28 | 193-200 | Return Hose Fitting, 1/8 inch | 1 |
| 29 | 705-120A | Piston Assembly, includes items 8 through 14 | 1 |
How the Titan Advantage 600 Fluid Section Works
Piston and Pump Packings
The reciprocating piston moves coating material through the pump. Upper and lower packings provide sealing around the piston and help maintain effective pumping pressure.
Inlet and Outlet Valves
The inlet and outlet valve balls, cages and seats control fluid direction. Debris or worn sealing surfaces may prevent proper priming or pressure development.
Filter and PRIME/SPRAY Valve
The manifold filter captures debris in the pressurized fluid stream, while the PRIME/SPRAY valve directs material through the appropriate priming or spraying flow path.
How to Choose the Correct Titan Advantage 600 Pump Part
Verify Your Sprayer
Confirm the Titan Advantage 600 model and record its identification details.
Check the Configuration
Identify the upright-cart, stand or low-boy arrangement before selecting the complete fluid section or inlet housing.
Match the Diagram
Locate the damaged part and compare its factory callout with the listed Titan part number.
Select Part or Kit
Compare individual components, repacking kits, filter assemblies and piston assemblies before purchasing.
Titan Advantage 600 Fluid Section Troubleshooting Guide
These symptoms identify possible inspection areas. A fluid-delivery problem can also originate in the suction system, spray gun, hose or pressure controls.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Sprayer will not prime | Inlet valve ball, seat, suction system and PRIME/SPRAY valve | Check for blockages, air leaks and valve seating problems. |
| Sprayer will not maintain pressure | Pump packings, inlet/outlet valves and piston rod | Inspect for internal leakage, worn seats and damaged sealing surfaces. |
| Paint leaks from the upper pump area | Upper packing assembly and piston rod | Inspect packing wear and piston surface condition. |
| Material flows through return hose in SPRAY mode | 0507690 PRIME/SPRAY valve | Inspect the valve for leakage or improper operation. |
| Irregular pressure or spray pattern | 730-067 filter, valves, spray tip and pressure controls | Inspect filters and valve components before replacing major assemblies. |
| Debris repeatedly blocks fluid flow | Filter assembly, inlet screen and coating material | Clean the fluid path and replace damaged filtration components. |
| Piston rod is visibly scored | 800-452 piston rod and pump packings | Inspect both the rod and sealing components for related damage. |
Repack, Rebuild or Replace Your Titan Advantage 600 Fluid Section?
Repack the Pump
When the pump manifold and piston remain serviceable but packings are worn, Titan 0551677 provides the factory-specified repacking components.
Service the Valves and Filter
Inspect the inlet and outlet balls, cages and seats for wear or debris. Check the filter element and associated seals and springs for restriction or damage.
Replace the Piston or Manifold
A scored piston or damaged manifold may require component replacement. Confirm the correct OEM assembly and configuration before purchasing.
Explore Related Titan Advantage 600 Replacement Parts
Use these related categories when troubleshooting involves the suction system, gearbox, motor or complete sprayer assembly.
Browse the complete Titan Advantage 600 Electric Piston Pump Parts Directory.
Titan Advantage 600 Fluid Section Compatibility
Titan identifies fluid section assembly 0558377A for the stand and low-boy cart configurations and fluid section assembly 0558376A for the upright-cart configuration.
The factory fluid-section diagram also identifies different inlet valve housings at item 21: Titan 0551661 for the upright-cart long-tube arrangement, 0551662 for the upright-cart short-tube arrangement and 0551663 for the low-boy cart.
AllTitanParts lists 0551661 and 0551663 in this category. Verify the required inlet configuration before purchasing, especially when replacing the complete fluid section or the inlet housing.
The manufacturer identifies 0551605 as the filter assembly, 0551677 as the repacking kit and 705-120A as the piston assembly. Use their specified kit contents to determine whether an individual part or complete service kit is appropriate.
Some individual Titan fluid-section components are shared across multiple sprayer families, but shared part numbers do not establish that complete pump assemblies are interchangeable.
Titan Advantage 600 Fluid Section Maintenance and Safety
Switch off the sprayer, engage the spray gun trigger lock, follow Titan's complete pressure-relief procedure and disconnect electrical power before servicing the fluid section.
The Advantage 600 has a maximum operating pressure of 3,100 PSI. Never loosen pressurized fluid connections or use your hand to check for leaks. High-pressure fluid injection injuries require immediate emergency medical attention.
Clean and inspect the inlet and outlet valve balls and seats for debris or wear. Follow Titan's instructions when servicing or replacing these components.
When repacking the fluid section, observe the manufacturer's packing orientation instructions. Titan specifies that the upper packing's raised lip faces downward and the lower packing's large beveled edge faces upward.
Inspect the piston rod for scoring or wear before installing new packings. Damaged piston surfaces may cause premature sealing problems.
Check the manifold filter and related components regularly. Replace damaged seals, springs or filter elements with the correct OEM references.
Use only compatible coatings and cleaning materials. Follow Titan's warnings regarding incompatible solvents and coating chemistry.
After reassembly, verify that all connections are secure and perform the manufacturer's operational leak check before returning the sprayer to service.
Titan Advantage 600 Fluid Section Assembly Parts FAQ
Answers to common questions about Titan Advantage 600 pump packings, pistons, inlet valves, outlet valves, filters and fluid section compatibility.
What parts are included in the Titan Advantage 600 Fluid Section Assembly?
The fluid section includes the pump manifold, piston rod, upper and lower packings, inlet and outlet valve components, PRIME/SPRAY valve, fluid filter and related seals and fittings. The exact contents of a purchased assembly depend on its part number.
What is the Titan Advantage 600 fluid section assembly part number?
Titan identifies 0558377A for the stand and low-boy configuration and 0558376A for the upright-cart configuration. Verify your equipment before ordering a complete assembly.
Which repacking kit fits the Titan Advantage 600?
Titan 0551677 is the factory fluid-section repacking kit. The manual identifies included components corresponding to diagram items 2, 3, 7, 9, 12, 16, 18 and 20.
What is Titan 705-120A?
Titan 705-120A is the piston assembly identified as item 29 in the factory diagram. Titan specifies that it includes items 8 through 14.
Why does my Titan Advantage 600 lose pressure?
Possible causes include worn pump packings, damaged piston surfaces, leaking valve seats, contaminated valve balls, clogged filters, suction-side air leaks or problems with the PRIME/SPRAY valve. Inspect the complete fluid-delivery system before replacing parts.
What is the Titan Advantage 600 filter assembly part number?
Titan 0551605 is the complete filter assembly. The manufacturer identifies it as including fluid-section diagram items 22 through 27.
Are Titan Advantage 600 upright and low-boy fluid sections interchangeable?
The manufacturer lists different complete fluid-section numbers and inlet housing arrangements for the configurations. Do not assume interchangeability without a verified Titan cross-reference.
Where can I buy genuine Titan Advantage 600 Fluid Section Assembly Parts?
Shop Titan Advantage 600 fluid-section replacement parts at AllTitanParts. Compare the OEM diagram and order piston assemblies, repacking kits, valve parts, pump filters, seals and other listed components.
