Titan Advantage 600 Low Boy Cart Assembly Parts
Buy genuine Titan Advantage 600 Low Boy Cart Assembly Parts at AllTitanParts. Shop replacement wheels, wheel spacers, hub caps, handle sleeves, snap buttons, mounting fasteners and drip cups designed for the low-boy cart configuration of your Titan electric airless paint sprayer.
Use the factory exploded parts diagram to identify the correct component, compare original Titan part numbers and find the replacement hardware needed to restore cart mobility, support and handling.
Maintain Your Titan Advantage 600 Low Boy Cart
The Titan Advantage 600 low-boy cart provides a wheeled support structure for transporting and positioning the airless paint sprayer. Its low-profile frame, wheels, mounting brackets and handle assembly help keep the equipment supported during normal movement and stationary operation.
The cart assembly uses multiple serviceable components. Wheels and spacers support rolling movement, hub caps help retain the wheel arrangement, and mounting brackets connect designated components to the frame. The handle assembly includes sleeves, washers, roll pins and snap buttons used in its construction.
The factory diagram also identifies a drip cup and its mounting screw. These parts are separate from the fluid section and should be selected using their own OEM references.
Jobsite transportation, repeated handling and normal service can expose cart components to wear, impact and damage. A worn wheel, missing spacer, damaged snap button or loose mounting fastener may affect mobility or handling.
AllTitanParts offers individual genuine Titan replacement components so you can service the affected cart hardware without automatically replacing the complete sprayer or cart structure.
Shop Titan Advantage 600 Low Boy Cart Replacement Parts
Browse commonly needed components for the wheel system, handle assembly and cart hardware.

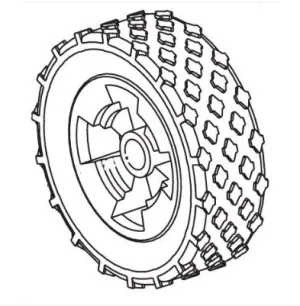

Titan 0270394 Wheel
Genuine replacement wheel for the Advantage 600 low-boy cart. Inspect when the wheel is cracked, damaged or no longer rolls correctly.
Diagram item: 4
OEM quantity: 2
SHOP WHEELS →Titan 0294534 Wheel Spacer
Factory wheel spacer used to maintain the specified spacing in the wheel arrangement. Check for missing or damaged spacers during wheel service.
Diagram item: 3
OEM quantity: 4
SHOP WHEEL SPACERS →Titan 9890104 Hub Cap
OEM replacement hub cap listed as replacing Titan 704-355. Inspect when a cap is missing, loose or damaged.
Diagram item: 5
OEM quantity: 2
SHOP HUB CAPS →Titan 9841504 Snap Button
Factory snap button associated with the cart handle assembly. Inspect if the handle does not engage or retain its intended position.
Diagram item: 17
OEM quantity: 2

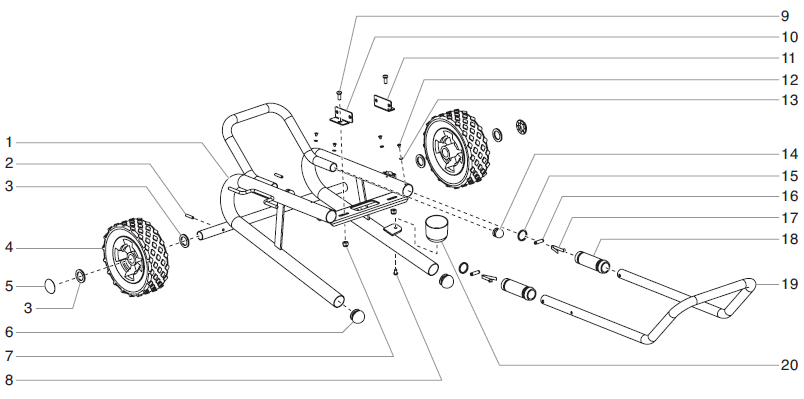

SHOP SNAP BUTTONS →Titan Advantage 600 Low Boy Cart Assembly Parts Diagram
The official Titan Advantage 600 manual identifies 20 numbered cart positions. The table below distinguishes the factory references from the individual products currently displayed in this AllTitanParts category.
| Item | Titan Part Number | Factory Component | Factory Qty. | Category Listing |
|---|---|---|---|---|
| 1 | 0551608 | Cart Weldment, includes items 6 and 14 | 1 | Confirm availability |
| 2 | 704-291 | Roll Pin | 2 | Confirm availability |
| 3 | 0294534 | Wheel Spacer | 4 | Listed |
| 4 | 0270394 | Wheel | 2 | Listed |
| 5 | 9890104 | Hub Cap | 2 | Listed; replaces 704-355 |
| 6 | 806-039 | Plug | 2 | Confirm availability |
| 7 | 0295615 | Lock Nut | 2 | Confirm availability |
| 8 | 9805230 | Drip Cup Screw | 1 | Listed |
| 9 | 773-918 | Screw | 2 | Listed |
| 10 | 0551551 | Left Mounting Bracket | 1 | Confirm availability |
| 11 | 0551552 | Right Mounting Bracket | 1 | Confirm availability |
| 12 | 856-921 | Screw | 4 | Listed |
| 13 | 856-002 | Washer | 4 | Listed |
| 14 | 806-033 | Plug | 2 | Confirm availability |
| 15 | 590-506 | Handle Washer | 2 | Listed |
| 16 | 590-508 | Roll Pin | 2 | Listed |
| 17 | 9841504 | Snap Button | 2 | Listed |
| 18 | 590-504 | Handle Sleeve | 2 | Listed |
| 19 | 0551609 | Handle Assembly, includes items 12, 13 and 15 through 18 | 1 | Confirm availability |
| 20 | 700-1041 | Drip Cup | 1 | Listed |
How the Titan Advantage 600 Low Boy Cart Components Work
Wheel and Hub Components
The wheels support movement, while the wheel spacers and hub caps form part of the factory wheel mounting arrangement. Inspect these components together when servicing damaged wheels.
Handle Assembly
The handle assembly uses sleeves, washers, roll pins, snap buttons and mounting hardware. These components help maintain the intended handle connection and movement.
Frame and Mounting Hardware
The cart weldment and mounting brackets support the sprayer assembly. Screws, washers, lock nuts and plugs serve designated fastening or protective functions.
How to Choose the Correct Titan Low Boy Cart Replacement Part
Confirm Your Model
Check that your sprayer is a Titan Advantage 600 and record its model information.
Verify Low Boy Configuration
Confirm that your equipment has the low-profile cart rather than the upright-cart arrangement.
Match the Diagram
Identify the damaged component using its factory callout and exact Titan part number.
Check Before Ordering
Confirm package quantity, replacement numbers and current product availability.
Titan Advantage 600 Low Boy Cart Troubleshooting Guide
Use the following inspection guidance to identify possible cart hardware issues before ordering replacement parts.
| Observed Condition | Parts to Inspect | Recommended Action |
|---|---|---|
| Wheel is cracked or damaged | 0270394 wheel | Inspect the wheel and replace it if damaged. |
| Wheel has excessive side movement | 0294534 spacers, 9890104 hub cap and associated hardware | Check for missing, worn or incorrectly installed components. |
| Wheel does not roll smoothly | Wheel, spacers and mounting arrangement | Inspect for damage, debris or mechanical interference. |
| Handle does not lock correctly | 9841504 snap button, 590-508 roll pin and handle assembly | Check retention hardware and replace damaged parts. |
| Handle connection feels loose | 590-504 sleeve, 590-506 washer, 856-921 screw and 856-002 washer | Inspect the handle joint and verify proper assembly. |
| Sprayer shifts on the cart | 0551551 and 0551552 mounting brackets and fasteners | Inspect mounting connections and frame condition before use. |
| Drip cup is loose or damaged | 700-1041 drip cup and 9805230 screw | Check the cup and its mounting screw for damage. |
Plan Your Advantage 600 Low Boy Cart Repair
Wheel and Hub Service
When replacing a wheel, inspect its spacers, cap and retaining hardware. Replace damaged or missing components using the factory references.
Handle Hardware Repair
For handle-related problems, inspect snap buttons, sleeves, washers and roll pins before considering replacement of the complete handle assembly.
Cart Frame Inspection
If the frame or mounting brackets are bent or cracked, stop using the cart until the structure has been inspected and suitable repair parts identified.
Explore Related Titan Advantage 600 Parts
Use these related assembly categories to locate replacement components for the rest of your Advantage 600 sprayer.
Browse the Titan Advantage 600 Electric Piston Pump Parts Directory.
Titan Advantage 600 Low Boy Cart Compatibility
The components on this page correspond to the low-boy cart configuration shown in the Titan Advantage 600 factory parts documentation. The low-boy arrangement uses its own cart weldment, handle assembly, mounting brackets and wheel components.
The original factory diagram identifies cart weldment 0551608 and handle assembly 0551609. Individual service components include wheel 0270394, spacer 0294534, hub cap 9890104, snap button 9841504 and handle sleeve 590-504.
AllTitanParts identifies 9890104 as replacing original hub cap 704-355. Keep the replacement reference when searching by an older Titan part number.
The Advantage 600 upright cart uses a different frame and handle arrangement. Some small hardware components may appear in both diagrams, but that does not mean the complete cart assemblies are interchangeable.
Confirm your equipment configuration, original component and factory diagram position before ordering. If your part number is not listed, contact AllTitanParts for assistance with availability or replacement identification.
Titan Advantage 600 Low Boy Cart Maintenance and Safety
Turn off the sprayer, unplug its power cord and perform the manufacturer's pressure-relief procedure before maintenance or disassembly.
Place the equipment on a stable, level surface before removing wheels, handle components or mounting hardware. Support the cart securely so it cannot roll or tip during repair.
Inspect wheels for cracks, deformation or damage. Check wheel spacers and retaining hardware whenever a wheel is removed.
Examine handle snap buttons, sleeves, roll pins and washers for wear. Do not transport the sprayer using a handle that fails to engage or remain secured.
Check the frame and mounting brackets for bending, cracks or loose connections. Do not operate or transport equipment with compromised structural support.
Install genuine replacement hardware in the correct factory positions. Follow Titan's service instructions for assembly and fastening requirements.
After completing the repair, confirm that both wheels rotate correctly, the handle is secure and the sprayer remains stable before returning it to service.
Titan Advantage 600 Low Boy Cart Assembly Parts FAQ
Find answers about replacement wheels, cart frames, handle components, hub caps, mounting hardware and genuine Titan part compatibility.
What parts are included in the Titan Advantage 600 Low Boy Cart Assembly?
The factory diagram identifies a cart weldment, wheels, wheel spacers, hub caps, handle assembly, mounting brackets, plugs, screws, washers, roll pins, snap buttons and a drip cup. The contents of a purchased replacement assembly may differ from the complete factory diagram.
What is the replacement wheel part number for the Advantage 600 Low Boy?
Titan 0270394 is the wheel identified as item 4 in the factory low-boy cart diagram. The original assembly uses two wheels.
Does Titan 9890104 replace Titan 704-355?
Yes. AllTitanParts identifies Titan 9890104 as the replacement hub cap for original part number 704-355. It appears as item 5 in the low-boy cart diagram.
What is the Titan Advantage 600 low-boy cart frame part number?
Titan 0551608 is the cart weldment identified as item 1 in the factory diagram. It includes the factory-referenced plug positions 6 and 14. Confirm current availability before ordering.
Which handle assembly fits the Titan Advantage 600 Low Boy?
Titan 0551609 is the complete handle assembly identified as item 19. The factory diagram references screws, washers, handle sleeves, roll pins and snap buttons associated with that assembly.
Why does my Titan Advantage 600 cart handle feel loose?
Possible causes include worn sleeves, damaged washers, missing roll pins, loose fasteners or a defective snap button. Inspect the complete handle connection before purchasing replacement parts.
Can I use Advantage 600 upright-cart parts on the low-boy cart?
Some individual hardware references are shared, but the frame, wheel arrangement and handle assemblies differ. Only use a part across configurations when its exact OEM reference and fitment are confirmed.
Where can I buy genuine Titan Advantage 600 Low Boy Cart Assembly Parts?
Shop genuine Titan Advantage 600 low-boy cart parts at AllTitanParts. Compare the factory exploded diagram and order replacement wheels, hub caps, spacers, handle hardware, fasteners and drip cups using the correct part numbers.
Shop Titan Advantage 600 Low Boy Cart Parts Today
Find genuine Titan replacement wheels, hub caps, wheel spacers, handle sleeves, snap buttons, washers, screws and drip cups. Match your factory part number and order the components needed to repair your Advantage 600 low-boy cart.
BUY ADVANTAGE 600 LOW BOY CART PARTS →Need help identifying a replacement part? Call 713-931-0006.
