Find the Right Advantage 600 Part Without the Guesswork
When an Advantage 600 needs service, accurate parts identification can make the difference between a straightforward repair and unnecessary downtime. Instead of searching through one large parts list, this catalog organizes genuine Titan OEM components around the machine's individual factory assemblies.
Start with the section of the sprayer that needs attention, open the corresponding exploded diagram, locate the numbered component and verify its Titan part number. This makes it easier to move from diagnosis to identification to purchase whether you need a small seal, filter or fastener, a piston component, drive-system part, motor component or complete service assembly.
Titan Advantage 600 Technical Specifications
Use these published specifications as a quick technical reference when identifying, servicing or selecting parts for the Advantage 600.
| Specification | Titan Advantage 600 |
|---|---|
| Equipment Type | Electric airless piston pump |
| Maximum Delivery | 0.70 GPM / 2.65 LPM |
| Maximum Operating Pressure | 3,100 PSI / 21.4 MPa |
| Maximum Tip Size | 0.027 inch — single gun |
| Motor | 1.70 HP PMDC brushless motor |
| Electrical Supply | 120 VAC, 60 Hz, 12.5 A max |
| Published Manual Weight | 60 lb / 27.2 kg |
| Maximum Hose Length | 300 ft / 91.4 m |
Check Your Advantage 600 Model Before Ordering
Titan documentation identifies 0552058 as the Advantage 600 upright/high-rider configuration and 0552059 as the Low Boy configuration. Because cart, frame and mounting components can differ by configuration, confirm the model and compare the appropriate exploded diagram before ordering configuration-specific parts.
Built for Steady Residential, Maintenance & Commercial Spray Work
The Advantage 600 provides greater material delivery than smaller Advantage platforms and is suited to contractors and maintenance teams that need a serviceable electric airless sprayer for recurring residential, property-maintenance and commercial coating work.
Its 0.70 GPM output, 3,100 PSI maximum operating pressure and 0.027-inch maximum single-gun tip provide a useful working envelope for compatible architectural coatings. Always match the coating, tip, filter and hose configuration to the manufacturer's recommendations and the sprayer's rated limits.
Choose Your Titan Advantage 600 Parts Assembly
Go directly to the part of the sprayer you are repairing. Each factory assembly helps narrow the parts search and connects replacement components with their position on the machine.

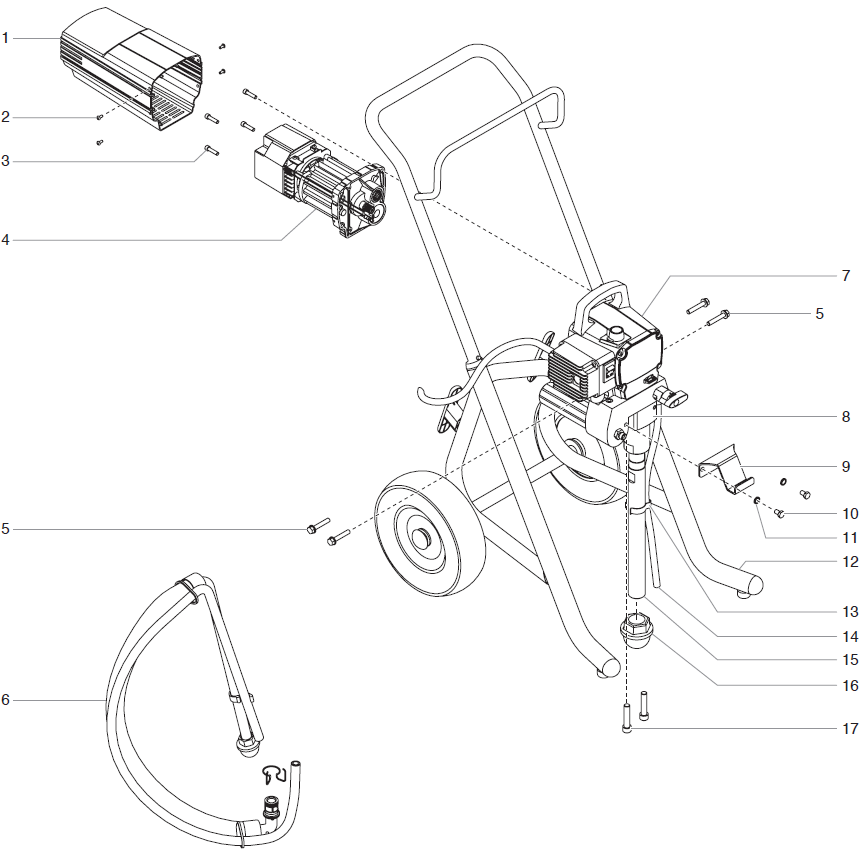

Advantage 600 Main Assembly Parts
Start with the main assembly when you need an overall machine reference or are identifying components that connect the major systems of the Advantage 600. Compare the numbered factory drawing with your sprayer before selecting a replacement component.

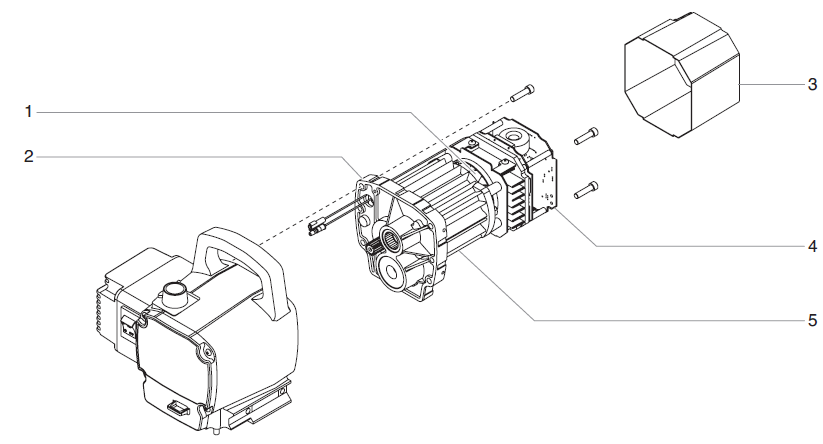

Shop Advantage 600 Main Assembly Parts →Advantage 600 Motor Assembly Parts
Service the electrical drive system with genuine Titan motor components and associated hardware. Use this section when inspecting the motor, electronic components, cooling-related parts and other components associated with supplying mechanical power to the pumping system.

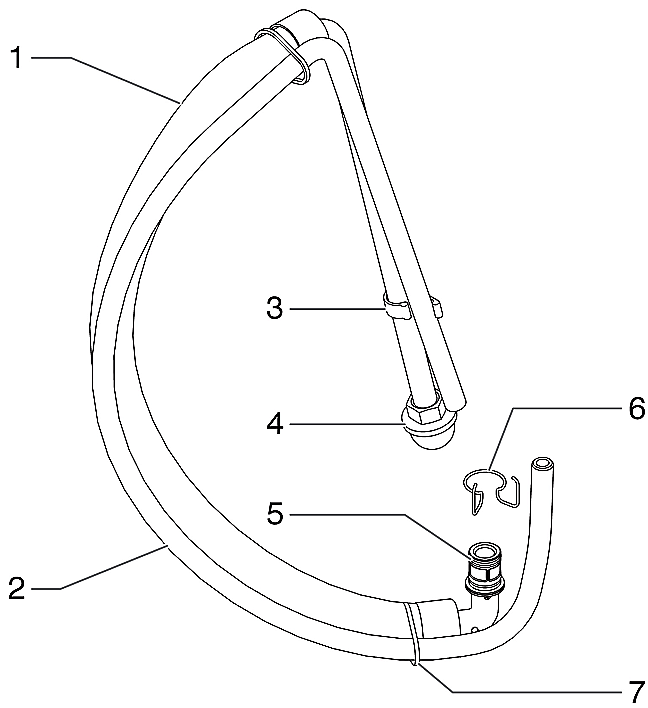

Shop Motor Assembly Parts →Advantage 600 Suction Set Assembly Parts
Maintain the coating-intake path with genuine OEM suction and return components, seals, clips and related hardware. Inspect this assembly when troubleshooting restricted material pickup, air entering the suction path or difficulty drawing coating into the pump.
Shop Suction Set Parts →Advantage 600 Gear Box Assembly Parts
Find drive and pressure-control components associated with transferring motor output to the fluid section. Use the exploded gearbox drawing to identify gears, slider and crankshaft components, controls, transducer-related parts and associated mounting hardware.

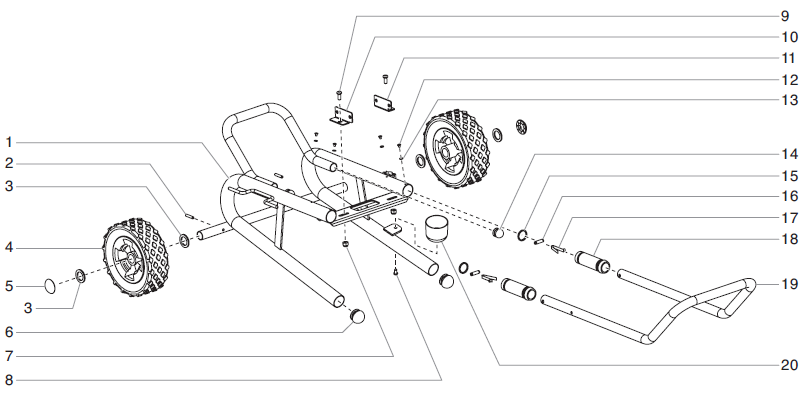

Shop Gear Box Assembly Parts →Advantage 600 Low Boy Cart Assembly Parts
Shop structural and mobility components associated with the Advantage 600 Low Boy configuration. Use the Low Boy exploded diagram to identify the correct cart, wheel, spacer, pin, fastener and mounting components before ordering.

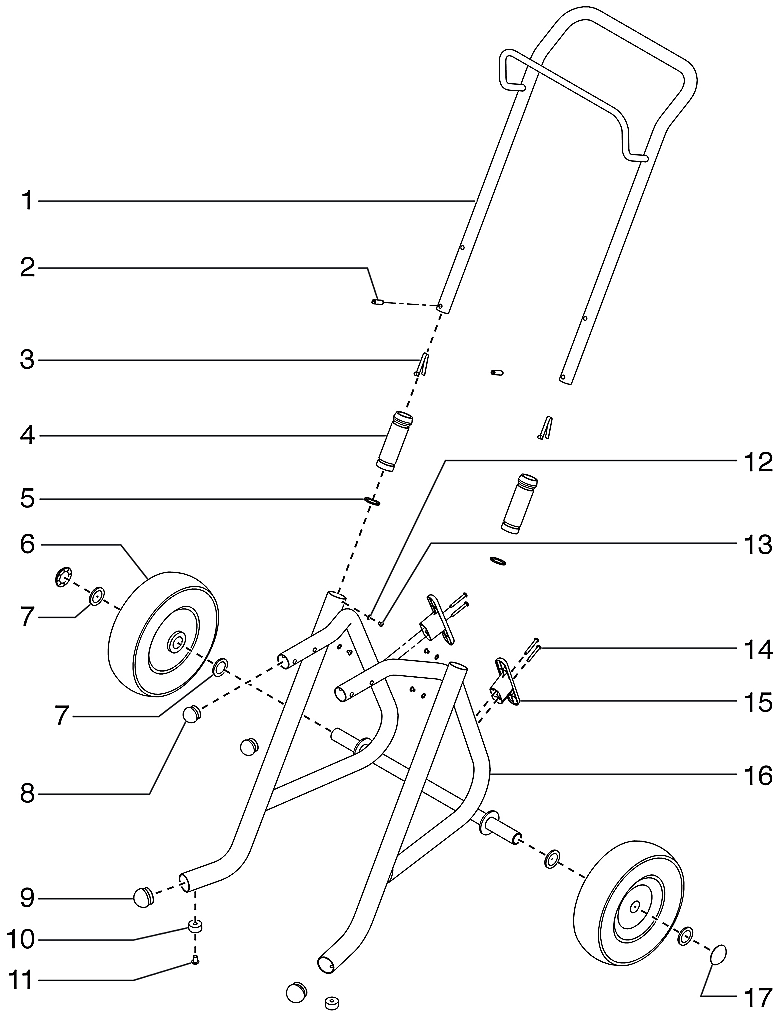

Shop Advantage 600 Low Boy Cart Parts →Advantage 600 Upright Cart Assembly Parts
Find frame, handle, wheel, axle and mounting components used with the Advantage 600 upright/high-rider configuration. The factory exploded diagram helps identify each structural component and its corresponding Titan OEM part number.
Shop Advantage 600 Upright Cart Parts →Advantage 600 Fluid Section Assembly Parts
The fluid section contains the pumping, sealing, filtering and valve components responsible for material movement and pressure generation. It is an important inspection area when troubleshooting leakage, poor priming, pressure loss or worn pump components.
Use the factory diagram to identify piston and packing components, inlet and outlet valve parts, filter components, PRIME/SPRAY bypass valve parts and other genuine Titan OEM fluid-section service components.
Shop Fluid Section Parts →Go Directly to Your Advantage 600 Assembly
Already know which area you need? Jump directly to the applicable parts diagram.
Service the Component — Keep Your Advantage 600 Working
The Advantage 600 is divided into serviceable motor, drive, suction, fluid and cart assemblies. For a machine that remains suitable for your workload, identifying the worn component can provide a practical repair path instead of replacing the complete sprayer unnecessarily.
Use the exploded drawing and Titan OEM part number together, and inspect neighboring wear components while the machine is open. A careful inspection can help distinguish a worn seal, valve, drive component or suction problem from a larger assembly failure.
Before You Order an Advantage 600 Part
Four quick checks can reduce ordering errors and help make your repair more efficient.
Check whether you have the upright/high-rider or Low Boy configuration, especially when ordering cart-specific parts.
Go directly to the motor, gearbox, suction set, fluid section or appropriate cart assembly.
Locate the component on the exploded view and match its numbered position to the parts listing.
Use the genuine Titan part number as the primary identifier rather than relying on visual similarity.
Common Areas to Inspect During Advantage 600 Service
Symptoms can point you toward an assembly for inspection, but they do not by themselves confirm which component has failed.
| Observed Condition | Areas to Inspect | Useful Parts Category |
|---|---|---|
| Difficulty priming or drawing material | Suction set, inlet path, PRIME/SPRAY valve and fluid-section components | Suction Set / Fluid Section |
| Fluid leakage or reduced pressure | Piston, packings, inlet/outlet valves, filter and related sealing components | Fluid Section |
| Abnormal drive operation or noise | Motor, crankshaft/gear, slider, gears and associated drive components | Motor / Gear Box |
| Cart is unstable or difficult to move | Wheels, spacers, pins, cart frame, handle and mounting hardware | Upright Cart / Low Boy Cart |
Genuine Titan OEM
Shop manufacturer-supplied components by Titan part number and factory diagram for more confident parts identification.
Diagram-Based Shopping
Use exploded views to understand where a component fits and identify related parts that may deserve inspection during service.
Small Parts to Assemblies
Find seals, O-rings, clips, filters and fasteners alongside piston, drive, motor, suction and other major service components.
Parts Identification Support
When the part number or diagram position is unclear, confirm the machine model and component before ordering rather than relying on appearance alone.
Looking for Another Titan Advantage Sprayer?
AllTitanParts also organizes replacement parts for other Titan Advantage models. Always select your exact sprayer before ordering because components that look similar across Advantage machines are not automatically interchangeable.
Browse All Titan Advantage Sprayer Parts →Shop Genuine Titan Advantage 600 Replacement Parts
From filters, seals and suction components to motor, gearbox, fluid-section and cart parts, use the factory assembly diagrams to locate the genuine Titan OEM components required for your Advantage 600 repair.
Browse Advantage 600 Parts →Titan Advantage 600 Parts FAQs
Quick answers for contractors, technicians, maintenance departments and equipment owners.
