Titan Advantage 600 Motor Assembly Parts
Buy genuine Titan Advantage 600 Motor Assembly Parts for your electric airless paint sprayer. Find the Titan 806-230A complete replacement motor, 705-063 electronic cover and factory-referenced motor cooling and electronic control components.
Whether you are replacing a damaged electronic cover, investigating a motor fault or servicing the motor cooling system, use the factory exploded parts diagram to identify the correct Titan part number before ordering.
Keep Your Titan Advantage 600 Motor System in Working Condition
The Titan Advantage 600 uses a permanent-magnet DC brushless electric motor to drive the mechanical gearbox and piston pump. The motor supplies rotational power, while the gearbox converts that motion into the reciprocating action required by the fluid section.
The motor assembly incorporates factory-specified cooling, structural and electronic components. Titan identifies a fan, front end bell assembly, electronic cover, electronic control assembly and complete motor assembly in the manufacturer parts diagram.
Motor-system faults can interrupt spraying operations, but a motor that fails to start does not automatically require complete replacement. Power supply issues, electronic control faults, mechanical drive problems and other conditions can produce similar symptoms.
AllTitanParts offers the listed OEM replacement components for the Advantage 600 motor system. Confirm the correct component and service requirements before purchasing, particularly when replacing electrical or electronic parts.
Shop Titan Advantage 600 Motor Replacement Components
Start with the replacement parts listed in this category, then use the OEM diagram to identify other factory-referenced components.
Titan 806-230A Complete Motor, 120V
Genuine replacement motor listed for the Advantage 600. AllTitanParts identifies it as replacing original motor part number 0551595. Confirm current package contents and electrical compatibility before purchase.
Current part number: 806-230A
Original reference: 0551595
SHOP COMPLETE MOTOR →Titan 705-063 Electronic Motor Cover
Factory-listed electronic cover used with the Advantage 600 motor assembly. AllTitanParts identifies it as replacing Titan 508558. Inspect for physical damage or compromised mounting before ordering.
Current part number: 705-063
Replaces: 508558
SHOP ELECTRONIC COVER →Titan 0551616 Motor Fan
The manufacturer identifies this fan as item 1 in the motor assembly diagram. Inspect for cracked blades, interference or visible damage. Confirm separate availability before ordering.
Factory part number: 0551616
Diagram position: 1
CHECK MOTOR PARTS →Titan Advantage 600 Motor Assembly OEM Parts Reference

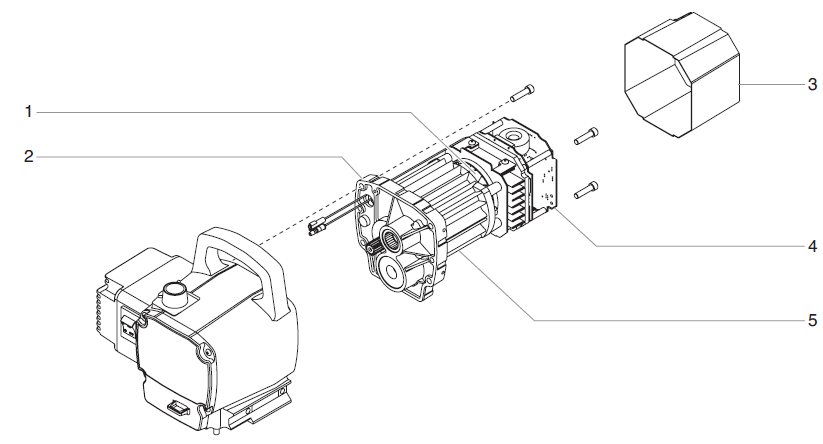

The official Titan Advantage 600 motor diagram identifies five numbered positions. The factory quantities describe the original assembly and do not establish individual retail package contents.
| Diagram Item | Titan Part Number | Factory Description | Quantity | Purchasing Guidance |
|---|---|---|---|---|
| 1 | 0551616 | Fan | 1 | Factory reference; confirm separate availability |
| 2 | 0551599 | Front End Bell Assembly | 1 | Factory reference; confirm separate availability |
| 3 | 705-063 | Electronic Cover | 1 | Listed by AllTitanParts; replaces 508558 |
| 4 | 0551612 | Electronic Control Assembly | 1 | Factory reference; confirm separate availability |
| 5 | 0551595 | Motor Assembly | 1 | AllTitanParts lists replacement 806-230A |
How the Titan Advantage 600 Motor Assembly Works
Brushless Motor Drive
The permanent-magnet DC motor supplies the rotational power required by the sprayer gearbox. Its brushless design does not use conventional carbon motor brushes.
Cooling and Mechanical Support
The fan helps move cooling air through the motor system, while the front end bell assembly forms part of the motor's mechanical construction.
Electronic Motor Control
The electronic control assembly forms part of the factory motor system. Its cover protects designated components from incidental contact and physical damage.
How to Select the Correct Titan Advantage 600 Motor Part
Confirm the Sprayer
Identify your Titan Advantage 600 model and confirm the equipment's electrical specification.
Diagnose the Fault
Have power supply, controls, cooling and mechanical drive conditions checked before replacing the motor.
Match the OEM Diagram
Locate the factory diagram item and verify its exact Titan part number.
Verify Replacement Details
Confirm supersession, assembly contents and availability before purchasing.
Titan Advantage 600 Motor Troubleshooting and Inspection Guide
These symptoms identify possible areas for professional diagnosis. They do not establish that a specific component has failed.
| Observed Condition | Possible Inspection Area | Recommended Approach |
|---|---|---|
| Motor does not start | Power supply, switch, electrical controls and motor assembly | Confirm proper electrical supply and obtain authorized electrical diagnosis. |
| Motor stops unexpectedly | Electrical supply, electronic control, overheating or mechanical load | Stop operation and investigate the cause before restarting. |
| Excessive motor noise | Fan, front end bell, motor and gearbox | Inspect for physical interference, damaged components or mechanical wear. |
| Cooling fan is damaged | 0551616 fan and surrounding components | Confirm fan condition and replacement availability before further use. |
| Electronic cover is cracked | 705-063 electronic cover and attachment points | Replace damaged protective parts after safely isolating power. |
| Motor runs but pump does not cycle | Gearbox, slider, crankshaft and fluid-section drive | Inspect mechanical drive components before replacing a working motor. |
| Sprayer runs but pressure is weak | Fluid section, valves, packings, filters and suction system | Diagnose the fluid path and pressure controls before attributing the problem to the motor. |
Choose the Right Motor Repair Approach
Replace the Electronic Cover
If the electronic cover is physically damaged but the underlying motor and control components are serviceable, Titan 705-063 may be the appropriate replacement.
Inspect Cooling Components
A cracked or obstructed cooling fan requires inspection. Titan identifies 0551616 as the factory fan, but separate purchasing availability must be confirmed.
Replace the Complete Motor
If an authorized diagnosis confirms motor failure, compare the original 0551595 reference with replacement 806-230A and verify the supplied assembly contents.
Explore Related Titan Advantage 600 Assemblies
Motor-related symptoms can originate in the mechanical drive or fluid section. Use these related assembly categories to identify the correct repair components.
Browse the complete Titan Advantage 600 Electric Piston Pump Parts Directory.
Titan Advantage 600 Motor Compatibility and Specifications
Titan's Advantage 600 manual identifies sprayer models 0552058 and 0552059. The documented equipment uses a 1.7 HP permanent-magnet DC brushless motor and a 120VAC, 60Hz electrical supply, with a maximum current of 12.5 amps.
The original motor assembly is identified as 0551595. AllTitanParts lists 806-230A as its complete 120V replacement. The manufacturer diagram also identifies electronic cover 705-063, fan 0551616, front end bell 0551599 and electronic control assembly 0551612.
Unlike brushed motor systems, the Advantage 600's documented brushless motor does not use a conventional carbon-brush replacement kit. Do not select brushes or capacitors from another Advantage model solely because the equipment names are similar.
Confirm the sprayer identification label, electrical requirements, current Titan replacement documentation and assembly contents before ordering.
Titan Advantage 600 Motor Service and Electrical Safety
Titan states that all electrical work should be performed by a Titan authorized service center. Electrical troubleshooting, electronic control replacement and motor repair should follow the manufacturer's service instructions.
Turn off the sprayer, unplug the power cord and perform the prescribed pressure-relief procedure before any maintenance. Turning off the motor does not automatically relieve fluid pressure.
Do not operate the sprayer with a damaged electronic cover, exposed electrical components, damaged power cord or compromised grounding connection.
Keep the motor cooling area free of excessive debris and inspect the fan for damage. Do not operate the sprayer if the fan is broken or interferes with surrounding components.
Use the electrical supply and grounded connection specified by Titan. Avoid undersized extension cords, improper adapters and unauthorized electrical modifications.
After an authorized repair, verify the installation and safe operation of the motor, electronic cover and mechanical drive before returning the equipment to service.
Titan Advantage 600 Motor Assembly Parts FAQ
Answers to common questions about the Advantage 600 complete motor, electronic cover, cooling fan, brushless technology and OEM compatibility.
What parts are included in the Titan Advantage 600 Motor Assembly?
The factory motor diagram identifies a fan, front end bell assembly, electronic cover, electronic control assembly and complete motor assembly. The original complete motor is listed as 0551595, with replacement 806-230A offered by AllTitanParts.
What is the Titan Advantage 600 complete motor replacement part number?
AllTitanParts lists Titan 806-230A as the 120V complete motor replacement for original part number 0551595. Confirm the current replacement details before ordering.
Does the Titan Advantage 600 motor use carbon brushes?
No. Titan specifies a permanent-magnet DC brushless motor for the Advantage 600. Conventional carbon-brush kits used on other sprayer models are not listed in its factory motor assembly.
What is the Advantage 600 motor fan part number?
Titan 0551616 is the fan identified as item 1 in the manufacturer motor assembly diagram. Confirm current availability before ordering it separately.
Which electronic motor cover fits the Titan Advantage 600?
Titan 705-063 is the factory-listed electronic cover. AllTitanParts identifies it as replacing part number 508558.
What is Titan 0551612 used for?
Titan 0551612 is the electronic control assembly identified in the Advantage 600 factory motor diagram. Electrical diagnosis and replacement should be performed by an authorized service center.
Why does my Titan Advantage 600 motor stop running?
Possible causes include electrical supply problems, control faults, excessive mechanical load or motor-related damage. A qualified technician should diagnose the cause before a complete motor is purchased.
Where can I buy genuine Titan Advantage 600 Motor Assembly Parts?
Shop genuine Titan Advantage 600 Motor Assembly Parts at AllTitanParts. Use the factory parts diagram to identify the complete motor, electronic cover or other motor component and confirm fitment before checkout.
Shop Titan Advantage 600 Motor Assembly Parts Today
Find the Titan 806-230A complete replacement motor, 705-063 electronic cover and factory motor parts references. Match the OEM part number and choose the component needed for your Advantage 600 repair.
BUY ADVANTAGE 600 MOTOR PARTS →Need help identifying a replacement part? Call 713-931-0006.
