Titan Advantage 600 Main Assembly Parts
Buy genuine Titan Advantage 600 Main Assembly Parts for your electric airless paint sprayer. Find OEM motor covers, complete motors, fluid-section assemblies, mounting screws, suction components, return tubes, inlet screens and cart hardware.
Restore worn or damaged sprayer components using the Titan Advantage 600 factory exploded parts diagram. Compare exact OEM part numbers, confirm your upright-cart or low-boy configuration and order the replacement components required for your repair.
Maintain Your Titan Advantage 600 With Factory Replacement Parts
The Titan Advantage 600 main assembly brings together the sprayer's motor, gearbox, fluid section, support structure and material-handling connections. These components work together to drive the pump, draw coating material into the fluid section and deliver pressurized material to the spray hose.
The electric motor powers the gearbox, which converts rotational motion into the reciprocating action required by the piston pump. The fluid section then moves coating material through its inlet and outlet valves. The suction and return components support priming and fluid circulation.
The main assembly also includes protective motor housing, mounting screws and configuration-specific support components. Titan documents separate upright-cart and low-boy arrangements, so the correct frame, suction and fluid-section parts must be selected for the equipment being repaired.
AllTitanParts provides individual genuine Titan replacement parts, allowing you to identify a damaged component and select the corresponding factory part rather than purchasing unrelated assemblies.
Shop Essential Titan Advantage 600 Main Assembly Components
Find factory-listed components for motor replacement, pump service, material intake and structural maintenance.
Titan 0558302 Motor Cover
Factory-listed protective motor cover. Inspect for cracks, damaged attachment points or missing fasteners before replacing.
Part Number: 0558302Titan 806-230A Complete Motor
120V complete motor listed for the Advantage 600. AllTitanParts identifies this replacement as superseding Titan 0551595.
Part Number: 806-230ATitan 0558377A Fluid Section
Factory-listed fluid-section assembly for the Advantage 600 upright-cart configuration. Verify the sprayer configuration before ordering.
Part Number: 0558377ATitan 710-046 Inlet Screen
OEM inlet screen for the upright-cart suction arrangement. Inspect when debris or restricted material intake affects priming.

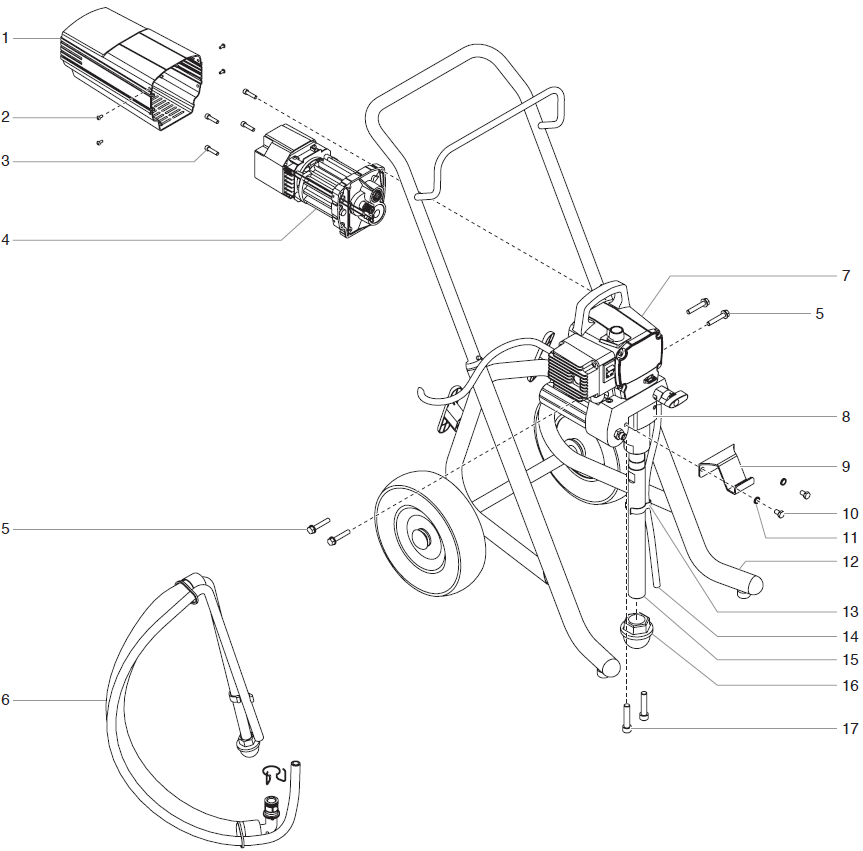

Part Number: 710-046Titan Advantage 600 Main Assembly OEM Parts Reference
The following factory reference covers the main assembly diagram, including upright-cart and low-boy variants. Some manufacturer diagram entries are complete subassemblies or alternate configurations rather than separate products on this page. Quantities refer to the factory assembly, not individual retail package contents.
| Diagram Item | Titan Part Number | OEM Component | Application |
|---|---|---|---|
| 1 | 0558302 | Motor Cover | Main assembly |
| 2 | 9805287 | Screw | Motor cover / main assembly |
| 3 | 9800308 | Screw | Main assembly fastening |
| 4 | 806-230A | Complete Motor, 120V | Current listed replacement; replaces 0551595 |
| 5 | 761-178 | Hex-Flange Screw | Upright-cart configuration |
| 5, low boy | 756-091 | Screw | Low-boy configuration; listed replacement 293518 |

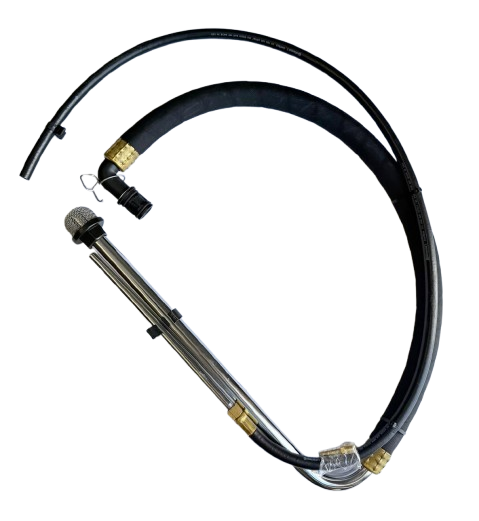

| 6 | 805-257A | Suction Set Assembly | Low-boy configuration |
| 7 | See Gear Box Assembly | Gear Box Assembly | Separate factory parts diagram |
| 8 | 0558377A | Fluid Section Assembly | Upright-cart configuration |
| 8, low boy | 0558376A | Fluid Section Assembly | Low-boy configuration |
| 9 | 0551443 | Pail Hook | Upright-cart only |
| 10 | 710-033 | Screw | Upright-cart only |
| 11 | 763-552 | Washer | Upright-cart only |
| 12 | 0551124 | Upright Cart Assembly | Separate cart subassembly |
| 13 | 730-334 | Hose Clip | Upright-cart only |
| 14 | 0551556 | Return Hose | Upright-cart only |
| 15 | 0509543 | Long Siphon Tube | Upright-cart option |

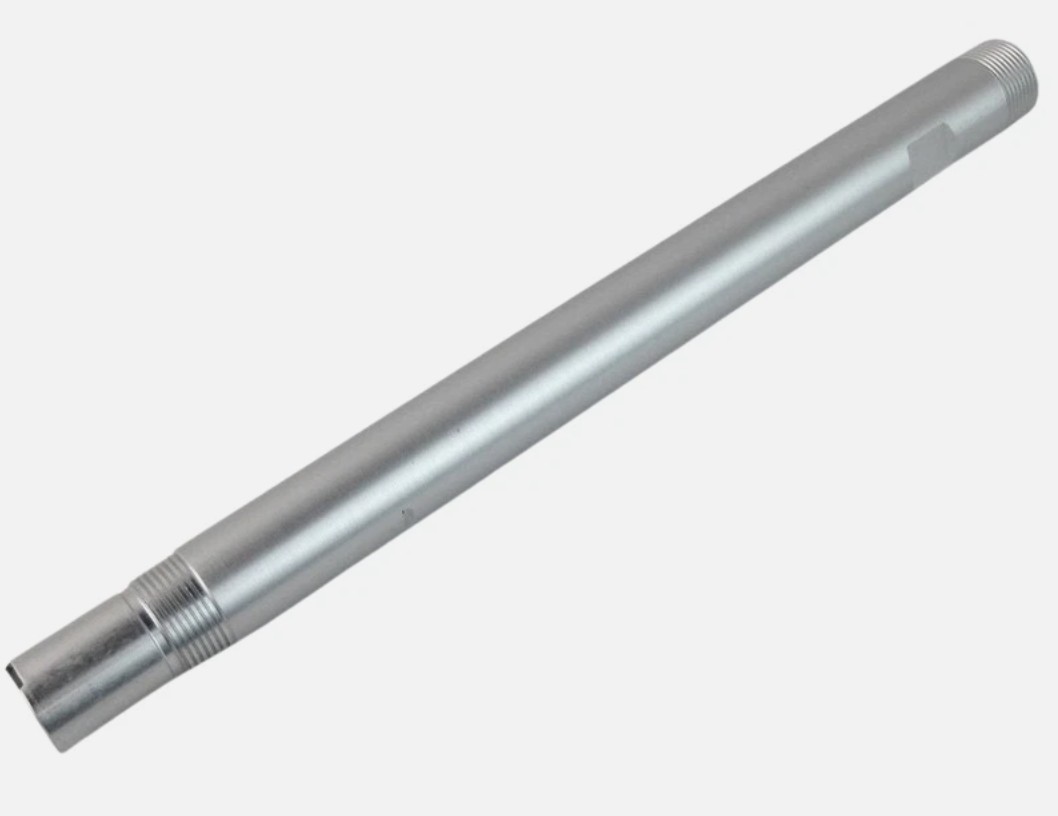

| 15, alternate | 0551663 | Short Siphon Tube | Upright-cart option |
| 16 | 710-046 | Inlet Screen | Upright-cart only |

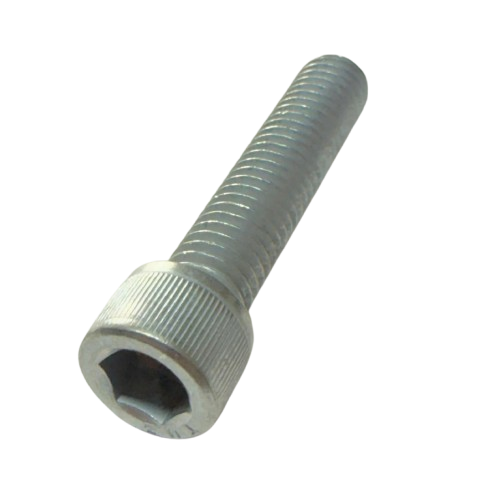

| 17 | 704-117 | Fluid Section Screw | Main assembly mounting |
| 18 | 0327226 | Return Hose Clamp | Low-boy only; not shown in main diagram |

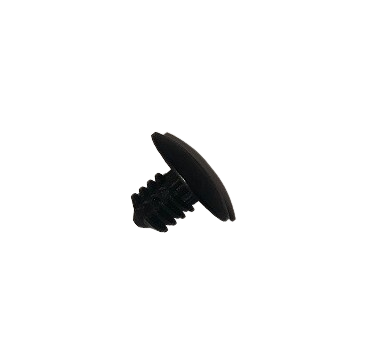

| 19 | 704-358 | Plug | Low-boy only; not shown in main diagram |
How the Titan Advantage 600 Main Assembly Works
Electric Motor and Gearbox
The motor supplies rotational power to the gearbox. The drive mechanism converts this motion into the reciprocating movement required by the piston pump.
Fluid Section and Pressure Delivery
The fluid section draws in coating material and delivers it under pressure through the outlet system. Correct packings and valve operation are essential to normal pumping.
Suction and Return Components
The inlet screen, siphon tube, suction set and return components help supply material to the pump and support the priming process.
How to Identify the Correct Titan Advantage 600 Replacement Part
Confirm Your Model
Verify that your equipment is a Titan Advantage 600 electric piston pump.
Identify the Frame
Determine whether your sprayer has the upright-cart or low-boy configuration.
Match the Diagram
Locate the component in the factory exploded view and match its Titan part number.
Verify Before Ordering
Confirm the replacement number, configuration, quantity and assembly contents.
Titan Advantage 600 Main Assembly Troubleshooting Guide
Use the following symptoms to identify possible inspection areas. A symptom alone does not confirm that a particular component has failed.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Sprayer motor does not operate | Power supply, motor assembly and electrical controls | Follow the factory troubleshooting procedure and have electrical faults inspected by a qualified technician. |
| Motor runs but pump does not cycle correctly | Gearbox, slider, crankshaft and pump connection | Inspect the drive mechanism for wear or mechanical damage. |
| Sprayer will not prime | Suction set, siphon tube, inlet screen and pump inlet valve | Check for air leaks, blockage, improper valve position and stuck inlet components. |
| Low or unstable spraying pressure | Fluid section, packings, valves, filter and spray tip | Inspect fluid-path restrictions and wear before replacing components. |
| Return hose is loose or damaged | 0551556 return hose and 730-334 hose clip | Verify the upright-cart configuration and replace damaged components. |
| Motor cover is cracked or loose | 0558302 cover and mounting screws | Inspect attachment points and replace damaged protective components. |
| Fluid section mounting is loose | 704-117 fluid-section screws and mounting surfaces | Inspect fasteners and attachment surfaces using Titan's service procedure. |
Repair Individual Components or Replace a Complete Assembly?
Motor and Protective Housing
Replace a damaged motor cover separately when the motor is otherwise serviceable. Electrical motor replacement should follow a confirmed diagnosis and the manufacturer's service guidance.
Fluid Section and Pump Service
Inspect internal wear components before selecting a complete fluid section. Confirm 0558377A for the upright cart or 0558376A for the low boy.
Suction and Mounting Hardware
Replace damaged inlet screens, return hoses, clips and fasteners individually when the rest of the assembly remains serviceable and the exact fitment is verified.
Shop Related Titan Advantage 600 Assemblies
Use the relevant manufacturer diagram when your repair involves a specific system.
Need the complete model directory? Browse Titan Advantage 600 Electric Piston Pump Parts.
Titan Advantage 600 Upright Cart vs. Low Boy Compatibility
Titan documents separate upright-cart and low-boy arrangements for the Advantage 600. These configurations share selected components but use different fluid-section assemblies and support hardware.
The upright-cart version uses fluid section 0558377A, upright cart assembly 0551124, pail hook 0551443 and its designated siphon and return components.
The low-boy version uses fluid section 0558376A, low-boy suction set 805-257A and its designated mounting hardware. A component appearing in the same Advantage family does not automatically fit both configurations.
Always compare the equipment model, configuration and exact factory part number. Contact AllTitanParts when a listing references a newer part number or an unconfirmed supersession.
Titan Advantage 600 Maintenance and Safety Guidance
Turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure before inspecting or replacing main assembly components.
Never loosen pressurized fluid fittings or use your hand to locate a high-pressure leak. High-pressure injection injuries require immediate emergency medical treatment.
Support the equipment securely when removing a fluid section, motor, cart component or mounting hardware. Do not operate the sprayer with damaged protective covers or unsecured assemblies.
Electrical motor and controller diagnosis should be performed by a qualified service technician following Titan's instructions.
Use the correct factory fasteners and follow manufacturer procedures for tightening and reassembly. Do not substitute hardware solely because the dimensions appear similar.
After servicing, inspect fluid connections, electrical protection and mounting points before returning the sprayer to operation.
Titan Advantage 600 Main Assembly Parts FAQ
Answers to common questions about genuine OEM parts, motor replacement, fluid sections, suction components and Advantage 600 fitment.
What parts are included in the Titan Advantage 600 Main Assembly?
The factory main assembly diagram covers the motor cover, motor assembly, gearbox, fluid section, suction components, mounting hardware and configuration-specific cart components. Individual parts and complete subassemblies are identified separately.
What is the Titan Advantage 600 motor replacement part number?
AllTitanParts lists Titan 806-230A as the 120V complete motor for the Advantage 600, replacing part number 0551595. Confirm the equipment's electrical specification before purchase.
Which fluid section fits the Advantage 600 upright cart?
Titan 0558377A is the factory-listed fluid section for the Advantage 600 upright-cart configuration.
What fluid section does the Advantage 600 low boy use?
Titan 0558376A is specified for the Advantage 600 low-boy configuration. Verify the correct model and assembly before ordering.
What is the Titan Advantage 600 motor cover part number?
Titan 0558302 is the motor cover listed as item 1 in the Advantage 600 main assembly diagram.
Can I use the same suction set on upright-cart and low-boy Advantage 600 sprayers?
Do not assume so. The factory manual lists 805-257A for the low-boy suction set and separate siphon and return components for the upright cart. Confirm any replacement relationship before ordering.
How do I identify the correct Advantage 600 replacement part?
Confirm the model and cart configuration, locate the component in Titan's exploded parts diagram and match its exact factory part number. Check any manufacturer replacement or supersession before purchasing.
Where can I buy genuine Titan Advantage 600 Main Assembly Parts?
Shop Titan Advantage 600 Main Assembly Parts at AllTitanParts. Browse the OEM diagram and choose the motor, fluid section, suction, frame or mounting components needed for your repair.
Shop Titan Advantage 600 Main Assembly Parts Today
Find genuine Titan motor covers, complete motors, fluid-section assemblies, inlet screens, return tubes and mounting hardware. Match your OEM part number and order the components needed for your Advantage 600 repair.
BUY ADVANTAGE 600 MAIN ASSEMBLY PARTS →Need help identifying a replacement part? Call 713-931-0006.
