Titan Advantage 600 Upright Cart Assembly Parts
Buy genuine Titan Advantage 600 Upright Cart Assembly Parts at AllTitanParts. Find replacement wheels, wheel spacers, hub caps, handle sleeves, snap buttons, roll pins, washers, screws, rubber feet, protective plugs and cord wraps for your Titan electric airless paint sprayer.
Restore dependable mobility and handling by matching the correct OEM part number to the Titan Advantage 600 upright-cart exploded diagram. Shop individual replacement components and identify the hardware needed for your next sprayer repair.
Maintain Your Titan Advantage 600 Upright Cart
The Titan Advantage 600 upright cart supports the sprayer during movement and stationary operation. Its wheeled frame and handle arrangement allow the equipment to be positioned and transported between work areas.
The factory upright cart assembly, part number 0551124, includes a handle assembly, two wheels, wheel spacers, protective caps, mounting hardware, rubber bumpers and cord wraps. These components serve different functions in supporting the equipment, securing the handle and managing the power cord during storage or transport.
Wheels and spacers help maintain the specified rolling arrangement. Handle sleeves, snap buttons, washers and roll pins form part of the handle construction. The rubber bumpers protect designated contact points, while cord wraps provide a convenient location for securing the power cord when the sprayer is not in operation.
Repeated handling, impact and normal wear can damage individual cart components. A cracked wheel, missing hub cap, worn handle sleeve or damaged snap button should be inspected before the sprayer is moved again.
AllTitanParts offers individual genuine Titan replacement parts to help you repair the affected component rather than automatically replacing the entire cart assembly.
Shop Popular Titan Advantage 600 Upright Cart Replacement Parts
Explore frequently needed OEM components for the cart's wheels, handle connections and cord storage.

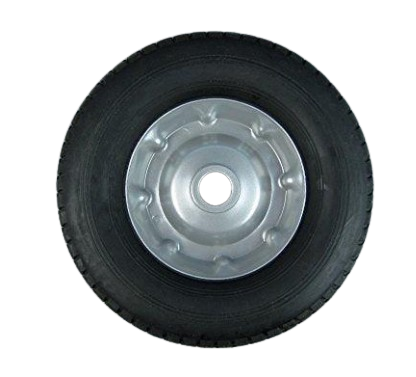

Titan 0278373 Wheel
Genuine Titan replacement wheel for the upright cart. Inspect when a wheel is cracked, damaged or difficult to rotate.
Factory diagram item: 6
Original quantity: 2

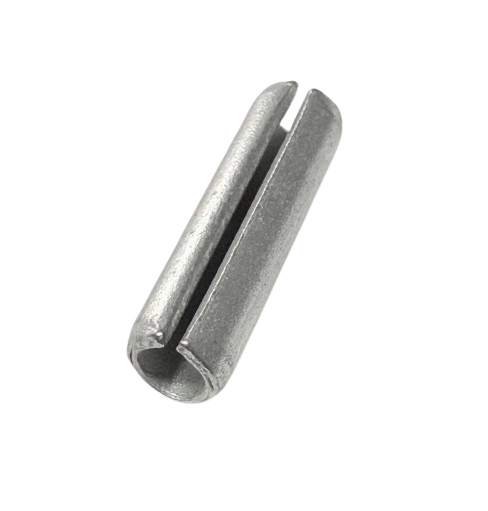

SHOP REPLACEMENT WHEELS →Titan 590-508 Roll Pin
Factory handle-related roll pin. Inspect the handle connection for missing, worn or damaged pins.
Factory diagram item: 2
Original quantity: 2
SHOP ROLL PINS →Titan 9890104 Hub Cap
OEM hub cap listed as replacing Titan 704-355. Check the wheel mounting hardware for missing or damaged caps.
Factory diagram item: 17
Original quantity: 2

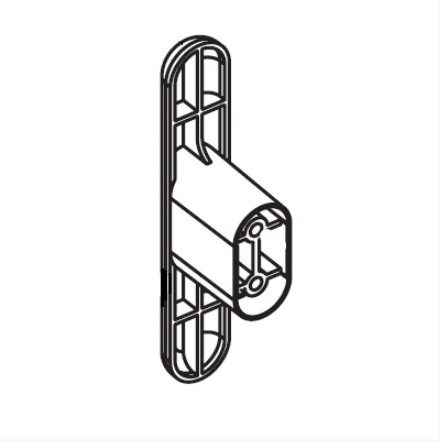

SHOP HUB CAPS →Titan 0507655 Cord Wrap
Factory cord-wrap component for organizing the power cord during storage and transportation.
Factory diagram item: 15
Original quantity: 2

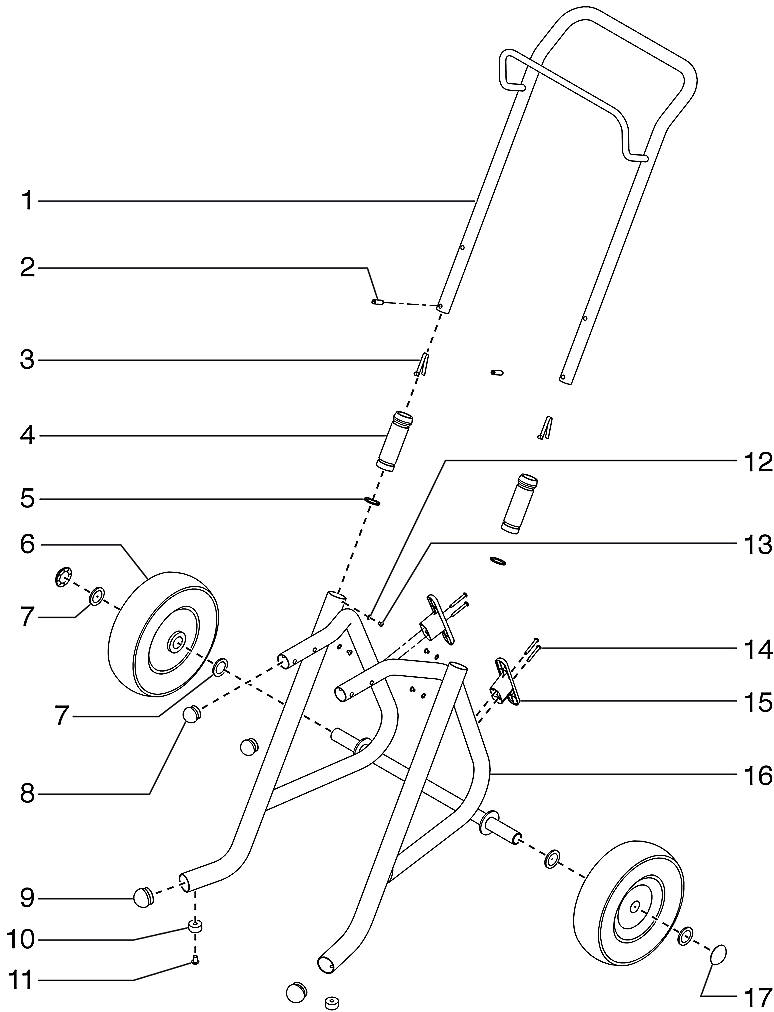

SHOP CORD WRAPS →Titan Advantage 600 Upright Cart Assembly Parts Diagram
The official Titan Advantage 600 manual identifies upright cart assembly 0551124 and 17 numbered component positions. Factory quantities describe the original assembly, not necessarily the quantity supplied in an individual retail package.
| Item | Titan Part Number | Factory Component | Factory Qty. | Purchasing Guidance |
|---|---|---|---|---|
| 1 | 0551679 | Handle Assembly | 1 | Factory reference; confirm availability |
| 2 | 590-508 | Roll Pin | 2 | Listed; replaces 0295610 |
| 3 | 9841504 | Snap Button | 2 | Listed; replaces 590-507 |
| 4 | 590-504 | Handle Sleeve | 2 | Listed |

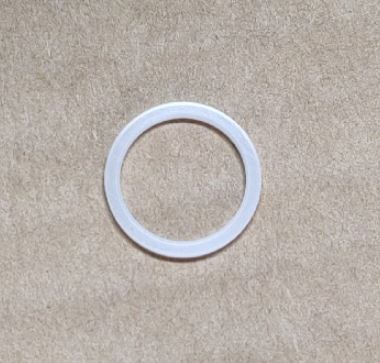

| 5 | 590-506 | Handle Washer | 2 | Listed; replaces 0295609 |
| 6 | 0278373 | Wheel | 2 | Listed |
| 7 | 0294534 | Wheel Spacer | 4 | Listed; replaces 704-354 |
| 8 | 0294635 | Plug | 2 | Listed; replaces 710-199 |
| 9 | 9885571 | Plug | 2 | Listed |
| 10 | 13538 | Rubber Bumper / Foot | 2 | Listed |
| 11 | 54458 | Screw | 2 | Listed as 054458 |
| 12 | 856-002 | Washer | 4 | Listed |
| 13 | 856-921 | Screw | 4 | Listed |
| 14 | 0507774 | Screw | 4 | Listed; displayed SKU 507774 |
| 15 | 0507655 | Cord Wrap | 2 | Listed; displayed SKU 507655 |
| 16 | 0551780 | Cart Weldment | 1 | Factory reference; confirm availability |
| 17 | 9890104 | Hub Cap | 2 | Listed; replaces 704-355 |
How the Titan Advantage 600 Upright Cart Components Work
Wheels and Wheel Spacers
Titan 0278373 wheels support cart mobility, while 0294534 spacers help maintain the specified wheel arrangement. The 9890104 hub caps form part of the wheel retention hardware.
Handle Assembly and Fasteners
The handle assembly uses roll pins, snap buttons, sleeves, washers and screws. These components maintain the factory handle connection and its intended movement.
Cart Frame and Accessories
The cart weldment supports the equipment. Rubber bumpers protect designated contact points, protective plugs close frame openings and cord wraps organize the electrical cord.
How to Identify the Correct Titan Upright Cart Replacement Part
Verify the Sprayer
Confirm your equipment is a Titan Advantage 600 and record the model information.
Confirm the Cart Type
Identify the upright cart rather than the separate low-boy cart configuration.
Match the OEM Diagram
Find the damaged part's diagram number and compare the factory part number.
Review the Listing
Check replacements, packaging quantity and availability before completing your order.
Titan Advantage 600 Upright Cart Troubleshooting Guide
Use the following symptoms to identify possible inspection areas. Inspect the complete connection before deciding which part needs replacement.
| Observed Condition | Parts to Inspect | Recommended Action |
|---|---|---|
| Cart wheel is cracked or damaged | 0278373 wheel | Inspect the wheel and replace it if damaged. |
| Wheel has excessive side movement | 0294534 spacers and 9890104 hub cap | Check for missing, worn or improperly installed wheel hardware. |
| Handle does not engage correctly | 9841504 snap button and 590-508 roll pin | Inspect the handle retention mechanism before moving the sprayer. |
| Handle feels loose or shifts | 590-504 sleeve, 590-506 washer, 856-002 washer and 856-921 screw | Inspect the handle joint and its fastening hardware. |
| Cart is unstable while parked | 13538 rubber bumpers, frame and mounting hardware | Check for damaged contact points or loose frame components. |
| Power cord cannot be stored securely | 0507655 cord wraps and mounting hardware | Replace damaged cord wraps and inspect their attachment points. |
| Frame plug is missing or damaged | 0294635 and 9885571 plugs | Identify the correct frame opening and replace its designated plug. |
Choose the Right Upright Cart Repair Approach
Wheel and Hub Repair
When replacing a wheel, inspect the associated spacers and hub cap. Replace missing or damaged hardware using the correct factory references.
Handle Hardware Service
Check roll pins, snap buttons, sleeves, washers and screws. Individual parts may resolve a handle problem when the complete handle structure remains serviceable.
Frame and Cart Inspection
If the cart weldment is bent, cracked or structurally damaged, stop using the equipment until the frame is inspected and suitable repair options are confirmed.
Explore Related Titan Advantage 600 Replacement Parts
Find other assembly diagrams and replacement parts for your Advantage 600 airless sprayer.
Browse the complete Titan Advantage 600 Electric Piston Pump Parts Directory.
Titan Advantage 600 Upright Cart Compatibility
Titan identifies the complete Advantage 600 upright cart as assembly 0551124. The factory diagram specifies handle assembly 0551679, cart weldment 0551780, wheel 0278373, spacer 0294534 and the other individual parts shown above.
The AllTitanParts category identifies several replacement relationships: 590-508 replaces 0295610, 9841504 replaces 590-507, 590-506 replaces 0295609, 0294534 replaces 704-354, 0294635 replaces 710-199 and 9890104 replaces 704-355.
The factory diagram uses the leading-zero part numbers 0507774 and 0507655 for the screw and cord wrap. The corresponding AllTitanParts product listings display SKUs 507774 and 507655. Match these carefully when searching or ordering.
The Advantage 600 low-boy cart is a separate configuration with different major frame and handle components. Some small parts may share OEM references, but complete cart assemblies should not be assumed interchangeable.
Confirm the exact equipment model, cart configuration, factory part number and current replacement listing before purchasing.
Titan Advantage 600 Upright Cart Maintenance and Safety
Switch off the sprayer, disconnect the power cord and complete the manufacturer's pressure-relief procedure before servicing the cart or removing its components.
Place the equipment on a stable, level surface and support the cart securely before removing wheels, handle hardware or frame fasteners.
Inspect both wheels for cracks, deformation and excessive wear. Check wheel spacers and hub caps whenever wheel components are serviced.
Check handle sleeves, roll pins, snap buttons, washers and screws for damage or missing components. Do not transport the sprayer with a handle that fails to remain secure.
Inspect the rubber bumpers, cart frame and attachment points for structural damage. Do not use the equipment if its supporting structure is compromised.
Store the power cord using the designated cord wraps when appropriate, and inspect the cord itself for damage before connecting the sprayer to electrical power.
After reassembly, verify that the wheels rotate correctly, the handle is secure and the sprayer remains stable before returning it to service.
Titan Advantage 600 Upright Cart Assembly Parts FAQ
Answers to common questions about upright-cart wheels, handle components, mounting hardware, OEM part numbers and replacement compatibility.
What is the Titan Advantage 600 upright cart assembly part number?
Titan identifies the complete upright cart assembly as 0551124 in the Advantage 600 factory parts manual. Its diagram contains 17 numbered component positions.
What is the replacement wheel part number for the Advantage 600 upright cart?
Titan 0278373 is the replacement wheel listed as item 6 in the factory upright-cart diagram. The original assembly uses two wheels.
Which handle assembly fits the Titan Advantage 600 upright cart?
Titan 0551679 is the handle assembly identified as item 1. The factory diagram specifies that it includes items 2 through 5, 12 and 13. Confirm current availability before ordering.
Does Titan 590-508 replace Titan 0295610?
Yes. AllTitanParts identifies Titan 590-508 as replacing original roll pin 0295610. The part appears as item 2 in the upright-cart diagram.
What is the Titan Advantage 600 upright cart frame part number?
Titan 0551780 is the cart weldment identified as item 16. The factory diagram states that it includes plug items 8 and 9.
What is Titan 0507655 used for?
Titan 0507655 is the cord wrap identified as item 15. It provides a designated location for organizing the sprayer's power cord during storage or transportation.
Are Advantage 600 upright and low-boy cart parts interchangeable?
Some individual hardware components share OEM references, but the upright and low-boy carts have different major assemblies. Confirm each part number and application before substitution.
Where can I buy genuine Titan Advantage 600 Upright Cart Assembly Parts?
Shop genuine Titan Advantage 600 upright-cart parts at AllTitanParts. Compare the OEM diagram and order replacement wheels, spacers, hub caps, handle hardware, rubber feet, cord wraps and other listed components.
Shop Titan Advantage 600 Upright Cart Parts Today
Find Titan replacement wheels, spacers, hub caps, handle sleeves, roll pins, snap buttons, rubber feet, cord wraps and mounting hardware. Match your factory part number and order the components needed for your Advantage 600 cart repair.
