Titan Advantage 600 Gear Box Assembly Parts
Buy Titan Advantage 600 Gear Box Assembly Parts at AllTitanParts. Find genuine Titan replacement slider assemblies, crankshaft and gear assemblies, thrust washers, second-stage gears, pressure-control components, electrical switches and related mounting hardware.
Use the Advantage 600 exploded gearbox diagram to identify the correct component for your repair. Compare factory part numbers, inspect the affected system and order replacement parts with greater confidence.
Maintain the Titan Advantage 600 Gearbox and Drive System
The Titan Advantage 600 is an electric airless paint sprayer that uses a motor-driven gearbox to operate its piston pump. The gearbox transfers rotational power from the motor through the drive gears and crankshaft mechanism, producing the reciprocating motion required by the fluid section.
Components such as the crankshaft/gear assembly, slider assembly, thrust washer and second-stage gear work together to support mechanical power transmission. Excessive wear, damaged gear teeth or problems in the slider mechanism can interfere with normal pump operation.
The Advantage 600 gearbox diagram also identifies pressure-control and electrical components. These include the potentiometer, pressure-control knob, transducer, power switch, heat sink and related hardware. Although these items appear in the gearbox assembly illustration, their functions differ from the mechanical drive components.
AllTitanParts provides individual replacement components so equipment owners and service technicians can match the damaged or defective part to the appropriate factory reference instead of purchasing unrelated assemblies.
Shop Essential Titan Advantage 600 Gearbox Replacement Parts
Find frequently serviced mechanical drive components and related pressure-control parts identified in the Advantage 600 gearbox diagram.

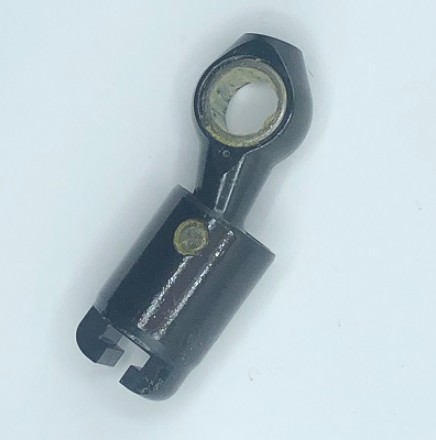

Titan 0508208 Slider Assembly
The slider assembly transmits reciprocating motion to the pump drive. Inspect for abnormal wear, damage or binding when the motor operates but the pump does not cycle correctly.
Part Number: 0508208Titan 0508572 Crankshaft/Gear Assembly
This assembly helps convert rotational motion into the movement needed to drive the piston pump. Inspect the crankshaft and gear surfaces for wear or mechanical damage.

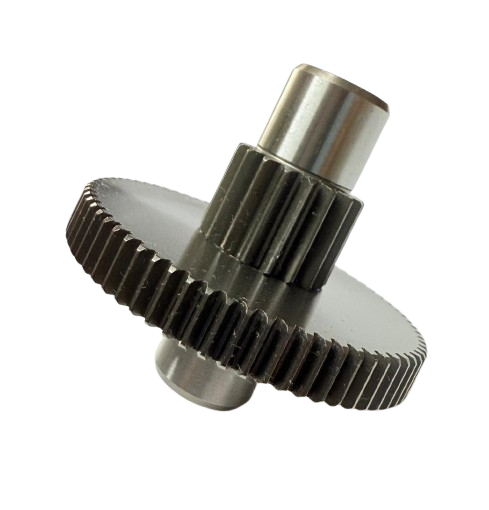

Part Number: 0508572Titan 704-176 Second-Stage Gear
The second-stage gear forms part of the drive reduction mechanism. Examine the gear teeth and mating components when unusual gearbox noise or mechanical binding occurs.
Part Number: 704-176Titan 0551666 Complete Transducer
A pressure-sensing component associated with the sprayer's electronic pressure-control system. Electrical diagnosis should be performed by a qualified service technician.

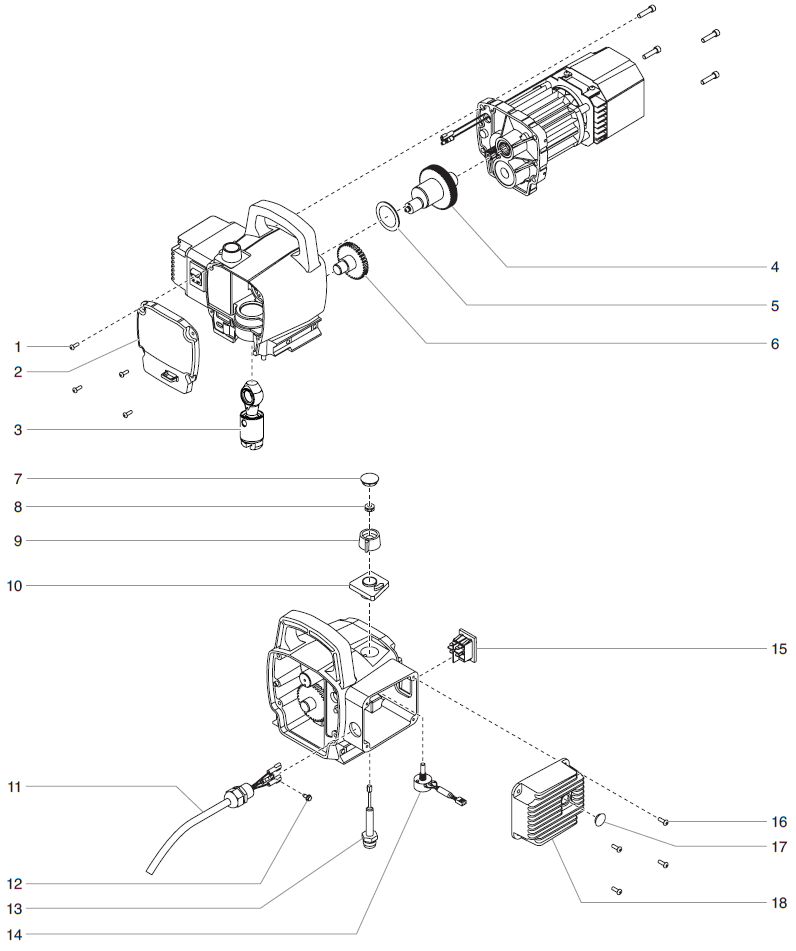

Part Number: 0551666Titan Advantage 600 Gear Box Assembly Parts Diagram Reference
The following parts are listed in the AllTitanParts Advantage 600 gearbox category. Diagram numbers help identify component positions. Some replacement listings use updated part numbers, so compare the current product information with the original factory documentation.
| Diagram Item | Titan Part Number | Component | Function |
|---|---|---|---|

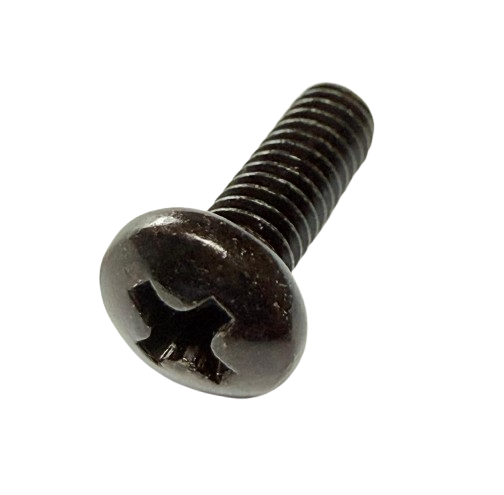

| 1 and 16 | 700-139 | Motor Baffle Screw | Secures designated housing or baffle components |
| 3 | 0508208 | Slider Assembly | Reciprocating pump drive |
| 4 | 0508572 | Crankshaft/Gear Assembly | Mechanical power transmission |

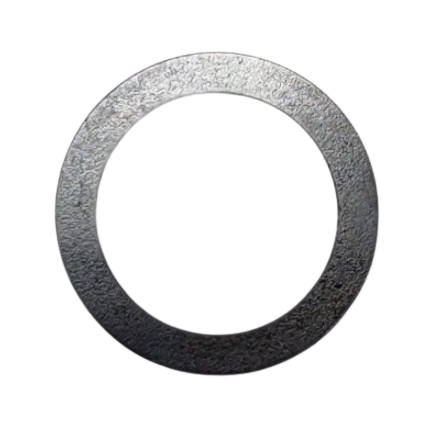

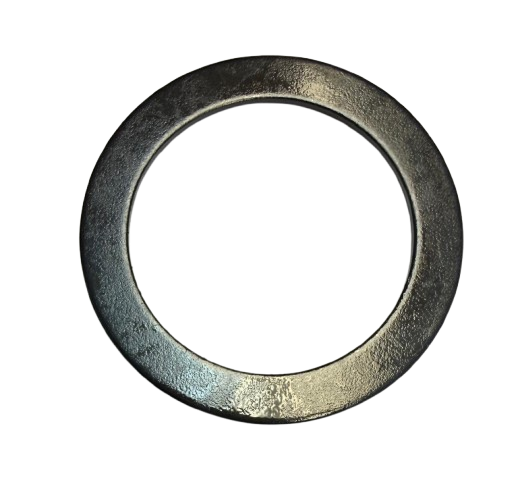

| 5 | 704-174 | Thrust Washer | Axial spacing and thrust support |
| 6 | 704-176 | Second-Stage Gear | Gear reduction |

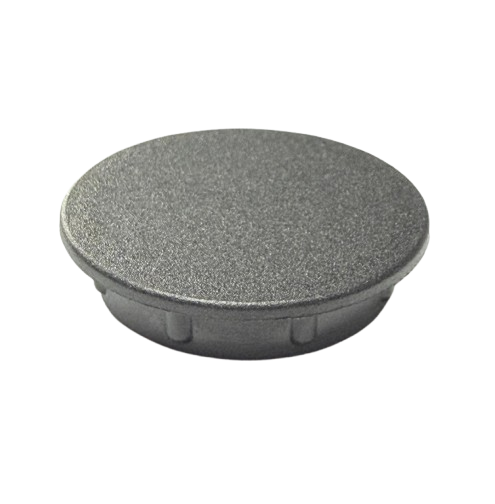

| 7 | 700-175 | Potentiometer Cap | Pressure-control hardware; replaces 507748 |
| 8 | 700-176 | Nut With Seal | Control-component fastening and sealing |

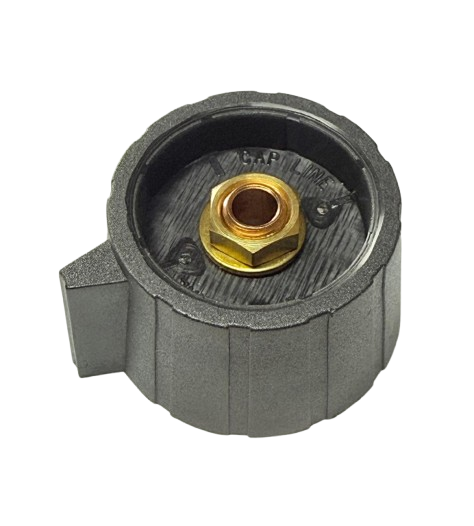

| 9 | 700-159 | Pressure Control Knob | Operator pressure adjustment; replaces 507740 |
| 10 | 806-111 | Potentiometer Mount | Supports the pressure-control potentiometer |
| 12 | 9800340 | Ground Screw | Electrical grounding hardware |
| 13 | 0551666 | Complete Transducer | Pressure sensing |
| 14 | 0508579 | Potentiometer | Pressure-control adjustment signal |
| 15 | 9850936 | Power Switch | Main power switching; replaces 704-380 |
| 17 | 704-281 | Plug or Grommet | Protects designated housing opening |
| 18 | 0551601 | Heat Sink Assembly | Thermal management for associated electronics |
How the Titan Advantage 600 Gearbox Assembly Works
Gear Reduction
The drive gears reduce motor rotational speed and transmit the mechanical force needed to operate the pump mechanism.
Crankshaft and Slider
The crankshaft and slider convert rotational motion into the reciprocating movement used by the piston pump.
Pressure Control
The pressure-control knob, potentiometer and transducer form part of the system used to select and monitor spraying pressure.
How to Identify the Correct Titan Advantage 600 Gearbox Part
Confirm the Sprayer
Verify your Titan Advantage 600 model and identify the equipment's original assembly.
Identify the Problem
Determine whether the issue involves mechanical drive, pressure control or electrical operation.
Match the Diagram
Find the diagram callout and compare its factory part number with the replacement listing.
Verify Before Ordering
Check supersessions, quantity, assembly contents and fitment before completing your purchase.
Titan Advantage 600 Gearbox Troubleshooting Guide
Use these symptoms to identify possible inspection areas. They are not definitive diagnoses, and some conditions may originate outside the gearbox.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Grinding or abnormal gearbox noise | 0508572 crankshaft/gear, 704-176 gear and related drive components | Stop operation and inspect for wear, damage or misalignment. |
| Motor runs but pump does not cycle | 0508208 slider, crankshaft mechanism and pump connection | Inspect the mechanical drive before replacing the motor. |
| Excessive vibration | Gears, slider, mounting hardware and motor connection | Check for loose fasteners and worn mechanical components. |
| Pressure adjustment does not respond | 700-159 knob, 0508579 potentiometer and 0551666 transducer | Have the control system diagnosed before replacing electronic parts. |
| Power switch fails to operate | 9850936 switch, wiring and electrical supply | Use a qualified technician for electrical testing and replacement. |
| Visible wear on thrust washer | 704-174 washer and adjacent gear surfaces | Inspect mating components and replace damaged parts according to factory guidance. |
| Weak or unstable spray pressure | Pressure controls, fluid section, filters and suction system | Diagnose the complete pressure and fluid-delivery system before attributing the issue to the gearbox. |
Repair the Gearbox or Replace Individual Components?
Drive Gear and Crankshaft Repair
When the gearbox housing and other components remain serviceable, replacing a damaged gear or crankshaft assembly may be appropriate after inspection.
Slider and Thrust Washer Service
Inspect the slider and thrust washer for abnormal wear. Replace the affected component and check adjacent drive surfaces for related damage.
Pressure-Control and Electrical Repair
If the mechanical drive is functional but pressure adjustment or power operation is abnormal, have the electrical control components diagnosed separately.
Shop Related Titan Advantage 600 Assembly Parts
Explore related parts categories when your repair involves the motor, fluid section, material intake or complete sprayer assembly.
Titan Advantage 600 Gearbox Compatibility and Part Number Guidance
The Advantage 600 gearbox diagram provides component references for the mechanical drive and related controls. Use the exact factory part number and equipment identification to select replacement components.
The category lists Titan 0508208 for the slider assembly, 0508572 for the crankshaft/gear assembly, 704-174 for the thrust washer and 704-176 for the second-stage gear.
Several control components are listed under current replacement numbers. AllTitanParts identifies 700-175 as replacing 507748, 700-159 as replacing 507740 and 9850936 as replacing 704-380.
Some Titan parts are used across multiple Advantage, Impact, RentSpray or SprayTech models. Shared application information does not establish that all components or complete gearbox assemblies are interchangeable.
For accurate selection, verify the model, factory diagram position, original component and current replacement listing before purchasing.
Titan Advantage 600 Gearbox Maintenance and Safety
Turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure before servicing gearbox or pressure-control components.
Do not operate the sprayer with damaged gears, abnormal drive noise, unsecured gearbox components or compromised protective covers.
Inspect the crankshaft, slider, gears and mating surfaces for damage when performing mechanical repairs. Follow Titan's instructions for assembly, lubrication and fastener tightening.
Never use your hand to check for a high-pressure fluid leak. High-pressure injection injuries require immediate emergency medical attention.
Titan specifies that electrical work should be performed by an authorized service center. This applies to power-switch, potentiometer, transducer and related electrical diagnosis or replacement.
After repairs, verify that all protective components are installed and the sprayer operates correctly before returning it to service.
Titan Advantage 600 Gear Box Assembly Parts FAQ
Answers to common questions about gearbox components, slider assemblies, crankshaft gears, pressure controls and replacement part compatibility.
What parts are included in the Titan Advantage 600 Gear Box Assembly?
The factory gearbox diagram identifies mechanical drive components such as the slider, crankshaft/gear assembly, thrust washer and second-stage gear. It also includes pressure-control components, electrical hardware and associated fasteners. The contents of a purchased complete assembly may differ from the full diagram.
What is the Titan Advantage 600 slider assembly part number?
Titan 0508208 is the slider assembly listed in the Advantage 600 gearbox category. It is identified as item 3 in the parts diagram.
Which crankshaft and gear assembly fits the Advantage 600?
Titan 0508572 is the crankshaft/gear assembly identified as item 4 in the Advantage 600 gearbox parts listing.
What is Titan 704-176 used for?
Titan 704-176 is the second-stage gear used in the mechanical drive reduction system. It is listed as item 6 in the gearbox diagram.
Why does my Titan Advantage 600 gearbox make grinding noises?
Abnormal noise can indicate gear damage, slider wear, bearing problems or mechanical interference. Stop operating the sprayer and inspect the drive system before replacing components.
Does Titan 9850936 replace the original 704-380 power switch?
Yes. AllTitanParts identifies Titan 9850936 as the replacement for the original 704-380 power switch. Electrical service should be performed by an authorized technician.
Can pressure-control problems be caused by gearbox-related components?
The gearbox diagram also includes the potentiometer, pressure-control knob and transducer. These parts belong to the pressure-control system rather than the mechanical gear train. Have the control system diagnosed before replacing parts.
Where can I buy Titan Advantage 600 Gear Box Assembly Parts?
Shop Titan Advantage 600 Gear Box Assembly Parts at AllTitanParts. Compare factory diagram numbers and select the slider, crankshaft, gear, thrust washer, pressure-control or electrical component needed for your repair.
Shop Titan Advantage 600 Gear Box Assembly Parts Today
Find genuine Titan slider assemblies, crankshaft gears, thrust washers, pressure-control components and related hardware. Match your OEM part number and order the components required for your repair.
