Find the Right Advantage 500 Part Without the Guesswork
A sprayer repair should begin with accurate parts identification. Instead of searching through an unrelated list of components, this Advantage 500 catalog is divided into the machine's major service assemblies so contractors, maintenance departments, technicians and equipment owners can move directly to the area that needs attention.
Select the appropriate assembly, compare your machine with the exploded drawing, locate the item number and verify the corresponding Titan OEM part number. This assembly-based approach makes it easier to shop everything from small seals, filters and hardware to motor, drive and fluid-section components.
Titan Advantage 500 Technical Specifications
Key published specifications for identifying and understanding the Advantage 500 platform.
| Specification | Titan Advantage 500 |
|---|---|
| Equipment Type | Electric piston airless sprayer |
| Maximum Pressure | 3,100 PSI |
| Maximum Tip Size | 0.024 inch |
| Maximum Delivery | 0.60 GPM |
| Motor | 1.35 HP DCX Motor |
| Voltage | 120 VAC |
Choose Your Titan Advantage 500 Parts Assembly
Go directly to the area of the machine you are repairing. Each assembly narrows the parts search and helps connect the replacement component to its position on the sprayer.
Advantage 500 Main Assembly Parts

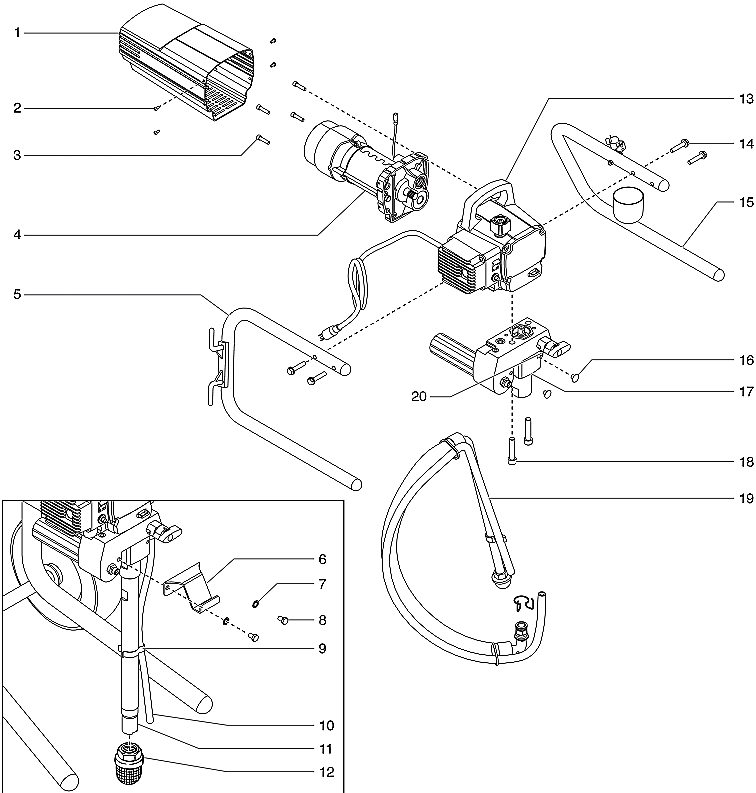

Start with the primary machine assembly for an overview of major Advantage 500 components. The catalog includes the Titan 0551215A 120V Motor Assembly, suction components, structural hardware and other parts used across the complete sprayer.
Shop Main Assembly Parts →Advantage 500 Motor Assembly Parts

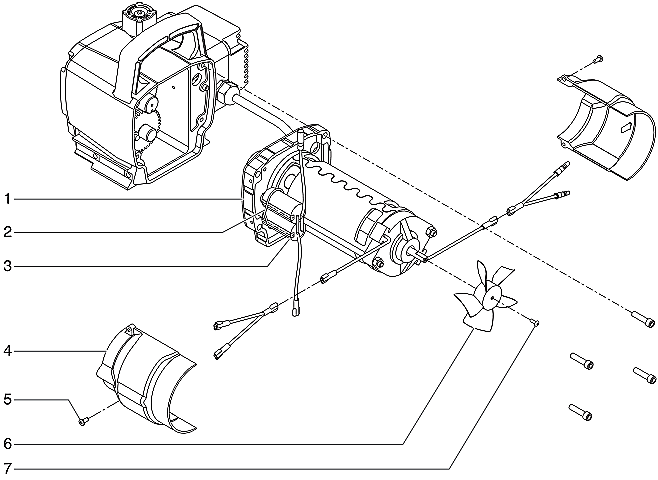

Service the electrical power section of the Advantage 500 with genuine Titan motor components and associated hardware. Check this assembly when diagnosing motor wear, electrical connection problems or other motor-related service requirements.
Advantage 500 Suction Set Assembly Parts

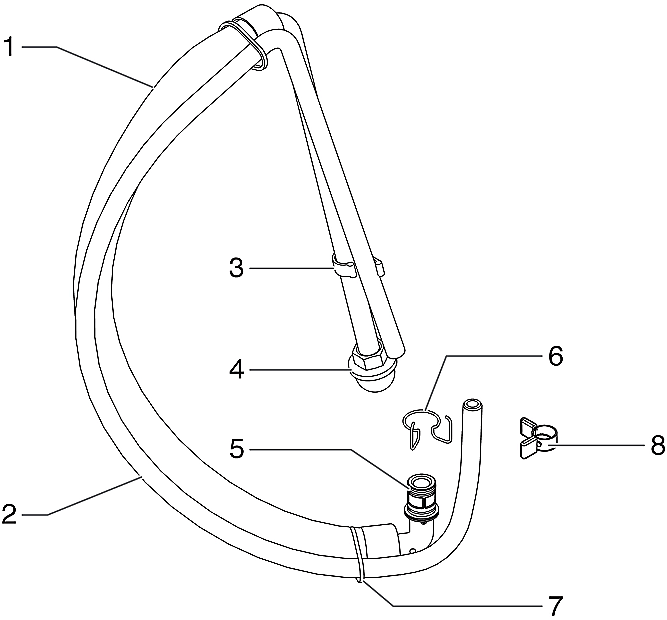

Service the material-intake path with parts such as the Titan 0558672A Suction Set Assembly, 0558659A Return Tube, 700-805 Inlet Screen Filter, O-rings, clips and related components.
Shop Suction Set Parts →Advantage 500 Gear Box Assembly Parts

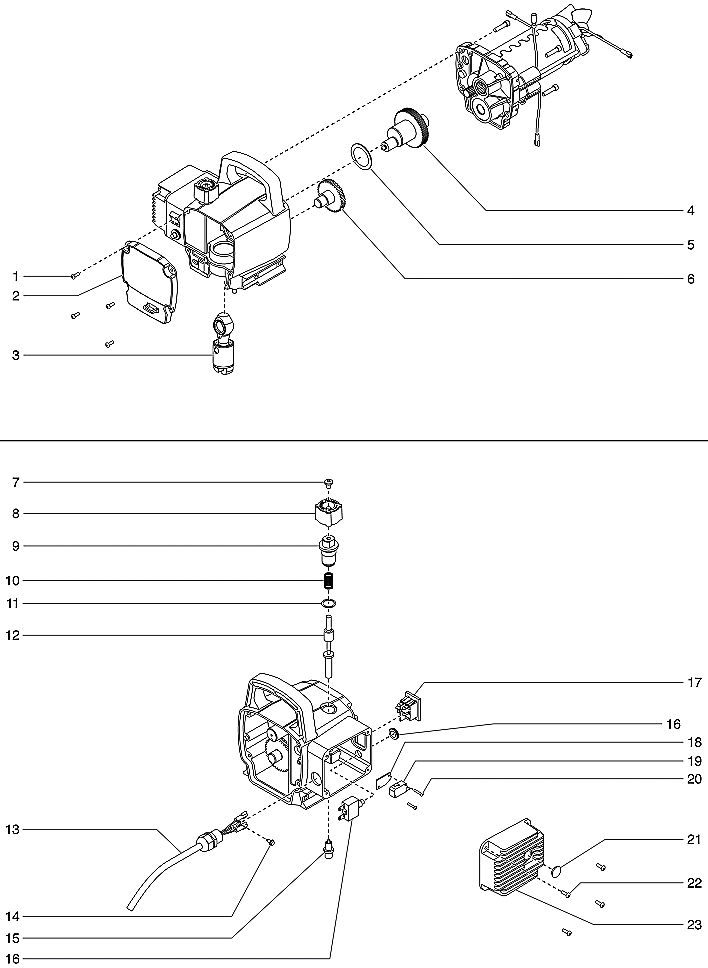

Find mechanical drive components that transfer motor output toward the pumping system. Available OEM parts include the Titan 0508208 Slider Assembly, 0508572 Crankshaft/Gear Assembly, 0551520 Mechanical Control Assembly and related drive hardware.
Shop Gear Box Assembly Parts →Advantage 500 Stand Assembly Parts

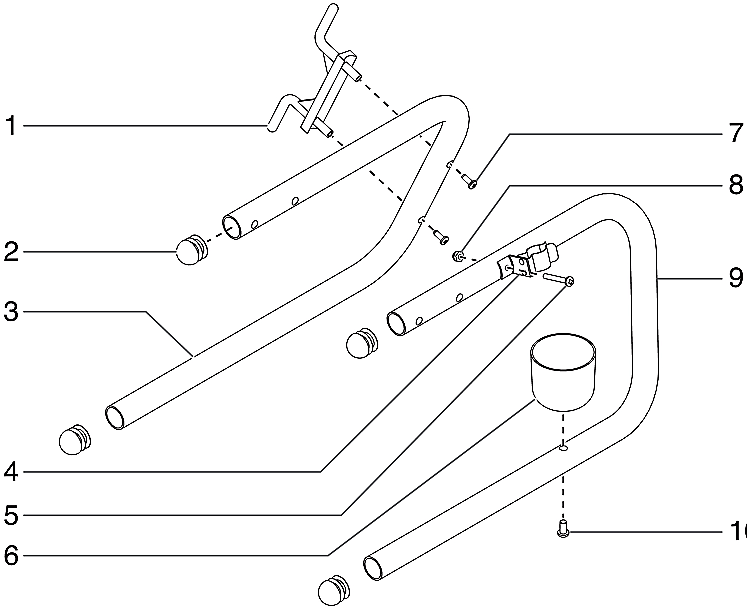

Maintain stand-mounted Advantage 500 configurations with genuine structural and mounting components, including the Titan 0551526 Left Leg Assembly, 0551524 Right Leg Assembly, 700-1041 Drip Cup, clips, nuts and fasteners.
Shop Stand Assembly Parts →Advantage 500 Upright Cart Assembly Parts

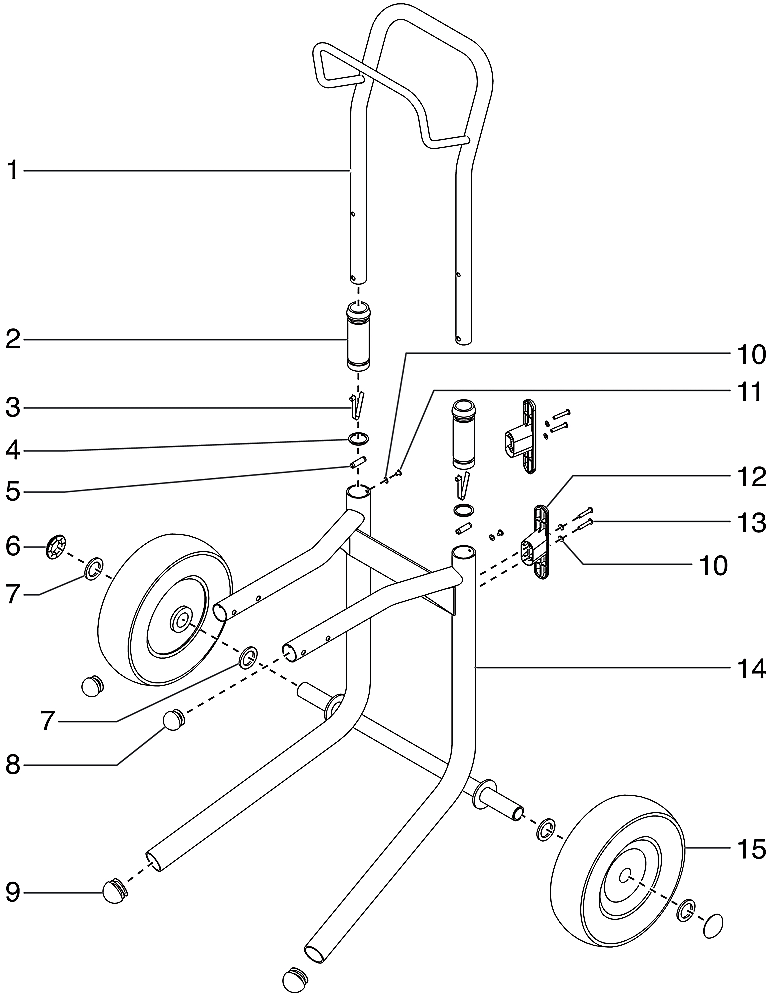

Find frame, mounting, wheel and mobility components associated with upright-cart Advantage 500 configurations. Use the exploded cart diagram to identify the correct structural component and its position before ordering.
Advantage 500 Fluid Section Assembly Parts

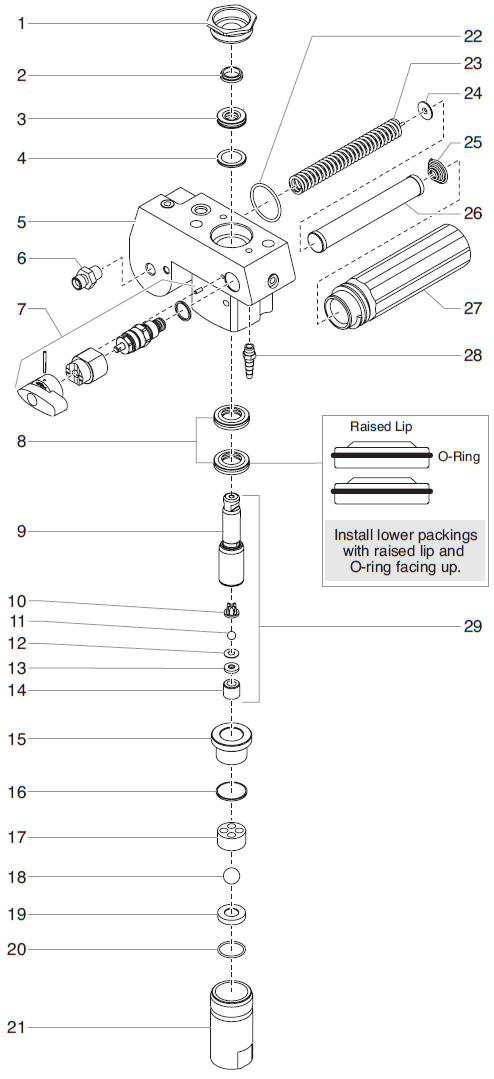

The fluid section contains the piston, sealing, valve and fluid-handling components responsible for drawing material into the pump, generating pressure and delivering it toward the spray system.
Shop genuine OEM parts including the Titan 0552951 Repacking Kit, 704-551A Piston Rod, 704-552A Piston Assembly, 0507690 Bypass Valve Assembly, 0551604 Manifold, 227-006 Outlet Fitting and related fluid-section components.
Shop Fluid Section Parts →Repair the Assembly — Keep a Serviceable Sprayer Working
The Advantage 500 is built around serviceable motor, drive, suction, fluid and structural assemblies. When a machine is otherwise suitable for your work, accurately identifying a worn or damaged component can provide a practical repair path without automatically replacing the complete sprayer.
Use the factory diagram and OEM part number together. During disassembly, inspect neighboring wear and sealing components so the repair addresses the actual condition of the machine rather than relying on appearance or guesswork.
Before You Order an Advantage 500 Part
Four simple checks can reduce parts-selection errors and make the repair process easier.
Verify that you are working on an Advantage 500 before selecting model-specific components.
Go to the motor, gearbox, suction, fluid section, stand or upright-cart assembly related to the repair.
Locate the component visually and match its numbered position with the corresponding parts listing.
Use the OEM part number as the primary identifier instead of choosing a component solely by appearance.
Common Areas to Inspect During Advantage 500 Service
A symptom does not prove that a particular component has failed, but it can help determine which assembly should be inspected first.
| Observed Condition | Areas to Inspect | Useful Parts Category |
|---|---|---|
| Difficulty priming or drawing coating | Suction screen, suction connections, inlet components, bypass system and fluid section | Suction Set / Fluid Section |
| Reduced or unstable pressure | Packings, piston, valve components and other fluid-section wear items | Fluid Section |
| Drive operation is abnormal | Motor, slider, crankshaft/gear, mechanical control and related drive hardware | Motor / Gear Box |
| Damaged or unstable support/cart | Legs, frame, wheels, fasteners and mounting points | Stand / Upright Cart |
Genuine Titan OEM
Shop manufacturer-supplied Titan components using OEM part numbers and factory assembly references for more accurate identification.
Diagram-Based Shopping
Exploded views show how components relate to one another and help buyers identify the correct item position before ordering.
From Wear Parts to Assemblies
Find seals, O-rings, filters, hardware and pump components alongside larger motor, suction and fluid-section assemblies.
Fitment Assistance
When an existing part number or diagram position is unclear, confirm the machine and component before purchasing rather than relying on visual similarity.
Looking for Another Titan Advantage Sprayer?
If your machine is not an Advantage 500, browse the complete Titan Advantage family before ordering. The Advantage range includes multiple pump sizes and configurations, and similar-looking components are not automatically interchangeable between models.
Browse All Titan Advantage Sprayer Parts →Shop Genuine Titan Advantage 500 Replacement Parts
From inlet screens, seals and packing components to motor, gearbox, suction, fluid-section and cart parts, use the factory assembly diagrams to locate the genuine Titan OEM components required for your Advantage 500 repair.
Browse Advantage 500 Parts →Titan Advantage 500 Parts FAQs
Quick answers for contractors, technicians and equipment owners maintaining the Advantage 500.
