Titan Advantage 500 Motor Assembly Parts
Shop genuine Titan Advantage 500 Motor Assembly Parts for maintaining the electric drive system of your airless paint sprayer. Find the 120V motor assembly, motor brush kit, capacitor assembly, cooling fan, fan shrouds, tie wraps and factory mounting hardware.
Whether your sprayer experiences startup difficulties, intermittent motor operation, unusual motor noise or cooling problems, use the factory exploded diagram to identify the correct Titan OEM component before purchasing.
Maintain the Power Behind Your Advantage 500 Sprayer
The Titan Advantage 500 electric motor supplies the mechanical power required to operate the sprayer's pumping system. Working through the gearbox, the motor drives the reciprocating fluid section, allowing the machine to pressurize coating material for airless spraying.
The motor assembly includes electrical and mechanical components that support motor operation, cooling and secure installation. The capacitor is part of the motor's electrical circuit, the cooling fan moves air through the motor area, and the fan shrouds help direct airflow around the motor.
Over time, motor brushes can wear, cooling components can become damaged, and electrical faults can interrupt operation. Identifying the underlying cause before replacing parts helps avoid unnecessary repairs.
AllTitanParts provides the factory-listed motor assembly and individual replacement components so customers can locate the correct Titan part number and arrange appropriate service.
Shop Titan Advantage 500 Motor Replacement Components
Explore key OEM parts identified in the factory motor assembly diagram. Verify the exact application and required quantity before ordering.

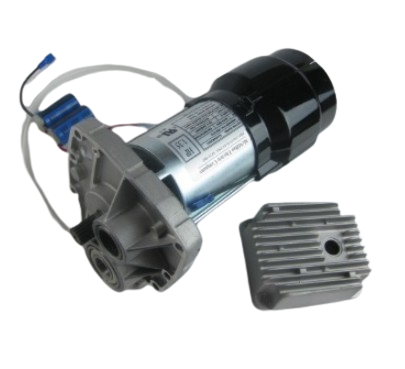

Titan 0551215A Motor Assembly, 120V
Factory-listed electric motor assembly for the Titan Advantage 500. Supplies mechanical drive power to the sprayer's pumping system.
Part Number: 0551215ATitan 704-276 Motor Brush Kit
OEM motor brush service kit for the applicable Advantage 500 motor. Used when inspection confirms worn or damaged brush components.
Part Number: 704-276Titan 704-207 Capacitor Assembly
Factory-listed capacitor component in the motor electrical system. Diagnosis and replacement should be performed by qualified service personnel.
Part Number: 704-207Titan 704-250 Motor Fan
Genuine OEM cooling fan, replacing Titan 0508648, used to move cooling air through the motor area.
Part Number: 704-250Titan Advantage 500 Motor Assembly OEM Parts Reference

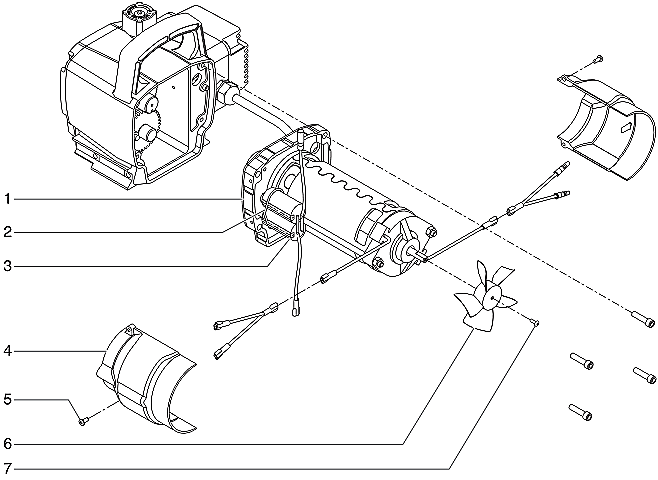

The Advantage 500 motor category contains eight listed products. Diagram items 1 through 7 follow the factory illustration, while the motor brush kit is listed separately as a service item.
| Diagram Item | Titan Part Number | OEM Component | Factory Quantity | Function |
|---|---|---|---|---|
| 1 | 0551215A | 120V Motor Assembly | 1 | Complete motor assembly |
| 2 | 770-099 | Tie Wrap | 2 | Secures designated wiring |
| 3 | 704-207 | Capacitor Assembly | 1 | Motor electrical circuit |
| 4 | 704-285A | Fan Shroud | 2 | Cooling airflow management |
| 5 | 704-322 | Screw | 2 | Motor assembly fastening |
| 6 | 704-250 | Motor Fan | 1 | Motor cooling |
| 7 | 9804916 | Fan Screw | 1 | Cooling fan retention |
| Service item | 704-276 | Motor Brush Kit | Check kit contents | Motor brush replacement |
How the Advantage 500 Motor Assembly Supports Sprayer Operation
Electric Motor Drive
The 120V motor provides rotational power to the gearbox, which converts the drive motion into the pumping action required by the fluid section.
Motor Cooling System
The cooling fan and fan shrouds support airflow around the motor. Damaged components or obstructed airflow can contribute to overheating.
Electrical Service Components
The capacitor and motor brushes are service-related components. Their condition should be evaluated by an authorized service technician.
How to Choose the Correct Motor Assembly Replacement Part
Confirm Your Sprayer
Check the Titan Advantage 500 model, serial information and electrical rating.
Identify the Symptom
Determine whether the concern involves startup, overheating, intermittent operation or physical damage.
Match the Diagram
Locate the affected component on the factory illustration and verify its OEM part number.
Verify and Order
Confirm fitment, supersessions, service requirements and product quantity before checkout.
Titan Advantage 500 Motor Assembly Troubleshooting Guide
Use these symptoms as an inspection guide. Electrical faults require proper diagnostic testing and may involve components outside the motor assembly.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Motor will not start | Power supply, breaker, switch, motor, capacitor and wiring | Follow Titan's electrical diagnostic procedure and have electrical faults evaluated by an authorized service center. |
| Motor starts intermittently | Brushes, electrical connections, switch and control components | Confirm the fault before replacing motor service components. |
| Motor overheats | Cooling fan, shrouds, ventilation openings and drive load | Stop operation, allow cooling and inspect for airflow restrictions or mechanical binding. |
| Unusual motor noise | Fan, motor components and connected gearbox | Inspect for damage or mechanical interference before further operation. |
| Sprayer runs but does not build pressure | Gearbox, fluid section, suction system and pressure controls | Diagnose the pump system instead of assuming motor failure. |
| Cooling fan is loose or damaged | 704-250 Fan, 9804916 Fan Screw and 704-285A Shrouds | Verify the correct parts and have damaged components replaced before reuse. |
Replace Individual Motor Parts or the Complete Assembly?
Individual Service Components
When a technician confirms a specific failure, an individual brush kit, fan, shroud, capacitor or fastener may be the appropriate replacement.
Complete Motor Assembly
Titan 0551215A may be appropriate when diagnosis identifies damage that cannot reasonably be corrected by replacing an individual service component.
Inspect Connected Assemblies
Mechanical resistance in the gearbox or fluid section can affect motor operation. Inspect related systems before selecting a repair.
Explore Related Titan Advantage 500 Assemblies
Use the factory diagrams for adjacent assemblies when diagnosing drive-system or pump-performance problems.
Need the complete model directory? Browse all Titan Advantage 500 Electric Piston Pump Parts.
Why Choose Genuine Titan Advantage 500 Motor Parts?
Genuine Titan OEM motor components are identified by factory part number and intended equipment application. Correctly specified electrical, cooling and mounting components help preserve the motor assembly's original design.
The Advantage 500 uses motor assembly 0551215A. Do not substitute motor assembly 0551540 from the Advantage 400 simply because the units appear similar.
Likewise, the Advantage 500 factory manual specifies capacitor 704-207 and brush kit 704-276. Other Advantage models may use different capacitor or brush part numbers.
Verify your model and serial information against Titan's documentation before purchasing electrical components.
Titan Advantage 500 Motor Maintenance and Electrical Safety
Before inspecting or servicing the sprayer, turn off the machine, disconnect it from electrical power and follow Titan's prescribed pressure-relief procedure.
Motor capacitors can retain electrical energy after the power supply is disconnected. Do not touch exposed electrical terminals or attempt capacitor replacement without the appropriate qualifications and service procedures.
Titan's factory manual states that all electrical work should be performed by a Titan authorized service center. Follow that guidance for motor brush replacement, capacitor service, electrical connections and motor assembly replacement.
Keep ventilation openings free from excessive coating buildup and debris. Inspect accessible cooling components for damage without operating the machine with protective covers removed.
Do not bypass electrical protection devices, modify wiring or substitute components with unverified electrical specifications.
After authorized servicing, verify proper motor operation, secure covers and correct pump performance before returning the sprayer to service.
Titan Advantage 500 Motor Assembly Parts FAQ
Answers to common questions about the Advantage 500 motor assembly, brush kit, capacitor, cooling fan and replacement part compatibility.
What parts are included in the Titan Advantage 500 Motor Assembly category?
The category lists eight products: a 120V motor assembly, motor brush kit, tie wrap, capacitor assembly, fan shroud, mounting screw, motor fan and fan screw.
What is the Titan Advantage 500 motor assembly part number?
Titan 0551215A is the factory-listed 120V motor assembly for the Advantage 500.
Which motor brush kit fits the Titan Advantage 500?
Titan 704-276 is the motor brush kit identified in the Advantage 500 factory manual and listed in the motor assembly category.
What capacitor does the Titan Advantage 500 use?
Titan 704-207 is the capacitor assembly specified for the Advantage 500 motor. Electrical diagnosis and replacement should be performed by an authorized service center.
What is the Titan Advantage 500 motor fan part number?
Titan 704-250 is the motor fan listed for the Advantage 500. The product listing identifies it as replacing Titan 0508648.
Why is my Titan Advantage 500 motor overheating?
Potential causes include restricted airflow, damaged cooling components, excessive drive load or electrical faults. Stop operation and have the cause diagnosed before replacing parts.
Can I replace the Advantage 500 motor brushes instead of the complete motor?
A brush kit may be appropriate when inspection confirms brush wear and the remaining motor components are serviceable. Titan recommends authorized service for electrical work.
Where can I buy genuine Titan Advantage 500 Motor Assembly Parts?
Shop the Titan Advantage 500 Motor Assembly Parts category at AllTitanParts. Match the factory diagram to the correct OEM part number before checkout.
Shop Titan Advantage 500 Motor Assembly Parts Today
Find genuine Titan 120V motor assemblies, motor brush kits, capacitors, cooling fans, fan shrouds and mounting hardware. Identify the correct OEM part number and purchase the components needed for your Advantage 500 repair.
BUY ADVANTAGE 500 MOTOR PARTS →Need help identifying a replacement part? Call 713-931-0006.
