Keep Your Titan Advantage 1100 Working Job After Job
The Titan Advantage 1100 is a professional electric piston airless platform with approximately 1.15 GPM maximum delivery and 3,100 PSI maximum operating pressure. It supports single-gun operation with a tip up to approximately .033 inch and suitably configured two-gun operation with smaller tips.
When maintenance is required, start with the exact Advantage 1100 assembly, use its exploded parts listing to locate the component, and verify the Titan OEM part number before ordering. This creates a cleaner path from diagnosis to identification to genuine OEM replacement part.
Explore Titan Advantage 1100 Parts by Assembly
Go directly to the section of your sprayer that needs attention. Each card below links to the corresponding Advantage 1100 parts page so you can identify and order the correct component faster.
Core Machine & Drive
Advantage 1100 Main Assembly Parts →
Browse the overall machine assembly for fluid-handling components, fittings, tubes, filtration components, hardware and related parts.
SHOP MAIN ASSEMBLYAdvantage 1100 Drive Assembly Parts →
Find motor, gearbox, gear, slider, electrical-control and related drive-system components for Advantage 1100 service.
SHOP DRIVE PARTSPump, Fluid & Filtration
Advantage 1100 Fluid Section Assembly Parts →
Shop repacking components, cylinder parts, piston components, upper and lower packing assemblies, valve parts, seals and related pump components.
SHOP FLUID SECTION PARTSAdvantage 1100 Filter Assembly Parts →
Find the filter, filter housing and related components used in the Advantage 1100 high-pressure fluid path.
SHOP FILTER PARTSCart & Material Handling

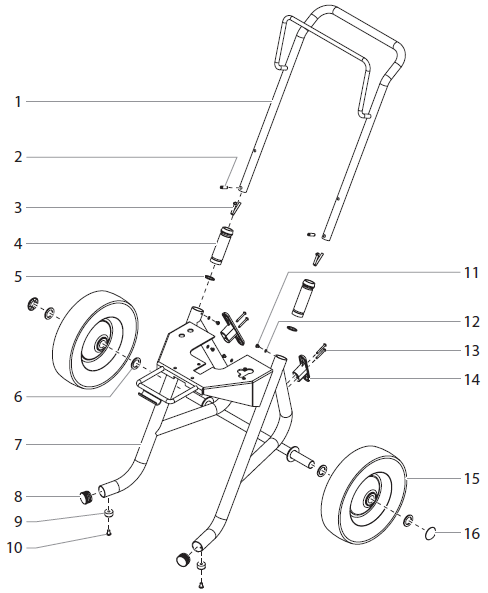

Advantage 1100 Upright Cart Assembly Parts
Browse cart-frame, wheel, handle, mounting and related components for the Advantage 1100 upright configuration.
VIEW UPRIGHT CART PARTS →Advantage 1100 Low Boy Cart Assembly Parts
Shop the frame, wheels, mounting hardware and related structural components used on the Low Boy configuration.
VIEW LOW BOY CART PARTS →Advantage 1100 Suction Set Assembly Parts (Low Boy)
Find the Low Boy suction-set components responsible for drawing coating from the material container into the pump.
SHOP SUCTION SET PARTS →Accessories & Supporting Equipment
Browse Advantage 1100 Accessories
Explore the dedicated Advantage 1100 accessories section for supporting spray and maintenance components.
Titan Advantage 1100 Specifications & Capability
Understanding the machine's operating capability helps contractors select appropriate service components, hoses, guns and spray tips.
| Specification | Advantage 1100 |
|---|---|
| Equipment Type | Electric piston airless sprayer |
| Maximum Operating Pressure | 3,100 PSI |
| Maximum Delivery | Approximately 1.15 GPM |
| Maximum Single-Gun Tip | Approximately .033 inch |
| Gun Capability | Single-gun or suitably configured two-gun operation |
| Motor Type | PMDC brushless motor |
Keep a Productive Advantage 1100 in Service
Poor priming, pressure loss, fluid leakage, restricted flow or abnormal drive operation does not automatically mean the entire sprayer must be replaced. The Advantage 1100 is divided into serviceable systems, allowing technicians to inspect the affected assembly and replace worn components when appropriate.
For pump leakage or pressure-related service, begin with the Advantage 1100 Fluid Section Assembly. For motor, gearbox, slider or power-transmission problems, use the Advantage 1100 Drive Assembly.
Common Advantage 1100 Symptoms & Inspection Areas
Use operating symptoms to guide inspection rather than treating a symptom as proof that a particular component has failed.
| Observed Condition | Areas to Inspect | Relevant Parts Section |
|---|---|---|
| Sprayer will not prime | Suction path, inlet connections, valves and fluid section | Suction Set / Fluid Section |
| Pressure drops or fluctuates | Packings, piston components, valves, seals and filtration | Fluid Section |
| Fluid leaks around pump | Packings, seals, piston surfaces and related fluid-section components | Fluid Section |
| Restricted material flow | Suction path, manifold filtration, hose, gun filter and spray tip | Filter Assembly |
| Abnormal drive noise or motion | Motor, gearbox, gears, slider and associated drive components | Drive Assembly |
Use the Correct Assembly Before You Order
Similar-looking components are not necessarily interchangeable. For better fitment accuracy, use the Advantage 1100 model, machine configuration, appropriate assembly page and Titan OEM part number together.
Popular Advantage 1100 Service Categories
Jump directly to the area you are servicing without returning to the main category page.
Help Your Advantage 1100 Stay Productive
Keep the suction path and filters clean, inspect hoses and fittings regularly, and address fluid leakage rather than continuing to operate a worn pump. During fluid-section service, inspect piston and valve surfaces along with packings and seals so damaged hard parts do not prematurely wear replacement sealing components.
If worn packings are responsible for pressure loss or leakage, browse the Titan 0551687 Repacking Kit, which is listed for the Advantage 1100. For complete pump-lower replacement, the Titan 0552155A Fluid Section Assembly is also identified for the Advantage 1100.
Always relieve system pressure, disconnect electrical power and follow the applicable Titan service procedures before opening or repairing the machine.
Need the Titan Advantage 1100 Manual?
Use the AllTitanParts Titan manuals library when you need additional operating, maintenance or parts-reference information for your Advantage 1100.
VIEW TITAN PARTS MANUALS →Shop Titan Advantage 1100 OEM Replacement Parts
From fluid-section and drive components to filters, suction parts and cart hardware, use the Advantage 1100 parts categories to identify the genuine Titan OEM components required for your repair.
Browse All Advantage 1100 Parts →Titan Advantage 1100 Parts FAQs
Helpful answers for contractors, technicians and equipment owners maintaining the Advantage 1100.
