Shop Titan Advantage 1100 Drive Assembly Replacement Parts
Find Titan Advantage 1100 drive assembly parts at AllTitanParts, including electric motor components, first-stage and second-stage gears, gearbox assemblies, sliders, pressure-control components, electrical controls and replacement hardware.
Use the factory exploded diagram and original Titan part numbers to select components for a planned repair. Compare current product listings and confirm equipment compatibility before ordering.
Understanding the Titan Advantage 1100 Drive Assembly
The Titan Advantage 1100 drive assembly transfers power from the electric motor to the mechanical pumping system. The motor drives the first-stage and second-stage gear assemblies, while the front gearbox and slider mechanism transfer the resulting motion to the reciprocating fluid section.
Correct gear engagement, slider alignment and secure mounting are important for proper mechanical operation. Excessive wear or damaged components can cause abnormal noise, binding or reduced pumping performance.
The assembly also contains electrical and pressure-control components, including the electronic control assembly, potentiometer, pressure-control knob, relay, fuse holder, power cord and related wiring. These components support electrical power delivery and pressure-control operation.
Protective parts such as the electronic cover, motor shroud, fan shroud, baffle and housing gasket are also identified in the factory drawing. They should be inspected during service and correctly reinstalled.
Browse the Advantage 1100 drive assembly category using the factory item number and part reference. Individual components may be available even when a complete assembly is not offered.
Featured Titan Advantage 1100 Drive Assembly Components
Find the major motor, transmission and electronic-control parts identified in the original Titan drive assembly documentation.
Titan 0551784 Motor Assembly
Factory motor assembly supplying the rotational drive for the sprayer's gearbox.
Diagram item: 3
Part number: 0551784
Inspect the motor and related electrical components when diagnosing a non-running motor or drive failure.
SHOP MOTOR PARTS →Titan 800-261 First-Stage Gear
The first-stage gear assembly transfers motor rotation through the drive reduction system.
Diagram item: 5
Part number: 800-261
Inspect for tooth damage, excessive wear and related gearbox problems.
SHOP DRIVE GEARS →Titan 0507220 Front Gearbox Assembly
Factory front gearbox assembly used in the mechanical transmission system.
Diagram item: 7
Part number: 0507220
Check for damage or wear during a gear-drive inspection.
VIEW GEARBOX PARTS →Titan 0507218 Slider Assembly
Mechanical slider assembly used to transmit drive movement to the fluid pumping mechanism.
Diagram item: 8
Part number: 0507218
Inspect the slider, housing and connecting pin for mechanical wear.
SHOP SLIDER PARTS →Titan 700-159 Pressure Control Knob
External adjustment knob used with the pressure-control system.
Diagram item: 26
Part number: 700-159
The category identifies this part as a replacement for the earlier Titan 507740 reference.
SHOP CONTROL PARTS →Titan 0551185 Electronic Control Assembly
Factory electronic control assembly associated with motor operation and pressure-control functions.
Diagram item: 32
Part number: 0551185
Electrical diagnosis and replacement should be performed by qualified service personnel.

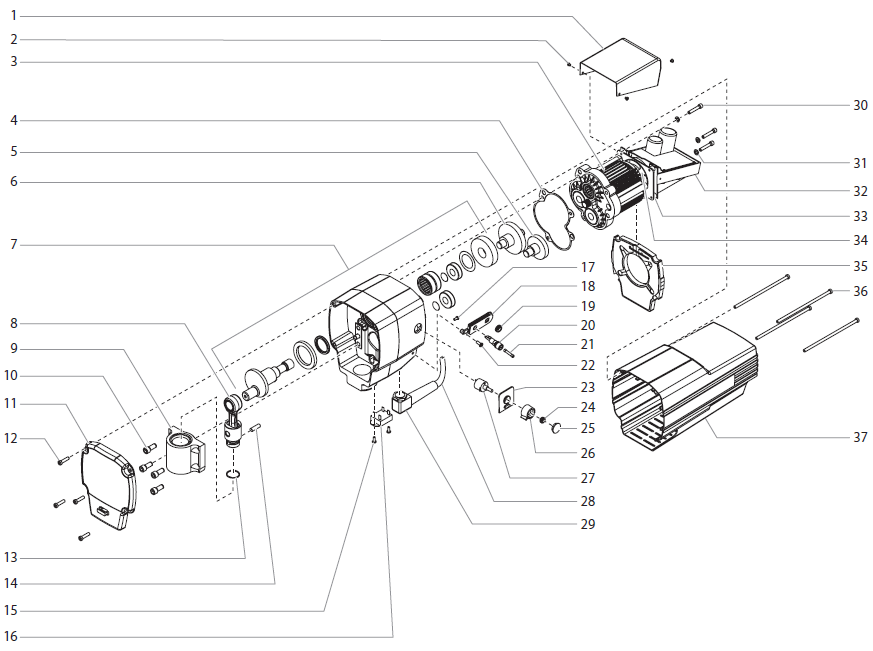

SHOP ELECTRONIC PARTS →Titan Advantage 1100 Drive Assembly Parts Diagram Reference
The original Titan drive assembly drawing identifies 41 positions. Match the diagram item, part number and description to the component being repaired. Factory quantities are assembly quantities, not necessarily quantities included in a retail package.
| Item | Titan Part Number | Factory Description | Qty. |
|---|---|---|---|
| 1 | 800-078 | Electronic Cover | 1 |
| 2 | 800-205 | Screw | 3 |
| 3 | 0551784 | Motor Assembly | 1 |
| 4 | 800-525 | Housing Gasket | 1 |
| 5 | 800-261 | First-Stage Gear Assembly | 1 |
| 6 | 0507222 | Second-Stage Gear Assembly | 1 |
| 7 | 0507220 | Front Gearbox Assembly | 1 |
| 8 | 0507218 | Slider Assembly | 1 |
| 9 | 0507769 | Slider Housing | 1 |
| 10 | 700-283 | Screw | 4 |
| 11 | 0552316 | Front Cover | 1 |
| 12 | 0507799 | Screw | 4 |
| 13 | 800-382 | Retaining Ring | 1 |
| 14 | 800-753 | Connecting Pin | 1 |
| 15 | 800-206 | Screw | 2 |
| 16 | 0507754 | Relay | 1 |
| 17 | 9800340 | Screw | 1 |
| 18 | 800-979 | Mounting Plate | 1 |
| 19 | 800-077 | Grommet | 1 |
| 20 | 800-934 | Fuse Holder | 1 |
| 21 | 800-929 | Fuse | 1 |
| 22 | 800-076 | Screw | 1 |
| 23 | 0507752 | Potentiometer Mounting Plate | 1 |
| 24 | 700-176 | Nut | 1 |
| 25 | 700-175 | Cap | 1 |
| 26 | 700-159 | Pressure Control Knob | 1 |
| 27 | 0507759 | Potentiometer | 1 |
| 28 | 806-213 | Power Cord | 1 |
| 29 | 9850644 | Strain Relief | 1 |
| 30 | 700-287 | Screw | 3 |
| 31 | 9821503 | Lock Washer | 3 |
| 32 | 0551185 | Electronic Control Assembly | 1 |
| 33 | 800-214 | Fan Shroud | 1 |
| 34 | 800-295 | Fan Assembly | 1 |
| 35 | 0507762 | Baffle Assembly | 1 |
| 36 | 800-283 | Screw | 4 |
| 37 | 0552312 | Motor Shroud | 1 |
| 38 | 800-366 | Wire Cover, 7 in (not shown) | 1 |
| 39 | 800-368 | Wire Assembly (not shown) | 1 |
| 40 | 0551972 | Surge Suppressor (not shown) | 1 |
| 41 | 704-400 | Wire Assembly (not shown) | 1 |
View the Titan Advantage 1100 owner's manual and factory parts diagram →
How the Titan Advantage 1100 Drive Components Work
Motor and Gear Reduction
The electric motor rotates the drive gears. First-stage and second-stage gear assemblies transfer motion through the gearbox at the mechanical speed required by the pump mechanism.
Slider and Connecting Pin
The slider and connecting components transmit reciprocating movement toward the fluid section. Wear can affect alignment and mechanical operation.
Pressure-Control Electronics
The electronic control assembly, potentiometer and pressure-control knob support the sprayer's adjustable pressure-control functions.
Cooling and Protection
Fan, shroud, baffle, fuse and wiring components serve their designated cooling, electrical protection and enclosure functions.
Find Your Titan Advantage 1100 Drive Parts Faster
Identify the Fault
Determine whether the problem involves the motor, gearbox, slider or electrical controls.
Check the Diagram
Locate the component's factory item number in the Advantage 1100 drive drawing.
Match the Part Number
Confirm the Titan reference, equipment configuration and documented replacement.
Order the Right Part
Review availability, package contents and installation requirements before purchasing.
Titan Advantage 1100 Drive Assembly Troubleshooting
Use the following guidance to identify components that may require inspection. The symptoms do not establish a diagnosis on their own.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Motor does not start | 0551784 motor, 800-929 fuse, electrical control and power supply | Check power supply and have qualified personnel diagnose the electrical system. |
| Grinding or unusual gearbox noise | 800-261 first-stage gear, 0507222 second-stage gear, 0507220 front gearbox | Stop operation and inspect for gear wear or damage. |
| Drive binds or moves irregularly | 0507218 slider, 0507769 housing, 800-753 connecting pin | Inspect mechanical components and related fluid section resistance. |
| Pressure setting does not respond correctly | 700-159 knob, 0507759 potentiometer, 0551185 electronic control | Check control components and diagnose pressure feedback and pump operation. |
| Fuse repeatedly opens | 800-929 fuse, 800-934 holder, motor and electrical wiring | Investigate the electrical or mechanical cause; never bypass or oversize the fuse. |
| Excessive vibration | Gearbox, motor mounting, slider and connecting hardware | Inspect fasteners, wear and alignment before restarting the sprayer. |
| Damaged cord or strain relief | 806-213 power cord, 9850644 strain relief | Remove equipment from service and arrange proper electrical repair. |
Plan Your Advantage 1100 Drive Assembly Repair
Inspect the Gear Train
Examine the first-stage gear, second-stage gear and front gearbox for damage. Follow Titan's specified gearbox lubrication procedure when servicing the drive.
Check Slider Components
Inspect the slider, slider housing, connecting pin and retaining ring when diagnosing mechanical wear or unusual movement.
Service Electrical Controls
Use authorized service personnel for electronic control, motor, relay and power-cord repairs. Observe the manufacturer's electrostatic discharge precautions.
Shop More Titan Advantage 1100 Replacement Parts
Explore the corresponding parts categories when your repair involves additional sprayer systems.
Titan Advantage 1100 Drive Assembly Compatibility
The original Titan Advantage 1100 parts list identifies motor assembly 0551784, first-stage gear assembly 800-261, second-stage gear assembly 0507222, front gearbox assembly 0507220, slider assembly 0507218 and slider housing 0507769.
The same diagram identifies pressure-control knob 700-159, potentiometer 0507759, electronic control assembly 0551185, fuse 800-929 and surge suppressor 0551972.
Some of these components appear in additional Titan or SprayTech product families. Shared component references do not establish interchangeability of entire drive assemblies.
Confirm the exact sprayer model, factory item number, current replacement reference and applicable service instructions before ordering.
Drive Assembly Maintenance and Safety Guidance
Follow Titan's complete pressure-relief procedure, disconnect electrical power and secure the equipment before beginning drive assembly service.
Do not open electrical enclosures or disconnect wiring while the sprayer is connected to power. Electrical work should be performed by a Titan-authorized service center.
Observe electrostatic discharge precautions when handling electronic control components. Protect the controller from static damage.
Use the manufacturer's specified electronic cover screws. Incorrect fasteners can damage the electronic control assembly.
Inspect gearbox components for wear or damage and follow the specified lubrication procedure. Titan identifies gearbox grease part number 9870304 in its gear service instructions.
Never bypass the fuse, grounding hardware or protective electrical components. Replace damaged electrical parts with correctly specified components.
Reinstall protective covers, shrouds, baffles, mounting hardware and strain reliefs before returning the sprayer to operation.
After servicing, follow the manufacturer's prescribed inspection and operational checks before spraying.
Titan Advantage 1100 Drive Assembly Parts FAQ
Answers to common questions about Advantage 1100 motors, drive gears, sliders, pressure controls and electrical replacement parts.
What parts are included in the Titan Advantage 1100 drive assembly diagram?
The factory drawing lists 41 positions, including the motor, gearbox, drive gears, slider, connecting hardware, pressure controls, electronic controller, fuse, wiring and protective covers.
What is the Titan Advantage 1100 motor assembly part number?
Titan 0551784 is the motor assembly identified as item 3 in the original Advantage 1100 drive assembly parts list.
Which gears are used in the Advantage 1100 drive system?
The factory drawing lists Titan 800-261 as the first-stage gear assembly and Titan 0507222 as the second-stage gear assembly. Titan 0507220 is the front gearbox assembly.
What is the Titan Advantage 1100 slider assembly part number?
Titan 0507218 is the slider assembly, item 8. Titan 0507769 is the associated slider housing, item 9.
Which pressure-control knob fits the Advantage 1100?
The factory parts list identifies Titan 700-159 as the pressure-control knob. AllTitanParts also identifies it as replacing an earlier Titan 507740 reference.
What fuse is listed for the Titan Advantage 1100?
Titan 800-929 is the factory-listed fuse. The current product listing describes it as a 15-amp fuse replacing Titan 0551627. Use only the specified fuse type and rating.
Can I replace the Advantage 1100 gearbox without replacing the motor?
The factory parts diagram identifies gearbox and motor components separately. Whether one component can be replaced independently depends on the diagnosis, condition of related parts and manufacturer's repair procedure.
Where can I buy Titan Advantage 1100 drive assembly parts?
Browse the Titan Advantage 1100 Drive Assembly category at AllTitanParts to compare factory part numbers and order available motor, gearbox, slider and electrical service components.
Buy Titan Advantage 1100 Drive Assembly Parts
Shop Titan motor assemblies, drive gears, gearbox components, sliders, pressure-control knobs, electronic controls and replacement hardware. Use the factory diagram to find the correct parts for your repair.
SHOP ADVANTAGE 1100 DRIVE PARTS →Need help identifying a part? Call 713-931-0006.
