Shop Titan Advantage 1100 Fluid Section Assembly Parts
Find Titan Advantage 1100 fluid section replacement parts at AllTitanParts. Shop piston rods, pump cylinders, upper and lower packing assemblies, inlet and outlet valve components, seals, adapters and repacking kits for your electric airless paint sprayer.
Identify the correct component using the Titan factory exploded diagram, compare original part numbers and select available repair parts for your Advantage 1100 pump.
Maintain Your Titan Advantage 1100 Fluid Pump
The Titan Advantage 1100 fluid section is the mechanical pumping assembly responsible for drawing coating material from the suction system, pressurizing it and delivering it into the airless sprayer's fluid circuit.
Inside the pump cylinder, a reciprocating piston rod operates with upper and lower packing assemblies. These packings help seal the moving piston and limit fluid leakage. The inlet and outlet valve components control material movement through the pumping chamber.
The factory fluid section contains an upper seal retainer, upper support ring, cylinder, adapter, piston rod, valve cages, valve balls, valve seats, O-rings, backup rings and inlet valve housing. Titan also identifies a complete piston assembly and a fluid section repacking kit.
Worn packings, damaged piston surfaces, contaminated valve balls or deteriorated seals can contribute to priming difficulties, pressure loss and material leakage. These symptoms can also result from other parts of the sprayer, so proper diagnosis is important before ordering replacements.
The original Titan documentation labels the fluid section assembly as 0552155. AllTitanParts identifies the complete packaged fluid section as Titan 0552155A, which is listed as discontinued. Individual service components remain the practical purchasing option when suitable parts are available.
Shop the Titan Advantage 1100 Fluid Section Assembly category to compare factory part numbers, current replacements and available service components. Review each listing to distinguish genuine Titan components from separately identified aftermarket alternatives.
Featured Titan Advantage 1100 Fluid Section Replacement Parts
Browse commonly serviced components identified in the Advantage 1100 fluid section drawing.
Titan 0551687 Repacking Kit
Factory-referenced service kit for rebuilding the fluid section's sealing and selected valve components.
Part number: 0551687
Factory reference: Service kit, not a numbered diagram position
The manual identifies packing, adapter, seal, washer, ball and ring components within the kit.
SHOP REPACKING KITS →Titan 0552156 Cylinder
The cylinder provides the pumping chamber in which the piston and packing assemblies operate.
Factory item: 4
Part number: 0552156
Inspect the internal cylinder surface for scoring, wear and damage during pump servicing.
SHOP PUMP CYLINDERS →Titan 0507732 Piston Rod
Reciprocating piston rod used to operate the fluid pumping mechanism.
Factory item: 7
Part number: 0507732
Inspect the rod surface and associated sealing components when diagnosing leakage or pump wear.
SHOP PISTON PARTS →Titan 9841502 Outlet Valve Ball
Outlet check-valve ball used with the corresponding valve seat and cage.
Factory item: 11
Part number: 9841502
Inspect for wear, contamination and sealing problems when the pump cannot maintain pressure.
SHOP OUTLET VALVES →Titan 51519 Inlet Valve Ball
Current category-listed inlet valve ball replacing the original Titan 800-242 reference.
Factory item: 15
Listed part: 51519
Inspect the inlet valve ball, cage and seat together when diagnosing poor priming.
SHOP INLET VALVES →Titan 0507229 Piston Assembly
Factory piston assembly identified as including fluid section diagram items 7 through 13.
Factory item: 21
Part number: 0507229
Compare the complete assembly with individual piston and outlet valve components when planning repairs.

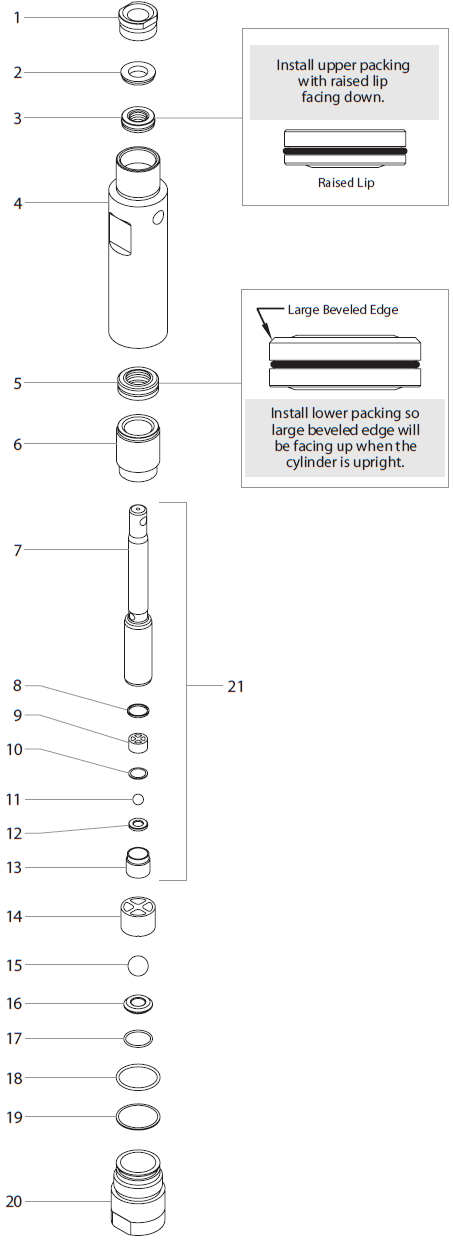

SHOP PISTON ASSEMBLIES →Titan Advantage 1100 Fluid Section Assembly Parts Diagram
Use the manufacturer's numbered exploded diagram to identify the correct component. The following reference includes the 21 numbered positions and the separately listed service kit and installation tool.
| Item | Titan Part Number | Component Description | Qty. |
|---|---|---|---|
| 1 | 800-325 | Upper Seal Retainer | 1 |
| 2 | 800-327 | Upper Support Ring | 1 |
| 3 | 0552177 | Upper Packing Assembly | 1 |
| 4 | 0552156 | Cylinder | 1 |
| 5 | 0552178 | Lower Packing Assembly | 1 |
| 6 | 0552157 | Cylinder Adapter | 1 |
| 7 | 0507732 | Piston Rod | 1 |
| 8 | 80-348 | Outlet Valve Seal (category lists 800-348) | 1 |
| 9 | 0507452 | Outlet Valve Cage | 1 |
| 10 | 0507454 | Nylon Washer | 1 |
| 11 | 9841502 | Outlet Valve Ball | 1 |
| 12 | 0294516 | Outlet Valve Seat | 1 |
| 13 | 800-336 | Outlet Valve Retainer | 1 |
| 14 | 800-322 | Inlet Valve Cage | 1 |
| 15 | 51519 | Inlet Valve Ball | 1 |
| 16 | 00310 | Inlet Valve Seat | 1 |
| 17 | 00203 | O-Ring | 1 |
| 18 | 800-332 | Viton O-Ring | 2 |
| 19 | 800-333 | PTFE Back-Up Ring | 2 |
| 20 | 800-148 | Inlet Valve Housing | 1 |
| 21 | 0507229 | Piston Assembly, Includes Items 7-13 | 1 |
| Kit | 0551687 | Fluid Section Repacking Kit | See Kit Contents |
| Tool | 0552150 | Lower Packing Insertion Tool | Service Tool |
How the Titan Advantage 1100 Fluid Section Works
Piston and Cylinder
The piston moves within the cylinder to create the pumping action required for material intake and pressure generation.
Upper and Lower Packings
The packing assemblies seal around the reciprocating piston and help control leakage through the pumping chamber.
Inlet Valve Components
The inlet ball, seat and cage control material entry into the pump. Contamination or wear may affect priming.
Outlet Valve Components
The outlet ball, seat, cage and seal help control material discharge and maintain the intended fluid flow.
Find Your Titan Advantage 1100 Fluid Section Parts Faster
Identify the Symptom
Determine whether the problem involves leakage, pressure loss, priming or internal pump wear.
Locate the Diagram Item
Find the piston, packing, valve or seal position in the official Titan fluid section drawing.
Verify the Part Number
Check the factory reference, current replacement and whether the product is OEM or aftermarket.
Review and Order
Confirm availability, fitment, quantities and kit contents before purchasing.
Titan Advantage 1100 Fluid Section Troubleshooting
Use these observations to guide inspection. Several sprayer systems can produce similar symptoms, so confirm the actual cause before replacing parts.
| Observed Condition | Components to Inspect | Service Guidance |
|---|---|---|
| Pump struggles to prime | Inlet ball 51519, inlet seat 00310, inlet cage 800-322 | Check material supply, suction leaks, obstructions and inlet valve condition. |
| Fluid leaks from upper pump area | Upper packing 0552177, seal retainer 800-325, piston rod | Inspect the upper packing and rod surface for wear or damage. |
| Pump cannot maintain pressure | Packings, inlet/outlet valve balls, valve seats | Check for internal leakage, contamination or worn sealing surfaces. |
| Irregular material delivery | Piston rod, cylinder, valve components and fluid filters | Inspect for internal wear and downstream restrictions. |
| Leak at lower inlet housing | 00203 O-ring, 800-332 Viton O-rings, 800-333 backup rings | Check the correct seal locations and mating surfaces before replacement. |
| Outlet valve does not seal correctly | 9841502 ball, 0294516 seat, 0507452 cage | Inspect valve components for contamination, wear and damage. |
| Pump requires a general rebuild | 0551687 repacking kit, cylinder, piston and valve assemblies | Determine whether a repacking kit or additional mechanical components are needed. |
Choose the Right Advantage 1100 Fluid Section Repair
Repack the Pump
Consider Titan 0551687 when worn packing components are confirmed. Check kit contents and inspect the piston and cylinder before reassembly.
Service the Check Valves
Inspect inlet and outlet valve balls, cages, seats and seals. Replace worn or damaged components according to the manufacturer's service instructions.
Inspect the Piston and Cylinder
Check the piston rod and cylinder surfaces for scoring, wear or mechanical damage that could compromise newly installed packings.
Explore More Titan Advantage 1100 Replacement Parts
Browse related sprayer assemblies when a repair involves additional fluid-handling or drive components.
Titan Advantage 1100 Fluid Section Compatibility
The Titan Advantage 1100 factory parts documentation identifies fluid section assembly 0552155 and the associated 21 numbered component positions. The complete packaged fluid section is also listed under Titan 0552155A.
The packaged 0552155A assembly is identified for certain Advantage and SprayTech airless sprayer models, including Advantage 700, Advantage 1100, EPX2455 and EPX2555. However, shared assembly compatibility does not establish interchangeability of every individual component or equipment configuration.
Original references include Titan 0552156 cylinder, 0507732 piston rod, 0507229 piston assembly, 0551687 repacking kit, 9841502 outlet valve ball and 800-148 inlet valve housing.
AllTitanParts also lists newer or alternative part references, including Titan 800-355A lower packing assembly, Titan 0294516 outlet valve seat and Titan 51519 inlet ball. Confirm the relevant manufacturer replacement relationship before ordering.

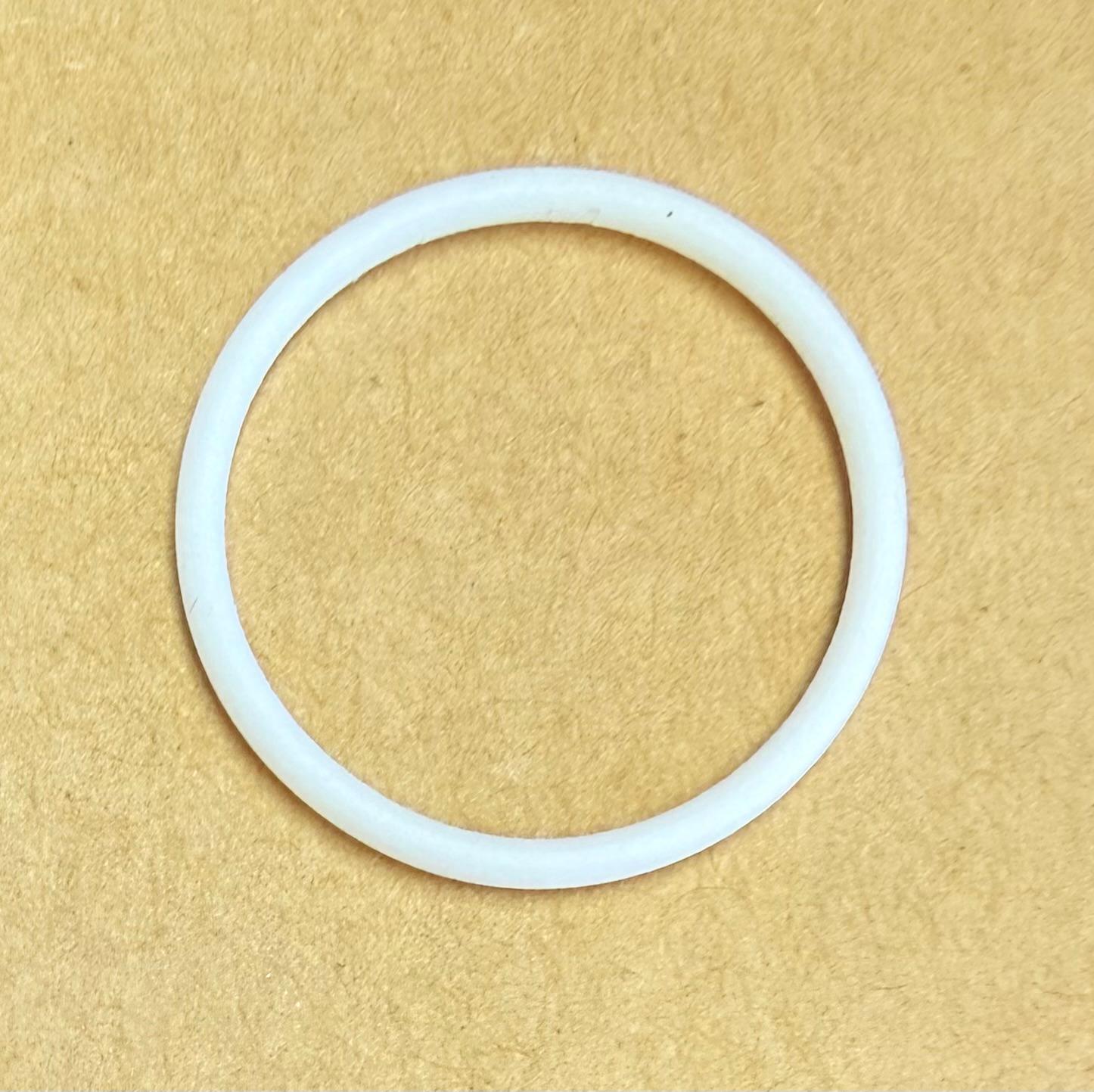

The Bedford 00203 O-ring listing is an aftermarket product. Confirm the actual manufacturer and product status on each listing rather than assuming every part in the category is genuine Titan OEM.
Titan Advantage 1100 Fluid Section Maintenance and Safety
Before servicing the pump, shut off the sprayer, engage the gun trigger lock, follow Titan's complete pressure-relief procedure and disconnect electrical power.
Never loosen a pressurized fluid fitting, valve housing, hose or pump component. High-pressure fluid injection can cause serious injury.
Follow the manufacturer's fluid section disassembly and reassembly sequence. Use appropriate service tools and protect precision-machined components from damage.
Do not clamp directly onto the polished piston rod or damage the internal cylinder surface during servicing.
Install upper and lower packing assemblies in the correct orientation shown in the Titan service manual. Incorrect orientation may prevent proper sealing.
Inspect valve balls, cages, seats, O-rings and backup rings before reassembly. Replace components that show confirmed wear or damage.
Use the specified installation tools and follow the manufacturer's torque requirements. Do not substitute unverified seals or fittings.
Check the complete fluid section, connections and associated drive components after reassembly. Follow Titan's operational inspection procedure before returning the sprayer to normal service.
If internal pump servicing is beyond your experience, use a qualified repair technician familiar with high-pressure airless equipment.
Titan Advantage 1100 Fluid Section Assembly Parts FAQ
Answers to common questions about Titan Advantage 1100 pump rebuilds, piston components, packings, valves and replacement part numbers.
What parts are included in the Titan Advantage 1100 fluid section?
The factory diagram identifies 21 positions covering the cylinder, piston, upper and lower packings, inlet and outlet valve components, seals, rings and related hardware.
What is the Titan Advantage 1100 fluid section assembly part number?
The factory diagram is labeled 0552155. The complete packaged assembly is listed as Titan 0552155A, which is currently identified as discontinued by AllTitanParts.
What repacking kit is used for the Advantage 1100?
Titan 0551687 is the factory-referenced fluid section repacking kit. Confirm its contents and application before ordering.
Which piston rod fits the Titan Advantage 1100 fluid section?
Titan 0507732 is the piston rod identified as item 7. Titan 0507229 is the factory piston assembly, item 21, which includes items 7 through 13.
What can cause an Advantage 1100 to lose pressure?
Potential causes include worn packings, leaking inlet or outlet valves, damaged piston surfaces, clogged filters or problems elsewhere in the pressure-control system. Diagnose the cause before replacing parts.
Can I rebuild the fluid section instead of replacing it?
Yes, many fluid section components are individually identified and can be serviced according to the manufacturer's procedures. Whether rebuilding is appropriate depends on the condition of the cylinder, piston, valves and other components.
Are all Advantage 1100 fluid section parts genuine Titan OEM?
No. The category includes Titan parts as well as a Bedford aftermarket O-ring listing. Review the manufacturer and product status of each individual listing before purchase.
Where can I buy Titan Advantage 1100 fluid section parts?
Shop the Titan Advantage 1100 Fluid Section Assembly category at AllTitanParts to compare factory part numbers, available repacking kits, piston components, valve parts and seals.
Buy Titan Advantage 1100 Fluid Section Parts
Shop Titan piston rods, pump cylinders, repacking kits, inlet and outlet valve parts, seals and replacement fluid section components. Match your repair to the factory parts diagram and find the correct items for your Advantage 1100.
SHOP ADVANTAGE 1100 FLUID SECTION PARTS →Need help identifying a part? Call 713-931-0006.
