Shop Titan Advantage 1100 Filter Assembly Parts
Find replacement filter assembly parts for your Titan Advantage 1100 electric airless paint sprayer. Shop fluid filter elements, filter bodies, springs, housings, O-rings, outlet fittings, pressure transducers and PRIME/SPRAY valve components.
Use the factory exploded diagram to identify the correct Titan part number, inspect the affected fluid-control components and select available replacement parts for your next repair.
Maintain Your Titan Advantage 1100 Fluid Filter System
The Titan Advantage 1100 filter assembly helps remove debris from coating material after it leaves the pump's fluid section and before it reaches the spray hose and gun. A properly maintained filter helps reduce unwanted particles reaching downstream components and supports consistent material delivery.
The original Titan parts documentation identifies the complete filter assembly as 0552240A. The assembly includes a filter body, spring-supported filter element, adapter, core spring, PTFE O-ring, pressure transducer, filter housing, plugs, outlet fitting and PRIME/SPRAY valve assembly.
These components serve different purposes. The filter element traps debris, the housing contains the filter components, the O-ring provides sealing at its designated joint, the transducer provides pressure feedback to the control system and the PRIME/SPRAY valve controls the fluid path during priming and spraying.
A clogged filter element may restrict material flow or contribute to an uneven spray pattern. Damaged seals or threaded connections can cause leakage. Problems with the PRIME/SPRAY valve or pressure transducer may also affect sprayer operation, although similar symptoms can originate elsewhere in the system.
Shop the Advantage 1100 Filter Assembly category at AllTitanParts to compare original manufacturer part numbers, current replacement listings and available individual components before purchasing.
Featured Titan Advantage 1100 Filter Assembly Components
Identify the principal filtration, sealing and fluid-control parts in the original Titan assembly.
Titan 0551950 Filter Body
The primary filter body provides the structural fluid passages and mounting arrangement for the filter assembly.
Factory item: 1
Part number: 0551950
Inspect for damaged threads, cracks or compromised sealing surfaces.
VIEW FILTER BODY →Titan 730-067 Medium Filter
The factory-referenced medium filter element traps debris from the coating material before it reaches downstream equipment.
Factory item: 3
Part number: 730-067
Inspect for buildup, damage and restrictions. Select filter mesh appropriate to the coating and manufacturer's guidance.
SHOP FILTER ELEMENTS →Titan 0555625 Filter Housing
The housing encloses the filter element and supports the sealed fluid filtration arrangement.
Factory item: 8
Part number: 0555625
Check for thread damage, cracks and leakage at the housing joint.
SHOP FILTER HOUSINGS →Titan 0551666 Transducer Assembly
The transducer provides pressure information used by the sprayer's electronic control system.
Factory item: 7
Part number: 0551666
Electrical and pressure-control diagnosis should be carried out by qualified service personnel.
VIEW TRANSDUCER PARTS →Titan 0507690 PRIME/SPRAY Valve
The factory valve assembly controls the fluid path for priming, recirculation and spraying.
Factory item: 12
Part number: 0507690
Inspect when the sprayer cannot prime correctly or fluid continues returning during spray operation.
SHOP PRIME/SPRAY VALVES →Titan 0552240A Filter Assembly
Factory-specified filter assembly for the Titan Advantage 1100 fluid system.
Complete assembly: 0552240A
Consider the complete assembly when multiple filter body or internal components require replacement. Verify supplied contents before ordering.

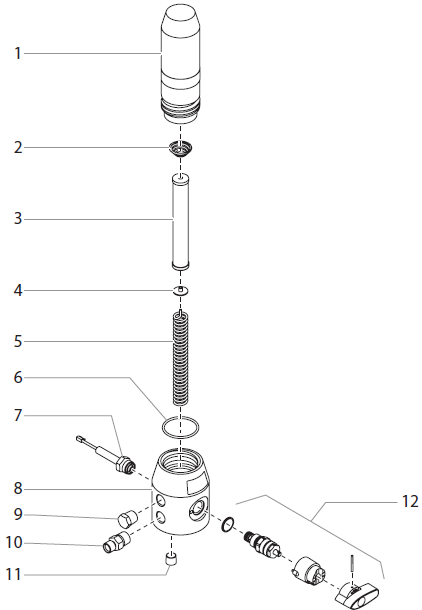

VIEW COMPLETE ASSEMBLY →Titan Advantage 1100 Filter Assembly Parts Diagram
The original Titan Advantage 1100 filter assembly drawing identifies 12 positions. Match the item number and part reference to your existing component before ordering.
| Item | Titan Part Number | Factory Description | Qty. |
|---|---|---|---|
| 1 | 0551950 | Filter Body | 1 |
| 2 | 14058 | Filter Spring | 1 |
| 3 | 730-067 | Filter, Medium | 1 |
| 4 | 702-251 | Adapter | 1 |
| 5 | 757-105 | Core Spring | 1 |
| 6 | 800-906 | PTFE O-Ring | 1 |
| 7 | 0551666 | Transducer Assembly | 1 |
| 8 | 0555625 | Filter Housing | 1 |
| 9 | 227-033 | 3/8-inch Plug | 1 |
| 10 | 812-003 | Outlet Fitting | 1 |
| 11 | 800-907 | 1/4-inch Plug | 1 |
| 12 | 0507690 | PRIME/SPRAY Valve Assembly | 1 |
How the Titan Advantage 1100 Filter Assembly Works
Material Filtration
The filter element captures debris from coating material to reduce contamination reaching the spray hose, gun and tip.
Filter Sealing
The filter housing, body and PTFE O-ring contain fluid within the assembly at their designated sealing surfaces.
Pressure Monitoring
The transducer senses fluid pressure and provides feedback used by the electronic pressure-control system.
Priming and Spraying
The PRIME/SPRAY valve changes the fluid path between priming or return flow and normal spray operation.
Find Your Titan Advantage 1100 Filter Parts Faster
Identify the Problem
Check whether the concern involves filter blockage, leakage, pressure feedback or PRIME/SPRAY operation.
Locate the Diagram Item
Find the affected component in the 12-position Titan filter assembly diagram.
Confirm Compatibility
Match the original part number and verify any current replacement or model-specific revision.
Shop Available Parts
Review product details, package contents and availability before completing your order.
Titan Advantage 1100 Filter Assembly Troubleshooting
Use these symptoms to identify components worth inspecting. The cause should be confirmed before replacing parts.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Reduced coating flow | 730-067 filter, 14058 filter spring, material passages | Inspect for filter blockage and verify that the coating and filter selection are compatible. |
| Leakage around filter housing | 0555625 housing, 800-906 PTFE O-ring, 0551950 body | Inspect the sealing surfaces, threads and O-ring condition after pressure relief. |
| Pump will not prime correctly | 0507690 PRIME/SPRAY valve, filter passages, suction system | Verify valve position, check suction leaks and inspect for restrictions. |
| Fluid continues returning in SPRAY mode | 0507690 PRIME/SPRAY valve assembly | Inspect valve operation and sealing according to Titan's service instructions. |
| Pressure reading or control is inconsistent | 0551666 transducer, electronic controls, fluid section | Have qualified personnel diagnose pressure feedback and related components. |
| Damaged outlet connection | 812-003 outlet fitting, filter body threads | Check the fitting and mating port for thread or sealing damage. |
| Filter element repeatedly clogs | Filter element, coating preparation, inlet screen and material supply | Inspect coating contamination and follow the specified cleaning and filtration procedure. |
Plan Your Advantage 1100 Filter Assembly Repair
Service the Filter Element
Inspect the filter element, adapter and springs. Clean or replace the filter as directed by Titan and confirm the correct mesh for your coating.
Inspect Seals and Housing
Check the PTFE O-ring, filter body, housing threads and mating surfaces when diagnosing fluid leakage.
Check Valve and Pressure Control
Inspect the PRIME/SPRAY valve and arrange qualified diagnosis of the transducer or electronic control system if required.
Shop More Titan Advantage 1100 Replacement Parts
Explore related components when filter maintenance involves other parts of the airless sprayer's fluid or drive system.
Titan Advantage 1100 Filter Assembly Compatibility
Titan identifies filter assembly 0552240A in the Advantage 1100 factory main assembly and filter assembly parts lists. The same complete assembly reference is also listed for certain Advantage 700 and SprayTech Advantage EPX2455 and EPX2555 sprayers.
The original Advantage 1100 filter drawing identifies filter body 0551950, medium filter 730-067, filter housing 0555625, pressure transducer 0551666, outlet fitting 812-003 and PRIME/SPRAY valve 0507690.
Individual components can differ across equipment revisions even where the complete filter assembly reference is shared. Verify original part numbers and documented replacements using the correct manual for your specific machine.
Review current product listings for the actual manufacturer, replacement status, supplied components and compatibility before purchasing.
Titan Advantage 1100 Filter Maintenance and Safety
Before servicing the filter assembly, turn off the sprayer, engage the gun trigger lock, follow the complete Titan pressure-relief procedure and disconnect electrical power.
Never loosen the filter housing, outlet fitting, plug or PRIME/SPRAY valve while the system is pressurized. High-pressure fluid can cause serious injection injuries.
Remove and clean the filter element according to Titan's instructions. Use a replacement element compatible with the coating and the original filter assembly.
Inspect the filter housing and body for cracks, damaged threads, corrosion and worn sealing surfaces. Do not reuse damaged pressure-containing components.
Check the PTFE O-ring and other seals for damage or distortion. Install only the correct replacement seals in their designated locations.
Follow the manufacturer's service procedure for the PRIME/SPRAY valve. Do not force a damaged valve handle or bypass pressure-relief functions.
Have qualified personnel service the transducer and associated electrical pressure-control components. Do not disconnect electronic components while the sprayer is energized.
After reassembly, follow Titan's inspection and operating procedure and check for leaks before returning the sprayer to normal use.
Titan Advantage 1100 Filter Assembly Parts FAQ
Answers to common questions about filter screens, housings, PRIME/SPRAY valves, transducers and replacement part compatibility.
What is the Titan Advantage 1100 filter assembly part number?
The original Titan Advantage 1100 owner's manual identifies the complete filter assembly as part number 0552240A.
How many parts are identified in the Advantage 1100 filter diagram?
The factory exploded diagram contains 12 numbered positions, including the filter body, springs, element, adapter, seal, transducer, housing, plugs, outlet fitting and PRIME/SPRAY valve.
Which filter element is listed for the Titan Advantage 1100?
The original Advantage 1100 parts manual identifies Titan 730-067 as the medium filter element, item 3. Verify any updated filter reference before ordering.
What is the Titan Advantage 1100 filter body part number?
Titan 0551950 is the filter body, item 1. It provides the structural fluid passages and mounting surfaces for the filter assembly.
What PRIME/SPRAY valve fits the Titan Advantage 1100?
Titan 0507690 is the PRIME/SPRAY valve assembly identified as item 12 in the factory filter assembly diagram.
Can a clogged filter cause pressure or spray problems?
Yes. A restricted filter can reduce coating flow and contribute to poor spray performance. Similar symptoms can result from clogged tips, suction restrictions, worn pump components or pressure-control faults.
Is filter assembly 0552240A used on other sprayer models?
AllTitanParts lists complete assembly 0552240A for Advantage 700, Advantage 1100 and certain SprayTech EPX2455 and EPX2555 models. Individual internal components may differ by model or revision.
Where can I buy Titan Advantage 1100 filter assembly replacement parts?
Shop the Advantage 1100 Filter Assembly category at AllTitanParts to compare original Titan part numbers, available filter elements, housings, seals, fittings and PRIME/SPRAY valve components.
Buy Titan Advantage 1100 Filter Assembly Parts
Shop Titan filter screens, housings, O-rings, springs, fittings, transducers and PRIME/SPRAY valve components. Match the correct factory part number and find the replacement parts needed for your Advantage 1100.
SHOP ADVANTAGE 1100 FILTER PARTS →
