Shop Titan Advantage 1100 Main Assembly Replacement Parts
Find factory-referenced replacement parts for the Titan Advantage 1100 electric airless paint sprayer. Shop fluid section components, suction tubes, inlet screens, PRIME/SPRAY valves, fluid filters, hose fittings and main assembly hardware.
Use the manufacturer's exploded diagram to match each component to its original Titan part number. Compare current product listings and order the service parts required for your equipment.
Keep Your Titan Advantage 1100 Ready for the Next Job
The Titan Advantage 1100 main assembly brings together several systems required for airless spraying. The drive assembly operates the reciprocating pump mechanism, while the fluid section draws in and pressurizes coating material. The siphon tube and inlet screen form part of the material supply path.
Pressurized material passes through the appropriate fluid connections and filter assembly before reaching the spray hose and gun. The PRIME/SPRAY valve provides the designated fluid-routing function for priming and spraying, according to the manufacturer's operating procedure.
The factory main assembly also incorporates an upright cart, mounting components, grommets, washers, screws and hose-retaining hardware. These parts help support the equipment and secure its component arrangement.
A worn inlet screen, damaged siphon tube, leaking fitting or defective valve may require targeted service. Other symptoms can originate in the fluid section, filter or drive system. Identifying the actual source of a problem helps avoid unnecessary parts purchases.
At AllTitanParts, browse the Advantage 1100 main assembly by diagram position or part number. Confirm the current product description, availability and fitment before ordering.
Featured Titan Advantage 1100 Main Assembly Parts
Explore key factory-referenced components for fluid delivery, filtration, priming and sprayer service.
Titan 0552155A Fluid Section Assembly
The pump fluid section contains the reciprocating pumping components responsible for drawing in and pressurizing coating material.
Factory item: 6
Part number: 0552155A
Complete assembly listed as discontinued. Check individual service parts.

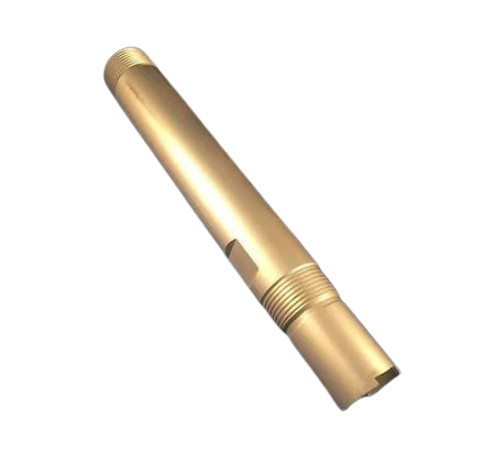

SHOP FLUID SECTION →Titan 0507798 Siphon Tube
Factory material intake tube used to convey coating material from the supply container toward the pump inlet.
Factory item: 7
Part number: 0507798
Inspect for damage, restrictions or connection problems during suction-system service.
SHOP SIPHON PARTS →Titan 710-046 Inlet Screen
Factory inlet screen that helps prevent larger contaminants from entering the pump through the suction system.
Factory item: 9
Part number: 710-046
Inspect for buildup, blockage and physical damage before reuse.
SHOP INLET SCREENS →Titan 0552240A Filter Assembly
Factory filter assembly used in the pressurized fluid path to help capture coating contaminants before material reaches the spray hose.
Factory item: 13
Part number: 0552240A
Individual filter components may be available for targeted repairs.
SHOP FILTER PARTS →Titan 0507690 PRIME/SPRAY Valve
Factory valve assembly used to select the designated priming or spraying fluid path.
Factory item: 14
Part number: 0507690
Inspect when diagnosing incorrect fluid routing or difficulty transitioning between modes.
SHOP VALVE PARTS →Titan 800-904 Return Hose
Factory return hose with fitting used to carry coating material through the designated return path during priming and related procedures.
Factory item: 12
Part number: 800-904
Check for cracking, obstruction, deterioration and insecure connections.

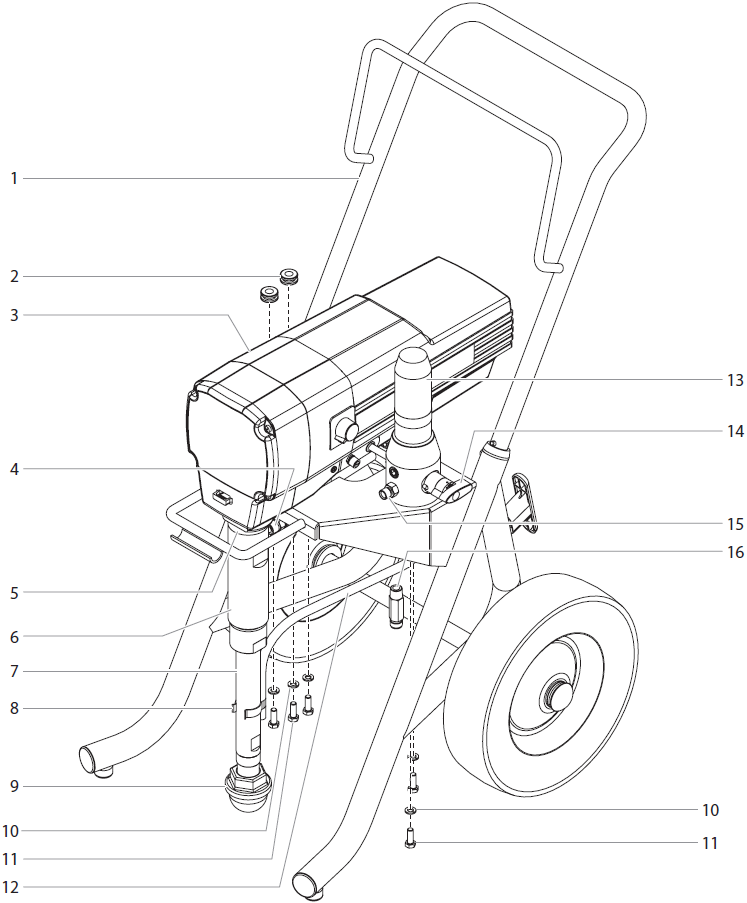

SHOP RETURN HOSES →Titan Advantage 1100 Main Assembly Parts Diagram
The manufacturer's main assembly drawing identifies 17 numbered positions. Match the callout number and part description to your sprayer before selecting a replacement.
| Item | Titan Part Number | Factory Description | Quantity |
|---|---|---|---|
| 1 | 0552185A | Upright Cart Assembly | 1 |
| 2 | 800-036 | Grommet | 2 |
| 3 | Not separately numbered | Drive Assembly | 1 |
| 4 | 0508343 | Fitting | 1 |
| 5 | 800-313 | Jam Nut | 1 |
| 6 | 0552155A | Fluid Section Assembly | 1 |
| 7 | 0507798 | Siphon Tube | 1 |
| 8 | 730-334 | Hose Clamp | 1 |
| 9 | 710-046 | Inlet Screen | 1 |
| 10 | 860-002 | Lock Washer | 5 |

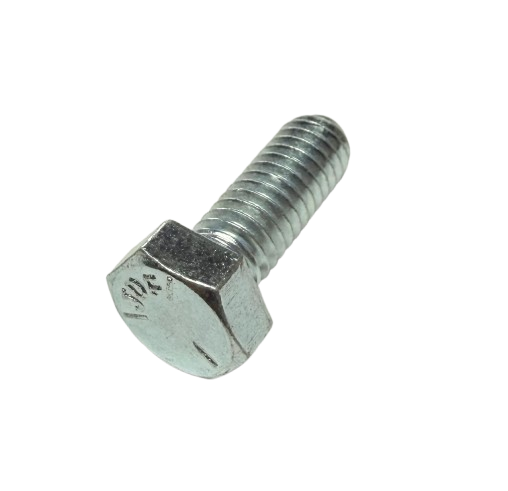

| 11 | 860-535 | Screw | 5 |
| 12 | 800-904 | Return Hose with Fitting | 1 |
| 13 | 0552240A | Filter Assembly | 1 |
| 14 | 0507690 | PRIME/SPRAY Valve Assembly | 1 |

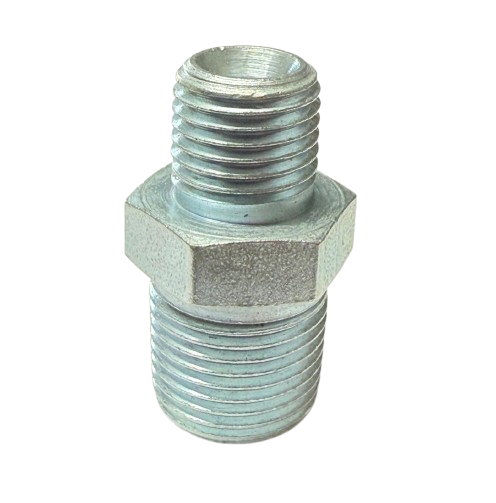

| 15 | 812-003 | Outlet Fitting | 1 |
| 16 | 0507671 | Fitting | 1 |
| 17 | 0507387 | Hose, Not Shown in Diagram | 1 |
View the official Titan Advantage 1100 owner's manual and parts diagrams →
How the Titan Advantage 1100 Main Assembly Works
Drive and Fluid Section
The drive assembly converts motor rotation into reciprocating movement. The fluid section uses that movement to draw in and pressurize coating material through its piston, packing and valve components.
Suction and Return Paths
The siphon tube and inlet screen support material intake. The return hose provides a designated path for recirculating coating during priming and other manufacturer-specified operations.
Filter and PRIME/SPRAY Valve
The filter helps trap contaminants in the coating stream. The PRIME/SPRAY valve directs material through the appropriate fluid path according to the selected operating mode.
Fittings and Mounting Hardware
Fittings connect designated fluid components, while washers, screws, grommets and the cart structure support proper assembly and equipment positioning.
Find Your Titan Advantage 1100 Main Assembly Parts Faster
Confirm Your Model
Check that your sprayer is the Titan Advantage 1100 and identify its actual equipment configuration.
Locate the Diagram Item
Find the affected component in the factory main assembly drawing.
Match the Part Number
Compare the original Titan reference and current replacement information.
Review and Purchase
Confirm fitment, quantity, package contents and availability before ordering.
Titan Advantage 1100 Main Assembly Troubleshooting
Use these observations to identify areas requiring inspection. Symptoms alone do not confirm a failed part.
| Observed Problem | Components to Inspect | Service Guidance |
|---|---|---|
| Sprayer does not prime properly | 0507798 siphon tube, 710-046 inlet screen, fluid-section inlet valve | Check material supply, restrictions, air entry and valve condition. |
| Paint flow is restricted | 0552240A filter assembly, inlet screen, hose and spray tip | Inspect and clean approved filter components; replace damaged parts. |
| Material leaks near a fitting | 0508343, 812-003, 0507671 and adjacent connections | Relieve pressure and identify the exact leaking joint before service. |
| Material returns when spraying is selected | 0507690 PRIME/SPRAY valve assembly | Inspect valve operation and sealing according to the manufacturer. |
| Return hose is damaged | 800-904 return hose, 730-334 hose clamp | Replace damaged components and secure the correct hose arrangement. |
| Pump cycles but pressure is inconsistent | Fluid section packings, inlet/outlet valves, filters | Diagnose wear, leakage and restrictions before replacing assemblies. |
| Abnormal mechanical noise | Drive assembly, mounting hardware and associated moving components | Stop operation and inspect the drive system using the service manual. |
Choose the Right Advantage 1100 Repair Approach
Service the Suction System
Inspect the inlet screen, siphon tube and hose connections when the pump struggles to draw material or loses prime.
Repair the Fluid Section
Consider compatible packing kits, piston parts and inlet/outlet valve components when internal pump wear is confirmed.
Maintain Filtration and Priming
Inspect the filter assembly and PRIME/SPRAY valve when diagnosing flow restrictions or incorrect material routing.
Explore More Titan Advantage 1100 Replacement Parts
Use the dedicated assembly categories to identify individual components and related service parts.
Titan Advantage 1100 Main Assembly Compatibility
The Titan Advantage 1100 main assembly is documented in the manufacturer's Advantage 1100 owner's manual. Its original parts list identifies the upright cart, drive assembly, fluid section, fluid connections, filter assembly and PRIME/SPRAY valve.
Factory part numbers include Titan 0552185A for the upright cart assembly, 0552155A for the fluid section, 0552240A for the filter assembly and 0507690 for the PRIME/SPRAY valve.
The main assembly also references Titan 0507798 siphon tube, 710-046 inlet screen, 800-904 return hose, 0508343 fitting, 812-003 outlet fitting and 0507671 fitting.
Some parts may be used on additional Titan or SprayTech equipment. Shared part numbers do not mean that complete assemblies or different sprayer configurations are interchangeable.
Confirm your Advantage 1100 model, factory diagram position, original part number and any current manufacturer replacement before purchasing.
Titan Advantage 1100 Main Assembly Maintenance and Safety
Turn off the sprayer, engage the gun trigger lock, follow the complete pressure-relief procedure and disconnect electrical power before servicing the main assembly.
Do not loosen fluid fittings, hoses, valves or filter components while the system remains pressurized.
Inspect the siphon tube and inlet screen for damage or contamination. Clean or replace components using the manufacturer's approved procedures.
Check fluid fittings and hoses for deterioration, leakage and incorrect connections. Never attempt to stop a high-pressure fluid leak with your hand.
Inspect the filter assembly and PRIME/SPRAY valve according to the service instructions. Use appropriate replacement seals and components where specified.
Do not operate the sprayer with missing mounting hardware, damaged electrical protection or unsecured pump components.
Use qualified service personnel for repairs requiring internal drive disassembly, electrical testing or specialized pump procedures.
After service, perform the manufacturer's inspection and operational checks before returning the equipment to normal spraying.
Titan Advantage 1100 Main Assembly Parts FAQ
Find answers about factory part numbers, fluid section service, inlet components, filtration and replacement parts.
What components are included in the Titan Advantage 1100 main assembly diagram?
The diagram identifies the upright cart, drive assembly, fluid section, siphon tube, inlet screen, return hose, filter assembly, PRIME/SPRAY valve, fittings and mounting hardware across 17 numbered positions.
What is the Titan Advantage 1100 fluid section assembly part number?
Titan 0552155A is the fluid section assembly identified as item 6. The complete assembly is marked discontinued by AllTitanParts, but individual fluid section service components are listed separately.
Which inlet screen is used on the Titan Advantage 1100?
Titan 710-046 is the factory inlet screen, identified as item 9 in the main assembly diagram.
What is Titan 0507798 used for?
Titan 0507798 is the siphon tube, item 7, used in the material intake path of the Advantage 1100.
What is the Titan Advantage 1100 filter assembly part number?
Titan 0552240A is the factory filter assembly, item 13. Individual filter components can be found in the Advantage 1100 Filter Assembly category.
What does Titan 0507690 do?
Titan 0507690 is the PRIME/SPRAY valve assembly, item 14. It controls the designated fluid-routing mode for priming and spraying.
Can I replace individual Advantage 1100 main assembly components?
Yes. Many items, including the inlet screen, siphon tube, fittings, hose hardware and filter components, are individually identified. Confirm part availability and service requirements before ordering.
Where can I buy Titan Advantage 1100 main assembly parts?
Browse the Titan Advantage 1100 Main Assembly category at AllTitanParts to compare factory part numbers, review product listings and purchase available replacement components.
Buy Titan Advantage 1100 Main Assembly Parts
Shop Titan inlet screens, siphon tubes, PRIME/SPRAY valves, fluid fittings, return hoses, filter components and other Advantage 1100 main assembly service parts. Compare factory references and select the components your repair requires.
SHOP ADVANTAGE 1100 MAIN ASSEMBLY PARTS →Need help identifying a part? Call 713-931-0006.
