Shop Titan Advantage 1100 Low Boy Suction Set Assembly Parts
Keep coating material moving from the supply container to your Titan Advantage 1100 electric airless sprayer. Explore factory-referenced suction hoses, return hoses, swivels, inlet screens, hose adapters, clamps and O-rings for the low-boy configuration.
Identify the component in the original Titan exploded diagram, compare manufacturer part numbers and shop available replacements at AllTitanParts.
Maintain Your Titan Advantage 1100 Low Boy Suction System
The suction set connects the coating supply container to the pump inlet. During priming and spraying, the pump draws material through the inlet screen and siphon hose. The return hose provides a separate path for recirculated material when the sprayer is operating in its designated priming or return mode.
The Titan Advantage 1100 low-boy suction arrangement includes a siphon hose, swivel, inlet screen, clamp, adapter and O-ring, together with a return hose. These parts support material pickup, secure hose connections and help reduce the entry of unwanted debris into the pump.
A cracked hose, loose connection, damaged O-ring or clogged inlet screen may contribute to difficulty priming, intermittent material flow or air entering the intake system. However, similar symptoms can also originate in the fluid section, PRIME/SPRAY valve or coating supply.
The original Titan Advantage 1100 parts manual identifies siphon hose assembly 710-204, comprising factory diagram items 2 through 6. A separate 710-218 55-gallon suction set is also listed. These are distinct ordering references, so review the assembly contents and intended configuration before purchasing.
AllTitanParts provides individual suction components and assembly listings to help you target the affected part instead of replacing unrelated equipment. Confirm model compatibility, part numbers and package contents before checkout.
Featured Titan Advantage 1100 Low Boy Suction Parts
Explore the hoses, inlet protection components and fittings used in the low-boy suction system.
Titan 800-903 Return Hose
Carries recirculated coating material back toward the supply container during designated return-flow operation.
Factory item: 1
Part number: 800-903
Inspect for cracking, kinks, loose connections and material leakage.
SHOP RETURN HOSE →Titan Siphon Hose
Provides the material intake path from the coating container to the pump inlet.
Factory item: 2
Manual reference: 710-203
The current category lists 0507965A at item 2. Verify the correct hose reference before ordering.
COMPARE SIPHON HOSES →Titan 710-195 Siphon Swivel
A swivel fitting within the siphon hose assembly, used at the factory-designated intake connection.
Factory item: 3
Part number: 710-195
Inspect connection threads, movement and associated seals.
VIEW SIPHON SWIVEL →Titan 710-046 Inlet Screen
Screens coating material at the suction inlet to help keep larger particles out of the pump.
Factory item: 4
Part number: 710-046
Inspect for clogging, torn mesh and accumulated debris.
SHOP INLET SCREENS →Titan 710-081 Siphon Hose Adapter
Connects designated components within the siphon hose assembly.
Factory item: 6
Part number: 710-081
Inspect for damaged threads and sealing surfaces when investigating intake leaks.
SHOP HOSE ADAPTERS →Titan 710-204 Siphon Hose Assembly
The original Titan manual identifies this assembly as containing diagram items 2 through 6.
Assembly number: 710-204
Confirm the supplied hose, swivel, screen, clamp and adapter before purchase.

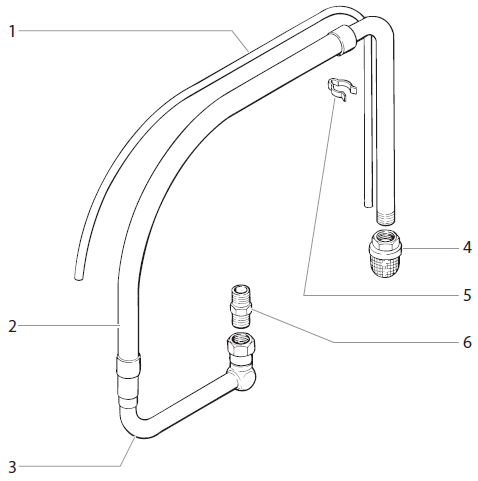

VIEW SIPHON ASSEMBLY →Titan Advantage 1100 Low Boy Suction Set Parts Diagram
The official Advantage 1100 manual identifies seven numbered positions. The quantities below are factory assembly quantities, not necessarily individual retail package quantities.
| Item | Titan Part Number | Factory Description | Qty. |
|---|---|---|---|
| 1 | 800-903 | Return Hose | 1 |
| 2 | 710-203 | Siphon Hose | 1 |
| 3 | 710-195 | Swivel | 1 |
| 4 | 710-046 | Inlet Screen | 1 |
| 5 | 730-334 | Clamp | 1 |
| 6 | 710-081 | Siphon Hose Adapter | 1 |
| 7 | 710-196 | O-Ring (Not Shown) | 1 |
Factory assembly listing that includes items 2 through 6. The return hose and separately listed O-ring are not identified as included in this package.
A separate factory-listed suction set option. Verify its intended container arrangement and supplied contents.
How the Advantage 1100 Low Boy Suction Components Work
Siphon Hose and Swivel
The siphon hose provides the intake route from the coating container, while the swivel forms part of the original hose connection arrangement.
Inlet Screen
The inlet screen intercepts larger debris before coating material enters the pump. Blockage can restrict intake flow.
Adapter, Clamp and O-Ring
These components support the designated hose connection and sealing arrangement. Damage or poor fit may allow air to enter the intake path.
Return Hose
The return hose routes recirculated coating material away from the sprayer's return connection. Fluid-path selection is controlled by the appropriate valve system.
Find Your Titan Advantage 1100 Suction Set Parts Faster
Confirm Your Configuration
Identify the Advantage 1100 low-boy suction arrangement and inspect the installed hose layout.
Find the Diagram Item
Locate the damaged hose, screen, swivel, adapter, clamp or O-ring in the factory drawing.
Verify the Part Number
Compare the manual and current listing, especially when selecting the siphon hose.
Select and Order
Check compatibility, package contents and availability before purchasing individual parts or assemblies.
Titan Advantage 1100 Suction Set Troubleshooting
Use these symptoms to guide inspection. A symptom alone does not establish that a specific part has failed.
| Observed Condition | Components to Inspect | Inspection Guidance |
|---|---|---|
| Sprayer will not prime | Siphon hose, inlet screen, swivel, adapter and PRIME/SPRAY valve | Check material level, hose immersion, blockages and possible air entry. |
| Intermittent or sputtering material flow | Siphon hose, 710-196 O-ring and intake connections | Inspect for damaged seals, loose joints and suction leaks. |
| Restricted coating intake | 710-046 inlet screen and siphon hose | Inspect for dried coating, debris or a collapsed or kinked hose. |
| Material leakage near a hose connection | 710-195 swivel, 710-081 adapter, 730-334 clamp | Check connection integrity and component condition after pressure relief. |
| Return hose is cracked or leaking | 800-903 return hose and its connections | Inspect the full hose length and replace damaged components. |
| Sprayer loses prime during use | Suction seals, inlet screen, hose routing and fluid-section inlet valve | Check for air entry, restrictions and pump inlet-valve problems. |
Plan Your Low Boy Suction Set Repair
Restore Material Intake
Inspect the siphon hose and inlet screen for blockages, cracks and physical damage. Verify the hose reference against your equipment before replacement.
Repair Intake Connections
Check the swivel, adapter, clamp and O-ring. Replace worn components using the correct factory references.
Service the Return Line
Inspect the return hose for splits, hardened sections and loose connections. Replace damaged hose components before returning the sprayer to service.
Shop More Titan Advantage 1100 Replacement Assemblies
Explore related categories when a priming or material-flow problem involves components beyond the suction set.
Titan Advantage 1100 Low Boy Suction Set Compatibility
The Titan Advantage 1100 owner's manual contains a dedicated low-boy suction set diagram with seven numbered positions. The listed components include return hose 800-903, siphon hose 710-203, swivel 710-195, inlet screen 710-046, clamp 730-334, siphon hose adapter 710-081 and O-ring 710-196.
The same manual lists 710-204 as a siphon hose assembly containing items 2 through 6, plus a separate 710-218 55-gallon suction set.
Other Titan Advantage models may share individual components, but that does not mean every hose, connection or complete suction set is interchangeable.
For the most reliable part selection, compare your installed components with the Advantage 1100 diagram and verify any updated part numbers before ordering.
Low Boy Suction Set Maintenance and Safety
Turn off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure before removing hoses, fittings or intake components.
Inspect suction and return hoses for cracking, abrasion, kinks, swelling and other deterioration. Replace damaged hoses rather than attempting temporary repairs.
Clean the inlet screen as directed by Titan. Do not use a damaged screen or operate the pump with an intake restriction that prevents adequate material flow.
Check the swivel, adapter, clamp and O-ring for correct installation and condition. Do not force mismatched threads or substitute unverified sealing parts.
Keep the suction inlet properly immersed in the coating material during priming and spraying, as required by the manufacturer's operating procedure.
Position the return hose securely so recirculated coating material returns safely to the intended container without uncontrolled splashing.
After service, verify secure connections and proper priming before resuming normal spray operation. Follow the manufacturer's coating, cleaning and solvent safety instructions.
Titan Advantage 1100 Low Boy Suction Set FAQ
Find answers about siphon hoses, inlet screens, return hoses, sealing components and factory assembly references.
What does the Titan Advantage 1100 low-boy suction set do?
It provides the material intake path between the coating supply container and the sprayer's pump inlet. The associated return hose routes recirculated material back toward the container.
What is the Titan Advantage 1100 siphon hose assembly part number?
The factory manual identifies 710-204 as the siphon hose assembly, including diagram items 2 through 6. Verify current product contents before ordering.
Which siphon hose is listed in the original Advantage 1100 manual?
The original manual lists Titan 710-203 as item 2. The current category lists 0507965A in that position, so confirm compatibility before treating it as a replacement.
What is the Titan Advantage 1100 inlet screen part number?
Titan 710-046 is the inlet screen identified as item 4 in the factory low-boy suction set diagram.
Can a damaged suction hose prevent the sprayer from priming?
Yes. A cracked hose or leaking suction connection can admit air and interfere with priming. Clogged inlet screens and fluid-section valve problems can cause similar symptoms.
What is the Advantage 1100 return hose part number?
Titan 800-903 is the return hose listed as item 1 in the original Advantage 1100 suction set diagram.
What is Titan 710-218?
Titan 710-218 is identified in the manual as a separate 55-gallon suction set. Verify its application and supplied components before selecting it instead of the standard siphon hose assembly.
Where can I buy Titan Advantage 1100 low-boy suction set parts?
Visit the Advantage 1100 Suction Set Assembly (Low Boy) category at AllTitanParts to compare available hoses, inlet screens, swivels, clamps, adapters, O-rings and complete siphon assemblies.
Buy Titan Advantage 1100 Low Boy Suction Set Parts
Find return hoses, siphon hoses, inlet screens, swivels, adapters, clamps and O-rings. Compare original Titan references and shop the components needed for your low-boy suction system repair.
SHOP ADVANTAGE 1100 SUCTION PARTS →
