Shop Titan Advantage 1100 Low Boy Cart Assembly Parts
Restore your Titan Advantage 1100 electric airless paint sprayer's cart mobility and support with factory-referenced low-boy cart replacement parts. Find handles, wheels, wheel spacers, retaining caps, cart frame components, snap buttons, washers and mounting hardware.
Identify the correct part in the original Titan exploded diagram, compare manufacturer references and shop available replacement components at AllTitanParts.
Maintain Your Titan Advantage 1100 Low Boy Cart
The Titan Advantage 1100 low-boy cart provides a wheeled support structure for the electric airless paint sprayer. Its lower-profile arrangement helps position the equipment closer to the ground than an upright cart configuration, while its handle and wheels assist with moving the sprayer between work areas.
The official Titan Advantage 1100 parts manual identifies the complete low-boy cart assembly as 0552190A. The factory drawing includes a handle assembly, cart weldment, wheels, wheel spacers, retaining caps, snap buttons, sleeves, roll pins, plugs, washers, screws and a drip cup.
Cart components are exposed to repeated movement, vibration, loading and jobsite conditions. Over time, wheels may become worn, retaining hardware may loosen, handle components may become damaged or frame parts may require inspection.
Replacing the affected component can be a practical repair when the remaining cart structure is serviceable. However, cracked welds, bent frame sections or damaged mounting points require careful evaluation before the sprayer is returned to use.
Use this category to identify Titan Advantage 1100 low-boy cart replacement parts by their factory diagram positions and manufacturer part numbers. Review each product listing for availability, package quantity and compatibility before purchasing.
Featured Titan Advantage 1100 Low Boy Cart Parts
Find the main handling, wheel and frame components identified in the original Titan low-boy cart assembly.
Titan 800-113 Handle Assembly
The handle assembly provides the gripping structure used to maneuver the low-boy cart.
Factory item: 4
Part number: 800-113
The factory reference identifies items 1 through 3, 5, 9 and 10 as included components.
SHOP HANDLE PARTS →Titan 0552191 Cart Weldment
The welded cart structure forms the principal supporting frame of the low-boy configuration.
Factory item: 16
Part number: 0552191
Inspect for bending, cracks, damaged mounting points and other structural defects.
SHOP FRAME PARTS →Titan 0278373 Cart Wheel
Factory-referenced wheel for the Advantage 1100 low-boy cart, supporting movement across suitable work surfaces.
Factory item: 14
Part number: 0278373
The factory drawing identifies two wheels per cart assembly.
SHOP CART WHEELS →Titan 0294534 Wheel Spacer
Spacer used in the original wheel mounting arrangement to position components correctly.
Factory item: 13
Part number: 0294534
The original diagram specifies four spacers per low-boy cart assembly.
SHOP WHEEL SPACERS →Titan 9890104 Retaining Cap
Factory retaining cap used in the cart wheel mounting arrangement.
Factory item: 15
Part number: 9890104
Inspect retaining caps whenever wheels are loose or removed for service.
SHOP RETAINING CAPS →Titan 700-1041 Drip Cup
Factory drip cup component used in the low-boy cart arrangement.
Factory item: 11
Part number: 700-1041
Inspect for damage or missing mounting hardware and replace when necessary.

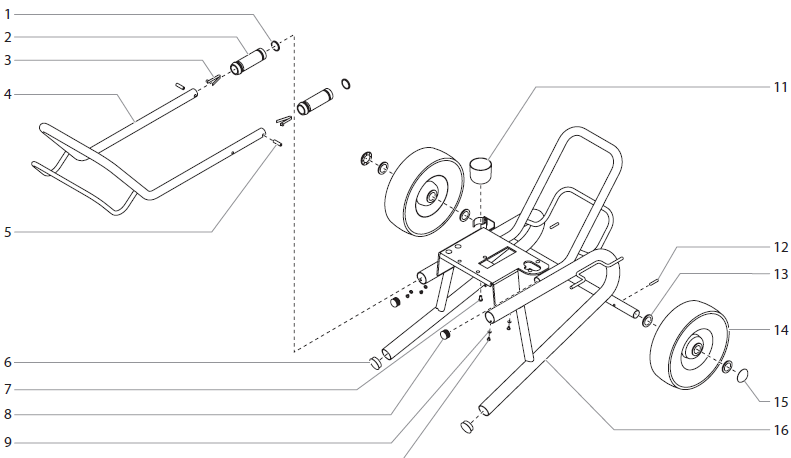

SHOP DRIP CUP PARTS →Titan Advantage 1100 Low Boy Cart Parts Diagram
The original Titan Advantage 1100 manual identifies the low-boy cart as assembly 0552190A, with 16 numbered parts positions.
| Item | Titan Part Number | Factory Description | Qty. |
|---|---|---|---|
| 1 | 590-506 | Washer | 2 |
| 2 | 590-504 | Sleeve | 2 |
| 3 | 9841504 | Snap Button | 2 |
| 4 | 800-113 | Handle Assembly, includes items 1-3, 5, 9 and 10 | 1 |
| 5 | 590-508 | Roll Pin | 2 |
| 6 | 335-018 | Plug | 2 |
| 7 | 9805230 | Screw | 1 |
| 8 | 710-204 | Plug | 2 |
| 9 | 856-002 | Washer | 4 |
| 10 | 856-921 | Screw | 4 |
| 11 | 700-1041 | Drip Cup | 1 |
| 12 | 704-291 | Roll Pin | 2 |
| 13 | 0294534 | Wheel Spacer | 4 |
| 14 | 0278373 | Wheel | 2 |
| 15 | 9890104 | Cap | 2 |
| 16 | 0552191 | Cart Weldment | 1 |
How the Titan Advantage 1100 Low Boy Cart Components Work
Handle and Snap Buttons
The handle provides a gripping point for moving the sprayer. Snap buttons, sleeves, pins and washers support its factory-designed mounting arrangement.
Cart Weldment
The welded frame provides the main supporting structure for the low-boy cart and the equipment mounted to it.
Wheels and Spacers
The wheels provide mobility. Spacers and retaining caps form part of the original wheel positioning and retention arrangement.
Mounting Hardware and Drip Cup
Factory screws, washers, pins and plugs support designated mounting points. The drip cup provides a collection point for incidental drips.
Find Your Titan Advantage 1100 Low Boy Cart Parts Faster
Confirm Your Cart
Verify that your Advantage 1100 uses the low-boy cart rather than the upright cart configuration.
Identify the Diagram Item
Find the damaged wheel, handle, frame, spacer, retaining cap or fastener in the factory drawing.
Match the Titan Number
Compare the original part number and check for a verified current replacement if applicable.
Review and Purchase
Confirm compatibility, quantity and availability in the individual product listing before checkout.
Titan Advantage 1100 Low Boy Cart Troubleshooting
Use the following observations to guide inspection. The correct repair depends on the actual condition of the cart and its mounting hardware.
| Observed Condition | Components to Inspect | Recommended Inspection |
|---|---|---|
| Wheel is worn or difficult to rotate | 0278373 wheel, 0294534 spacers | Check for debris, deformation, damaged wheel surfaces and incorrect spacer placement. |
| Wheel shifts or feels loose | 9890104 cap, wheel, spacers and mounting points | Inspect retaining components for wear, looseness or missing hardware. |
| Handle does not secure properly | 800-113 handle, 9841504 snap buttons, 590-508 roll pins | Check button engagement, pins, sleeves and handle mounting points. |
| Cart is unstable | 0552191 cart weldment, wheels and frame hardware | Inspect for bent frame sections, cracked welds and uneven wheel support. |
| Cart hardware is missing | 856-921 screws, 856-002 washers, 9805230 screw | Identify the correct factory fastener and installation position. |
| Drip cup is damaged or missing | 700-1041 drip cup and its mounting arrangement | Inspect the cup and associated mounting points before replacement. |
Plan Your Advantage 1100 Low Boy Cart Repair
Replace Worn Wheels
Inspect both wheels, the four factory wheel spacers and the retaining caps. Replace damaged parts and verify correct wheel retention.
Restore Handle Security
Check the handle assembly, snap buttons, sleeves, washers and roll pins. Confirm the handle is securely mounted before moving the equipment.
Inspect Structural Support
Examine the cart weldment, frame plugs, screws and mounting points. Damaged structural components may require replacement rather than adjustment.
Shop More Titan Advantage 1100 Replacement Parts
Explore related categories for cart configurations, material intake, fluid handling and mechanical service.
Titan Advantage 1100 Low Boy Cart Compatibility
Titan identifies complete low-boy cart assembly 0552190A in the Advantage 1100 owner's manual. The same assembly reference appears in Advantage 700 documentation.
Key original components include handle assembly 800-113, cart weldment 0552191, wheel 0278373, wheel spacer 0294534, retaining cap 9890104 and drip cup 700-1041.
The Advantage 1100 upright cart is a separate configuration identified as assembly 0552185A. Its wheel and frame references differ from those used in the low-boy assembly.
Some hardware may be shared between different Titan cart assemblies. However, shared fasteners or spacers do not establish that complete cart frames, handles or wheels are interchangeable.
Verify your sprayer model, cart configuration, original part number and any documented replacement before purchasing.
Titan Advantage 1100 Low Boy Cart Maintenance and Safety
Turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure before servicing the cart or equipment mounted to it.
Support the equipment securely before removing wheels, handles, mounting screws or frame components. Do not rely on a partially disassembled cart to support the sprayer.
Inspect the cart weldment for cracks, bending, damaged welds and distorted mounting points. Do not operate or transport the sprayer on a structurally damaged frame.
Check both wheels for damage and proper rotation. Inspect wheel spacers and retaining caps for wear, looseness or missing components.
Confirm that handle snap buttons, roll pins and mounting hardware engage securely before moving the equipment.
Replace missing screws, washers, plugs and retaining hardware with the correct factory-specified parts. Avoid unverified substitutions.
Keep the cart on stable surfaces during maintenance and avoid moving the sprayer with unsecured hoses or electrical cords.
After reassembly, verify wheel retention, handle security, cart stability and sprayer mounting before returning the equipment to service.
Titan Advantage 1100 Low Boy Cart Assembly Parts FAQ
Answers to common questions about cart frames, wheels, handles, factory hardware and compatibility.
What is the Titan Advantage 1100 low-boy cart assembly part number?
The original Titan Advantage 1100 owner's manual identifies the complete low-boy cart assembly as 0552190A.
How many components are identified in the low-boy cart parts diagram?
The factory diagram contains 16 numbered positions, including the handle assembly, cart weldment, wheels, spacers, retaining caps, plugs, pins, washers, screws and drip cup.
What is the Titan Advantage 1100 low-boy cart wheel part number?
Titan 0278373 is the wheel identified as item 14. The original assembly specifies two wheels.
Which handle assembly is used on the Titan Advantage 1100 low-boy cart?
Titan 800-113 is the handle assembly identified as item 4. The factory listing specifies associated washers, sleeves, snap buttons, roll pins and mounting hardware as included components.
What is the Titan Advantage 1100 low-boy cart frame part number?
Titan 0552191 is the cart weldment identified as item 16 in the original low-boy cart diagram.
Can I replace an individual wheel instead of the complete cart?
The wheels are individually identified in the factory parts list. Inspect the spacers, retaining caps and wheel mounting points before deciding which components need replacement.
Are Titan Advantage 1100 low-boy and upright cart parts interchangeable?
The low-boy and upright carts have separate factory assembly references and different frame and wheel components. Verify each individual part number rather than assuming interchangeability.
Where can I buy Titan Advantage 1100 low-boy cart replacement parts?
Visit the Advantage 1100 Low Boy Cart Assembly category at AllTitanParts to review factory part references and shop available wheels, handles, frame components, spacers, caps and mounting hardware.
Buy Titan Advantage 1100 Low Boy Cart Parts
Find replacement cart wheels, handles, frame components, spacers, retaining caps and mounting hardware. Match the correct Titan part number and shop the components needed for your low-boy cart repair.
