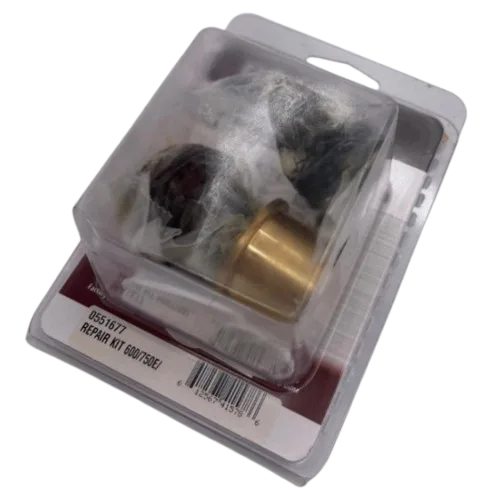

Titan 0551677 Fluid Section Repacking Kit
OEM Titan Pump Service Components
Titan 0551677 Fluid Section Repacking Kit is an OEM kit containing all necessary seals and tools to rebuild the fluid section on compatible Advantage and EPX sprayers. Titan 0533681 Ball Stop Pin is a retention component for the WL45 model that secures the ball valve within the pump assembly.
Compatibility Overview
Genuine OEM components restore proper sealing and valve retention, ensuring reliable pump performance and consistent spray output.
Titan Pump Service Components
Titan 0551677 Fluid Section Repacking Kit and 0533681 Ball Stop Pin
Titan 0551677 is an OEM fluid section repacking kit that includes upper and lower packings, a piston guide tool, and all necessary seals to restore proper pump performance on compatible sprayers. The Titan Advantage 600 and EPX2355 manuals specify: "Repacking kit P/N 0551677 is available. For best results use all parts supplied in this kit." The 0533681 is a ball stop pin designed for the WL45 model that secures the ball valve within the pump assembly, ensuring proper alignment and reliable paint flow.
| Detail | Technical / Commercial Information |
|---|---|
| Repacking Kit Overview | OEM Titan 0551677 fluid section repacking kit. Official Titan manuals state: "Repacking kit P/N 0551677 is available. For best results use all parts supplied in this kit." Includes upper and lower packings, piston guide tool, and necessary seals. |
| Kit Function | Restores proper sealing within the fluid section by replacing worn packings. The piston guide tool (included) protects the piston rod and ensures correct alignment during reassembly. Essential for maintaining pump pressure and preventing fluid leaks. |
| Kit Compatible Models | Titan 600 Advantage, EPX2355, SW726; Wagner EPX2355, SW726. Verify fitment against your specific model parts diagram before ordering. |
| Ball Stop Pin Overview | Titan 0533681 ball stop pin designed for the WL45 model. Secures the ball valve within the pump assembly to maintain consistent paint flow and proper valve seating. Cross-referenced by eReplacementParts for Powrcoat 1045 and Hydra X (4540, 7230). |
| Ball Stop Pin Compatible Models | Titan WL45, Powrcoat 1045, Hydra X (4540, 7230). Verify fitment against your specific model parts diagram. |
| Common Failure Symptoms | For repacking kit: Loss of pressure, fluid leaking from the pump, and inconsistent spray patterns. For ball stop pin: Loose or dislodged ball valve, erratic flow, and loss of prime. |
| Related Parts Serviced Together | For repacking: Piston rod (inspect for wear), inlet and outlet valve assemblies, and transducer gasket. For ball stop pin: Ball valve, valve seats, and inlet/outlet cages. |
| Commercial Benefits | Genuine OEM components restore proper pump sealing and valve retention, preventing fluid leaks and pressure loss while extending the life of the sprayer. |
Service Guidance: When pump pressure drops, fluid leaks from the packings, or spray output becomes inconsistent, the fluid section likely needs repacking. Follow the service manual procedure carefully, paying close attention to packing orientation (raised lip down for upper packing, beveled edge up for lower packing) and using the included piston guide tool to protect the piston rod during reassembly. Titan manuals specify sliding the piston guide tool over the top of the piston rod and inserting the rod through the bottom of the pump manifold. For the ball stop pin, inspect the ball valve and seats for wear when replacing the pin. Both components support reliable pump operation and help prevent secondary damage to the fluid section. Always relieve system pressure and disconnect power before servicing.
Frequently Asked Questions
Quick answers for confirming fitment and service value.
Titan Pump Service Components
Titan 0551677 Fluid Section Repacking Kit and 0533681 Ball Stop Pin
Titan 0551677 is an OEM fluid section repacking kit that includes upper and lower packings, a piston guide tool, and all necessary seals to restore proper pump performance on compatible sprayers. The Titan Advantage 600 and EPX2355 manuals specify: "Repacking kit P/N 0551677 is available. For best results use all parts supplied in this kit." The 0533681 is a ball stop pin designed for the WL45 model that secures the ball valve within the pump assembly, ensuring proper alignment and reliable paint flow.
| Detail | Technical / Commercial Information |
|---|---|
| Repacking Kit Overview | OEM Titan 0551677 fluid section repacking kit. Official Titan manuals state: "Repacking kit P/N 0551677 is available. For best results use all parts supplied in this kit." Includes upper and lower packings, piston guide tool, and necessary seals. |
| Kit Function | Restores proper sealing within the fluid section by replacing worn packings. The piston guide tool (included) protects the piston rod and ensures correct alignment during reassembly. Essential for maintaining pump pressure and preventing fluid leaks. |
| Kit Compatible Models | Titan 600 Advantage, EPX2355, SW726; Wagner EPX2355, SW726. Verify fitment against your specific model parts diagram before ordering. |
| Ball Stop Pin Overview | Titan 0533681 ball stop pin designed for the WL45 model. Secures the ball valve within the pump assembly to maintain consistent paint flow and proper valve seating. Cross-referenced by eReplacementParts for Powrcoat 1045 and Hydra X (4540, 7230). |
| Ball Stop Pin Compatible Models | Titan WL45, Powrcoat 1045, Hydra X (4540, 7230). Verify fitment against your specific model parts diagram. |
| Common Failure Symptoms | For repacking kit: Loss of pressure, fluid leaking from the pump, and inconsistent spray patterns. For ball stop pin: Loose or dislodged ball valve, erratic flow, and loss of prime. |
| Related Parts Serviced Together | For repacking: Piston rod (inspect for wear), inlet and outlet valve assemblies, and transducer gasket. For ball stop pin: Ball valve, valve seats, and inlet/outlet cages. |
| Commercial Benefits | Genuine OEM components restore proper pump sealing and valve retention, preventing fluid leaks and pressure loss while extending the life of the sprayer. |
Service Guidance: When pump pressure drops, fluid leaks from the packings, or spray output becomes inconsistent, the fluid section likely needs repacking. Follow the service manual procedure carefully, paying close attention to packing orientation (raised lip down for upper packing, beveled edge up for lower packing) and using the included piston guide tool to protect the piston rod during reassembly. Titan manuals specify sliding the piston guide tool over the top of the piston rod and inserting the rod through the bottom of the pump manifold. For the ball stop pin, inspect the ball valve and seats for wear when replacing the pin. Both components support reliable pump operation and help prevent secondary damage to the fluid section. Always relieve system pressure and disconnect power before servicing.
