Shop Titan 440xc Fluid Section Assembly Parts
Find genuine Titan 440xc fluid section assembly parts for pump maintenance and repair. Browse repacking, piston, valve, housing and sealing components, then match the required replacement to your sprayer's exact configuration and OEM part number.
Find the Right 440xc Pump Service Components
Select parts for the repair identified during inspection. A sealing kit, piston rod and complete piston assembly serve different ordering needs, so check the included components before purchasing.
Consider the repacking kit when inspection identifies worn pump sealing components. Review kit contents and assess the condition of the remaining pump parts.
Shop 730-401 Repacking Kit →Locate the piston rod at diagram position 8. Check for damage during pump service and confirm whether the rod or a larger piston assembly is required.
View 704-551A Piston Rod →Use the component reference below to identify inlet and outlet valve parts. Match each ball, seat, cage and seal to its specified diagram position.
Review Fluid Section Part Numbers →How to Choose the Correct 440xc Fluid Section Part
Confirm the equipment identification before ordering. Similar-looking seals and valve components can have different specifications, and replacing a seal will not correct damage to a mating surface.
Confirm the Titan 440xc model, serial number and installed pump configuration.
Find the damaged or worn item in the applicable fluid section breakdown.
Use the exact manufacturer number and check any replacement reference.
Confirm supplied parts, required quantities and any separately ordered service tools.

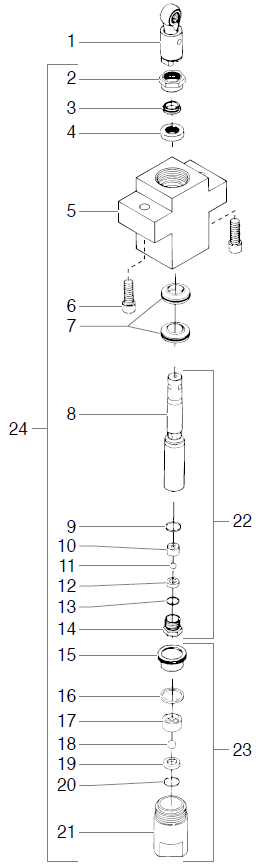

| Repair Area | OEM Reference | Diagram Position | Ordering Check |
|---|---|---|---|
| Pump repacking kit | 730-401 | Kit reference | Current kit contents |
| Upper packing / lower seal | 700-603A / 700-601A | 4 / 7 | Correct sealing location |
| Piston rod / piston assembly | 704-551A / 704-560 | 8 / 22 | Rod versus assembly contents |
| Outlet ball / upper valve seat | 762-144 / 762-134 | 11 / 12 | Exact valve callout |
| Inlet ball / foot valve seat | 762-145 / 762-137 | 18 / 19 | Ball and seat condition |
| Foot valve assembly | 730-560 | 23 | Included valve components |
Inspect the Fluid System Before Replacing Pump Parts
Use the model-specific troubleshooting procedure to identify the cause of a performance change. Poor output can involve the material supply, suction path, filtration, spray tip or pump, so avoid choosing parts from a symptom alone.
Check the coating supply and suction connections before inspecting the relevant inlet valve components.
Inspect the fluid path and spray components, then assess pump packings and valves as directed by the service procedure.
Locate the leak before ordering. Inspect the applicable sealing surfaces and related parts for damage.
Inspect the piston and housing before fitting new seals. Follow the specified packing orientation, lubrication and assembly procedures.
Service safety: Disconnect electrical power, relieve system pressure and follow the Titan maintenance instructions before opening the fluid section. Never check for pressurized leaks with your hand.
Titan 440xc Fluid Section Assembly FAQ
Review these fitment and ordering answers alongside your equipment identification and parts diagram.
Have your model, serial number, fluid section configuration and existing OEM number available for help selecting the correct replacement.
Call 713-931-0006 for Fitment Help
