Shop Titan 440xc Skid Assembly Parts
Find genuine Titan 440xc skid assembly components for your airless sprayer. Shop the listed bolt, end cap and screw, then match the required OEM number to the correct diagram position before ordering replacement hardware.
Find 440xc Skid Hardware and End Caps
Select the component identified during inspection. Check the surrounding frame and mating parts so that replacement hardware addresses the actual repair required.
Find the bolt identified at diagram position 1. Check the fastener and its mating threads when inspecting a loose or damaged connection.
Shop 765-126 Bolt →Locate the end cap at position 2. Replace a missing or damaged cap after checking the condition of the frame opening.
View 700-674 End Cap →Find the screw at position 5. Verify the required quantity and installation location before replacing missing or damaged hardware.
Find 700-069 Screw →How to Choose the Correct Titan 440xc Skid Part
Use the machine identification and skid breakdown together. Do not select an end cap or fastener solely by appearance, and do not use a diagram position as the order quantity.
Read the identification label and confirm the Titan 440xc model and serial number.
Find the affected component in the applicable skid assembly diagram.
Verify the exact manufacturer number for the bolt, cap or screw.
Confirm how many replacements are required and review the supplied package contents.

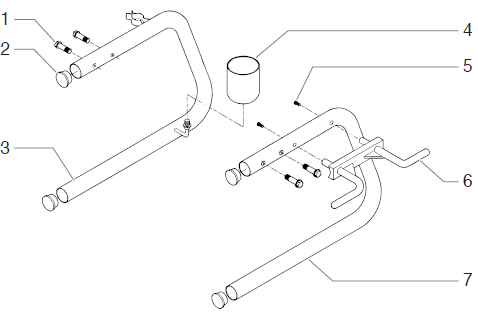

| Diagram Position | Titan OEM Number | Component | Verify Before Ordering |
|---|---|---|---|
| 1 | 765-126 | Bolt | Installation location and quantity |
| 2 | 700-674 | End cap | Frame opening and required quantity |
| 5 | 700-069 | Screw | Correct callout and mating threads |
Inspect the Skid Before Installing Replacement Parts
Check the skid on a suitable level surface and inspect the affected connection before replacing parts. A new fastener or end cap will not correct a bent frame, damaged mounting point or stripped mating thread.
Identify the correct bolt or screw and inspect the adjoining parts for wear or damage.
Check the cap and frame opening. Replace a damaged or missing cap with the correct component.
Assess both the fastener and mating threads before reassembly. Follow the specified repair procedure.
Arrange a structural assessment before returning the sprayer to service. Confirm the required frame replacement separately.
Service safety: Disconnect power, relieve system pressure and support the equipment securely before maintenance. Follow the Titan assembly instructions and specified fastening requirements.
Titan 440xc Skid Assembly FAQ
Review these common component, fitment and ordering questions before purchasing.
Have your model, serial number, diagram position and existing OEM number available for help confirming the correct component.
Call 713-931-0006 for Fitment Help
