Shop Titan 440xc Gear Box Assembly Parts
Find genuine Titan 440xc gear box assembly service parts for your airless sprayer. Browse pressure-control components, electrical service items, thrust washers and mounting hardware, then select the exact OEM number for your repair.
Find 440xc Control and Gear Box Service Components
Choose the component your inspection identifies. The knob, potentiometer and associated hardware are separate items, so review the individual product details before ordering.
Replace an identified damaged knob with Titan 700-159, which supersedes 507740. Confirm the knob separately from the electrical control component.
View 700-159 Pressure Control Knob →Titan 700-158 replaces 507973 and translates the operator's pressure setting into a control signal. Confirm diagnosis and fitment before replacement.
Shop 700-158 Potentiometer Assembly →Find Titan 700-688 at diagram position 23. Check the exact callout, as this category includes several different thrust washer numbers.
Find 700-688 Thrust Washer →How to Select the Correct Titan 440xc Gear Box Part
Use your machine identification and assembly breakdown together. The same component name can refer to different parts, and an exploded diagram may show items that require a separate availability check.
Read the identification label and confirm the model and serial number.
Find the required component in the applicable gear box diagram.
Use the manufacturer number and verify any superseded reference.
Check supplied quantity, package contents and electrical specifications where applicable.

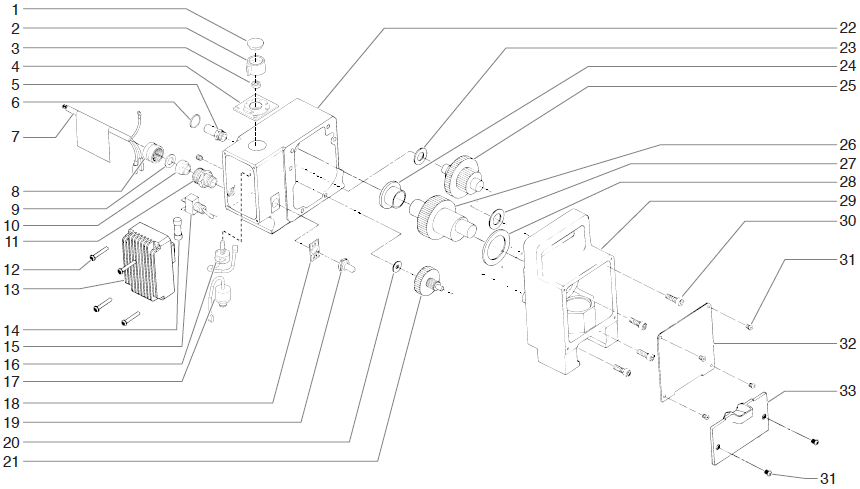

| Diagram Position | Titan OEM Number | Component | Ordering Check |
|---|---|---|---|
| 1 | 700-175 | Potentiometer cap | Exact callout and required quantity |
| 2 | 700-159 | Pressure control knob | Exact callout and required quantity |
| 3 | 700-176 | Nut with seal | Exact callout and required quantity |
| 4 | 700-148 | Potentiometer mount | Exact callout and required quantity |
| 14 | 700-720 | Fuse | Exact callout and required quantity |
| 15 | 700-646 | Toggle switch | Exact callout and required quantity |
| 16 | 700-158 | Potentiometer assembly | Exact callout and required quantity |
| 18 | 700-775 | Plate | Exact callout and required quantity |
| 23 | 700-688 | Thrust washer | Exact callout and required quantity |
| 27 | 700-514 | Thrust washer | Exact callout and required quantity |
| 28 | 700-680 | Thrust washer | Exact callout and required quantity |
| 30 | 700-681 | Motor mount screw | Exact callout and required quantity |
| 33 | 700-791 | Cover plate | Exact callout and required quantity |
Plan Your Gear Box and Pressure-Control Repair
Record the operating problem before selecting parts. Pressure changes, starting faults and unusual noise need diagnosis, as the affected component may be in the control, motor, drive or fluid system.
Check for a cracked or stripped knob. A knob replacement does not address every electrical pressure-control fault.
Have the potentiometer and associated control system assessed using the applicable service procedure.
Have the cause investigated before fitting a replacement. Match the specified fuse and never bypass circuit protection.
Stop operation and arrange inspection. Identify the correct mounting or drive component before replacing parts.
Service safety: Disconnect power, relieve system pressure and follow the Titan instructions before maintenance. Use a qualified technician for internal electrical testing and repairs.
Titan 440xc Gear Box Assembly FAQ
Review these common ordering questions before selecting replacement components.
Have your model, serial number, diagram position and existing OEM number available so we can help confirm the replacement component.
