Titan 440xc Siphon Assembly Parts, P/N 700-1025
Shop genuine Titan 440xc siphon assembly service parts for the assembly identified as P/N 700-1025. Find the siphon hose, bypass hose, inlet screen, O-rings and clips needed for your identified repair, then verify the exact replacement number before ordering.
Find 440xc Intake and Return Components
Choose the component that matches the affected part of the material-feed system. Review package contents when ordering a hose so you can identify any additional items required.
Find the replacement siphon hose for the material-intake path. Its listed package includes an O-ring, elbow, retaining clip and siphon hose.
View 700-1023A Siphon Hose →Select the separately listed bypass hose for the return path. Confirm the connection details and routing for your installed assembly.
Shop 700-847 Bypass Hose →Locate the inlet screen used at the siphon intake. Inspect it for trapped debris or damage when servicing the material-feed system.
Find 700-805 Inlet Screen →How to Select the Correct 700-1025 Assembly Service Part
Use the assembly reference and individual component numbers together. A category assembly number does not establish the contents of a separately sold hose or confirm that a complete set is supplied.
Confirm the Titan 440xc model, serial number and installed siphon configuration.
Determine whether the repair involves the suction hose, bypass path, screen, seal or clip.
Check the required component number and any replacement reference.
Confirm included items and required quantity before adding separate seals or clips.

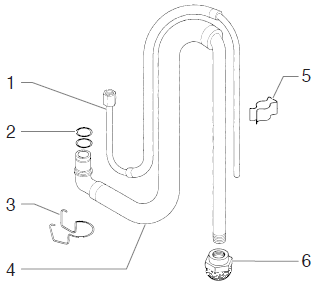

| Diagram Position | Titan OEM Number | Component | Reference / Ordering Check |
|---|---|---|---|
| 1 | 700-847 | Bypass hose | Return path |
| 2 | 9871105 | O-ring | Replaces 704-121; verify seal |
| 2 | 704-109 | O-ring | Confirm applicable configuration |
| 3 | 9822526 | Retaining clip | Connection retention |
| 4 | 700-1023A | Siphon hose | Replaces 700-1023 / 700-659 |
| 5 | 806-312 | Hose clip | Replaces 0507937 |
| 6 | 700-805 | Inlet screen filter | Intake filtration |
Inspect the Siphon System Before Replacing Parts
A restricted intake or poorly sealed connection can interfere with material delivery. Follow the model-specific troubleshooting procedure and inspect the feed path before assuming an internal pump fault.
Check that coating is available at the intake and inspect the screen and hose for restrictions.
Inspect the hose, connection seal and retaining hardware for damage. Match replacement items to the installed configuration.
Clean the screen using the specified maintenance procedure. Replace it if damaged or if proper cleaning cannot restore the opening.
Inspect the return hose for wear, leakage or obstruction. Confirm the correct routing when replacing it.
Service safety: Disconnect power, relieve system pressure and follow the Titan maintenance instructions before removing fluid-system components. Use only cleaning materials compatible with the sprayer and coating.
Explore 440xc Fluid Section Parts →Titan 440xc Siphon Assembly FAQ
Review these common assembly, package-content and fitment questions before ordering.
Have your model, assembly reference, connection details and existing OEM number available so we can help confirm the replacement component.
