PowrTwin 8900GH Fluid Section Parts

Titan 144-500 Major Fluid Section Service Kit

Item No: -

Part #: 144-500

PowrTwin part 144-500 is a major fluid section service kit containing all necessary seals, packings,...

Retail Price: $558.90

You save: $89.42 (16.00%)

Our Price: $469.48

QTY:

Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70

QTY:

Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10

QTY:

Titan 145-031 O-ring

Item No: 3

Part #: 145-031

PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90

QTY:

Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

PowrLiner / PowrTwin / PowrBeast part 138-153A is a repacking kit designed to rebuild ...

Retail Price: $104.50

You save: $10.87 (10.40%)

Our Price: $93.63

QTY:

Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-004 is an upper packin...

Retail Price: $34.70

You save: $1.91 (5.50%)

Our Price: $32.79

QTY:

Titan 144-117 Displacement Rod

Item No: 6

Part #: 144-117

PowrTwin part 144-117 is a displacement rod used to convert rotational pump motion into linear recip...

Retail Price: $189.30

You save: $23.66 (12.50%)

Our Price: $165.64

QTY:

Titan 138-001 Spring Retainer

Item No: 7

Part #: 138-001

PowrLiner / PowrTwin / PowrTex part 138-001 is a spring retainer designed to secure an...

Retail Price: $68.00

You save: $5.64 (8.29%)

Our Price: $62.36

QTY:

Titan 142-003 Lower Packing Spring

Item No: 8

Part #: 142-003

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-003 is a lower packing...

$25.00

QTY:

Titan 451-085 cage ball

Item No: 9

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20

You save: $4.25 (8.30%)

Our Price: $46.95

QTY:

Titan 0509710 Outlet Valve Ball

Item No: 10

Part #: 0509710

Titan part 0509710 is an outlet valve ball designed to work with the valve seat to cre...

$6.00

QTY:

Titan 143-945A Piston seat Assembly

Item No: 11

Part #: 143-945A

Titan 143-945A Piston seat Assembly, pkgd *Replaces Part # 143-945* Fits: PowrCoat 730

Retail Price: $214.60

You save: $29.83 (13.90%)

Our Price: $184.77

QTY:

Titan 144-832 Pump Cylinder

Item No: 12

Part #: 144-832

PowrBeast / PowrLiner / PowrTwin / PowrTex part 144-832 is a pump cylinder designed to...

Retail Price: $222.90

You save: $30.98 (13.90%)

Our Price: $191.92

QTY:

Titan 140-009 O-Ring

Item No: 13

Part #: 140-009

PowrTwin / PowrLiner / PowrTex part 140-009 is an O-ring designed to create a leak-pro...

$2.90

QTY:

Titan 144-032 Ball Cage SS

Item No: 14

Part #: 144-032

PowrTwin part 144-032 is a stainless steel ball cage used to retain and guide the check ball within ...

Retail Price: $74.30

You save: $6.17 (8.30%)

Our Price: $68.13

QTY:

Titan 0509707 Foot Valve Ball (Replaces Titan 178-700 and Titan 0349477)

Item No: 15

Part #: 0509707

PowrBeast / PowrLiner / SprayTech part 0509707 is a foot valve ball designed to create...

Retail Price: $46.50

You save: $3.53 (7.59%)

Our Price: $42.97

QTY:

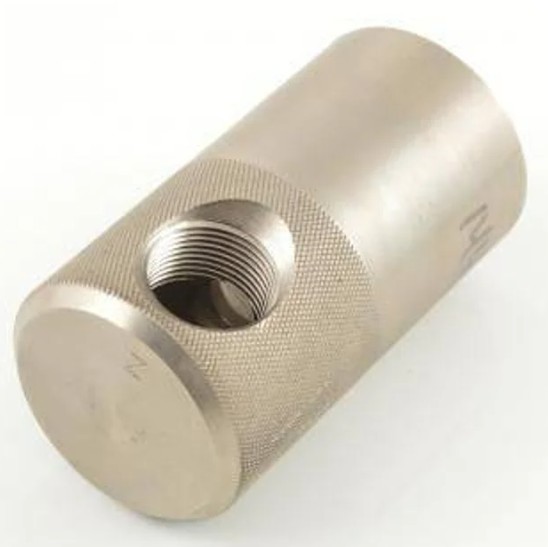

Titan 144-013 Foot Valve

Item No: 16

Part #: 144-013

SprayTech part 144-013 is a foot valve used in the fluid intake system of compatible sprayers. This ...

Retail Price: $532.60

You save: $85.22 (16.00%)

Our Price: $447.38

QTY:

Titan 426-051 Loctite Threadlocker

Part #: 426-051

Titan part 426-051 is a Loctite threadlocker used to secure threaded fasteners on comp...

$16.00

QTY:

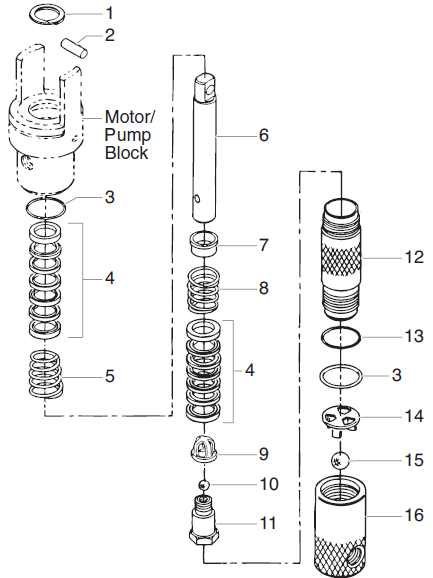

PowrTwin 8900GH Fluid Section Parts

The PowrTwin 8900GH Fluid Section Parts category includes genuine OEM replacement components specifically designed for the Titan PowrTwin 8900GH hydraulic airless sprayer. The fluid section is the heart of the pumping system, responsible for drawing coating material into the sprayer, generating high operating pressure, and delivering consistent fluid flow for demanding commercial and industrial spraying applications.

This category includes essential wear and service components such as displacement rods, pump cylinders, repacking kits, piston seat assemblies, foot valves, outlet valve balls, foot valve balls, O-rings, upper packing springs, lower packing springs, spring retainers, ball cages, and the major fluid section service kit. These components work together to maintain proper pressure generation, efficient material transfer, and dependable spray performance under continuous heavy-duty operation.

Regular maintenance of fluid section components helps reduce pump wear, prevent material leakage, maintain spraying efficiency, and extend the service life of the entire sprayer system. Replacing worn parts before failure can help minimize downtime, improve coating consistency, and protect other connected fluid and hydraulic components from unnecessary stress.

Genuine Titan OEM fluid section parts are manufactured to original factory specifications for proper fitment, pressure-handling capability, durability, and long-term reliability. The PowrTwin 8900GH is commonly used for industrial coatings, commercial painting, waterproofing systems, bridge coatings, infrastructure maintenance, protective coatings, and large-scale construction projects where high-output spraying performance is essential.

FAQs

The fluid section performs the primary pumping function by moving coating material through the system and generating the pressure required for proper spray application. Core components such as the displacement rod, pump cylinder, and foot valve must all be in good working condition for the system to deliver consistent performance.

Packings naturally wear from constant piston movement, abrasive coating materials, high operating pressures, inadequate lubrication, and extended usage over time. The repacking kit provides all the essential seal components needed to restore proper packing performance, and the upper and lower packing springs should be inspected at the same time.

Yes. Damaged or worn valve seats can reduce pumping efficiency, cause pressure loss, create inconsistent spray patterns, and affect overall material delivery. Replacing the piston seat assembly, outlet valve ball, and cage ball together during servicing helps restore full valve sealing performance.

Regular cleaning, proper flushing after use, routine lubrication with threadlocker on fasteners, timely replacement of O-rings and fluid section O-rings, and periodic use of the repacking kit help protect fluid section parts from premature wear and maintain consistent pump performance.

The major fluid section service kit provides multiple wear components in one package, allowing technicians to perform comprehensive servicing and restore pump performance more efficiently. It includes critical items such as the retaining ring, connecting pin, spring retainer, and stainless steel ball cage needed for a complete fluid section rebuild.

PowrTwin 8900GH Fluid Section Parts

PowrTwin 8900GH Fluid Section Parts

FAQs

1. Why is the fluid section considered one of the most important parts of the sprayer?

2. What causes fluid section packings to wear out?

3. Can worn valve seats affect spraying performance?

4. What maintenance practices help protect fluid section components?

5. How do fluid section repair kits simplify maintenance?
