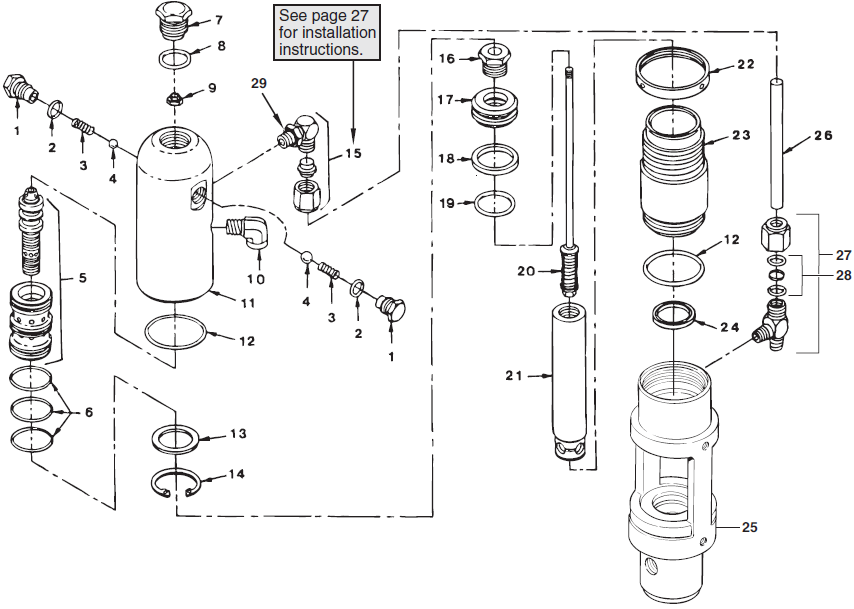

PowrTwin 8900GH Hydraulic Motor Parts

PowrTwin 8900GH Hydraulic Motor Parts
Titan Speeflo 235-050 Hydraulic Service Motor Kit
Titan Speeflo 235-050 Hydraulic Service Motor Kit

Item No: -

Part #: 235-050

Speeflo part 235-050 is a hydraulic service motor kit containing all necessary components to reb...

Retail Price: $84.10
You save: $6.98 (8.30%)
Our Price: $77.12
QTY:
Titan 235-018 Trip Retainer
Titan 235-018 Trip Retainer

Item No: 1

Part #: 235-018

  Titan part 235-018 is a trip retainer designed to secure or position a mechanical trip...

Retail Price: $38.00
You save: $2.09 (5.50%)
Our Price: $35.91
QTY:
Titan 141-007 O-Ring Synthetic Rubber
Titan 141-007 O-Ring Synthetic Rubber

Item No: 2

Part #: 141-007

  Titan part 141-007 is a synthetic rubber O‑ring used as a fluid seal in sprayer pump...

$2.10
QTY:
Titan 325-005 Trip Spring
Titan 325-005 Trip Spring

Item No: 3

Part #: 325-005

PowrTwin part 325-005 is a Trip Spring used to provide return force or actuation tension within a me...

$6.60
QTY:
Titan 569-016 Ball
Titan 569-016 Ball

Item No: 4

Part #: 569-016

  Hydra / PowrLiner / PowrTex / PowrTwin part 569-016 is a ball designed to function as ...

$6.50
QTY:
Titan 441-908 Spool Valve with Sleeve
Titan 441-908 Spool Valve with Sleeve

Item No: 5

Part #: 441-908

Titan 441-908 Spool Valve with Sleeve is designed for use on various Titan paint sprayers. It is rep...

Retail Price: $839.60
You save: $134.34 (16.00%)
Our Price: $705.26
QTY:
Titan 441-152 Synthetic Rubber O-Ring
Titan 441-152 Synthetic Rubber O-Ring

Item No: 6

Part #: 441-152

PowrTwin part 441-152 is a Synthetic Rubber O-Ring used to create fluid-tight seals between mating c...

$6.70
QTY:
Titan 235-030 Cylinder Head Plug
Titan 235-030 Cylinder Head Plug

Item No: 7

Part #: 235-030

  Titan part 235-030 is a cylinder head plug designed to seal access ports or threaded opening...

Retail Price: $81.80
You save: $6.79 (8.30%)
Our Price: $75.01
QTY:
Titan 441-217 Synthetic Rubber O-Ring
Titan 441-217 Synthetic Rubber O-Ring

Item No: 8

Part #: 441-217

PowrTwin part 441-217 is a Synthetic rubber O-Ring used to create fluid-tight seals between mating c...

$3.70
QTY:
Titan 858-811 Flex Lock Nut
Titan 858-811 Flex Lock Nut

Item No: 9

Part #: 858-811

PowrTwin part 858-811 is a Flex Lock Nut used to secure threaded fasteners while resisting loosening...

$4.80
QTY:
Titan 451-121 Elbow
Titan 451-121 Elbow

Item No: 10

Part #: 451-121

PowrTwin part 451-121 is an Elbow used to redirect fluid flow at critical junctions within the pump ...

$24.10
QTY:
Titan 235-112 Cylinder Head (Red)
Titan 235-112 Cylinder Head (Red)

Item No: 11

Part #: 235-112

  Titan part 235-112 is a cylinder head (red) designed to cap the fluid cylinder and house the...

Retail Price: $612.60
You save: $98.02 (16.00%)
Our Price: $514.58
QTY:
Titan 431-032 O-Ring
Titan 431-032 O-Ring

Item No: 12

Part #: 431-032

  Titan part 431-032 is a replacement O‑ring used in fluid pump sections, valve assemb...

$7.30
QTY:
Titan 431-053 Sleeve Retainer
Titan 431-053 Sleeve Retainer

Item No: 13

Part #: 431-053

  Titan part 431-053 is a sleeve retainer designed to secure a sleeve, bushing, or bearing wit...

$28.30
QTY:
Titan 431-054 Retainer Ring or Snap Ring
Titan 431-054 Retainer Ring or Snap Ring

Item No: 14

Part #: 431-054

  PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70
QTY:
Titan 192-000 Hydraulic Elbow
Titan 192-000 Hydraulic Elbow

Item No: 15

Part #: 192-000

  PowrLiner / PowrTwin / PowrTex part 192-000 is a hydraulic elbow designed to change th...

Retail Price: $35.40
You save: $0.71 (2.01%)
Our Price: $34.69
QTY:
Titan 235-022 Piston Retainer Screw
Titan 235-022 Piston Retainer Screw

Item No: 16

Part #: 235-022

  Titan part 235-022 is a piston retainer screw used to secure the piston assembly withi...

Retail Price: $52.00
You save: $4.32 (8.31%)
Our Price: $47.68
QTY:
Titan 235-014 Piston
Titan 235-014 Piston

Item No: 17

Part #: 235-014

  Titan part 235-014 is a piston used in the fluid section of compatible PowrLiner, Powr...

Retail Price: $110.40
You save: $11.48 (10.40%)
Our Price: $98.92
QTY:
Titan 235-027 Piston Seal or Seal, Piston
Titan 235-027 Piston Seal or Seal, Piston

Item No: 18

Part #: 235-027

  Titan part 235-027 is a piston seal designed to provide a dynamic seal between the pis...

$29.10
QTY:
Titan 235-026 O-Ring
Titan 235-026 O-Ring

Item No: 19

Part #: 235-026

  Titan part 235-026 is a replacement O‑ring designed for fluid or air sealing applica...

$5.70
QTY:
Titan 236-021A Valve Rod Assembly
Titan 236-021A Valve Rod Assembly

Item No: 20

Part #: 236-021A

  Titan part 236-021A is a valve rod assembly used in the fluid section of Titan PowrLin...

Retail Price: $249.40
You save: $34.67 (13.90%)
Our Price: $214.73
QTY:
Titan 236-948A Long Piston Rod
Titan 236-948A Long Piston Rod

Item No: 21

Part #: 236-948A

  Titan part 236-948A is a long piston rod used in the pump section of compatible Titan ...

Retail Price: $383.00
You save: $55.92 (14.60%)
Our Price: $327.08
QTY:
Titan 235-001 Lock Ring
Titan 235-001 Lock Ring

Item No: 22

Part #: 235-001

  Titan part 235-001 is a lock ring used to secure components such as packings, seals, o...

Retail Price: $60.70
You save: $5.04 (8.30%)
Our Price: $55.66
QTY:
Titan 236-007 Cylinder Hydraulic
Titan 236-007 Cylinder Hydraulic

Item No: 23

Part #: 236-007

  Titan part 236-007 is a hydraulic cylinder used in the drive system or lift mechanism ...

Retail Price: $475.20
You save: $69.38 (14.60%)
Our Price: $405.82
QTY:
Titan 235-028 Rod Seal
Titan 235-028 Rod Seal

Item No: 24

Part #: 235-028

  Titan part 235-028 is a rod seal designed to provide a dynamic seal around a reciproca...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 236-029 Motor Tube
Titan 236-029 Motor Tube

Item No: 26

Part #: 236-029

Part 236-029 is a replacement motor tube used in hydraulic systems on compatible PowrLiner, Powr...

Retail Price: $69.00
You save: $5.73 (8.30%)
Our Price: $63.27
QTY:
Titan 197-031 Tee
Titan 197-031 Tee

Item No: 27

Part #: 197-031

PowrTwin part 197-031 is a Tee used to split or combine fluid flow at branch connections within the ...

Retail Price: $170.70
You save: $21.34 (12.50%)
Our Price: $149.36
QTY:
Titan 431-019A O-Ring/Backup Ring Set
Titan 431-019A O-Ring/Backup Ring Set

Item No: 28

Part #: 431-019A

  Titan 431-019A O-Ring/Backup Ring Set is a reliable and easy to fit O-ring, it replaces Titan...

$10.50
QTY:
Titan/Speeflo 700-499 O-ring
Titan/Speeflo 700-499 O-ring

Item No: 29

Part #: 700-499

Part number 700-499 is an O-ring used to create a leak-proof seal between components in compatib...

$3.20
QTY:

Buy Online PowrTwin 8900GH Hydraulic Motor Parts

The PowrTwin 8900GH Hydraulic Motor Parts are designed to convert hydraulic energy into mechanical force that drives the sprayer's pump system. This assembly is essential for maintaining consistent pressure, smooth cycling, and reliable performance in heavy-duty coating applications. A properly functioning hydraulic motor ensures stable fluid delivery and reduces pulsation during continuous spraying operations.

This category typically includes internal and external components such as the hydraulic cylinder, spool valve with sleeve, piston assembly, valve rod assembly, piston seals, O-rings, retainer rings, cylinder head plugs, tube connectors, and mounting hardware. These parts work together to regulate hydraulic flow direction, maintain internal sealing, and convert fluid pressure into controlled mechanical motion for the pump system.

Routine inspection of PowrTwin 8900GH Hydraulic Motor Parts helps prevent issues such as pressure loss, irregular pump cycling, overheating, and internal leakage. Replacing worn seals, damaged piston assemblies, or faulty valve components ensures long-term reliability, smoother operation, and reduced downtime in demanding jobsite environments.

FAQs

This is often caused by a stuck spool valve with sleeve or internal flow blockage preventing proper hydraulic switching inside the motor. Inspecting the trip spring and trip retainer for wear or misalignment can also help diagnose cycling failures.

Slow movement is usually linked to internal seal wear, hydraulic leakage past piston components, or restricted oil flow within the motor passages. Replacing the piston seal, rod seal, and hydraulic service motor kit components helps restore full piston movement efficiency.

This can occur due to air in the hydraulic system, worn internal piston components, or inconsistent hydraulic pressure delivery. Checking the ball inside the motor assembly and inspecting the motor tube for restrictions can help identify the source of knocking or pulsation.

Leakage is commonly caused by damaged O-ring/backup ring sets, worn synthetic rubber O-rings, deteriorated motor O-rings, or cracked internal housing components. Inspecting the cylinder head plug and sleeve retainer seating areas helps identify the leak source.

Overheating typically results from contaminated hydraulic oil, restricted flow, or excessive internal friction caused by worn motor components. Ensuring the hydraulic elbow and tee fittings are clear of blockages, and servicing worn parts using the hydraulic service motor kit, helps reduce heat buildup and protect the motor during extended use.
