PowrTwin 6900 Plus DI Fluid Section

Titan 144-050 Fluid Section Minor Service Kit

Item No: -

Part #: 144-050

144-050 Fluid Section Minor Service Kit contains the essential wear components needed to perform rou...

Retail Price: $142.40

You save: $14.81 (10.40%)

Our Price: $127.59

QTY:

Titan 236-050 Outlet Valve Assembly

Item No: ---

Part #: 236-050

PowrBeast / PowrLiner / PowrTwin part 236-050 is an outlet valve assembly designed to ...

Retail Price: $147.10

You save: $15.3 (10.40%)

Our Price: $131.80

QTY:

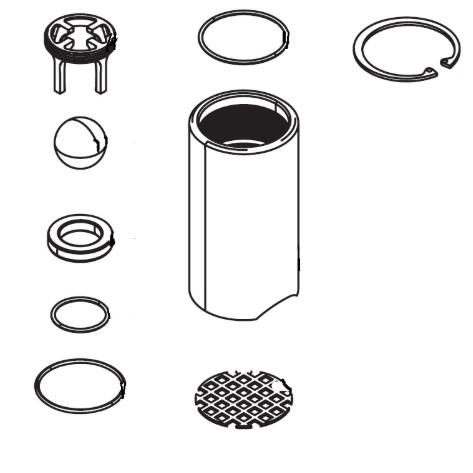

Titan 451-133A Foot Valve Assembly

Item No: --

Part #: 451-133A

PowrBeast / PowrTwin part 451-133A is the foot valve assembly used in the fluid intake...

Retail Price: $332.10

You save: $48.49 (14.60%)

Our Price: $283.61

QTY:

Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70

QTY:

Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10

QTY:

Titan 145-031 O-ring

Item No: 3

Part #: 145-031

PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90

QTY:

Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

PowrLiner / PowrTwin / PowrBeast part 138-153A is a repacking kit designed to rebuild ...

Retail Price: $104.50

You save: $10.87 (10.40%)

Our Price: $93.63

QTY:

Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-004 is an upper packin...

Retail Price: $34.70

You save: $1.91 (5.50%)

Our Price: $32.79

QTY:

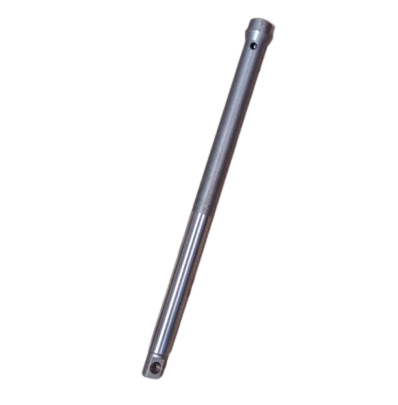

Titan 451-131 Piston Rod

Item No: 6

Part #: 451-131

PowrBeast part 451-131 is a piston rod used in the fluid section of PowrBeast and Powr...

Retail Price: $371.10

You save: $54.18 (14.60%)

Our Price: $316.92

QTY:

Titan 142-003 Lower Packing Spring

Item No: 7

Part #: 142-003

Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-003 is a lower packing...

$25.00

QTY:

Titan 451-085 cage ball

Item No: 8

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20

You save: $4.25 (8.30%)

Our Price: $46.95

QTY:

Titan 0509710 Outlet Valve Ball

Item No: 9

Part #: 0509710

Titan part 0509710 is an outlet valve ball designed to work with the valve seat to cre...

$6.00

QTY:

Titan 236-012 Outlet Valve Seat

Item No: 10

Part #: 236-012

PowrLiner / PowrTex / PowrTwin part 236-012 is an outlet valve seat designed to prov...

Retail Price: $39.00

You save: $2.14 (5.49%)

Our Price: $36.86

QTY:

Titan 236-032 Seal Washer

Item No: 11

Part #: 236-032

PowrBeast / PowrLiner / PowrTex / PowrTwin part 236-032 is a seal washer designed to c...

$13.30

QTY:

Titan 236-031A Outlet Valve Housing

Item No: 12

Part #: 236-031A

PowrLiner / PowrTwin part 236-031A is an outlet valve housing designed to contain the ...

Retail Price: $76.80

You save: $6.37 (8.29%)

Our Price: $70.43

QTY:

Titan 451-032 Cylinder Spacer

Item No: 13

Part #: 451-032

Powr (Beast/Tex/Twin) part 451-032 is a cylinder spacer used in the pump assembly to m...

Retail Price: $409.10

You save: $59.73 (14.60%)

Our Price: $349.37

QTY:

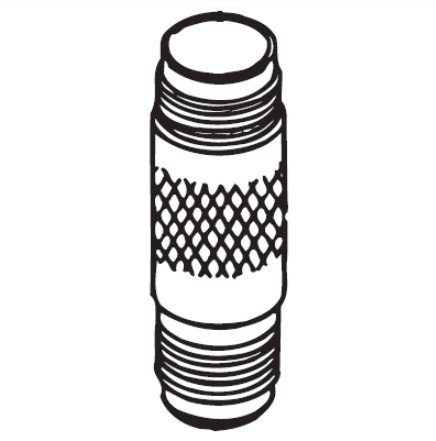

Titan 0349606 Cylinder

Item No: 14

Part #: 0349606

Titan 0349606 CylinderFits: PowrTwin 6900 Plus DI

Retail Price: $308.00

You save: $44.97 (14.60%)

Our Price: $263.03

QTY:

Titan 140-009 O-Ring

Item No: 15

Part #: 140-009

PowrTwin / PowrLiner / PowrTex part 140-009 is an O-ring designed to create a leak-pro...

$2.90

QTY:

Titan 236-030 Washer

Item No: 16

Part #: 236-030

PowrLiner / PowrTex / PowrTwin part 236-030 is a washer designed to distribute load, p...

$17.60

QTY:

Titan 236-141 Foot Valve Cage

Item No: 17

Part #: 236-141

PowrBeast / PowrLiner / PowrTwin / PowrTex part 236-141 is a foot valve cage designed ...

Retail Price: $30.60

You save: $1.68 (5.49%)

Our Price: $28.92

QTY:

Titan 0509707 Foot Valve Ball (Replaces Titan 178-700 and Titan 0349477)

Item No: 18

Part #: 0509707

PowrBeast / PowrLiner / SprayTech part 0509707 is a foot valve ball designed to create...

Retail Price: $46.50

You save: $3.53 (7.59%)

Our Price: $42.97

QTY:

Titan 0509623 Inlet Valve Seat

Item No: 19

Part #: 0509623

PowrBeast / Advantage GPX / PowrLiner / SprayTech part 0509623 is an inlet valve seat ...

Retail Price: $67.50

You save: $5.6 (8.30%)

Our Price: $61.90

QTY:

Titan 0509708 Seat O-Ring

Item No: 20

Part #: 0509708

Titan part 0509708 is a seat o‑ring designed to provide a leak‑tight seal between ...

$3.20

QTY:

Titan 451-132 Foot Valve Housing

Item No: 21

Part #: 451-132

PowrBeast / PowrTex / PowrTwin part 451-132 is the foot valve housing that forms the b...

Retail Price: $204.30

You save: $28.4 (13.90%)

Our Price: $175.90

QTY:

Titan 451-018 Inlet screen

Item No: 22

Part #: 451-018

Titan 451-018 Inlet screen replaces Titan 555217 is deigned for use on various Titan paint sprayers ...

$9.00

QTY:

Titan 431-054 Retainer Ring or Snap Ring

Item No: 23

Part #: 431-054

PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70

QTY:

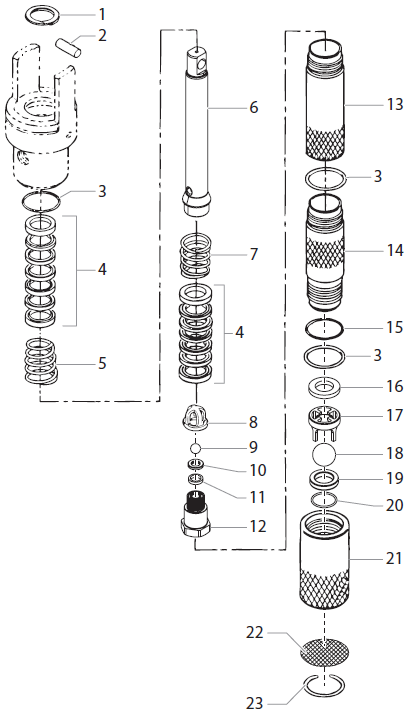

PowrTwin 6900 Plus DI Fluid Section Parts

The PowrTwin 6900 Plus DI Fluid Section Parts are engineered to maintain consistent fluid delivery, pressure control, and pump efficiency in demanding airless spraying applications. As the heart of the sprayer's pumping system, the fluid section is responsible for drawing coating material, pressurizing it, and delivering it to the spray gun with precision. This assembly includes critical components such as the piston rod, cylinder, packings, outlet valve assembly, Fluid Section Minor Service Kit, foot valve assembly, O-rings, valve balls, springs, and retaining hardware.

Built for high-volume spraying of latex paints, primers, block fillers, and elastomeric coatings, these components are designed to withstand continuous operation under heavy-duty job site conditions. Properly functioning fluid section parts help maintain steady pressure, reduce material pulsation, and ensure smooth spray patterns. Routine replacement of wear items such as packings, valve seats, and O-rings helps extend pump life and minimize downtime.

The fluid section features a serviceable design that allows contractors to replace individual components rather than the entire assembly. Regular maintenance of the piston, cylinder, inlet valve, and outlet valve components helps preserve spraying performance and prevents costly repairs caused by premature wear or contamination.

FAQs

Pressure fluctuations are commonly caused by worn packings, damaged valve seats, or leaking O-rings that prevent the fluid section from maintaining a consistent seal during pump operation.

A worn piston rod can reduce sealing efficiency, accelerate packing wear, and lead to reduced pump performance, fluid bypass, and inconsistent spray pressure.

A faulty foot valve assembly can allow material to flow backward into the intake system, causing priming difficulties, pressure loss, and interrupted spraying performance.

Cylinder wear can create internal leakage around the packings, reducing pump efficiency and causing the sprayer to work harder to maintain pressure.

Damaged outlet valve balls, seats, or housings can disrupt fluid flow, create pressure inconsistencies, and reduce the overall spraying efficiency of the pump system.

PowrTwin 6900 Plus DI Fluid Section

PowrTwin 6900 Plus DI Fluid Section Parts

FAQs

1. What causes pressure fluctuation in PowrTwin 6900 Plus DI Fluid Section Parts?

2. How can a worn piston rod affect PowrTwin 6900 Plus DI Fluid Section Parts?

3. What happens when the foot valve assembly fails in PowrTwin 6900 Plus DI Fluid Section Parts?

4. How does cylinder wear impact PowrTwin 6900 Plus DI Fluid Section Parts?

5. What issues can result from damaged outlet valve components in PowrTwin 6900 Plus DI Fluid Section Parts?
