PowrCoat 975 · 75:1 · 7,500 PSI · 100 PSI Air Inlet
Restore Priming, Pressure and Material Delivery in Pump 0533908
Shop verified PowrCoat 975 fluid-pump components for assembly 0533908, including the pump block, packing assemblies, displacement rod, valve ball, piston seat, cylinder and foot valve.
01
Verified Page Type
Exploded high-pressure fluid-pump replacement-parts category
02
Official Cross-Check
Components retained only when confirmed.
03
Diagnostic Guidance
Inspect before replacing parts.
04
6 Product Links
No discontinued or unconfirmed products linked.
Assembly Overview

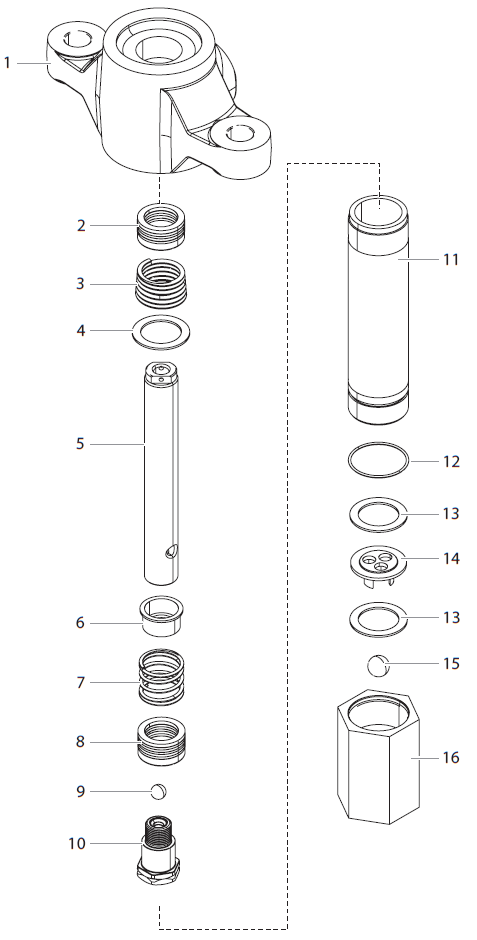

PowrCoat 975 Fluid Pump Assembly 0533908
Titan’s 0533908 fluid-pump diagram identifies sixteen numbered service positions for the PowrCoat 975. The pump converts air-motor movement into high-pressure coating flow through the displacement rod, packing groups, outlet valve, cylinder and foot-valve assembly.
Verified component index: 142-917, 138-052A, 142-004, 138-029, 138-917, 138-001, 142-003, 138-153A, 0509710, 143-945A, 140-922, 140-009, 138-031, 138-032, 138-340, 140-991
Functions Supported by the Assembly
- Draws coating through the foot valve during intake.
- Pressurizes fluid through the piston-seat assembly.
- Maintains sealing through upper and lower packing components.
- Transfers air-motor movement through displacement rod 138-917.
- Contains the working stroke within cylinder 140-922.
Service Applications
- Correcting upper-packing leakage.
- Restoring weak priming or pressure loss.
- Repairing uneven pump stroke speed.
- Replacing scored rods or cylinders.
- Planning a complete 0533908 fluid-section rebuild.
Troubleshooting
Relieve all air and fluid pressure. Inspect genuine components shown on the supplied page and diagnose the actual failure before replacement.
| Operating symptom |
Inspection points |
Recommended action |
| Upper packing leaks |
138-052A packing, 142-004 spring and 138-917 rod |
Inspect rod finish and spring condition before repacking. |
| Pump loses pressure |
0509710 ball, 143-945A seat and packing groups |
Diagnose internal bypass before replacing the piston assembly. |
| Poor priming |
140-991 foot valve, 138-340 ball and 138-032 cage |
Clean and inspect the inlet sealing surfaces before replacement. |
| Pump moves faster on one stroke |
Outlet and foot-valve sealing groups |
Compare both valve groups before ordering parts. |
| New packing fails quickly |
138-917 rod and 140-922 cylinder |
Inspect for scoring or misalignment before installing another kit. |
| Fluid leaks at pump joints |
138-029 gasket, 140-009 O-ring and threaded surfaces |
Identify the exact seal or damaged surface before replacement. |
High-Value Replacement Parts
Only active products verified on the supplied page are linked.
Verified component
Titan 142-917 Lower Pump Block
Structural lower pump body.
View Titan 142-917
Verified component
Titan 138-917 Displacement Rod
High-pressure displacement rod.
View Titan 138-917
Verified component
Titan 138-153A Repacking Kit
Verified pump packing service kit.
View Titan 138-153A
Verified component
Titan 143-945A Piston Seat Assembly
Outlet piston-seat assembly.
View Titan 143-945A
Verified component
Titan 140-922 Pump Cylinder
Working pump cylinder.
View Titan 140-922
Verified component
Titan 140-991 Foot Valve Assembly
Complete inlet foot-valve assembly.
View Titan 140-991
Buying Guide
STEP 1
Confirm the page
Use the exact PowrCoat 975 assembly.
STEP 2
Match the part number
Check diagram callout and component name.
STEP 3
Inspect mating parts
Find the true failure point.
STEP 4
Order verified fitment
Exclude discontinued or uncertain items.
Maintenance
- Relieve all stored pressure before service.
- Keep coating and air passages clean.
- Inspect seals and mating surfaces together.
- Check fasteners and connections for alignment.
- Record model, part number and service date.
- Replace only after confirming the fault.
Repair Planning
Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.
FAQ Section
What type of page is PowrCoat 975 Fluid Pump Assembly 0533908?+
It is a exploded high-pressure fluid-pump replacement-parts category.
Which machine configuration is verified?+
Titan PowrCoat 975 models 0533975C and 0533975W belong to this product family; use the exact assembly page to confirm configuration-specific parts.
What are the verified PowrCoat 975 operating limits?+
Titan specifies a 75:1 pressure ratio, 7,500 PSI maximum operating pressure and 100 PSI maximum air inlet pressure.
Why should technicians diagnose before replacement?+
Connected seals, fittings, valves and hard parts can create similar symptoms, so diagnosis prevents unnecessary parts purchases.
How should a part number be confirmed?+
Match the supplied page, diagram position, component name and exact Titan part number.
Can unlisted products be assumed compatible?+
No. Products not confirmed on the supplied page or Titan documentation should be omitted.
What safety step comes before service?+
Shut off and bleed the air supply, lock the spray gun and relieve all fluid pressure.
Why inspect mating components?+
A damaged mating surface can cause a new replacement part to fail quickly.
How many product links are included? +
6 verified active product links are included; discontinued and unconfirmed products are excluded.
Where can related PowrCoat 975 components be found?+
Use the verified family links in the Related Searches section.
Repair the PowrCoat 975 With Verified Information
Use the exact part number, page and operating symptom to narrow the correct replacement.
Search using:
- Titan part number
- Assembly callout
- PowrCoat 975 model
- Component or kit name
- Operating symptom
