Shop verified PowrCoat 975 air-motor parts, including service kits, valve components, air piston, cylinder, piston rod, wear ring, seals and motor base.

Verified Page Type

Exploded pneumatic air-motor replacement-parts category

Official Cross-Check

Components retained only when confirmed.

Diagnostic Guidance

Inspect before replacing parts.

6 Product Links

No discontinued or unconfirmed products linked.

Assembly Overview

PowrCoat 975 Air Motor Assembly

The PowrCoat 975 uses Titan’s 9-inch pneumatic air motor in the 75:1 system. The exploded page covers the valve mechanism, piston group, cylinder, seals, wear components, motor base and connection hardware used to convert compressed air into reciprocating pump movement.

Verified component index: 743-012, 850-050, 850-500, 9805428, 858-660, 858-611, 742-001, 738-213, 138-340, 0533332A, 742-913, 742-223, 858-812, 738-218, 740-925, 738-224, 740-985, 742-011, 890-114, 742-016, 738-985, 742-005, 743-011, 850-917, 850-016, 743-227, 738-937, 850-004, 850-952, 738-021, 742-224, 0533316A, 9885632, 858-624, 730-165, 9885631

Functions Supported by the Assembly

Directs compressed air through the valve spool and sleeve.
Transfers pneumatic force through the air piston and rod.
Seals the cylinder through O-rings, gasket and wear ring.
Supports controlled valve-trip reversal.
Connects the motor to the fluid pump through the motor base.

Service Applications

Correcting stalled or irregular motor cycling.
Repairing excessive air leakage.
Restoring weak or uneven pneumatic power.
Replacing worn piston, cylinder or valve components.
Planning minor or major air-motor service.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on the supplied page and diagnose the actual failure before replacement.

Operating symptom	Inspection points	Recommended action
Motor stalls or hesitates	740-925 spool, 742-913 sleeve and valve-trip components	Inspect contamination, scoring and free movement before replacement.
Air leaks continuously	O-rings, 850-004 gasket, piston and cylinder surfaces	Locate the leak path before selecting a service kit.
Motor cycles unevenly	850-917 piston, 738-937 rod, 850-952 cylinder and 742-224 wear ring	Inspect for wear, scoring and misalignment before replacement.
Motor will not reverse	743-011 valve rod, 743-227 collar and trip spring components	Confirm mechanical travel before replacing valve parts.
Power output is weak	Air supply, FRL, piston seals and cylinder	Verify regulated air volume before rebuilding the motor.
Repeat seal failure occurs	850-952 cylinder, 738-937 rod and alignment	Correct hard-part damage before installing new seals.

High-Value Replacement Parts

Only active products verified on the supplied page are linked.

Verified component

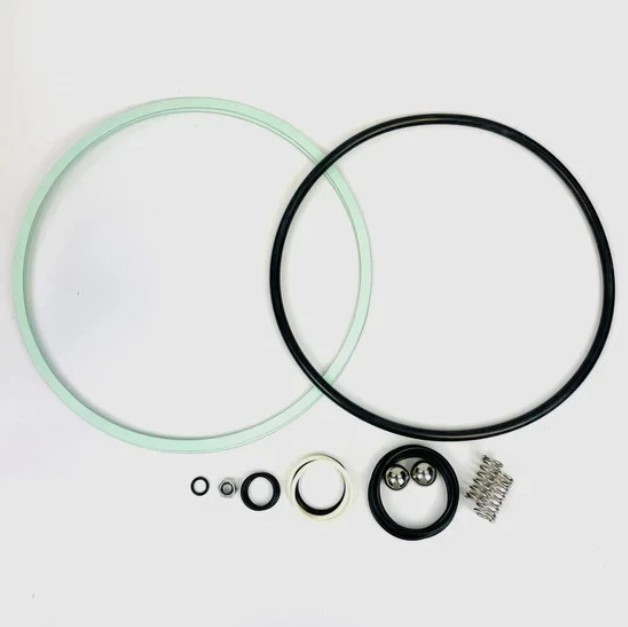

Titan 850-050 Minor Motor Service Kit

Minor pneumatic motor service kit.

View Titan 850-050

Verified component

Titan 850-500 Major Motor Service Kit

Major air-motor rebuild kit.

View Titan 850-500

Verified component

Titan 740-925 Valve Spool

Precision valve spool controlling air reversal.

View Titan 740-925

Verified component

Titan 850-917 Air Piston

Main pneumatic piston generating reciprocating force.

View Titan 850-917

Verified component

Titan 850-952 Air Cylinder

Working cylinder for the air piston.

View Titan 850-952

Verified component

Titan 0533316A Air Motor Base

Structural base joining the air motor and pump.

View Titan 0533316A

Buying Guide

STEP 1

Confirm the page

Use the exact PowrCoat 975 assembly.

STEP 2

Match the part number

Check diagram callout and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

Relieve all stored pressure before service.
Keep coating and air passages clean.
Inspect seals and mating surfaces together.
Check fasteners and connections for alignment.
Record model, part number and service date.
Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

Titan 850-050 Minor Motor Service Kit Titan 850-500 Major Motor Service Kit Titan 740-925 Valve Spool Titan 850-917 Air Piston Titan 850-952 Air Cylinder Titan 0533316A Air Motor Base

FAQ Section

What type of page is PowrCoat 975 Air Motor Assembly?+

It is a exploded pneumatic air-motor replacement-parts category.

Which machine configuration is verified?+

Titan PowrCoat 975 models 0533975C and 0533975W belong to this product family; use the exact assembly page to confirm configuration-specific parts.

What are the verified PowrCoat 975 operating limits?+

Titan specifies a 75:1 pressure ratio, 7,500 PSI maximum operating pressure and 100 PSI maximum air inlet pressure.

Why should technicians diagnose before replacement?+

Connected seals, fittings, valves and hard parts can create similar symptoms, so diagnosis prevents unnecessary parts purchases.

How should a part number be confirmed?+

Match the supplied page, diagram position, component name and exact Titan part number.

Can unlisted products be assumed compatible?+

No. Products not confirmed on the supplied page or Titan documentation should be omitted.

What safety step comes before service?+

Shut off and bleed the air supply, lock the spray gun and relieve all fluid pressure.

Why inspect mating components?+

A damaged mating surface can cause a new replacement part to fail quickly.

How many product links are included? +

6 verified active product links are included; discontinued and unconfirmed products are excluded.

Where can related PowrCoat 975 components be found?+

Use the verified family links in the Related Searches section.
