PowrCoat 940 High Pressure Filter Parts

PowrCoat 940 High Pressure Filter Parts
Titan 0290423A End cap, pkgd or Filter cap SC30/40/45
Titan 0290423A End cap, pkgd or Filter cap SC30/40/45

Item No: 1

Part #: 0290423A

Titan High-Pressure Fluid Filter Component The Titan 0290423A End Cap, Packaged or Filter Cap S...

Retail Price: $183.90
You save: $22.99 (12.50%)
Our Price: $160.91
QTY:

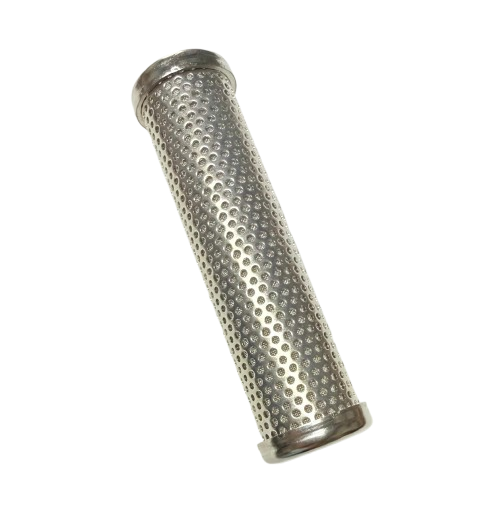

Titan 920-004 Filter Element, 50 Mesh
Titan 920-004 Filter Element, 50 Mesh

Item No: 2

Part #: 920-004

  OEM Titan Filtration Component Titan 920-004 Filter Element, 50 Mesh is an OEM stainless ...

Retail Price: $33.80
You save: $1.86 (5.50%)
Our Price: $31.94
QTY:

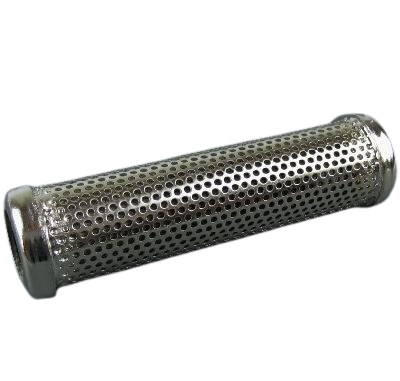

Titan 920-005 Manifold Filter
Titan 920-005 Manifold Filter

Item No: 2A

Part #: 920-005

  OEM Titan Filtration Component Titan 920-005 Manifold Filter is an OEM 100-mesh stainless...

Retail Price: $34.60
You save: $1.9 (5.49%)
Our Price: $32.70
QTY:
Titan 920-007 Long Filter screen
Titan 920-007 Long Filter screen

Item No: 2B

Part #: 920-007

Titan High-Pressure Fluid Filter Element The Titan 920-007 Long Filter Screen is an optional 10...

Retail Price: $37.70
You save: $2.07 (5.49%)
Our Price: $35.63
QTY:
Titan 920-006 Gasket
Titan 920-006 Gasket

Item No: 3

Part #: 920-006

Titan High-Pressure Fluid Filter Seal The Titan 920-006 Gasket is a thick PTFE seal installed b...

$15.30
QTY:
Titan 920-070 Gasket, Ptfe (Thin)
Titan 920-070 Gasket, Ptfe (Thin)

Item No: 4

Part #: 920-070

Titan High-Pressure Fluid Filter Seal The Titan 920-070 Gasket, PTFE (Thin) seals the stepped s...

$14.10
QTY:
Titan 808-555 Fitting
Titan 808-555 Fitting

Item No: 5

Part #: 808-555

  OEM Titan Fluid Component Titan 808-555 Fitting is an OEM NPT-to-NPS fitting used to conn...

Retail Price: $43.00
You save: $3.27 (7.60%)
Our Price: $39.73
QTY:
Titan 227-033 Pipe Plug
Titan 227-033 Pipe Plug

Item No: 6

Part #: 227-033

  OEM Titan Sealing Component Titan 227-033 Pipe Plug is an OEM sealing component that clos...

$5.40
QTY:
Titan 0290424A Filter Body
Titan 0290424A Filter Body

Item No: 7

Part #: 0290424A

Titan High-Pressure Fluid Filter Housing The Titan 0290424A Filter Body houses the fluid-filter...

Retail Price: $225.10
You save: $31.29 (13.90%)
Our Price: $193.81
QTY:
Titan 227-027 Pipe Plug
Titan 227-027 Pipe Plug

Item No: 8

Part #: 227-027

Titan High-Pressure Pipe Sealing Component The Titan 227-027 Pipe Plug is a plated carbon-steel...

$3.50
QTY:
Titan 920-103 Stainless Ball, 13/16
Titan 920-103 Stainless Ball, 13/16"

Item No: 9

Part #: 920-103

  OEM Titan Valve Component Titan 920-103 Stainless Ball, 13/16" is an OEM precision-ground...

$24.00
QTY:

PowrCoat 940 High-Capacity Outlet Filtration · 18 Square Inches

Restore Clean, Pressure-Rated Flow with Verified Filter Parts

Shop confirmed components for the PowrCoat 940 High Pressure Filter, including the filter cap, standard and optional elements, thick and thin PTFE gaskets, outlet fitting, pipe plugs, filter body and internal ball. Every featured item appears on the supplied category page and matches Titan’s official nine-position filter diagram.

01
Official Nine-Position Diagram
Every retained component matches Titan’s filter table.
02
Three Verified Mesh Choices
Standard 50 mesh plus optional 5- and 100-mesh elements.
03
18-Square-Inch Filter Area
High-capacity filtration supports sustained coating flow.
04
Verified Product Links
Every replacement card resolves to a live internal page.
Assembly Overview

How the PowrCoat 940 High-Pressure Filter Protects the Spray Circuit

This page is an exploded high-pressure fluid-filter replacement-parts category for PowrCoat 940 cart model 0533940C and wall model 0533940W. Titan groups the PowrCoat 730, 745 and 940 filter configuration under a 5,000 PSI maximum filter specification.

Pressurized coating enters filter body 0290424A and passes through the selected element before reaching the hose and gun circuit. Cap 0290423A retains the element, while the thick and thin PTFE gaskets seal the cap-to-body stack. Fittings and plugs control the documented outlet and auxiliary ports.

Main Functions

Functions Supported by the High-Pressure Filter

  • Captures coating contamination before downstream components.
  • Supports stable material flow through an 18-square-inch element.
  • Contains pressurized coating within the cap and body.
  • Seals the filter stack with thick and thin PTFE gaskets.
  • Provides hose, bleed-valve and auxiliary outlet connections.
Service Applications

When Repair Teams Use This Filter Diagram

  • Spray pressure falls because the element is restricted.
  • Coating leaks around the cap, plugs or outlet fitting.
  • Filter mesh must be changed for a verified process need.
  • Cap or body threads show wear, damage or corrosion.
  • Routine flushing reveals hardened coating in the housing.
Troubleshooting

PowrCoat 940 Filter Symptoms and Diagnostic Priorities

Fully relieve pressure before touching the cap, plugs or fittings. Diagnose element restriction, gasket sealing, body condition and outlet connections before replacing components.

Operating symptom Inspection points Recommended action
Pressure drops when spraying selected 920-series element, coating contamination, cap seating, outlet fitting and downstream hose Clean and inspect the element and compare flow before and after filtration before replacing parts.
Coating leaks around the cap 0290423A cap, 920-006 and 920-070 gaskets, 0290424A threads and sealing faces Identify gasket damage, thread wear or sealing-face defects before replacing the cap or body.
Debris reaches the gun filter or tip element damage, incorrect installation, gasket stack, cap retention and filter-body contamination Verify element integrity and sealing before selecting a finer optional mesh.
Leak appears at a body port 808-555 fitting, both 227-033 plugs, 227-027 plug, thread seal and receiving-port threads Locate the exact leaking joint and inspect both male and female threads before replacement.
Filter cap is difficult to remove residual pressure, dried coating, cap threads, body threads, gasket compression and corrosion Confirm zero pressure and clean exposed material before diagnosing thread damage.
Restriction returns soon after cleaning coating straining, selected mesh, hardened material in body, 920-103 ball area and downstream contamination Inspect the complete housing and coating preparation process before replacing the element repeatedly.
Verified Replacement Components

High-Value PowrCoat 940 Filter Parts

Only genuine products shown on the supplied page, confirmed in Titan’s filter table and matched to live product URLs are included.

High-Pressure Filter Closure

Titan 0290423A Filter Cap

Official position-1 cap for PowrCoat 940. It encloses the element and compresses the sealing gaskets against the filter body.

View Titan 0290423A
Standard Filter Element

Titan 920-004 Filter Element, 50 Mesh

Official position-2 standard element for PowrCoat 940. Titan specifies 50 mesh and an 18-square-inch filter area.

View Titan 920-004
Optional Coarse Element

Titan 920-005 Filter Element, 5 Mesh

Official optional position-2 element for PowrCoat 940. Titan’s filter table identifies this element as 5 mesh.

View Titan 920-005
Optional Fine Element

Titan 920-007 Filter Element, 100 Mesh

Official optional position-2 element for PowrCoat 940. Titan’s filter table identifies this element as 100 mesh.

View Titan 920-007
Primary Filter Seal

Titan 920-006 Thick PTFE Gasket

Official position-3 thick PTFE gasket used between the element, cap and filter-body sealing stack.

View Titan 920-006
Secondary Filter Seal

Titan 920-070 Thin PTFE Gasket

Official position-4 thin PTFE gasket used with the thick gasket to maintain filter-cap sealing.

View Titan 920-070
Hose Connection Fitting

Titan 808-555 Hex Fitting, 3/8"

Official position-5 3/8-inch hex fitting used at the high-pressure filter outlet connection.

View Titan 808-555
Outlet Port Plug

Titan 227-033 Pipe Plug

Official position-6 plug used in two filter-body ports on PowrCoat 940.

View Titan 227-033
Pressure-Rated Filter Housing

Titan 0290424A Filter Body

Official position-7 body that supports the element, cap, gaskets, outlet fitting, plugs and bleed-valve connection.

View Titan 0290424A
Filter-Body Port Seal

Titan 227-027 Pipe Plug

Official position-8 plug used to seal the documented auxiliary port in the PowrCoat 940 filter body.

View Titan 227-027
Internal Filter-Body Ball

Titan 920-103 Stainless Ball, 13/16"

Official position-9 ball shown directly beneath the filter element in Titan’s high-pressure-filter diagram.

View Titan 920-103
Buying Guide

How to Select the Correct PowrCoat 940 Filter Part

STEP 1

Confirm the 940 configuration

Use cap 0290423A and body 0290424A for PowrCoat 940.

STEP 2

Identify the failed function

Separate element restriction, cap leakage, port leakage and housing damage.

STEP 3

Choose mesh deliberately

Standard is 50 mesh; optional 5- and 100-mesh elements require process-based selection.

STEP 4

Inspect the complete sealing stack

Check both PTFE gaskets, cap threads, body threads and element seating together.

Maintenance

Maintain Reliable PowrCoat 940 Outlet Filtration

  • Strain coating material before spraying whenever appropriate.
  • Clean the filter assembly thoroughly after daily use.
  • Inspect both PTFE gaskets whenever the cap is removed.
  • Check the element for deformation, tears or hardened coating.
  • Inspect body ports and plugs for high-pressure leakage.
  • Never open the filter until the system is fully depressurized.
Repair Planning

Plan a Complete PowrCoat 940 Filter Service

Record the installed mesh, coating type, pressure behavior and location of any leakage before disassembly. This separates element restriction from cap, gasket, body or port-sealing faults.

During teardown, inspect the cap, both gaskets, element, body threads, internal cavity, 920-103 ball area, outlet fitting and every pipe plug. Replacing only the visible leaking part can leave damaged mating surfaces or hardened coating inside the assembly.

Fast Navigation

Shop Major PowrCoat 940 Filter Components

FAQ Section

PowrCoat 940 High Pressure Filter FAQs

Verified answers covering filter type, model fitment, mesh choices, pressure rating, gasket selection, restriction diagnosis, leakage and safe service.

What type of page is the PowrCoat 940 high-pressure-filter page?+
It is an exploded high-pressure fluid-filter replacement-parts category for the PowrCoat 940 filter housing, element, seals, fittings, plugs and internal ball.
Which PowrCoat models use filter cap 0290423A and body 0290424A?+
Titan specifies both parts for PowrCoat 730, 745 and 940. PowrCoat 960 and 975 use different cap and body numbers.
What is the standard PowrCoat 940 filter element?+
Titan specifies 920-004 as the standard 50-mesh filter element.
Which optional filter elements are documented for PowrCoat 940?+
Titan lists 920-005 as an optional 5-mesh element and 920-007 as an optional 100-mesh element.
What is the filter area of the PowrCoat high-pressure filter?+
Titan specifies an 18-square-inch, or 116-square-centimeter, filter area.
What is the maximum working pressure of the PowrCoat 940 filter configuration?+
The PowrCoat 730, 745 and 940 filter configuration is grouped under Titan’s 5,000 PSI maximum filter specification.
Which gaskets seal the filter cap?+
Titan uses the 920-006 thick PTFE gasket and 920-070 thin PTFE gasket.
Why does pressure drop when the gun is triggered?+
Inspect the selected filter element for restriction, then inspect the cap, gaskets, body, outlet fitting and connected hose before replacing parts.
What causes coating leakage around the filter cap?+
Inspect the 0290423A cap, both PTFE gaskets, 0290424A body threads and sealing surfaces before replacing any component.
Why should pipe plugs be inspected?+
The 227-033 and 227-027 plugs seal unused filter-body ports. Damaged threads or poor sealing can cause hazardous high-pressure leakage.
Why should coating be strained before spraying?+
Titan recommends filtering coating material generally, even though the sprayer has a high-pressure filter, to reduce contamination and repeated filter cleaning.
What safety procedure is required before filter service?+
Lock the gun, stop and bleed the pump, open the pressure-bleed valve, trigger into a grounded metal container and verify zero pressure before removing the filter cap.
Find the Correct Replacement Part

Restore Clean Flow, Reliable Sealing and Secure Outlet Connections

Browse verified PowrCoat 940 filter caps, mesh elements, PTFE seals, housing parts, fittings, plugs and internal components.

Search using:
  • Titan part number
  • High-pressure-filter diagram callout
  • 5-, 50- or 100-mesh element
  • Cap, gasket, body, fitting or plug
  • Restriction, contamination, leakage or pressure symptom

Related PowrCoat 940 High-Pressure Filter Searches
