Titan PowrCoat 940 Wall Mount Assembly Parts

Shop confirmed components for the PowrCoat 940 Wall Mount Assembly, including mounting hardware, 900-series pneumatic connections, air shutoff and pressure control, AirCare FRL, fluid-pump support, 185-551A pump, high-pressure filter and bleed valve. Match the exact numbered callout and Titan part number before ordering.

Official 51-Position Diagram

Titan’s wall-mount illustration defines the complete service architecture.

940-Specific Powertrain

Air motor 0533212A and fluid pump 185-551A are model-correct.

Integrated AirCare System

Filtering, regulation and lubrication support pneumatic reliability.

Verified Product Destinations

Every featured card links to a live item on the supplied page.

Assembly Overview

How the PowrCoat 940 Wall-Mount System Is Organized

This page is an exploded wall-mount assembly replacement-parts category for PowrCoat 940 model 0533940W. The wall weldment and hardware support the air motor, pneumatic-control bracket, FRL assembly, pump supports, fluid pump, high-pressure filter, bleed valve and protective shields.

Compressed air enters through the shutoff and AirCare components, drives air motor 0533212A and powers fluid pump 185-551A. Pressurized coating then passes through filter assembly 0533218A, while bleed valve 944-028A provides the return path used during priming, flushing and pressure relief.

Main Functions

Functions Supported by the Wall-Mount Assembly

Secures the complete sprayer to a fixed wall structure.
Filters, regulates and lubricates incoming compressed air.
Controls air isolation and displays regulated pressure.
Supports air-motor and fluid-pump alignment.
Filters pressurized coating and manages bleed flow.

Service Applications

When Technicians Use This Wall-Mount Diagram

Wall hardware loosens or the unit shifts under load.
Air pressure is unstable or the motor cycles incorrectly.
The FRL leaks, restricts airflow or fails to lubricate.
The pump loses output or leaks around its support area.
The filter or bleed circuit develops restriction or leakage.

Troubleshooting

PowrCoat 940 Wall-Mount Symptoms and Diagnostic Priorities

Relieve fluid and pneumatic pressure before inspection. Diagnose connected components and mounting interfaces before replacement.

Operating symptom	Inspection points	Recommended action
Wall unit shifts or vibrates	wall structure, weldment, 862-472 screws, 0509285 washers, locknuts and 0533240A bracket	Identify the loose or damaged interface before replacing hardware or the bracket.
Air motor receives little or no air	0533319 valve, 0533327 tube, 9885631 adapter, FRL, gauge and compressor supply	Confirm valve position and isolate the restriction before replacing pneumatic parts.
Regulated pressure is unstable	600-086 gauge, 0533124A FRL, inlet nipple, tee fittings, air leaks and compressor capacity	Compare gauge behavior with supply pressure and inspect leaks before replacing the gauge or FRL.
Pump cycles but pressure is low	185-551A pump, connecting rod, coupling nut, stanchions, filter, bleed valve and suction path	Determine whether the loss is in the pump, bleed circuit or downstream filter before replacement.
Outlet flow is restricted	0533218A filter, coating contamination, connected adapters, hose and spray-gun filtration	Clean and inspect the filter path before replacing the complete assembly.
Material continues through return circuit	944-028A bleed valve, return fitting, filter connection, contamination and valve closure	Confirm full closure and inspect the valve and connection before replacement.

Verified Replacement Components

High-Value PowrCoat 940 Wall-Mount Parts

Only actual products shown on the supplied wall-mount page and confirmed in Titan’s diagram are included.

Wall-Mount Fastener

Titan 862-472 Screw

One of four official screws used with washers and locknuts to secure the wall-mount weldment.

View Titan 862-472

Load-Distribution Washer

Titan 0509285 Flat Washer

One of eight official washers used at the wall bracket and mounted assembly interfaces.

View Titan 0509285

Handling and Service Hardware

Titan 0533224A Eye Hook Assembly

Verified eye hook positioned above the 900-series air motor for supported handling and service access.

View Titan 0533224A

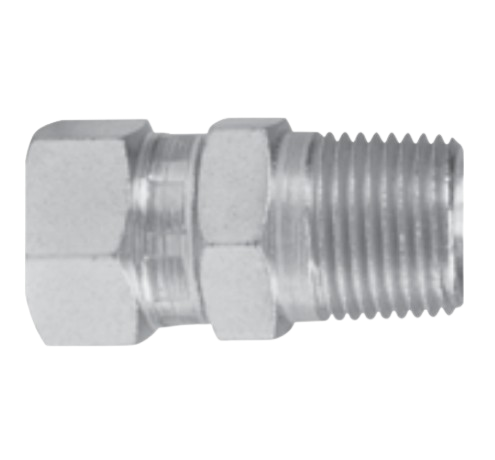

Air-Motor Connection

Titan 9885631 Adapter

PowrCoat 940-specific adapter used at the air-motor inlet connection.

View Titan 9885631

Formed Pneumatic Tube

Titan 0533327 Air Tube

PowrCoat 940 90-degree air tube connecting the inlet adapter to the shutoff-valve circuit.

View Titan 0533327

Air Supply Isolation

Titan 0533319 Shut-Off Valve

Verified ball valve used to isolate incoming compressed air before setup, shutdown and service.

View Titan 0533319

900-Series Support Bracket

Titan 0533240A Weldment Bracket

PowrCoat 940 support bracket used beneath the pneumatic-control and FRL area.

View Titan 0533240A

Air Pressure Instrument

Titan 600-086 Pressure Gauge

Verified gauge used to monitor regulated pneumatic pressure supplied to the air motor.

View Titan 600-086

Air Preparation Assembly

Titan 0533124A FRL Service Assembly

Complete filter, regulator and lubricator assembly supplied with the documented inlet nipple.

View Titan 0533124A

PowrCoat 940 Fluid Pump

Titan 185-551A Pump Assembly

Official fluid pump assembly for PowrCoat 940, supported by the 185-551 exploded service category.

View Titan 185-551A

High-Pressure Outlet Filter

Titan 0533218A Filter Assembly

Verified PowrCoat 940 filter assembly positioned between the fluid pump and downstream spray circuit.

View Titan 0533218A

Pressure-Relief Valve

Titan 944-028A Bleed Valve Assembly

Verified complete bleed-valve assembly mounted to the high-pressure filter for priming, flushing and pressure relief.

View Titan 944-028A

Buying Guide

How to Select the Correct Wall-Mount Component

STEP 1

Confirm model 0533940W

Use the wall-mount diagram rather than the cart main assembly.

STEP 2

Identify the affected system

Separate mounting, pneumatic, pump, filter and bleed faults.

STEP 3

Match the numbered position

Verify the exact callout, component name and part number.

STEP 4

Inspect mating components

Check fittings, fasteners, supports and connected assemblies together.

Maintenance

Maintain the PowrCoat 940 Wall-Mount System

Inspect wall fasteners, washers, locknuts and bracket alignment.
Drain, inspect and refill the AirCare system as required.
Monitor regulated pressure with the verified gauge.
Inspect pump supports and coupling hardware when vibration changes.
Clean the high-pressure filter before contamination restricts flow.
Relieve all stored air and fluid pressure before service.

Repair Planning

Plan a Complete PowrCoat 940 Wall-Mount Repair

For pneumatic faults, inspect the shutoff valve, formed air tube, adapter, gauge, tee fittings and FRL as one connected system. For pump-output faults, inspect air-motor operation, rod coupling, 185-551A pump, filter and bleed-valve position together.

For structural faults, inspect the wall substrate, weldment, mounting hardware, bracket, stanchions and shields before replacing individual parts.

Fast Navigation

Shop Major PowrCoat 940 Wall-Mount Components

Titan 862-472 Screw Titan 0509285 Flat Washer Titan 0533224A Eye Hook Assembly Titan 9885631 Adapter Titan 0533327 Air Tube Titan 0533319 Shut-Off Valve Titan 0533240A Weldment Bracket Titan 600-086 Pressure Gauge Titan 0533124A FRL Service Assembly Titan 185-551A Pump Assembly Titan 0533218A Filter Assembly Titan 944-028A Bleed Valve Assembly

FAQ Section

PowrCoat 940 Wall Mount Assembly FAQs

Verified answers covering model identification, air preparation, pressure control, pump selection, filtration, bleed operation and safe service.

What type of page is the PowrCoat 940 wall-mount page?+

It is an exploded wall-mount assembly replacement-parts category for the fixed PowrCoat 940 configuration.

What is the PowrCoat 940 wall-mount model number?+

Titan identifies the wall model as 0533940W.

Which air motor is used on the PowrCoat 940?+

Titan specifies air motor assembly 0533212A for PowrCoat 940, 960 and 975.

Which fluid pump is used?+

Titan specifies pump assembly 185-551A for PowrCoat 940.

What does the AirCare FRL assembly do?+

The 0533124A assembly filters incoming air, regulates pressure and supplies controlled lubrication.

What does the 0533319 shut-off valve control?+

It isolates the incoming compressed-air supply before operation or service.

Why should the pressure gauge be inspected?+

The 600-086 gauge provides the operator’s indication of regulated air pressure. A damaged or inaccurate gauge can mislead setup and diagnosis.

What causes low or unstable air pressure?+

Inspect the compressor supply, shut-off valve, air tube, adapters, gauge and FRL before replacing a component.

What causes the pump to cycle without building fluid pressure?+

Inspect the 185-551A pump, suction path, high-pressure filter, bleed valve position and downstream leakage before replacing the pump.

Why can coating leak from the bleed circuit?+

Inspect the 944-028A bleed valve, return fitting, filter connection and trapped contamination before replacement.

What should be checked when the wall unit vibrates or shifts?+

Inspect the wall structure, weldment, four screws, eight washers, four locknuts, bracket and mounted component alignment.

What safety procedure is required before service?+

Lock the gun, shut off the air supply, open the bleed valve, trigger the grounded gun into a metal container and verify zero stored pressure.

Find the Correct Replacement Part

Restore Secure Mounting, Stable Air Control and Reliable Fluid Delivery

Browse verified PowrCoat 940 wall hardware, pneumatic controls, FRL, pump, filter and bleed-valve components.

Search using:

Titan part number
Wall-mount diagram callout
PowrCoat 940 model 0533940W
Pneumatic, pump, filter or bleed component
Pressure, leakage, vibration or flow symptom

PowrCoat 940 Wall Mount Assembly Parts

Service the PowrCoat 940 Wall-Mount Assembly with Verified Parts
