PowrCoat 940 Automatic Lubricator Assembly Parts

PowrCoat 940 Automatic Lubricator Assembly Parts
Titan 0533917 Regulator Relieving Repair kit
Titan 0533917 Regulator Relieving Repair kit

Item No: -

Part #: 0533917

  OEM Titan Regulator Service Kit Titan 0533917 Regulator Relieving Repair Kit is an OEM se...

Retail Price: $149.60
You save: $15.56 (10.40%)
Our Price: $134.04
QTY:
Titan 0533918 Kit,O-Ring, Body Connector, FRL
Titan 0533918 Kit,O-Ring, Body Connector, FRL

Item No: --

Part #: 0533918

Titan 0533918 Kit, O-Ring, Body Connector, FRL is an OEM O-ring service kit for the body connect...

$13.00
QTY:
Titan 0533910 Nut
Titan 0533910 Nut

Item No: 1

Part #: 0533910

  OEM Titan Hardware Component Titan 0533910 Nut is an OEM panel mounting nut used to secur...

Retail Price: $39.90
You save: $2.19 (5.49%)
Our Price: $37.71
QTY:
Titan 0533909 Body Connector
Titan 0533909 Body Connector

Item No: 2

Part #: 0533909

Titan 0533909 Body Connector is an OEM body connector used in the Filter, Regulator, Lubricator ...

Retail Price: $39.90
You save: $2.19 (5.49%)
Our Price: $37.71
QTY:
Titan 0533911 Standard 5 Micron Filter
Titan 0533911 Standard 5 Micron Filter

Item No: 3

Part #: 0533911

  OEM Titan Filtration Component Titan 0533911 Standard 5 Micron Filter is an OEM filter el...

Retail Price: $42.70
You save: $3.25 (7.61%)
Our Price: $39.45
QTY:
Titan 0533915 Bowl Filter Frl
Titan 0533915 Bowl Filter Frl

Item No: 4

Part #: 0533915

  OEM Titan FRL Component Titan 0533915 Bowl Filter FRL is an OEM filter bowl designed for ...

Retail Price: $322.60
You save: $47.1 (14.60%)
Our Price: $275.50
Discontinued by Manufacturer
Titan 0533912 Auto Drain Kit SuperCoat
Titan 0533912 Auto Drain Kit SuperCoat

Item No: 5

Part #: 0533912

Titan 0533912 Auto Drain Kit SuperCoat is an OEM automatic drain kit used in the air filtration ...

Retail Price: $138.10
You save: $14.36 (10.40%)
Our Price: $123.74
QTY:

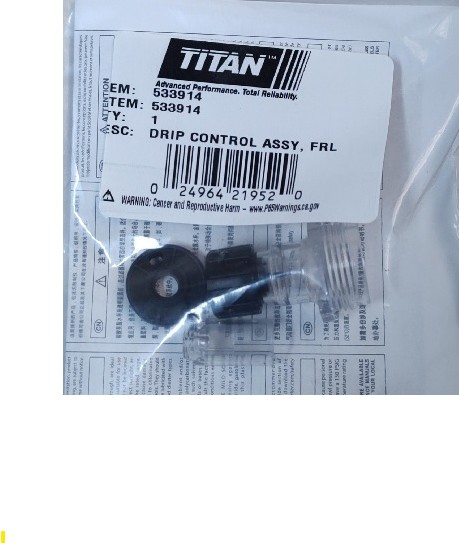

Titan 0533914 Drip Control Assembly
Titan 0533914 Drip Control Assembly

Item No: 6

Part #: 0533914

  OEM Titan FRL Component Titan 0533914 Drip Control Assembly is an OEM component for the a...

Retail Price: $43.20
You save: $3.28 (7.59%)
Our Price: $39.92
QTY:
Titan 0533913 Fill Plug Lubricator, FRL
Titan 0533913 Fill Plug Lubricator, FRL

Item No: 7

Part #: 0533913

  OEM Titan FRL Component Titan 0533913 Fill Plug, Lubricator, FRL is an OEM fill plug for ...

$15.80
QTY:
Titan 0533916 Lubricator Bowl
Titan 0533916 Lubricator Bowl

Item No: 8

Part #: 0533916

  OEM Titan FRL Component Titan 0533916 Lubricator Bowl is an OEM lubricator bowl for the F...

Retail Price: $149.60
You save: $15.56 (10.40%)
Our Price: $134.04
QTY:

PowrCoat AirCare Filter, Regulator and Lubricator Components

Protect PowrCoat 940 Pneumatic Performance with Verified FRL Parts

Shop confirmed components for the PowrCoat 940 Automatic Lubricator Assembly, including the panel nut, body connector, 5-micron filter, filter bowl, automatic drain, drip control, regulator service kit and connector O-rings. Titan’s official FRL diagram applies to PowrCoat 730, 745, 940, 960 and 975.

01
Official Eight-Position Diagram
Every numbered component matches Titan’s FRL parts table.
02
Standard 5-Micron Filtration
The verified 0533911 element protects the downstream air system.
03
Automatic Moisture Removal
The 0533912 drain manages water collected in the filter bowl.
04
Verified Service Kits
Regulator and body-connector sealing kits are confirmed.
Assembly Overview

How the PowrCoat 940 AirCare Assembly Prepares Compressed Air

This page is an exploded automatic filter-regulator-lubricator replacement-parts category. The same FRL component list is documented for PowrCoat 730, 745, 940, 960 and 975.

Incoming compressed air passes through the 5-micron element and filter bowl, where particulate contamination and moisture are separated. The regulator controls downstream pressure, while the lubricator and drip control meter lubricant into the air stream before it reaches the air motor.

Main Functions

Functions Supported by the Automatic Lubricator Assembly

  • Filters particulate contamination from incoming compressed air.
  • Separates and automatically drains collected moisture.
  • Regulates air pressure supplied to the pneumatic motor.
  • Meters lubricant into the downstream air stream.
  • Maintains sealed airflow between connected FRL sections.
Service Applications

When Technicians Use This FRL Diagram

  • Airflow falls because the filter element is restricted.
  • Moisture remains in the bowl or reaches the air motor.
  • Regulated air pressure fluctuates or cannot be maintained.
  • Lubricant delivery becomes excessive, low or inconsistent.
  • Body-connector seals leak after FRL service.
Troubleshooting

PowrCoat 940 FRL Symptoms and Diagnostic Priorities

Close and bleed the compressed-air supply before service. Diagnose the supply, filter, regulator, drain, connectors and lubrication circuit before replacing parts.

Operating symptom Inspection points Recommended action
Airflow to the motor is restricted 0533911 filter, 0533915 bowl, contamination level, body connector and upstream hose supply Compare supply and downstream airflow and inspect the element before replacing filter parts.
Water accumulates in the filter bowl 0533915 bowl, 0533912 auto drain, drain opening, compressor moisture load and installation position Confirm that the drain is free and operating before replacing the bowl or drain kit.
Regulated pressure fluctuates upstream pressure, panel nut, body connectors, regulator response, air leaks and 0533917 service parts Rule out supply variation and connector leaks before rebuilding the regulator.
Air leaks between FRL sections 0533909 connector, 0533918 O-rings, connector alignment, sealing grooves and mounting stress Locate the leaking joint and inspect both sealing surfaces before installing new O-rings.
Lubricant delivery is too low lubricator oil level, fill-plug area, bowl condition, 0533914 drip control and downstream airflow Confirm oil supply and adequate airflow before replacing the drip control.
Lubricant delivery is excessive 0533914 adjustment, visible drip rate, air demand, lubricant level and control damage Readjust and observe delivery under operating airflow before replacing the assembly.
Verified Replacement Components

High-Value PowrCoat 940 Automatic Lubricator Parts

Only genuine components listed on the supplied page, confirmed in Titan’s FRL diagram and matched to live product URLs are included.

Regulator Service Kit

Titan 0533917 Regulator Relieving Repair Kit

Verified repair kit for restoring the relieving-style air-pressure regulator used in the PowrCoat FRL assembly.

View Titan 0533917
Ten-Piece Seal Kit

Titan 0533918 Body Connector O-Ring Kit

Official ten-piece O-ring kit for sealing the body connector interfaces within the FRL assembly.

View Titan 0533918
FRL Mounting Hardware

Titan 0533910 Panel Mount Nut

Official position-1 nut used to secure the regulator section at the panel-mounted FRL installation.

View Titan 0533910
FRL Body Connection

Titan 0533909 Body Connector

Official position-2 connector that joins FRL sections and maintains the compressed-air flow path.

View Titan 0533909
Compressed-Air Filter Element

Titan 0533911 Standard 5 Micron Filter

Official position-3 filter element used to capture particulate contamination before air reaches the regulator, lubricator and motor.

View Titan 0533911
Filter and Moisture Bowl

Titan 0533915 FRL Filter Bowl

Official position-4 bowl that houses the filter element and collects moisture and debris from the incoming air stream.

View Titan 0533915
Automatic Moisture Drain

Titan 0533912 Auto Drain Kit

Official position-5 drain kit that removes accumulated moisture from the filter bowl.

View Titan 0533912
Lubricant Metering Control

Titan 0533914 Drip Control Assembly

Official position-6 control used to adjust and observe lubricant delivery into the compressed-air stream.

View Titan 0533914
Buying Guide

How to Select the Correct PowrCoat 940 FRL Part

STEP 1

Identify the failing FRL stage

Separate filtration, regulation, drainage, sealing and lubrication symptoms.

STEP 2

Match the diagram position

Use Titan positions 1 through 8 for numbered components.

STEP 3

Choose the correct service kit

Use 0533917 for regulator service or 0533918 for connector O-rings.

STEP 4

Inspect connected surfaces

Check bowls, connectors, grooves, mounting and air supply before replacement.

Maintenance

Maintain Clean, Regulated and Lubricated Airflow

  • Inspect the 5-micron filter element for visible contamination.
  • Verify automatic moisture drainage from the filter bowl.
  • Check connector joints for audible or test-confirmed air leakage.
  • Monitor regulated pressure under actual operating demand.
  • Maintain lubricant in the lubricator reservoir.
  • Adjust visible lubricant delivery to approximately one drop per minute.
Repair Planning

Plan a Complete PowrCoat 940 FRL Service

Document pressure before and after the FRL, inspect moisture accumulation and observe the lubricator drip rate while the air motor is operating. These checks separate supply problems from filter, regulator, drain and lubricator faults.

When opening the assembly, inspect the panel nut, body connectors, O-ring grooves, filter bowl, drain and control surfaces together. Replacing a single soft part will not correct a cracked bowl, damaged connector or worn regulator body.

Fast Navigation

Shop Major PowrCoat 940 FRL Components

FAQ Section

PowrCoat 940 Automatic Lubricator Assembly FAQs

Verified answers covering FRL function, model coverage, filtration, moisture drainage, regulator service, connector sealing and lubricant delivery.

What type of page is the PowrCoat 940 automatic-lubricator page?+
It is an exploded filter-regulator-lubricator replacement-parts category covering air filtration, pressure regulation, moisture drainage, connector sealing and lubricant delivery.
Which PowrCoat models use this FRL parts list?+
Titan applies the same automatic lubricator assembly list to PowrCoat 730, 745, 940, 960 and 975.
What does FRL mean on a PowrCoat sprayer?+
FRL means filter, regulator and lubricator. The assembly cleans incoming air, controls pressure and meters lubricant to the pneumatic system.
What is the rating of filter element 0533911?+
Titan identifies 0533911 as the standard 5 micron filter element.
What does the auto drain kit do?+
The 0533912 kit automatically removes accumulated moisture from the filter bowl.
What does the drip control assembly do?+
The 0533914 assembly controls lubricant delivery into the compressed-air stream.
How many O-rings are included in kit 0533918?+
Titan identifies 0533918 as a body-connector O-ring kit containing ten pieces.
What causes reduced airflow through the FRL?+
Inspect the 0533911 filter element, 0533915 bowl, 0533912 drain, body connectors and upstream air supply before replacing components.
What causes unstable regulated pressure?+
Inspect the air supply, panel mount, body connectors, regulator and 0533917 repair-kit components before choosing a replacement.
What causes air leakage between FRL sections?+
Inspect body connector 0533909 and the O-rings supplied in kit 0533918 for compression, damage or incorrect seating.
What causes insufficient air-motor lubrication?+
Inspect lubricant level, fill-plug area, lubricator bowl and 0533914 drip control before replacing parts.
What safety procedure is required before FRL service?+
Close and bleed the compressed-air supply, relieve fluid pressure, lock the gun and verify that no stored pneumatic pressure remains.
Find the Correct Replacement Part

Restore Filtration, Pressure Control, Moisture Removal and Lubrication

Browse verified PowrCoat 940 filter, connector, regulator, drain, seal and lubricant-control components.
