Fluid Section Overview
Buy Genuine Titan Performer 1140ix Pump Repair Parts
The Titan Performer 1140ix Fluid Section Assembly is the pumping mechanism responsible for drawing coating material into the sprayer, pressurizing it and directing it toward the outlet. The piston, upper and lower packings, inlet valve and outlet valve work together to support consistent material flow during airless spraying.
With regular use, packings may wear, valve balls and seats can become damaged, and sealing surfaces may deteriorate. These conditions can contribute to loss of prime, pressure fluctuations, fluid leakage and reduced pumping performance. Identifying the actual worn component helps avoid unnecessary replacement of serviceable parts.
AllTitanParts lists 24 OEM products for this fluid section, including the 800-273 Repacking Kit, 800-246 Piston Rod, 800-365A Piston Assembly, 800-248 Upper Packing, 800-355A Lower Packing Assembly and inlet and outlet valve repair components.
OEM Parts Directory
Titan Performer 1140ix Fluid Section Assembly Parts List
Use the diagram references to locate individual pump components. The repacking kit and piston insertion tool are also listed as separate products.
| Diagram Ref. | Titan OEM Part Number | Product Description |
|---|---|---|
| Kit | 800-273 | Repacking Kit |
| 1 | 800-325 | Upper Seal Retainer |
| 2 | 800-327 | Spacer |
| 3 | 800-248 | Upper Packing |
| 4 | 800-351 | Upper Housing |
| 5 | 800-355A | Lower Packing Assembly |
| 6 | 800-354 | Wear Ring |
| 7 | 800-332 | Viton O-Ring |
| 8 | 800-333 | PTFE Back-Up Ring |
| 9 | 800-352 | Lower Housing |
| 10 | 800-246 | Piston Rod |
| 11 | 800-348 | Outlet Valve Seal |
| 12 | 0507452 | Upper Cage |
| 13 | 9841502 | Outlet Valve Ball |
| 14 | 0507454 | Washer |
| 15 | 800-243 | Outlet Seat Valve |
| 16 | 800-336 | Outlet Valve Retainer |
| 17 | 800-322 | Lower Cage |
| 18 | 51519 | Inlet Ball, replaces 800-242 |
| 19 | 800-241 | Foot Valve Seat |
| 20 | 762-058 | Seat O-Ring |
| 21 | 800-305 | Foot Valve Housing |
| 22 | 800-365A | Piston Assembly, replaces 800-365 |
| Tool | 800-359 | Piston Insertion Tool |
Featured OEM Replacements
Shop Titan Performer 1140ix Packing, Piston and Valve Parts
Titan 800-273 Repacking Kit
The Titan 800-273 Repacking Kit is an OEM pump service kit intended for repacking work. It provides replacement sealing components for applicable pump service procedures. Verify the current kit contents before ordering, as a repacking kit should not be assumed to include every mechanical part in the fluid section.
OEM Part: 800-273Titan 800-248 Upper Packing
The Titan 800-248 Upper Packing helps form a high-pressure seal around the moving piston rod. Worn packing can contribute to leakage and reduced pump efficiency. Inspect the rod surface before installing new packing.
OEM Part: 800-248 | Ref. 3Titan 800-355A Lower Packing Assembly

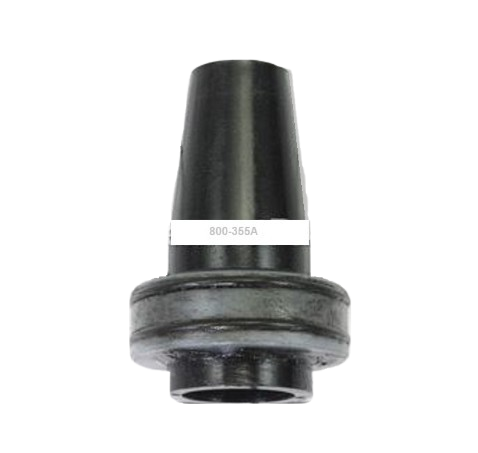

The Titan 800-355A Lower Packing Assembly provides sealing support in the lower pump section. Inspect it when diagnosing internal leakage, loss of pressure or worn pump seals. Install replacement packings according to Titan's approved procedure.
OEM Part: 800-355A | Ref. 5Titan 800-246 Piston Rod

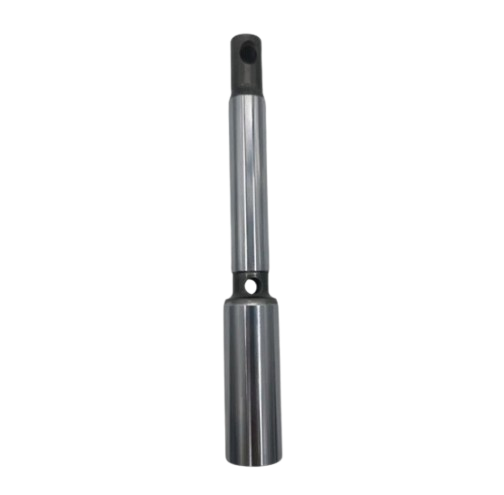

The Titan 800-246 Piston Rod is a reciprocating pump component. Its surface condition is important to proper packing operation. Scoring, wear or other damage may contribute to seal deterioration and fluid leakage.
OEM Part: 800-246 | Ref. 10Titan 800-365A Piston Assembly

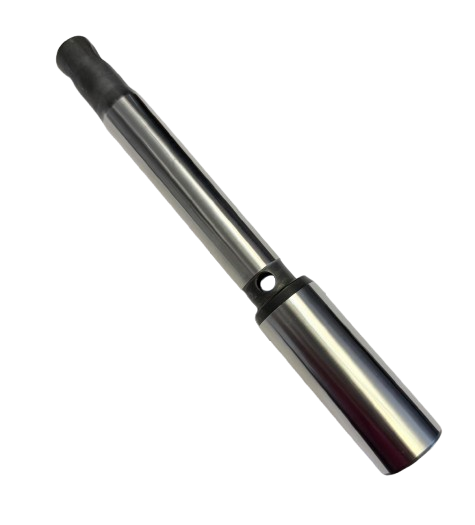

The Titan 800-365A Piston Assembly is a factory-listed replacement for Titan 800-365. It supports the reciprocating pumping action that moves and pressurizes coating material. Confirm the assembly's included components and the condition of mating parts before installation.
OEM Part: 800-365A | Replaces 800-365Titan 51519 Inlet Ball
The Titan 51519 Inlet Ball is the listed OEM replacement for Titan 800-242. It helps regulate one-way material intake at the foot valve. Inspect the ball and its mating seat when diagnosing failure to prime or poor pump performance.
OEM Part: 51519 | Replaces 800-242Titan 800-241 Foot Valve Seat

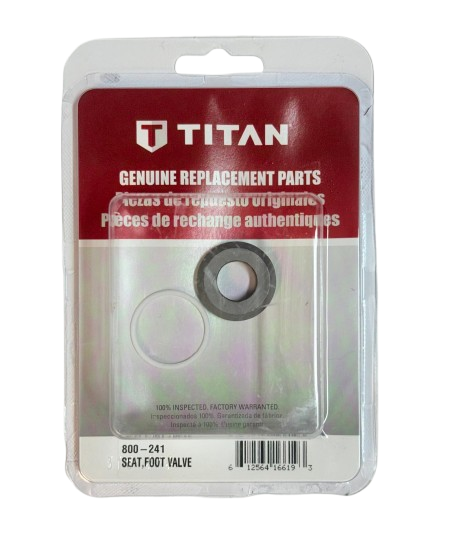

The Titan 800-241 Foot Valve Seat provides the sealing surface for the inlet valve ball. A worn or damaged seat can prevent proper sealing and contribute to priming or pressure problems.
OEM Part: 800-241 | Ref. 19Titan 9841502 Outlet Valve Ball
The Titan 9841502 Outlet Valve Ball helps control one-way discharge from the pump. Inspect the ball and outlet valve seat for wear, contamination or damage when pressure cannot be maintained.
OEM Part: 9841502 | Ref. 13Titan 800-243 Outlet Seat Valve

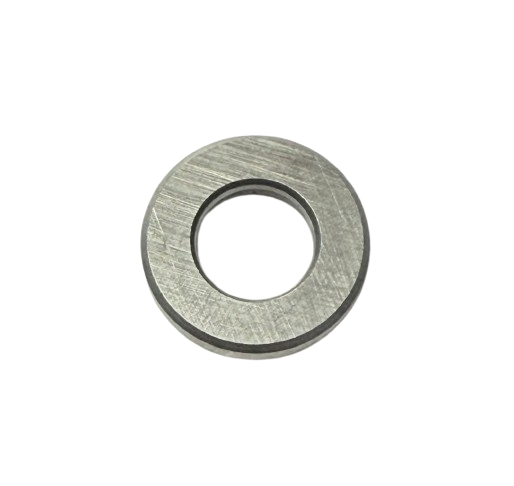

The Titan 800-243 Outlet Seat Valve provides a sealing interface for the outlet valve ball. A damaged seat can affect the pump's ability to hold pressure. Check the valve ball and seat together during diagnosis.
OEM Part: 800-243 | Ref. 15Titan 800-351 Upper Housing
The Titan 800-351 Upper Housing is an OEM structural pump component. Inspect the housing and sealing surfaces for damage before reassembling the fluid section.
OEM Part: 800-351 | Ref. 4Titan 800-352 Lower Housing
The Titan 800-352 Lower Housing supports the lower fluid section components. Check its condition and mating surfaces when repairing the lower packing and valve arrangements.
OEM Part: 800-352 | Ref. 9Titan 800-305 Foot Valve Housing
The Titan 800-305 Foot Valve Housing forms part of the pump's inlet valve arrangement. It supports the inlet valve components and should be inspected for damaged threads or sealing surfaces.
OEM Part: 800-305 | Ref. 21Additional OEM Components
Seals, Retainers, Cages and Pump Service Tools
Upper Packing Support

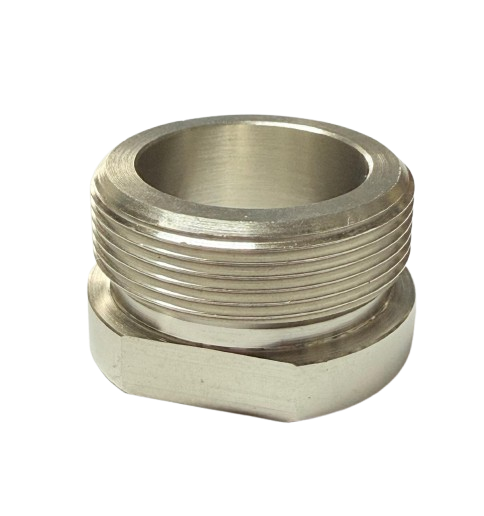

The 800-325 Upper Seal Retainer and 800-327 Spacer support the specified packing arrangement. Match their positions to the factory exploded drawing before reassembly.
Wear Rings and Seals

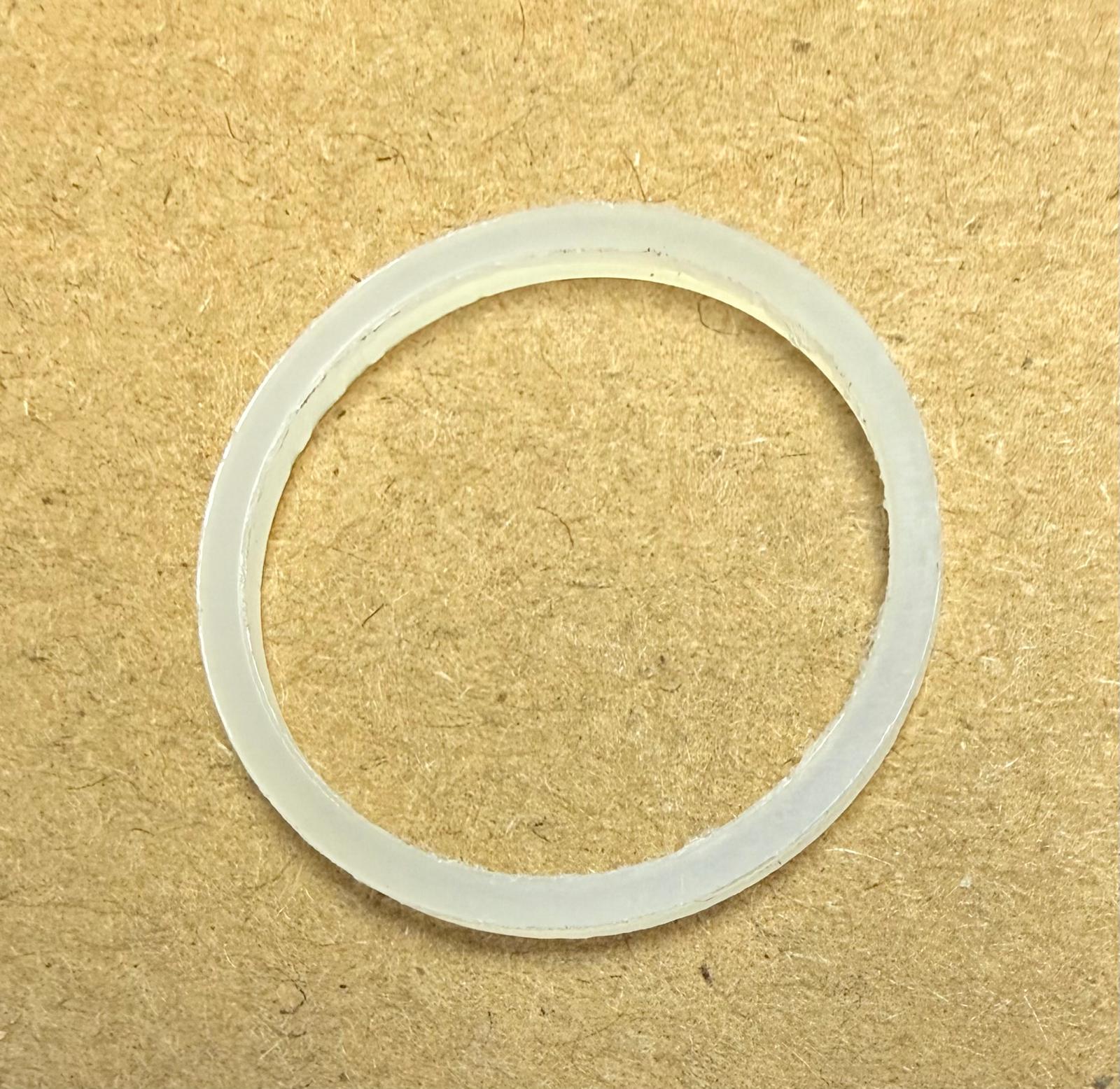

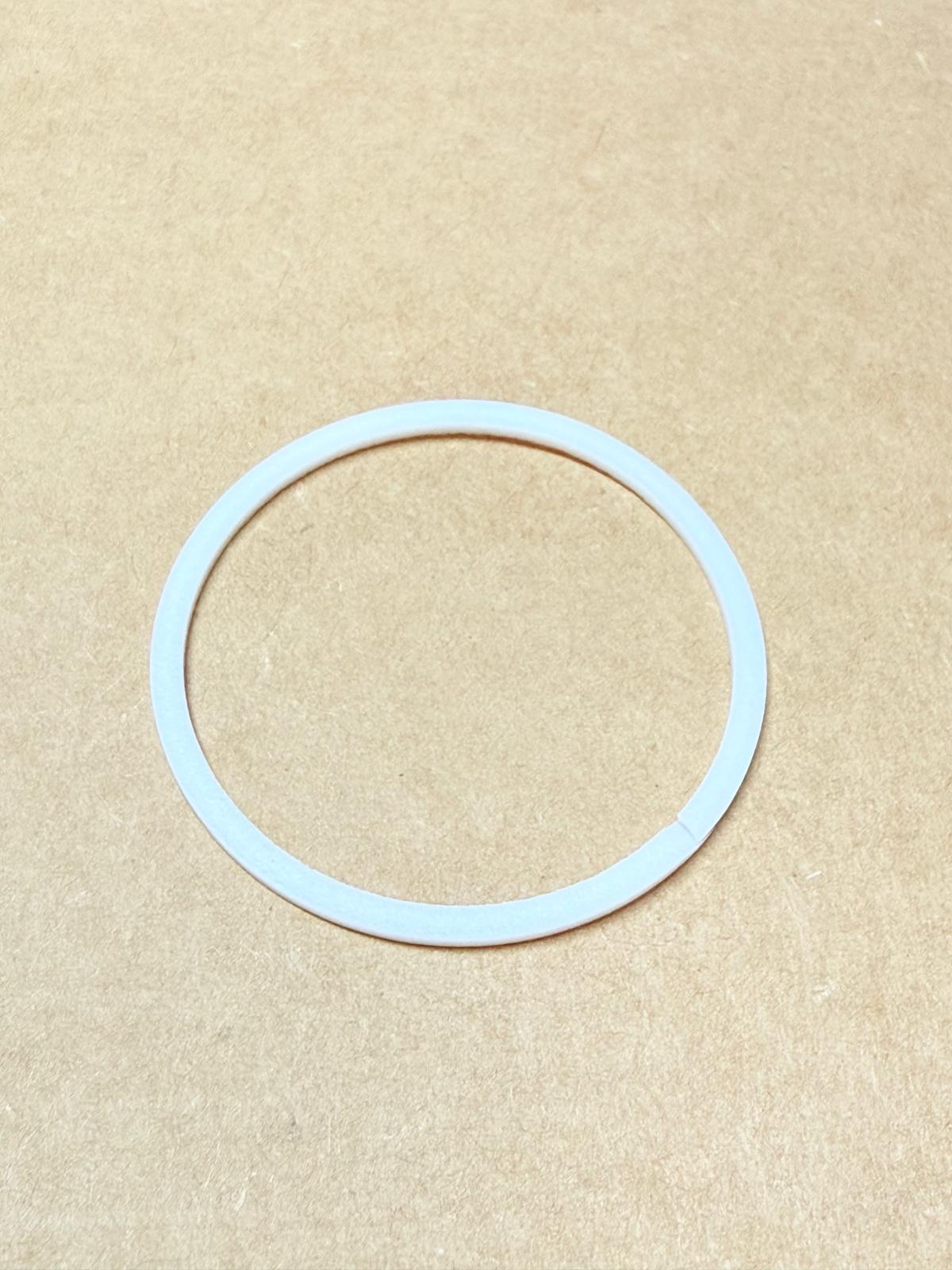

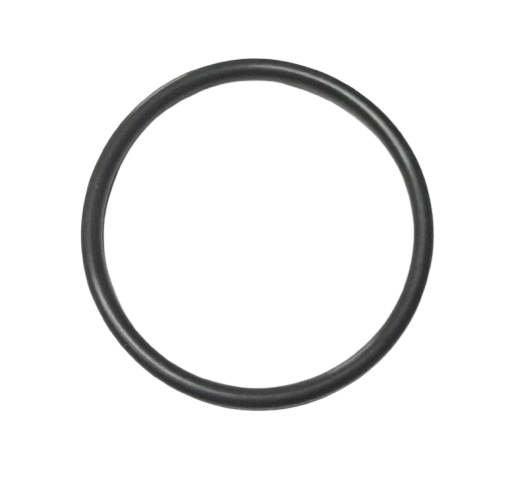

Shop the 800-354 Wear Ring, 800-332 Viton O-Ring, 800-333 PTFE Back-Up Ring, 800-348 Outlet Valve Seal and 762-058 Seat O-Ring for the designated sealing positions.
Valve Cages and Retainers

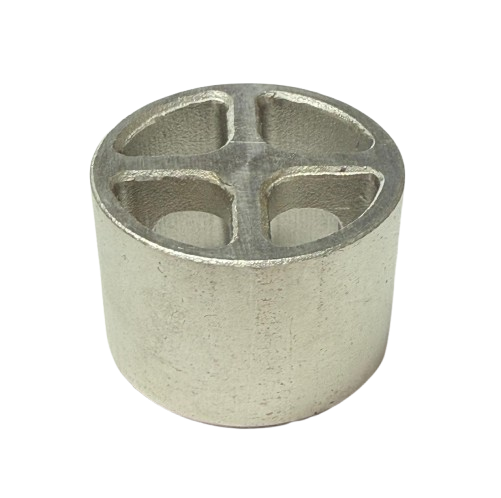

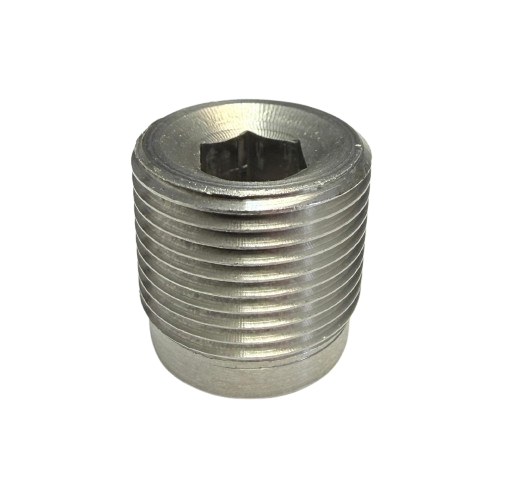

The 0507452 Upper Cage, 800-336 Outlet Valve Retainer and 800-322 Lower Cage help locate or retain the applicable valve components. The 0507454 Washer is also listed separately.
Piston Installation Tool

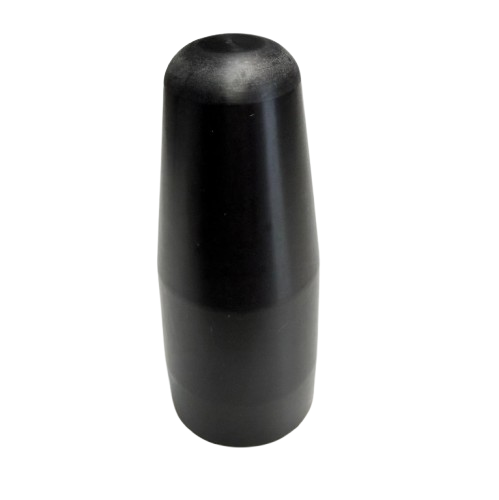

The 800-359 Piston Insertion Tool is listed for service work involving the pump piston. Follow the applicable Titan procedure and confirm the tool's intended use before installation.
Understanding the Pump
How the Performer 1140ix Fluid Section Works
Fluid Intake
The inlet ball, foot valve seat and lower valve components regulate material entering the pump.
Piston Movement
The piston assembly and rod reciprocate to move coating material through the pumping chamber.
Pressure Sealing
Upper and lower packings, O-rings and back-up rings help contain fluid within the designated pump passages.
Outlet Discharge
The outlet ball, valve seat and retainer support controlled discharge of pressurized material.
Pump Troubleshooting
Common Titan Performer 1140ix Fluid Section Problems
These symptoms may also be caused by intake restrictions, pressure controls or other sprayer components. Confirm the cause with the Titan service manual before ordering replacement parts.
| Symptom | Parts to Inspect | Recommended Check |
|---|---|---|
| Pump will not prime | 51519, 800-241, 800-305 | Inspect the inlet ball and seat for debris, wear or failure to seal. |
| Fluid leaks around the piston rod | 800-248, 800-325, 800-246 | Check upper packing wear and piston rod surface condition. |
| Sprayer struggles to maintain pressure | 9841502, 800-243, 800-355A | Inspect outlet valve sealing and pump packing condition. |
| Internal pump leakage | 800-355A, 800-332, 800-333, 762-058 | Inspect the designated seals and mating surfaces for damage. |
| Premature packing wear | 800-246, 800-354, 800-248 | Inspect piston condition, wear surfaces and packing installation. |
| Pump housing damage | 800-351, 800-352, 800-305 | Check threads, sealing faces and visible housing damage. |
OEM Part Number References
Titan Performer 1140ix Fluid Section Replacement Numbers
The current product listings identify these replacement part numbers:
| Current Titan Part | Replaces | Description |
|---|---|---|
| 51519 | 800-242 | Inlet Ball |
| 800-365A | 800-365 | Piston Assembly |
Confirm the original part number, sprayer model and applicable diagram before purchasing.
OEM Buying Guide
How to Choose the Correct Titan Performer 1140ix Pump Parts
Confirm the Model
Verify your Titan Performer 1140ix model and record its serial number.
Diagnose the Pump
Identify whether the issue involves packings, the piston, inlet valve, outlet valve or pump housing.
Match the Part Number
Use the exploded parts diagram and the exact Titan OEM number, including any documented replacement references.
Order at AllTitanParts
Select the matching OEM replacement and follow the manufacturer service procedure for installation.
Preventive Maintenance
Maintain Your Titan Performer 1140ix Fluid Section
Flush After Spraying
Follow Titan's approved flushing procedure to prevent coating buildup in the pump and valves.
Inspect Packing Wear
Monitor upper and lower packing areas for leakage and inspect seals at recommended service intervals.
Protect Valve Surfaces
Keep inlet and outlet valve components clean and inspect ball and seat surfaces for damage.
Use Approved Pump Storage
Follow Titan's lubrication and storage recommendations to protect pump components between jobs.
Related Titan Performer 1140ix Parts
Shop More Performer 1140ix Airless Sprayer Parts
Performer 1140ix Main Assembly
Find the fluid section, siphon tube, inlet screen, PrimeSpray valve and main assembly hardware.
Performer 1140ix Drive Assembly
Shop gearboxes, drive gears, slide assemblies and electronic pressure-control components.
Performer 1140ix Airless Sprayer Parts
Explore the complete model directory and available factory parts diagrams.
Fluid Section Service Safety
Airless sprayers operate at hazardous fluid pressures. Before inspecting, disassembling or replacing any Performer 1140ix pump component, switch off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure. Never attempt to stop a fluid leak with your hand. Use the correct service tools, follow the specified assembly procedure and confirm all fluid connections are secure before restarting.
Genuine Titan OEM Pump Replacement Parts
Order Titan Performer 1140ix Fluid Section Parts Today
Find genuine Titan repacking kits, upper and lower packings, piston rods, piston assemblies, valve balls, valve seats, O-rings and pump housings at AllTitanParts.
Shop Performer 1140ix Fluid Section PartsFrequently Asked Questions
Titan Performer 1140ix Fluid Section Assembly FAQ
How many products are listed for the Titan Performer 1140ix Fluid Section Assembly?
The current AllTitanParts category lists 24 OEM products, including pump components, a repacking kit and a piston insertion tool.
What is the Titan Performer 1140ix repacking kit part number?
Titan 800-273 is the Repacking Kit listed in this category. Confirm the current kit contents before purchasing.
What is the Titan Performer 1140ix upper packing part number?
Titan 800-248 is the Upper Packing listed at diagram reference 3.
Which lower packing assembly is listed for the Performer 1140ix?
Titan 800-355A is the Lower Packing Assembly listed at diagram reference 5.
What is the Titan Performer 1140ix piston rod part number?
Titan 800-246 is the Piston Rod listed at diagram reference 10.
What piston assembly replaces Titan 800-365?
Titan 800-365A is the listed replacement for Titan 800-365 Piston Assembly.
Which inlet ball replaces Titan 800-242?
Titan 51519 is the listed replacement for Titan 800-242 Inlet Ball.
What outlet valve ball is listed for the Performer 1140ix?
Titan 9841502 is the Outlet Valve Ball listed at diagram reference 13.
Why will my Titan Performer 1140ix not prime?
Possible causes include an obstructed suction path, contaminated inlet ball, worn foot valve seat, leaking connections or other pump faults. Follow Titan's troubleshooting procedure to identify the cause.
Can I replace pump packings without replacing the entire fluid section?
Yes. Upper packing, lower packing and the repacking kit are separately listed products. Whether repacking is sufficient depends on the condition of the piston rod, housings and other pump components.
What is Titan 800-359 used for?
Titan 800-359 is listed as a Piston Insertion Tool for applicable pump service procedures. Confirm the correct installation instructions before use.
Where can I buy genuine Titan Performer 1140ix Fluid Section Assembly Parts?
Shop Titan Performer 1140ix Fluid Section Assembly Parts at AllTitanParts. Use the factory diagram and OEM numbers to identify your replacement.
