Main Assembly Overview
Buy Genuine Titan Performer 1140ix Main Assembly Replacement Parts
The Titan Performer 1140ix Main Assembly brings together essential fluid-handling components and mounting hardware used in the airless sprayer. Its pump fluid section, siphon tube, inlet screen, bypass tube and PrimeSpray valve assembly contribute to material intake, priming and fluid delivery.
When a component becomes worn, blocked, damaged or loose, the sprayer may develop priming problems, inconsistent material flow, leakage or other operating issues. Identifying the affected OEM component can help avoid replacing serviceable parts unnecessarily.
At AllTitanParts, you can browse 17 separately listed OEM parts, including the 800-300 Fluid Section, 451-241 Siphon Tube, 710-046 Inlet Screen, 800-904 Bypass Tube and 700-258 PrimeSpray Valve Assembly. Compare the diagram reference and original part number before placing your order.
Factory Parts Directory
Titan Performer 1140ix Main Assembly Parts List

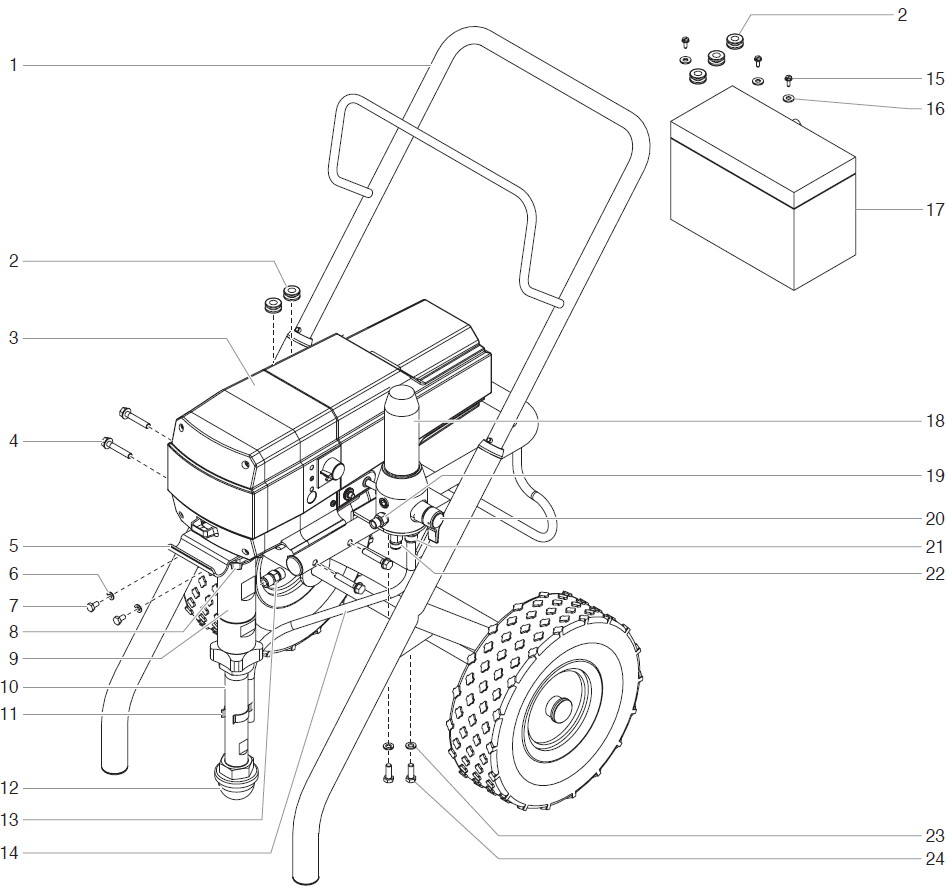

The following products are listed in the Performer 1140ix Main Assembly category. Diagram reference numbers help identify the correct component in the exploded view.
| Diagram Ref. | Titan OEM Part Number | Part Description |
|---|---|---|
| 2 | 800-036 | Grommet |
| 4 | 761-178 | Hexagonal Flange Screw |
| 6 | 9821503 | Lock Washer |
| 7 | 858-625 | Pail Hook Screw |
| 8 | 800-328 | Knock Off-Mach Nut |
| 9 | 800-300 | Fluid Section |
| 10 | 451-241 | Siphon Tube |
| 11 | 730-334 | Hose Tie Clamp |
| 12 | 710-046 | Inlet Screen |
| 13 | 0508343 | Fitting |
| 14 | 800-904 | Bypass Tube |
| 16 | 770-601 | Washer |
| 19 | 812-003 | Fitting |
| 20 | 700-258 | PrimeSpray Valve Assembly |
| 22 | 0507671 | Fitting |
| 23 | 860-002 | Lock Washer |
| 24 | 860-535 | Hexagonal Screws |
Featured OEM Components
Shop Titan Performer 1140ix Pump, Siphon and Valve Parts
Titan 800-300 Fluid Section
The Titan 800-300 Fluid Section is the OEM pumping assembly listed for the Performer 1140ix. It contains the fluid-handling mechanism responsible for moving and pressurizing coating material. Confirm the condition of the pump and its internal service parts before deciding whether a complete fluid section is required.
OEM Part: 800-300 | Ref. 9Titan 451-241 Siphon Tube
The Titan 451-241 Siphon Tube forms part of the coating intake path. It helps draw material from the supply container toward the pump. Inspect it for blockage, physical damage and connection problems when diagnosing priming difficulties.
OEM Part: 451-241 | Ref. 10Titan 710-046 Inlet Screen
The Titan 710-046 Inlet Screen is a 10-mesh OEM intake filter that helps prevent larger particles and debris from entering the pump. A clogged screen can restrict material intake and contribute to difficult priming or reduced flow.
OEM Part: 710-046 | Ref. 12Titan 800-904 Bypass Tube
The Titan 800-904 Bypass Tube provides a material return path during priming and related valve operation. Inspect the tube for leaks, kinks, damage and incorrect routing when servicing the sprayer's return system.
OEM Part: 800-904 | Ref. 14Titan 700-258 PrimeSpray Valve Assembly
The Titan 700-258 PrimeSpray Valve Assembly is an OEM control component used to direct fluid during priming and spraying. A damaged or malfunctioning valve can contribute to priming problems or unexpected fluid return. Diagnose the valve before replacement.
OEM Part: 700-258 | Ref. 20Titan 730-334 Hose Tie Clamp
The Titan 730-334 Hose Tie Clamp is an OEM retaining component used to help secure the applicable hose arrangement. Replace missing or damaged clamps to maintain the intended routing and attachment.
OEM Part: 730-334 | Ref. 11Titan 0508343 Fitting
The Titan 0508343 Fitting is a factory-listed fluid connection component. Verify the exact connection location and OEM part number before replacing a damaged fitting.
OEM Part: 0508343 | Ref. 13Titan 812-003 Fitting
The Titan 812-003 Fitting is an OEM hex nipple connection component. Its listed thread configuration is 3/8-inch NPT male and 1/4-inch NPSM male. Confirm mating threads and the factory diagram before installation.
OEM Part: 812-003 | Ref. 19Titan 0507671 Fitting
The Titan 0507671 Fitting is a separately listed OEM fluid connection part. It should not be treated as interchangeable with the 0508343 or 812-003 fittings without manufacturer confirmation.
OEM Part: 0507671 | Ref. 22Titan 800-328 Knock Off-Mach Nut
The Titan 800-328 Knock Off-Mach Nut is an OEM assembly hardware component. Use the specified part to maintain the manufacturer's intended mounting arrangement.
OEM Part: 800-328 | Ref. 8Titan 800-036 Grommet
The Titan 800-036 Grommet is a factory-listed protective component used at its designated assembly location. Inspect the original grommet for damage or deterioration before replacement.
OEM Part: 800-036 | Ref. 2Titan 761-178 Hexagonal Flange Screw
The Titan 761-178 Hexagonal Flange Screw is OEM mounting hardware for the Main Assembly. Match the screw to its designated location and follow the manufacturer's fastening instructions.
OEM Part: 761-178 | Ref. 4Titan 9821503 Lock Washer
The Titan 9821503 Lock Washer is a factory-listed fastening component used with designated mounting hardware. Replace damaged or missing washers using the correct OEM number.
OEM Part: 9821503 | Ref. 6Titan 858-625 Pail Hook Screw
The Titan 858-625 Pail Hook Screw is an OEM fastener for the designated pail hook mounting location. Use the correct replacement to restore the intended attachment.
OEM Part: 858-625 | Ref. 7Titan 770-601 Washer
The Titan 770-601 Washer is a separately listed OEM hardware component. Match the factory diagram reference when replacing it.
OEM Part: 770-601 | Ref. 16Titan 860-002 Lock Washer
The Titan 860-002 Lock Washer is an OEM retaining hardware component. Do not assume it is interchangeable with the 9821503 Lock Washer, which has a different part number and diagram reference.
OEM Part: 860-002 | Ref. 23Titan 860-535 Hexagonal Screws
The Titan 860-535 Hexagonal Screws are factory-listed mounting fasteners. Confirm the required quantity and installation position before ordering.
OEM Part: 860-535 | Ref. 24Assembly Component Guide
How the Performer 1140ix Main Assembly Components Work Together
Material Intake
The siphon tube and inlet screen provide the intake path and help limit larger debris entering the pump.
Fluid Pressurization
The fluid section pumps coating material and develops pressure for airless spraying.
Priming and Return
The PrimeSpray valve and bypass tube provide the applicable flow-control and return arrangement.
Connections and Support
Fittings, clamps, screws, washers and other hardware support the specified fluid connections and assembly mounting.
Troubleshooting Guide
Common Titan Performer 1140ix Main Assembly Problems
These symptoms can have several causes. Use the Titan service manual to identify the actual fault before purchasing parts.
| Observed Problem | Components to Inspect | Recommended Check |
|---|---|---|
| Sprayer will not prime | 451-241, 710-046, 700-258 | Inspect the intake screen, suction connections and PrimeSpray valve operation. |
| Material intake is restricted | 710-046, 451-241 | Check for clogged screening, coating buildup or a blocked intake path. |
| Fluid leaks near a connection | 0508343, 812-003, 0507671 | Locate the exact connection and inspect its fitting and mating surfaces. |
| Bypass line leaks or is obstructed | 800-904, 730-334 | Inspect return tubing, routing and retaining hardware. |
| Sprayer cannot maintain pressure | 800-300, 700-258 | Inspect pump wear and valve function following the factory diagnostic procedure. |
| Mounting hardware is missing | 761-178, 9821503, 860-002, 860-535 | Match the missing fastener to its exact diagram reference. |
OEM Buying Guide
How to Choose the Correct Performer 1140ix Main Assembly Parts
Confirm the Sprayer
Verify that your machine is a Titan Performer 1140ix and record its serial information.
Identify the Component
Determine whether the repair involves the fluid section, suction path, return line, valve, fitting or hardware.
Match the OEM Number
Use the factory exploded drawing and compare the exact Titan part number with the original component.
Order the Replacement
Purchase the matching part from AllTitanParts and follow Titan's service instructions during installation.
Preventive Maintenance
Maintain Your Titan Performer 1140ix Main Assembly
Inspect the Inlet Screen
Keep the 710-046 inlet screen clear of accumulated debris and replace it when damaged.
Check the Siphon Tube
Inspect the 451-241 tube for damage, obstruction and properly secured connections.
Monitor the Bypass Line
Inspect the 800-904 bypass tube and 730-334 retaining clamp for leaks or deterioration.
Service the Pump Properly
Follow Titan's cleaning, lubrication and storage instructions to help protect the 800-300 fluid section.
Related Performer 1140ix Categories
Shop More Titan Performer 1140ix Airless Sprayer Parts
Performer 1140ix Airless Sprayer Parts
Browse the model parts directory and available factory assembly diagrams.
Performer 1140ix Main Assembly
Return to the complete Main Assembly parts list and exploded drawing.
Main Assembly Service Safety
Airless sprayers operate with hazardous fluid pressure. Before inspecting or replacing any Titan Performer 1140ix Main Assembly component, switch off the machine, disconnect power and follow Titan's complete pressure-relief procedure. Never attempt to stop a fluid leak with your hand. Confirm all fluid connections, hoses, fittings and mounting hardware are correctly installed before restarting the sprayer.
Genuine Titan OEM Main Assembly Parts
Order Titan Performer 1140ix Main Assembly Parts Today
Shop genuine Titan fluid sections, siphon tubes, inlet screens, bypass tubes, PrimeSpray valves, fittings and mounting hardware at AllTitanParts.
Shop Performer 1140ix Main Assembly PartsFrequently Asked Questions
Titan Performer 1140ix Main Assembly FAQ
How many parts are listed for the Titan Performer 1140ix Main Assembly?
The AllTitanParts category currently lists 17 genuine Titan OEM replacement parts.
What is the Titan Performer 1140ix fluid section part number?
Titan 800-300 is the Fluid Section listed at diagram reference 9.
Which siphon tube is listed for the Performer 1140ix Main Assembly?
Titan 451-241 is the Siphon Tube listed at diagram reference 10.
What inlet screen fits the Performer 1140ix Main Assembly?
Titan 710-046 is the OEM 10-mesh Inlet Screen listed at diagram reference 12.
What is the Titan Performer 1140ix bypass tube part number?
Titan 800-904 is the Bypass Tube listed at diagram reference 14.
Which PrimeSpray valve assembly is listed for the Performer 1140ix?
Titan 700-258 is the PrimeSpray Valve Assembly listed at diagram reference 20.
What is the difference between Titan 0508343, 812-003 and 0507671?
All three are separately listed OEM fittings with different part numbers and diagram references. Do not substitute one for another without confirming the manufacturer's specifications.
Why will my Titan Performer 1140ix not prime?
Possible causes include an obstructed inlet screen, suction air leaks, a blocked siphon tube, a malfunctioning PrimeSpray valve or internal pump wear. Follow Titan's troubleshooting instructions to identify the cause.
Can I replace the inlet screen without buying a complete fluid section?
Yes. Titan 710-046 is separately listed from the 800-300 Fluid Section. Replace only the affected component when appropriate.
Are Titan 9821503 and 860-002 lock washers interchangeable?
Do not assume interchangeability. They have different OEM numbers and diagram locations. Match the specified washer to the correct assembly reference.
How do I identify the correct Performer 1140ix Main Assembly part?
Verify your sprayer model and serial number, locate the component in the factory exploded drawing and match its Titan OEM part number.
Where can I buy genuine Titan Performer 1140ix Main Assembly Parts?
Shop Titan Performer 1140ix Main Assembly Parts at AllTitanParts and use the factory diagram to identify your replacement.
Titan OEM Parts Assistance
Need Help Finding Performer 1140ix Main Assembly Parts?
Have your Titan Performer 1140ix model, serial number and diagram reference ready when requesting assistance.
