Genuine Titan OEM | Drive System Replacement Parts
Shop Titan Performer 1140ix Drive Assembly Parts
Restore your sprayer's mechanical drive and pressure-control systems with genuine Titan Performer 1140ix Drive Assembly Parts from AllTitanParts. Shop OEM gearboxes, second-stage gears, slide assemblies, motor components, electronic pressure controls, wiring and mounting hardware. Find the correct replacement using the factory exploded parts diagram and Titan OEM part numbers.
Drive Assembly Overview
Buy Genuine Titan Performer 1140ix Drive Assembly Replacement Parts
The Titan Performer 1140ix Drive Assembly contains important mechanical and electrical components that help convert motor output into the reciprocating movement required to operate the sprayer's pumping system. Its gearbox, gears, slide assembly, control components and associated hardware must function together for proper operation.
Mechanical wear, damaged gears, loose hardware, failed electrical components or pressure-control faults can affect sprayer performance. Symptoms may include abnormal drive noise, interrupted pump movement, failure to start or inconsistent pressure regulation.
AllTitanParts provides a dedicated directory of 30 OEM replacement parts for this assembly. Whether you need the 800-260 Gearbox Assembly, 800-510A Slide Assembly, 800-277 Potentiometer or 800-292 Electronic Control Assembly, matching the exact OEM number helps you select the correct component for the repair.
OEM Parts Directory
Titan Performer 1140ix Drive Assembly Parts List
Use the numbered factory diagram to identify your component. The table below includes all 30 products currently listed in this category.
| Diagram Ref. | Titan Part Number | OEM Part Description |
|---|---|---|
| 1 | 800-078 | Electronic Cover |
| 2 | 800-205 | Screw |
| 5 | 800-525 | Gasket Housing |
| 6 | 800-541 | Gasket Shroud |
| 7 | 800-261 | Gear |
| 8 | 800-262 | Second Stage Gear |
| 9 | 800-260 | Gearbox Assembly |
| 10 | 800-510A | Slide Assembly, replaces 800-510 |
| 11 | 800-253 | Housing Slider Bushing |
| 12 | 700-283 | Screw |
| 14 | 800-284 | Fillister Screw |
| 15 | 800-382 | Retaining Ring |
| 16 | 800-753 | Connecting Pin |
| 18 | 800-276 | Starter Motor |
| 19 | 9800340 | Ground Screw |
| 20 | 765-327A | 15 Amp Circuit Breaker, replaces 507753 |
| 21 | 800-075 | Mounting Plate |
| 23 | 800-076 | Screw |
| 24 | 800-274 | Potentiometer Mounting Plate |
| 25 | 700-176 | Nut with Seal |
| 26 | 700-175 | Potentiometer Cap, replaces 507748 |
| 27 | 700-159 | Pressure Control Knob, replaces 507740 |
| 28 | 800-277 | Potentiometer |
| 30 | 704-281 | Plug or Grommet |
| 33 | 704-553 | Power Cord Assembly, replaces 552101 |
| 34 | 700-287 | Socket Head Cap Screw |
| 35 | 9821503 | Lock Washer |
| 36 | 800-292 | Electronic Control Assembly (EPC) |
| 39 | 800-283 | Fillister Screw |
| 42 | 800-368 | Wire Assembly |
Featured Drive Assembly Replacements
Shop Titan Performer 1140ix Gearbox, Drive and Pressure Control Parts
Titan 800-260 Gearbox Assembly
The Titan 800-260 Gearbox Assembly is an OEM mechanical drive component for the Performer 1140ix. It houses the gear transmission that transfers motor power toward the pumping mechanism. Inspect for internal wear, damaged gears or abnormal noise before selecting a complete gearbox replacement.
OEM Part: 800-260 | Ref. 9Titan 800-261 Gear
The Titan 800-261 Gear is a factory-listed mechanical power transmission component. A worn or damaged gear can affect the transfer of rotational force within the drive assembly. Confirm gear condition and the condition of mating components during inspection.
OEM Part: 800-261 | Ref. 7Titan 800-262 Second Stage Gear
The Titan 800-262 Second Stage Gear forms part of the drive's gear reduction arrangement. It contributes to the transmission of mechanical force required to operate the pump. Replace damaged gearing only after inspecting associated drive components.
OEM Part: 800-262 | Ref. 8Titan 800-510A Slide Assembly
The Titan 800-510A Slide Assembly is an OEM drive linkage component that supports the reciprocating action of the pumping mechanism. The current product listing identifies 800-510A as replacing the earlier Titan 800-510 part number.
OEM Part: 800-510A | Ref. 10Titan 800-253 Housing Slider Bushing
The Titan 800-253 Housing Slider Bushing provides a bearing or guiding surface for the drive's sliding components. Excessive wear may affect alignment and movement. Inspect the bushing and associated slide components when diagnosing mechanical play.
OEM Part: 800-253 | Ref. 11Titan 800-753 Connecting Pin
The Titan 800-753 Connecting Pin is an OEM mechanical linkage component. It helps retain the connection between designated moving parts. Inspect for wear, damage or improper retention before replacement.
OEM Part: 800-753 | Ref. 16Titan 800-382 Retaining Ring
The Titan 800-382 Retaining Ring secures a designated component within the drive assembly. A damaged or missing retaining ring can compromise component retention. Use the correct OEM replacement and factory installation procedure.
OEM Part: 800-382 | Ref. 15Titan 800-292 Electronic Control Assembly
The Titan 800-292 Electronic Control Assembly (EPC) is a factory-listed electronic control component. It supports the sprayer's electrical control functions. Because control failures may have several causes, confirm the diagnosis before replacing this assembly.
OEM Part: 800-292 | Ref. 36Titan 800-277 Potentiometer
The Titan 800-277 Potentiometer is an OEM pressure-control input component. It works with the pressure-control system to communicate the selected setting. Inspect the knob, potentiometer and associated electrical connections when pressure adjustment becomes unreliable.
OEM Part: 800-277 | Ref. 28Titan 700-159 Pressure Control Knob
The Titan 700-159 Pressure Control Knob is the operator-facing adjustment component for the pressure-control system. The product listing identifies it as replacing Titan 507740.
OEM Part: 700-159 | Ref. 27Titan 765-327A 15 Amp Circuit Breaker
The Titan 765-327A Circuit Breaker is a 15-amp electrical protection component. The listing identifies it as replacing Titan 507753. Repeated tripping should be investigated rather than bypassing the protective device.
OEM Part: 765-327A | Ref. 20Titan 704-553 Power Cord Assembly
The Titan 704-553 Power Cord Assembly supplies electrical power to the compatible sprayer. Inspect damaged insulation, plugs or strain-relief areas before use. The product listing identifies this assembly as replacing Titan 552101.
OEM Part: 704-553 | Ref. 33Additional OEM Components
Electrical Covers, Control Hardware and Drive Fasteners
Electronic Covers and Gaskets
Shop the 800-078 Electronic Cover, 800-525 Gasket Housing, 800-541 Gasket Shroud and 704-281 Plug or Grommet. These components serve designated housing, enclosure and protective functions within the assembly.
Pressure Control Mounting Parts
Find the 800-274 Potentiometer Mounting Plate, 700-176 Nut with Seal and 700-175 Potentiometer Cap. Titan 700-175 is listed as replacing part 507748.
Motor and Electrical Connections

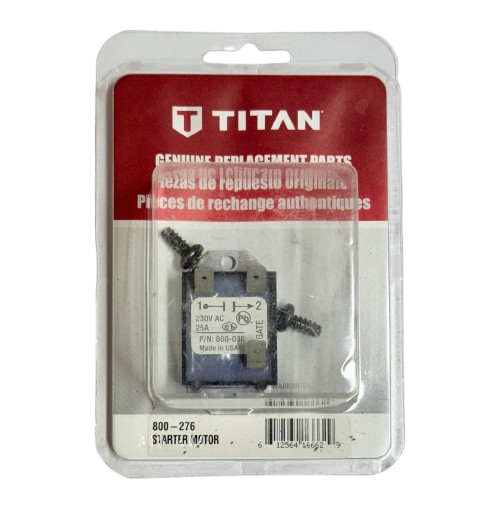

The category includes the 800-276 Starter Motor, 9800340 Ground Screw and 800-368 Wire Assembly. Verify the precise electrical application and manufacturer instructions before service.
Mounting Plates and Fasteners
Replace the 800-075 Mounting Plate and specified hardware, including 800-205, 700-283, 800-284, 800-076, 700-287, 9821503 and 800-283, by matching their individual diagram references.
Mechanical and Electrical Functions
How the Titan Performer 1140ix Drive Assembly Works
Motor Power
The motor supplies the rotational power required by the mechanical drive system.
Gear Transmission
The gearbox and gears transmit and reduce rotational speed while delivering force to the pumping mechanism.
Reciprocating Movement
The slide assembly and related linkage support the back-and-forth movement required to drive the fluid section.
Electronic Control
The pressure-control components and electronic assembly support adjustment and control of sprayer operation.
Repair and Troubleshooting
Common Titan Performer 1140ix Drive Assembly Problems
The following symptoms are starting points for inspection, not confirmed diagnoses. Follow the applicable Titan service manual and consult a qualified technician for electrical repairs.
| Symptom | Components to Inspect | Recommended Check |
|---|---|---|
| Abnormal grinding or mechanical noise | 800-260, 800-261, 800-262 | Inspect the gearbox, gears and associated bearings or drive components for wear. |
| Motor runs but pump does not reciprocate | 800-510A, 800-753, 800-382 | Inspect the drive linkage and mechanical connection to the fluid section. |
| Excessive play in the slide mechanism | 800-253, 800-510A | Inspect the slider bushing and slide assembly for damage or wear. |
| Pressure adjustment does not respond correctly | 800-277, 700-159, 800-292 | Check control input, wiring and the electronic control system using the service procedure. |
| Circuit breaker repeatedly trips | 765-327A and electrical system | Have the circuit inspected for overload, short circuits or component failure. Never bypass the breaker. |
| Sprayer does not power on | 704-553, 800-368, 800-292 | Verify the power supply and inspect wiring and controls with power safely disconnected. |
| Missing or damaged drive hardware | 800-205, 700-283, 800-284, 700-287 | Match the missing fastener to its diagram location and OEM number. |
OEM Part Number Updates
Titan Performer 1140ix Drive Assembly Replacement Part Numbers
The current product listings identify the following replacement references. Match the original part and assembly diagram before ordering.
| Current OEM Part | Replaces Titan Part | Description |
|---|---|---|
| 800-510A | 800-510 | Slide Assembly |
| 765-327A | 507753 | 15 Amp Circuit Breaker |
| 700-175 | 507748 | Potentiometer Cap |
| 700-159 | 507740 | Pressure Control Knob |
| 704-553 | 552101 | Power Cord Assembly |
OEM Buying Guide
How to Order the Correct Titan Performer 1140ix Drive Parts
Verify the Model
Confirm that your machine is a Titan Performer 1140ix and record the model and serial information.
Identify the Fault
Determine whether the repair involves the gearbox, drive linkage, motor, pressure control or mounting hardware.
Match the OEM Number
Compare the factory exploded diagram, diagram reference and original part number before selecting a replacement.
Purchase at AllTitanParts
Order the matching OEM part and use the manufacturer's service procedure for installation.
Preventive Maintenance
Maintain Your Performer 1140ix Drive Assembly
Monitor Gearbox Noise
Investigate unusual grinding, knocking or vibration before continued operation causes additional mechanical damage.
Inspect Drive Linkage
Check slide components, connecting pins and retaining hardware according to Titan's service schedule.
Protect Electrical Controls
Keep electrical enclosures intact and inspect accessible power cords and wiring for damage.
Use Approved Service Methods
Follow Titan's instructions for drive lubrication, fastener tightening and component replacement. Do not guess lubricant type or torque values.
Related Titan Performer 1140ix Parts
Explore More Performer 1140ix Assembly Parts
Performer 1140ix Main Assembly
Shop fluid sections, siphon tubes, inlet screens, PrimeSpray valves and related hardware.
Performer 1140ix Airless Sprayer Parts
Browse the complete Performer 1140ix model directory and factory parts diagrams.
Drive Assembly Service Safety
Before servicing the Titan Performer 1140ix Drive Assembly, switch off the sprayer, disconnect electrical power and follow the complete Titan pressure-relief procedure. Keep hands away from gears and moving linkages. Electrical capacitors and control components may retain hazardous energy after disconnection. Have electrical repairs performed by qualified personnel and never bypass protective devices. Reinstall all guards, covers and grounding components before operation.
Genuine Titan OEM Drive Assembly Parts
Order Titan Performer 1140ix Drive Parts Today
Find OEM gearboxes, gears, slide assemblies, electronic pressure controls, circuit breakers, wiring and replacement hardware. Shop the Performer 1140ix Drive Assembly at AllTitanParts.
Shop Performer 1140ix Drive Assembly PartsFrequently Asked Questions
Titan Performer 1140ix Drive Assembly FAQ
How many parts are listed for the Performer 1140ix Drive Assembly?
The current AllTitanParts category lists 30 Titan OEM replacement parts covering the mechanical drive, pressure controls, electrical system and mounting hardware.
What is the Titan Performer 1140ix gearbox assembly part number?
Titan 800-260 is the Gearbox Assembly listed at diagram reference 9.
Which gears are listed for the Titan Performer 1140ix?
Titan 800-261 is the Gear at reference 7, and Titan 800-262 is the Second Stage Gear at reference 8.
What part replaces the Titan 800-510 Slide Assembly?
The product listing identifies Titan 800-510A as the replacement for the earlier 800-510 Slide Assembly.
What is the Titan 800-253 Housing Slider Bushing used for?
It provides a guiding surface for the designated slide mechanism. Inspect the bushing and associated moving components when diagnosing mechanical wear or play.
Which electronic control assembly is listed for the Performer 1140ix?
Titan 800-292 is the Electronic Control Assembly (EPC) listed at diagram reference 36.
What potentiometer is listed for the Titan Performer 1140ix?
Titan 800-277 is the Potentiometer at reference 28. The category also lists Titan 700-159 Pressure Control Knob and 700-175 Potentiometer Cap.
What Titan part replaces the 507753 circuit breaker?
Titan 765-327A is the listed 15 Amp Circuit Breaker replacement for Titan 507753.
What power cord assembly replaces Titan 552101?
Titan 704-553 is the listed Power Cord Assembly replacement for part number 552101.
Why does my Titan Performer 1140ix make grinding noises?
Possible causes include gear wear, damaged drive components or other mechanical faults. Stop operation and inspect the gearbox and related components according to the service manual.
Can I replace a gear without replacing the complete gearbox?
Titan 800-261 and 800-262 are separately listed gears. Whether individual replacement is appropriate depends on the condition of the remaining gearbox components and Titan's service instructions.
Where can I buy genuine Titan Performer 1140ix Drive Assembly Parts?
Shop Titan Performer 1140ix Drive Assembly Parts at AllTitanParts. Use the exploded diagram and OEM part numbers to select your replacement.
Titan OEM Parts Assistance
Need Help Finding Performer 1140ix Drive Assembly Parts?
Have your Titan Performer 1140ix model, serial number and diagram reference ready when requesting help with fitment or replacement part identification.
