Shop Titan Performer 1140ix Filter Assembly Parts
Keep your sprayer ready for the next job with Titan Performer 1140ix Filter Assembly Parts from AllTitanParts. Browse manifold filters, housings, springs, adapters, seals, PrimeSpray valves and pressure transducers. Use your assembly diagram and OEM part number to select the replacement your repair requires.
Filter Assembly Overview
Replacement Parts for Filtration, Sealing and Fluid Control
The Titan Performer 1140ix Filter Assembly brings together components that filter coating material, contain pressurized fluid and support priming and pressure monitoring. A serviceable manifold filter helps capture debris before it reaches downstream spray components, while the housings, springs, adapter and O-ring maintain the filter arrangement.
This parts directory also includes the 700-258 PrimeSpray Valve Assembly and 800-437 Transducer Assembly. Select each component by its specific function, diagram reference and part number to make a targeted repair.
Replacement Parts Directory

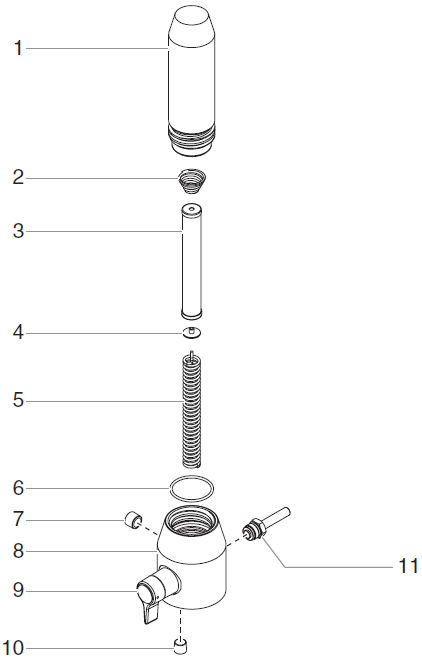

Titan Performer 1140ix Filter Assembly Parts List
Compare these 10 part references with your sprayer's assembly diagram. Check individual product details and any replacement-number information before ordering.
| Diagram Ref. | Titan Part Number | Part Description |
|---|---|---|
| 1 | 800-705 | Filter Housing, replaces Titan 800-905 |
| 2 | 14058 | Filter Spring |
| 3 | 730-067 | 60 Mesh Manifold Filter |
| 4 | 702-251 | Filter Screen Adapter |
| 5 | 757-105 | Filter Support Spring |
| 6 | 800-906 | PTFE O-Ring |
| 8 | 800-901 | Filter Base Housing |
| 9 | 700-258 | PrimeSpray Valve Assembly |
| 10 | 800-907 | NPTF Plug |
| 11 | 800-437 | Transducer Assembly |
Diagram reference 7 is not included in this table. Use the part number together with the diagram reference when identifying a replacement.
Explore Filter Assembly Components
Find the Part Your Performer 1140ix Repair Needs

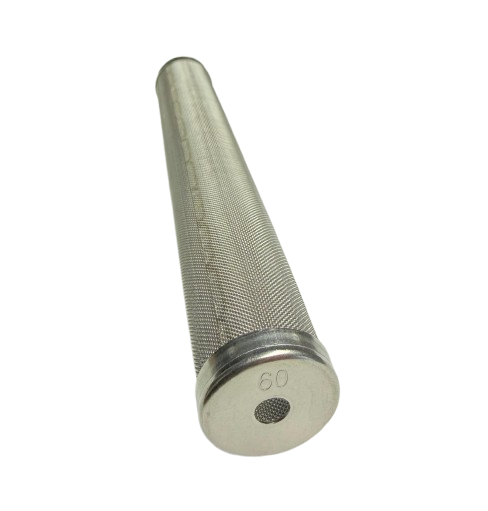

Titan 730-067 60 Mesh Manifold Filter
The manifold filter captures particles in coating material to help reduce debris reaching downstream fluid passages and spray equipment. Inspect it for buildup, damage or blockage when flow becomes restricted.
Part Number: 730-067 | Diagram Ref. 3

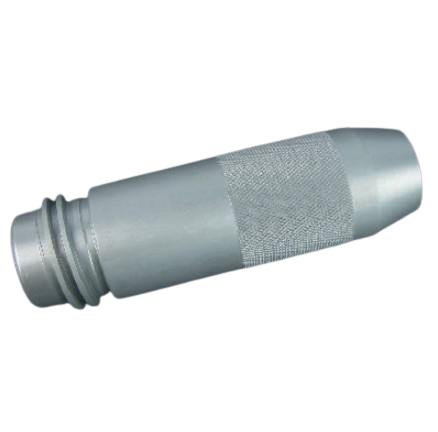

Titan 800-705 Filter Housing
The filter housing encloses the filter components within the fluid system. Titan 800-705 is identified in this directory as replacing 800-905. Check threads and sealing surfaces when assessing the housing for replacement.
Part Number: 800-705 | Replaces 800-905
Titan 14058 Filter Spring
This spring belongs in the designated filter assembly position. If it is damaged or deformed, select the matching replacement and follow the assembly drawing for correct placement.
Part Number: 14058 | Diagram Ref. 2
Titan 702-251 Filter Screen Adapter
The filter screen adapter supports the screen's intended assembly arrangement. Inspect it during filter servicing and replace it if its condition prevents correct installation.
Part Number: 702-251 | Diagram Ref. 4
Titan 757-105 Filter Support Spring
The support spring is a separate component from the 14058 filter spring. Match its individual part number and diagram position rather than choosing a spring by appearance alone.
Part Number: 757-105 | Diagram Ref. 5

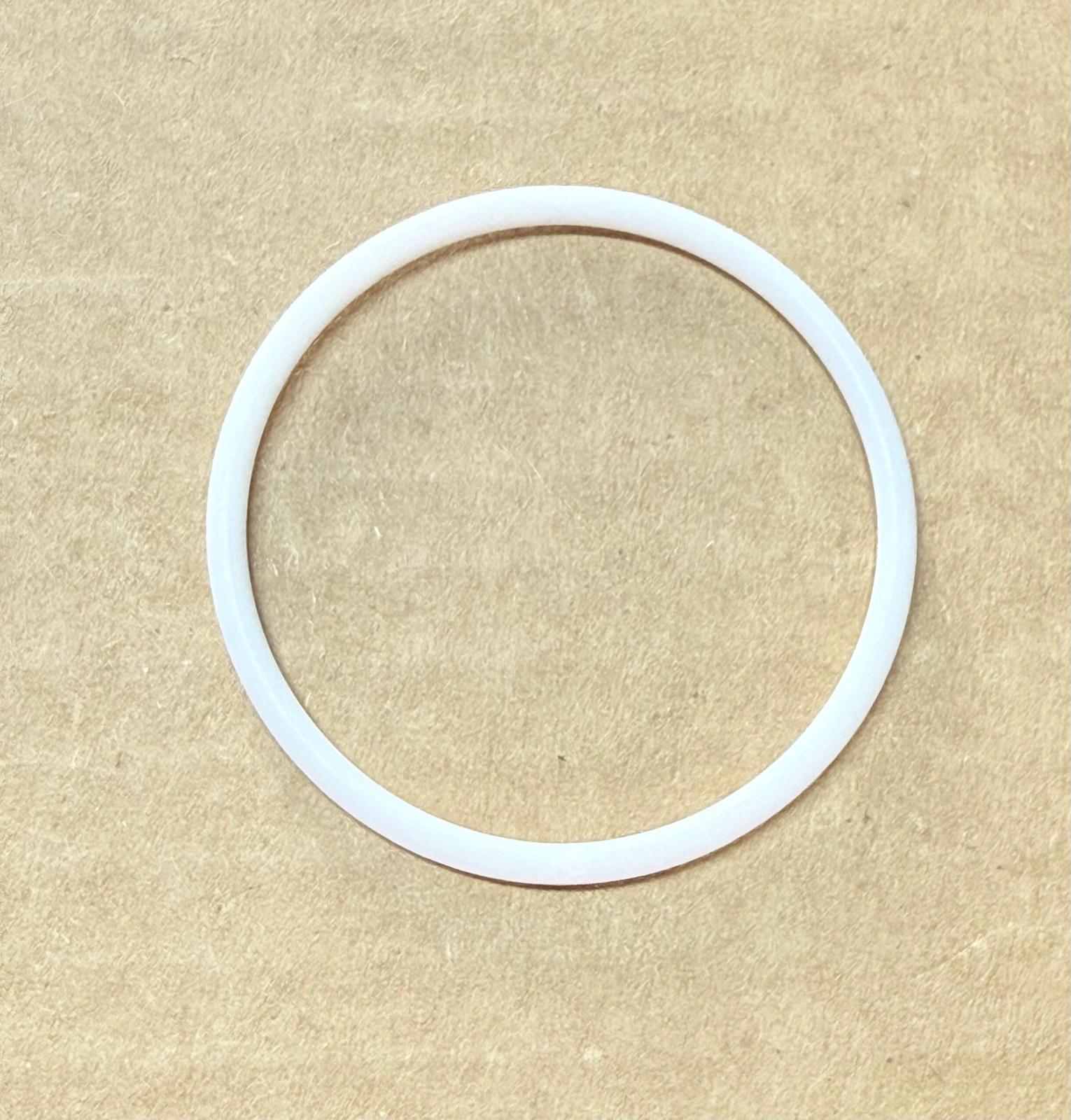

Titan 800-906 PTFE O-Ring
This O-ring provides sealing at its designated assembly location. Inspect it for damage or deformation whenever the filter housing is serviced, and install the specified replacement according to Titan's instructions.
Part Number: 800-906 | Diagram Ref. 6

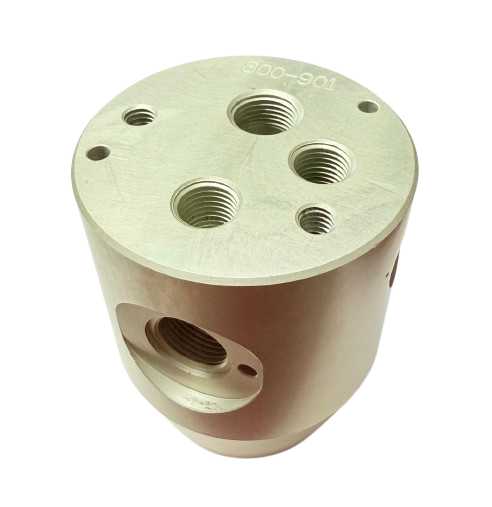

Titan 800-901 Filter Base Housing
The base housing forms part of the filter assembly's fluid enclosure and connection arrangement. Inspect its threads and sealing surfaces when investigating leakage or physical damage.
Part Number: 800-901 | Diagram Ref. 8
Titan 700-258 PrimeSpray Valve Assembly
The PrimeSpray valve directs fluid during priming and spraying. If priming is difficult or fluid returns unexpectedly, inspect the valve alongside the suction system and related fluid passages.
Part Number: 700-258 | Diagram Ref. 9
Titan 800-907 NPTF Plug
The NPTF plug closes its designated threaded port. Use the specified part and follow the manufacturer's installation instructions for the connection and any applicable sealing requirements.
Part Number: 800-907 | Diagram Ref. 10
Titan 800-437 Transducer Assembly
The transducer supplies pressure feedback to the sprayer's control system. Confirm the cause of a pressure-control fault through the appropriate diagnostic procedure before replacing this component.
Part Number: 800-437 | Diagram Ref. 11
Troubleshooting and Repair
What to Check Before Ordering Replacement Parts
Reduced flow, leakage and pressure changes can have several causes. Use these checks to guide inspection after completing the manufacturer's pressure-relief procedure.
| Symptom | Parts to Inspect | Inspection Focus |
|---|---|---|
| Restricted coating flow | 730-067 manifold filter | Look for debris, dried coating and screen damage. |
| Leakage around the housing | 800-705, 800-906, 800-901 | Check the housings, O-ring and sealing surfaces. |
| Filter does not seat correctly | 14058, 702-251, 757-105 | Compare component condition and placement with the diagram. |
| Difficulty priming | 700-258 and suction components | Inspect valve operation, suction connections and intake restrictions. |
| Inconsistent pressure control | 800-437 and control system | Follow Titan's pressure-sensing and control diagnostics. |
| Leakage at a threaded port | 800-907 and 800-901 | Inspect the plug, port threads and specified sealing arrangement. |
Filter Housing Replacement Reference
Replacing a Titan 800-905 Filter Housing?
This parts directory identifies Titan 800-705 Filter Housing as the replacement for Titan 800-905. Compare your existing housing, sprayer diagram and replacement product details before purchasing. Select the remaining assembly components by their individual part numbers.
Parts Buying Guide
Choose the Correct Performer 1140ix Filter Part
01
Confirm Your Sprayer
Check the Performer 1140ix model identification and record the serial number before selecting parts.
02
Identify the Component
Determine whether the repair requires a filter, housing, spring, adapter, seal, valve or transducer.
03
Match the Part Number
Compare the diagram reference and part number, including any applicable replacement-number details.
04
Order Your Replacement
Review the matching product at AllTitanParts and follow Titan's service instructions during installation.
Filter Assembly Maintenance
Keep Filter Components Clean and Serviceable
Follow Titan's cleaning schedule and use cleaning materials suitable for your coating and equipment. Inspect the manifold filter for buildup and screen damage, and examine the O-ring whenever the housing is opened.
Check the springs and adapter for damage and correct placement before reassembly. Inspect housing threads, sealing surfaces and fluid connections according to the manufacturer's service procedure. Replace worn or damaged components with the specified parts.
Related Performer 1140ix Parts
Browse More Titan Performer 1140ix Assemblies
Performer 1140ix Main Assembly
Explore the main assembly diagram and associated replacement components.
Performer 1140ix Drive Assembly
Find replacement components for the sprayer's drive assembly.
Performer 1140ix Fluid Section Assembly
Browse fluid section parts for pump inspection and repair.
Performer 1140ix High Rider Cart
Locate cart replacement parts using the corresponding assembly diagram.
Performer 1140ix Airless Sprayer Parts
Return to the model parts directory to explore other assemblies.
Relieve Pressure Before Servicing the Filter Assembly
The filter housing and connected fluid components can retain hazardous pressure. Switch off the sprayer, disconnect electrical power and complete Titan's pressure-relief procedure before opening the housing or replacing components. Never loosen a pressurized fitting or use your hand to stop a fluid leak. Follow the manufacturer's instructions for reassembly and restart.
Shop Performer 1140ix Replacement Components
Order the Filter Assembly Parts Your Repair Requires
Browse filters, housings, springs, adapters, seals, valves and transducers. Match your part number and review the replacement details before purchasing.
Shop Performer 1140ix Filter Assembly PartsFrequently Asked Questions
Titan Performer 1140ix Filter Assembly FAQ
Which parts are included in this filter assembly directory?
The directory covers 10 components: the filter housing, filter spring, manifold filter, screen adapter, support spring, PTFE O-ring, base housing, PrimeSpray valve, NPTF plug and transducer.
What is the Performer 1140ix manifold filter part number?
The manifold filter shown in this directory is Titan 730-067, a 60-mesh filter at diagram reference 3.
Which filter housing replaces Titan 800-905?
Titan 800-705 is identified as the replacement for the 800-905 filter housing. Compare your assembly diagram and the replacement product details before ordering.
Are Titan 14058 and Titan 757-105 the same spring?
They are separate components. Titan 14058 is the filter spring at reference 2, while Titan 757-105 is the filter support spring at reference 5. Select the spring specified for its diagram position.
What is the filter screen adapter part number?
Titan 702-251 is the filter screen adapter at diagram reference 4. Check its condition and placement when servicing the filter.
Which O-ring belongs in this filter assembly?
This directory identifies Titan 800-906 as the PTFE O-ring at diagram reference 6. Match the specified seal to your assembly before installation.
What is the filter base housing part number?
Titan 800-901 is the filter base housing at diagram reference 8.
Which PrimeSpray valve is shown for this assembly?
Titan 700-258 is the PrimeSpray Valve Assembly at diagram reference 9. Diagnose priming problems before deciding whether the valve requires replacement.
What transducer part number appears in this directory?
Titan 800-437 is the Transducer Assembly at diagram reference 11. It supplies pressure feedback to the control system.
Can a clogged manifold filter reduce coating flow?
Yes. Filter buildup can restrict flow, although suction restrictions, pump wear and other faults may produce similar symptoms. Relieve pressure and follow Titan's inspection procedure before servicing.
Can I replace the filter without replacing the housing?
The 730-067 manifold filter and 800-705 housing are separate replacement components. Whether the housing also needs replacement depends on its condition and the findings from inspection.
Where can I shop for Performer 1140ix Filter Assembly Parts?
Browse Titan Performer 1140ix Filter Assembly Parts at AllTitanParts. Use your sprayer's model information, diagram reference and part number to identify the replacement you need.
Parts Identification Assistance
Need Help Selecting a Performer 1140ix Filter Part?
Have your sprayer model, serial number, diagram reference and existing part number ready when contacting AllTitanParts for assistance.
