Shop Titan ED1075 Pro Pak Paint Pump Parts
Find the components your repair requires with Titan ED1075 Pro Pak Paint Pump replacement parts from AllTitanParts. Compare the assembly drawing with your equipment, identify the affected item and select its matching replacement number before ordering.
Paint Pump Parts Overview
Plan Your Pump Repair Around Accurate Part Identification
Poor priming, leakage and reduced delivery can have several causes. Follow the manufacturer's troubleshooting procedure to establish the fault before choosing replacement components.
Once the affected item is identified, compare its diagram position and product description with the installed part. Review quantities and included items carefully. A pump category contains individual products and should not be assumed to represent a complete rebuild kit.
OEM Parts Directory
Titan ED1075 Pro Pak Paint Pump Parts List
Use the part number together with the drawing reference to select your replacement.
| Diagram Ref. | Titan Part Number | Product |
|---|---|---|
| 1 | 0270951 | Prime/Spray Valve Kit |

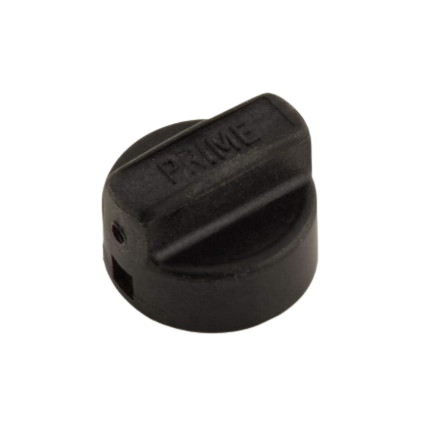

| 2 | 0288748 | Priming Valve Knob |
| 4 | 0154375 | Cam |

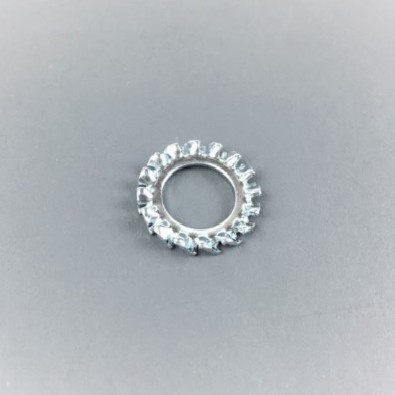

| 5 | 0090512 | Star Washer |
| 9 | 281316 | Valve Seat Assembly |
| 11 | 0089482 | Nylon Sealing Washer |

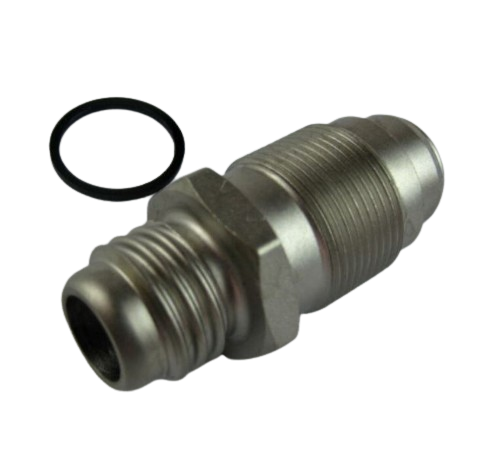

| 12 | 0278219 | Inlet Valve |
| 13 | 0089564 | End Cap |
| 14 | 9970103 | Seal Washer |
| 15 | 0047485 | Outlet Spring |
| 16 | 0093635 | Outlet Ball |

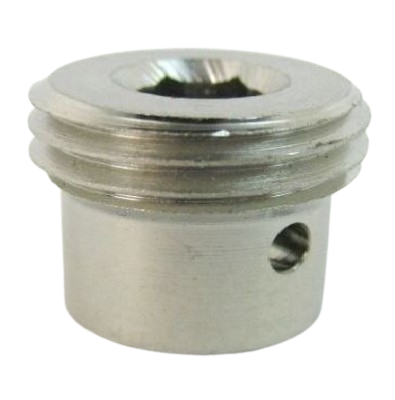

| 17 | 0090348 | Outlet Valve Seat Assembly |
| 18 | 0089494 | Outlet Seat Seal |
| 19 | 0288379 | Outlet Fitting |

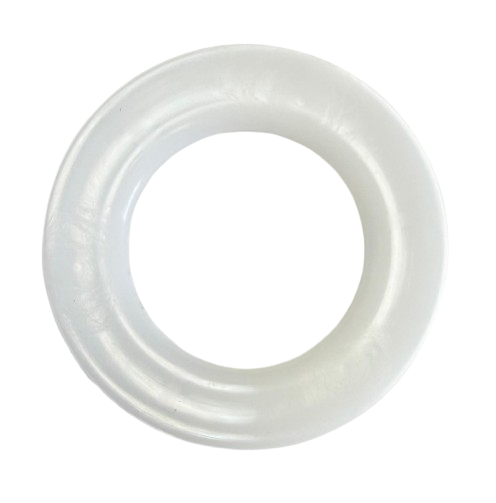

| 20 | 0270494 | Diaphragm Ring |
Gaps in the reference sequence correspond to items not included in this product directory. Confirm any unlisted component before ordering.
Inspection Before Replacement
Check Valves, Sealing Surfaces and Mechanical Components
Valve Condition
Contamination and wear may affect valve operation. Use the prescribed inspection procedure to determine whether cleaning, servicing or replacement is required.
Seals and Washers
Inspect sealing components for damage during service. Use the specified replacement for each location rather than choosing a washer or seal by appearance alone.
Controls and Hardware
Check operating components and securing hardware for damage and correct installation. Preserve the specified assembly order and follow the service instructions.
Fluid Connections
Inspect accessible connections as directed. Diagnose leakage and check the condition of threads and sealing surfaces before deciding which component needs replacement.
Replacement Parts Buying Guide
Choose the Correct ED1075 Pro Pak Pump Part
- Confirm the equipment. Record the model and serial information.
- Establish the fault. Follow the recommended diagnostic procedure.
- Match the component. Compare the diagram reference, part number and product description.
- Review included items. Check quantities and any seals or related components required separately.
Routine Equipment Care
Keep the Fluid System Ready for Service
Follow the recommended cleaning and flushing procedure after spraying. Use materials suitable for the coating and equipment, and inspect accessible supply components as directed.
Address recurring priming problems, leakage or reduced flow before returning the sprayer to use. Keep records of repairs and installed replacement numbers to simplify future identification.
Related ED1075 Pro Pak Categories
Explore More Sprayer Replacement Parts
Relieve Pressure Before Pump Service
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before opening the pump or removing fluid connections. Switching off alone does not eliminate trapped pressure. Never loosen a pressurized fitting or use your hand to stop a fluid leak. Follow the instructions for installation, reassembly and restart.
Find Your Replacement Component
Order ED1075 Pro Pak Paint Pump Parts
Identify the required item and review its replacement details before checkout.
Shop Paint Pump Replacement PartsFrequently Asked Questions
ED1075 Pro Pak Paint Pump FAQ
Does this category contain a complete pump with every purchase?
This category contains individual replacement products. Review the selected item's description to confirm exactly what is included.
How do I select the correct replacement component?
Confirm the equipment information, locate the item in the assembly drawing and match its part number and description before ordering.
Does poor priming always require a new inlet valve?
No. Supply restrictions, leakage and other faults can produce similar symptoms. Follow the manufacturer's diagnostic procedure before choosing parts.
Should every outlet component be replaced together?
Follow the service instructions and inspection findings. Check associated components and any requirements to replace items together.
Can I substitute similar-looking seals or washers?
Use the specified replacements. Dimensions, material and installation requirements determine suitability.
What information helps with parts identification?
Provide the model, serial number, diagram reference and existing part number. A clear component photograph may also help.
