Genuine Titan OEM | Optional Suction Configuration Parts
Shop Titan ED1075 Pro Pak Optional Suction Set Assembly Parts
Find the replacement item your repair requires with Titan ED1075 Pro Pak Optional Suction Set Assembly parts from AllTitanParts. Compare the drawing with your installed configuration, identify the affected component and review its replacement number before purchasing.
Optional Suction Set Overview
Match Your Replacement to the Installed Supply Arrangement

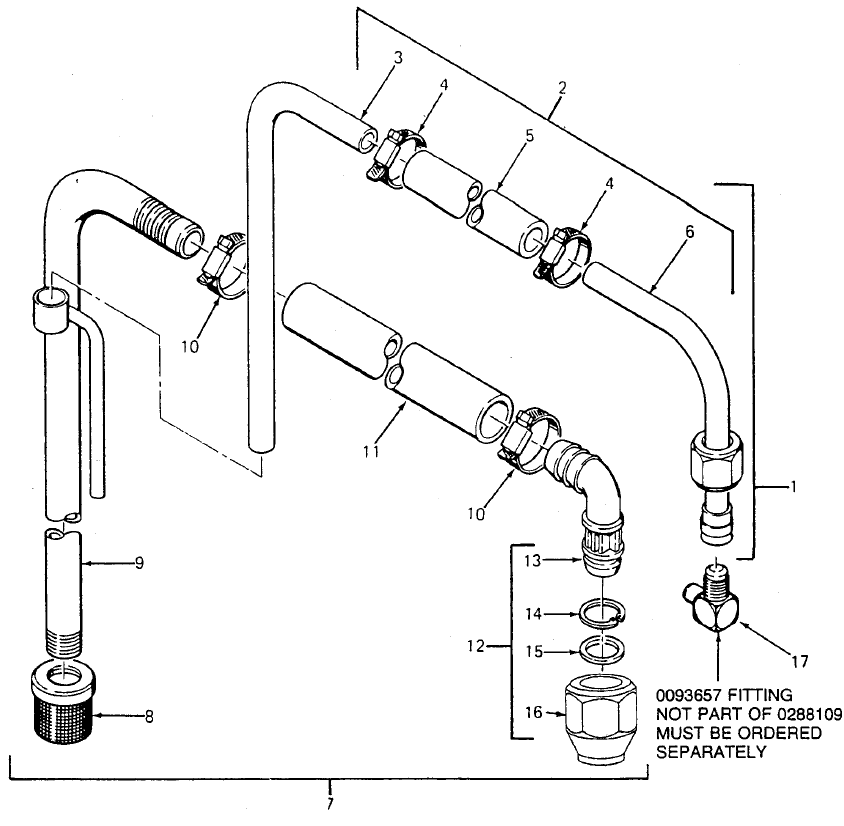

Before selecting parts, compare the optional suction set drawing with the equipment in front of you. Previous repairs or changes to the material supply arrangement may affect which component is required.
Check the individual product description and included items. An elbow assembly, a separate adapter and securing hardware should not be assumed to contain the same components or fit every suction configuration.
OEM Parts Directory
ED1075 Pro Pak Optional Suction Set Parts List
Use the diagram reference together with the replacement number to identify your item.
| Diagram Ref. | Titan Part Number | Product |
|---|---|---|
| 12 | 0090275 | Elbow Assembly, 3/4, Suction Set |
| 13 | 0090084 | Elbow, Suction Adapter |

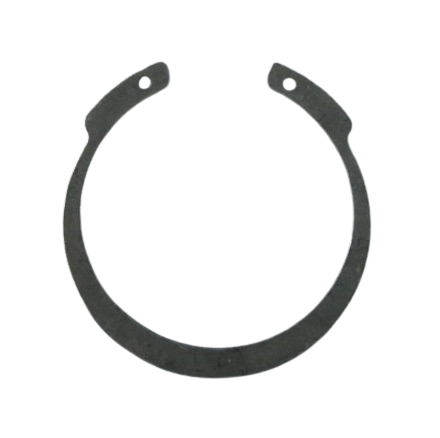

| 14 | 9822508 | Retaining Ring |
| 15 | 0093871 | Washer |
| 16 | 0270310 | Suction Nut |
The suction nut product title uses 0270310, while its part-number field displays 270310. Confirm the selected product details before checkout. Other drawing components are not included in this five-product directory.
Inspection Before Replacement
Check Connection Components and Securing Hardware
Elbows and Adapter Connections
Inspect connections according to the service instructions. Check for physical damage, obstruction and incorrect installation before deciding whether a component needs replacement.
Retaining Components
Verify that securing hardware is serviceable and correctly positioned. Use the specified replacements and follow the required assembly order.
Threaded Hardware
Check thread condition and installation requirements. Similar appearance or nominal size alone does not establish that a substitute is suitable.
Confirm Your Configuration
Compare the Suction Set Categories Before Ordering
If the optional drawing does not match your equipment, review the ED1075 Pro Pak Suction Set Assembly category. Select parts for the installed arrangement rather than assuming components from different configurations are interchangeable.
Replacement Parts Buying Guide
Choose the Correct Optional Suction Set Component
- Confirm the equipment. Record the model, serial information and installed supply configuration.
- Identify the repair. Inspect the affected component and follow the diagnostic procedure.
- Match the replacement. Compare the drawing reference, product number and description.
- Review included items. Check quantities and whether associated seals or hardware are supplied separately.
Supply System Maintenance
Maintain Clean, Correctly Installed Connections
Follow the prescribed cleaning and flushing procedure after use. Inspect accessible supply components as directed, using cleaning materials suitable for the coating and equipment.
Investigate recurring priming difficulties, leakage or damaged connections before returning the sprayer to service. Record repairs and replacement numbers to make future identification easier.
Related ED1075 Pro Pak Parts
Explore More Sprayer Assembly Categories
Follow the Equipment's Service Safety Procedure
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before servicing fluid components. Never loosen a pressurized connection or use your hand to stop a fluid leak. Follow the prescribed removal, installation and restart instructions.
Find Your Replacement Component
Order ED1075 Pro Pak Optional Suction Parts
Confirm the required item and review its replacement details before checkout.
Shop Optional Suction Set PartsFrequently Asked Questions
ED1075 Pro Pak Optional Suction Set FAQ
Does every product include a complete optional suction set?
This category contains individual replacement products. Review each description to confirm what is included with your purchase.
How do I know whether this configuration matches my sprayer?
Compare the optional assembly drawing with the components fitted to your equipment. Check the model information and individual product specifications before ordering.
Can I substitute a similar-looking elbow or nut?
Use the specified replacement. Connection dimensions, thread requirements and assembly details determine suitability.
Does poor priming always require suction set replacement?
No. Restrictions, air leaks and faults elsewhere in the fluid system can cause similar symptoms. Follow the manufacturer's diagnostic procedure first.
What information helps identify the correct part?
Provide the model, serial number, installed configuration, drawing reference and existing part number. A clear photograph may also help.
