Genuine Titan OEM | Main Assembly Replacement Components
Shop Titan ED1075 Pro Pak Main Assembly Parts
Find the replacement item your repair requires with Titan ED1075 Pro Pak Main Assembly parts from AllTitanParts. Use the assembly drawing to identify the affected component, compare its part number and review the product contents before ordering.
Main Assembly Overview
Make a Targeted Repair with the Correct Replacement
Accurate identification helps you order the component needed for your service task. Compare the drawing with the installed equipment, then check the individual product description and replacement number.
A main assembly category is a parts directory. It does not mean that every product contains the entire assembly or all associated seals and hardware. Review included items and the service requirements before purchasing.
OEM Parts Directory

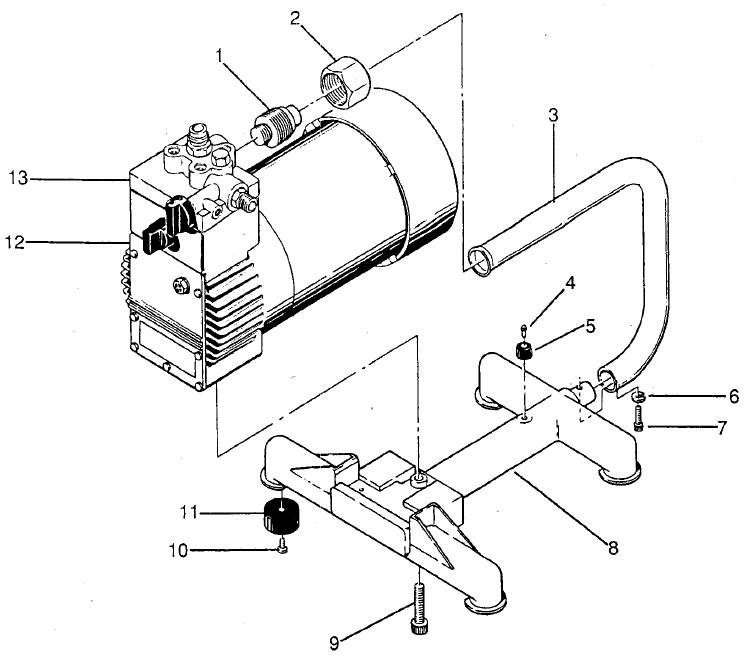

Titan ED1075 Pro Pak Main Assembly Parts List
Match the product number and available drawing reference before checkout.
| Diagram Ref. | Titan Part Number | Product |
|---|---|---|
| Not displayed | 0270951 | Prime/Spray Valve Kit |
| 10 | 9802222 | Screw |
| 11 | 0090628 | Foot Pad, 1.5-inch Diameter |
The valve kit has no numbered reference displayed in the product list. Use its part number and product details for identification.
Inspection Before Replacement
Check Valve Operation, Fasteners and Equipment Support
Priming and Spraying Problems
Follow the manufacturer's troubleshooting procedure when priming is difficult or operation is inconsistent. Supply restrictions, leakage and pump faults can produce similar symptoms, so confirm the cause before replacing a valve.
Missing or Damaged Fasteners
Use the specified replacement fastener for its designated location. Thread dimensions, length and installation requirements matter, even when a general-purpose screw looks similar.
Support Component Condition
Inspect support components for wear, damage and secure installation. Replace missing or damaged items according to the equipment instructions before returning the sprayer to use.
Before You Order
Choose the Correct Main Assembly Component
- Confirm the equipment. Record the model and serial information.
- Identify the service task. Diagnose operating faults and inspect damaged components.
- Match the replacement. Compare the product number, description and drawing location where available.
- Review included items. Check quantities and whether related seals or hardware are required separately.
Related ED1075 Pro Pak Categories
Find Parts for Other Sprayer Assemblies
Prepare the Sprayer Safely Before Service
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before servicing fluid components. Switching off alone does not eliminate trapped pressure. Never loosen a pressurized connection or use your hand to stop a fluid leak. Follow the instructions for removal, installation and restart.
Find Your Replacement Item
Order ED1075 Pro Pak Main Assembly Parts
Confirm the required component and review its replacement details before checkout.
Shop Main Assembly PartsFrequently Asked Questions
ED1075 Pro Pak Main Assembly FAQ
Does this category include a complete main assembly?
This category contains individual replacement products. Review each description to confirm what your purchase includes.
How do I identify the correct replacement?
Confirm your equipment information and compare the product number and description with the installed component and assembly drawing.
Does poor priming always require a valve replacement?
No. Supply restrictions, air leaks and pump faults can cause similar symptoms. Follow the manufacturer's diagnostic procedure first.
Can I use a similar-looking screw?
Use the specified replacement. Thread dimensions, length and other installation requirements must match the application.
What information helps with parts assistance?
Provide the model, serial number, diagram reference where available and existing part number. A clear photograph may also help identify the component.
