Genuine Titan OEM | Suction Set Replacement Components
Shop Titan ED1075 Pro Pak Suction Set Assembly Parts
Find the component your repair requires with Titan ED1075 Pro Pak Suction Set Assembly replacement parts from AllTitanParts. Compare the assembly drawing with your installed supply arrangement, identify the affected item and check its replacement number before ordering.
Suction Set Parts Overview
Match Replacement Parts to Your Material Supply Setup
Accurate component identification helps you make a targeted repair. Check the installed suction and return arrangement, then compare the appropriate drawing and product description with the item that requires attention.
Inspect the system according to the manufacturer's instructions before selecting replacements. Material supply problems may involve restrictions, air leaks or faults elsewhere in the equipment, so diagnose the cause rather than ordering from symptoms alone.
OEM Parts Directory

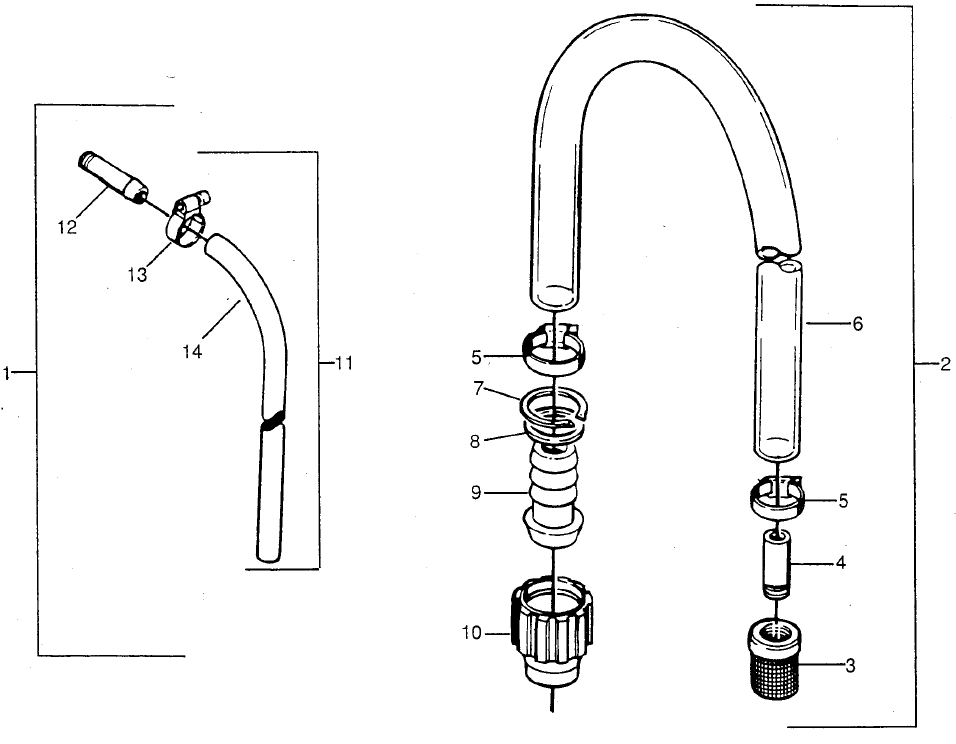

Titan ED1075 Pro Pak Suction Set Parts List
Use the individual part number together with the drawing reference when selecting your replacement.
| Diagram Ref. | Titan Part Number | Product |
|---|---|---|
| 8 | 0093871 | Washer |

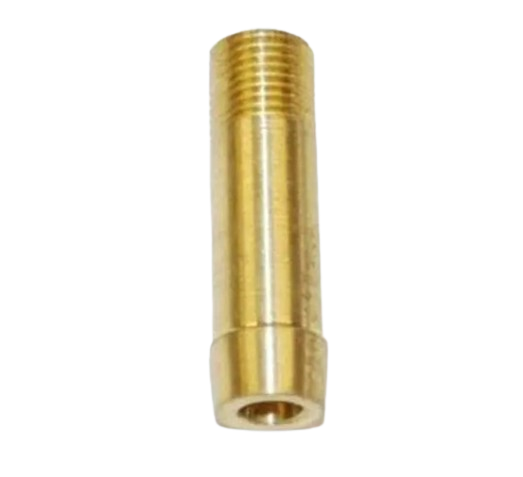

| 12 | 0088715 | Return Flow Fitting |
The return flow fitting title displays 088715, while its part-number field uses 0088715. Confirm the selected product details before ordering. Other drawing components are not included in this two-product directory.
Inspection Before Replacement
Check Component Condition and Connection Requirements
Washer Selection
Use the specified replacement for its drawing location. Similar appearance does not establish suitability because dimensions, material and installation requirements may differ.
Fitting Condition
Inspect connections according to the service instructions. Check for damage, obstruction and incorrect installation before deciding which component requires replacement.
Confirm Your Installed Arrangement
Compare the Suction Set Drawings Before Purchasing
If your installed arrangement differs from this drawing, review the ED1075 Pro Pak Optional Suction Set Assembly category. Match the actual configuration and individual product specifications rather than assuming components from the two categories are interchangeable.
Replacement Parts Buying Guide
Choose the Correct Suction Set Component
- Confirm your equipment. Record the model, serial information and installed supply arrangement.
- Identify the repair. Follow the diagnostic procedure and inspect the affected component.
- Match the replacement. Compare the drawing reference, part number and description.
- Review included items. Check quantities and whether related components must be purchased separately.
Routine Supply System Care
Keep the Supply Arrangement Clean and Correctly Installed
Follow the prescribed cleaning and flushing procedure after use. Use materials suitable for the coating and equipment, and inspect accessible connections as directed.
Address recurring priming difficulties, visible damage or leakage before returning the equipment to service. Record replacement numbers and changes to the installed arrangement for future parts identification.
Related ED1075 Pro Pak Parts
Explore Other Sprayer Assembly Categories
Follow the Service Safety Procedure
Switch off the equipment, disconnect electrical power and complete the manufacturer's pressure-relief procedure before servicing fluid components. Never loosen a pressurized connection or use your hand to stop a fluid leak. Handle coating and cleaning materials according to their safety instructions, and follow the prescribed installation and restart procedures.
Find Your Replacement Component
Order ED1075 Pro Pak Suction Set Parts
Confirm the required item and review its replacement details before checkout.
Shop Suction Set Assembly PartsFrequently Asked Questions
ED1075 Pro Pak Suction Set Assembly FAQ
Does each product include the complete suction set?
This category contains individual replacement products. Review each description to confirm exactly what is included.
How do I choose the correct replacement?
Confirm your installed arrangement and compare the component's drawing reference, part number and product description.
Can I use parts from the optional suction set category?
Compare the drawings and product specifications first. Do not assume that parts from different supply arrangements are interchangeable.
Does poor priming always mean a suction component has failed?
No. Restrictions, air leaks and faults elsewhere in the fluid system can produce similar symptoms. Follow the manufacturer's diagnostic procedure.
What information helps with parts identification?
Provide the model, serial number, installed configuration, drawing reference and existing part number. A clear photograph may also help.
