Assembly Overview
Titan documents siphon hose assemblies 103-800, 103-806, 103-808 and 103-812. Depending on assembly, the diagram uses a rock catcher or filter screen, siphon tube, hose clamps, fluid hose, spring guard, clip and inlet adapter.
Verified component index: 103-800, 103-806, 103-808, 103-812, 103-625, 710-046
Functions Supported by the Assembly
Primary Assembly Function
3/4-inch × 3-foot siphon hose assembly performs a central function within this documented Commander system.
Pressure or Flow Support
3/4-inch × 6-foot siphon hose assembly supports controlled pneumatic, fluid or structural operation.
Sealing and Retention
1-inch siphon hose assembly contributes to sealing, alignment, filtration, retention or stability.
Service Identification
The exploded page separates genuine service components from adjacent Commander systems.
Service Applications
Use this page for model identification, preventive inspection, targeted repair, assembly rebuilding, pressure or flow diagnosis and purchasing for Commander equipment that specifically uses this assembly.
High-Value Replacement Parts
Only components confirmed in the current Commander diagram or parts table are shown.
Titan 103-800 3/4-inch × 3-foot siphon hose assembly
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.
Titan 103-806 3/4-inch × 6-foot siphon hose assembly
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.
Titan 103-808 1-inch siphon hose assembly
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.
Titan 103-812 1-1/4-inch siphon hose assembly
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.

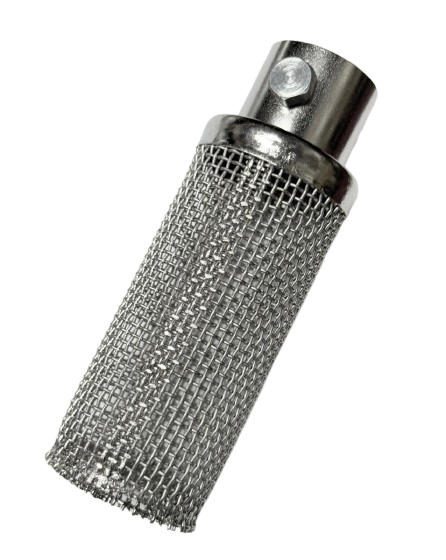

Titan 103-625 Rock catcher
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.
Titan 710-046 Filter screen
Confirmed in the current Commander exploded diagram or parts table. Match the item callout and installed assembly before replacement.
Buying Guide
1. Confirm the machine
Record the complete Commander model and mounting configuration.
2. Confirm the assembly
Match the assembly title, item callout and part number.
3. Diagnose the symptom
Inspect connected air, fluid, filter, bleed and mounting systems.
4. Check availability
Do not assume an older documented part remains available or interchangeable.
Maintenance
Relieve pressure before service, inspect grounded high-pressure hoses, keep the assigned filter clean, maintain moisture-free air, use compatible cleaning materials and document recurring wear.
Repair Planning
Record the Commander model, ratio, mounting style, assembly number, item number, part number and symptom. Inspect neighboring components and determine whether individual service parts or a complete assembly best addresses the confirmed fault.
