Titan Commander Wall Bracket Parts

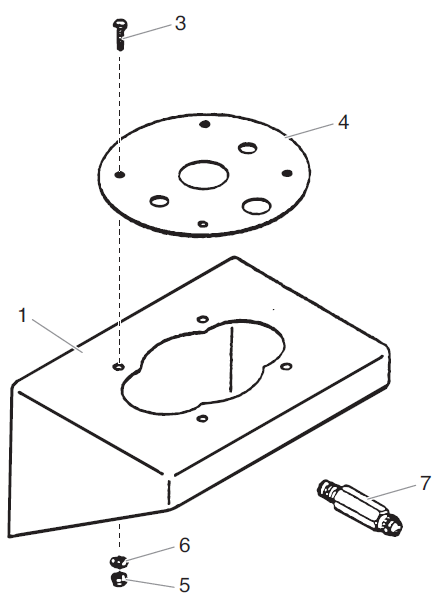

Verified SPEEFLO Commander Parts Diagram

Commander Wall Bracket Parts

Titan’s wall-bracket table identifies assemblies 590-300 and 590-303. Both use bracket 590-351 and model-specific mounting kits 219-100 or 219-200 with adapter plate 219-504 and related fasteners.

Built for contractors, repair shops, maintenance technicians and buyers who need verified Commander component identification and diagnosis-first repair guidance.

Verified Diagram Scope

Part numbers and names are restricted to the current category and Titan Commander documentation.

Diagnosis Before Replacement

Every recommendation begins with inspection of genuine assembly components.

Six-Card Maximum

The commercial section contains no more than six verified component cards.

Verified Commander Links

Navigation uses confirmed machine-family and assembly-category destinations only.

Assembly Overview

Titan’s wall-bracket table identifies assemblies 590-300 and 590-303. Both use bracket 590-351 and model-specific mounting kits 219-100 or 219-200 with adapter plate 219-504 and related fasteners.

Verified component index: 590-300, 590-303, 590-351, 219-100, 219-200, 219-504

Functions Supported by the Assembly

Primary Assembly Function

Wall bracket assembly performs a central function within this documented Commander system.

Pressure or Flow Support

Wall bracket assembly supports controlled pneumatic, fluid or structural operation.

Sealing and Retention

Bracket contributes to sealing, alignment, filtration, retention or stability.

Service Identification

The exploded page separates genuine service components from adjacent Commander systems.

Service Applications

Use this page for model identification, preventive inspection, targeted repair, assembly rebuilding, pressure or flow diagnosis and purchasing for Commander equipment that specifically uses this assembly.

Troubleshooting

Operating symptom	Inspect first	Diagnosis before replacement
Loss of pressure or output	wall bracket 590-300 or 590-303	Relieve pressure and inspect wall bracket 590-300 or 590-303 for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
Irregular cycling or pulsation	bracket 590-351	Relieve pressure and inspect bracket 590-351 for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
Visible fluid or air leakage	mounting kit 219-100 or 219-200	Relieve pressure and inspect mounting kit 219-100 or 219-200 for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
Restricted flow or movement	adapter plate 219-504	Relieve pressure and inspect adapter plate 219-504 for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
Startup or priming failure	mounting screws	Relieve pressure and inspect mounting screws for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
Recurring fault after service	mounting nuts and washers	Relieve pressure and inspect mounting nuts and washers for wear, leakage, blockage, contamination, looseness or incorrect installation. Confirm the actual fault and inspect connected systems before replacement.
