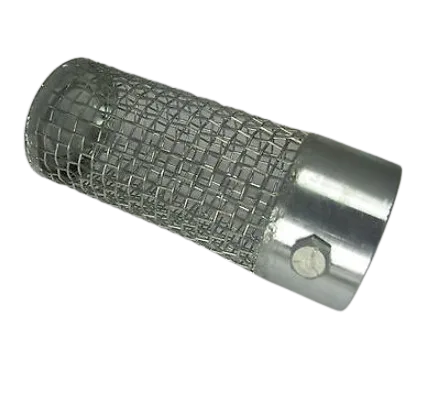

Hydra part 103-629 is a replacement rock catcher assembly designed to prevent debris and foreign material from entering the fluid system on compatible Hydra M, Hydra Pro, and Commander equipment. This assembly traps rocks, grit, and other contaminants before they reach the pump inlet, protecting internal components from damage and reducing the risk of clogging or premature wear.
| Part Number | 103-629 |
|---|---|
| Part Description | Rock Catcher Assy |
| Brand | Hydra |
| Fits | Hydra M, Hydra Pro, Commander |
| Condition | New |
The Hydra 103-629 rock catcher assembly is a protective component designed to prevent foreign material from entering the fluid system on compatible Hydra M, Hydra Pro, and Commander striping and spraying equipment. This assembly installs on the suction line between the material container and the pump inlet, serving as the first line of defense against rocks, grit, dried paint chips, and other debris that can cause significant damage to internal pump components.
In field applications, it is common for small debris to be introduced into material containers during filling or through contaminated material supplies. Without adequate filtration, these contaminants can enter the pump, causing scoring of the piston rod, damage to seals and packings, valve malfunction, or complete pump failure. The rock catcher assembly traps these particles before they reach the pump, allowing for easy removal during routine cleaning and preventing costly repairs.
Over time, the rock catcher assembly may become cracked from impact, develop leaks at the housing or seal points, or suffer from accumulated debris that cannot be fully cleaned. A damaged rock catcher compromises the protection of the fluid system and may allow contaminants to bypass the filtration stage. Replacing a worn or damaged assembly with the 103-629 restores proper debris protection and helps extend the service life of the pump and associated components.
This rock catcher assembly includes the housing, screen or strainer element, and sealing components necessary for installation. The design allows for quick disassembly during cleaning intervals, with the captured debris easily accessible for removal. Regular inspection of the rock catcher should be part of daily equipment checks, with cleaning performed as needed based on material type and operating conditions. When the assembly shows signs of cracking, warping, or seal leakage, replacement should be performed promptly to maintain system protection.
| Debris filtration | Traps rocks, grit, and contaminants before they enter the pump |
|---|---|
| Pump protection | Prevents scoring, seal damage, and valve failure caused by foreign material |
| Easy maintenance | Allows quick removal of captured debris during routine cleaning |
| Cracked housing | Visible cracks or damage that may allow debris to bypass filtration |
|---|---|
| Seal leakage | Fluid leaks from the assembly during operation or priming |
| Debris bypass | Contaminants are reaching the pump despite regular cleaning |
| Difficult disassembly | Latch or closure mechanism is damaged and no longer seals properly |
Hydra part 103-629 is compatible with the following models. Always confirm fitment using the correct parts diagram for your exact machine.
| Model | Component |
|---|---|
| 0528925N_2000_4000 | Rock catcher assembly |
| Commander | Rock catcher assembly |
| Hydra M and Hydra Pro Super | Rock catcher assembly |
| Hydra M and Hydra Pro 2000_4000 | Rock catcher assembly |
When replacing a rock catcher assembly, these related components are often inspected or serviced at the same time to ensure complete protection of the fluid system.
Inspect suction hose for cracks, kinks, or loose connections that could introduce air or contaminants.
Check the pump inlet strainer for debris accumulation that may indicate inadequate rock catcher performance.
Inspect the material container for debris or contamination that could overload the rock catcher assembly.
