Titan Advantage 400 Motor Assembly Parts
Shop genuine Titan Advantage 400 Motor Assembly Parts for maintaining and repairing the electric drive motor of your airless paint sprayer. Find OEM complete motor assemblies, capacitors, cooling fans, fan shrouds, carbon brush kits and associated mounting hardware.
Whether you're investigating motor starting problems, replacing worn brushes or servicing damaged cooling components, use the factory exploded diagram to identify the correct Titan OEM replacement part.
Maintain Reliable Motor Operation with Genuine Titan Parts
The Titan Advantage 400 electric motor provides the mechanical power required to operate the sprayer's piston pump through its drive mechanism. The motor assembly incorporates electrical, mechanical and cooling components that must work together for proper equipment operation.
The motor capacitor supports the designated motor electrical circuit, while the fan and shroud help manage cooling airflow. Carbon brushes provide electrical contact within the applicable brushed motor design. Fasteners and wire-retention components help maintain the manufacturer's intended assembly arrangement.
Over time, brush wear, electrical faults, damaged cooling components or mechanical problems may require inspection and repair. Correct diagnosis is important because motor-related symptoms can also originate in the power supply, control system, gearbox or pump.
AllTitanParts offers genuine Titan replacement components identified by factory part number to help equipment owners and service technicians locate the correct motor assembly parts.
Shop Titan Advantage 400 Motor Components
Explore the principal motor replacement components and match each part number with the official Titan exploded diagram.
Titan 0551540 Motor Assembly
Factory-listed replacement motor assembly for the Advantage 400. Provides the motor power required by the sprayer's drive system.
Part Number: 0551540Titan 704-206 Capacitor Assembly
OEM capacitor assembly for the designated motor electrical circuit. Electrical testing should be performed by qualified personnel.
Part Number: 704-206Titan 704-250 Motor Fan
Replacement motor cooling fan listed as replacing Titan 0508648. Inspect for damaged blades or interference with nearby components.
Part Number: 704-250Titan 0508645 Motor Brush Kit
OEM replacement carbon brush kit for servicing the applicable electric motor. Brush condition should be assessed using Titan's service instructions.
Part Number: 0508645Titan Advantage 400 Motor Assembly OEM Parts Reference

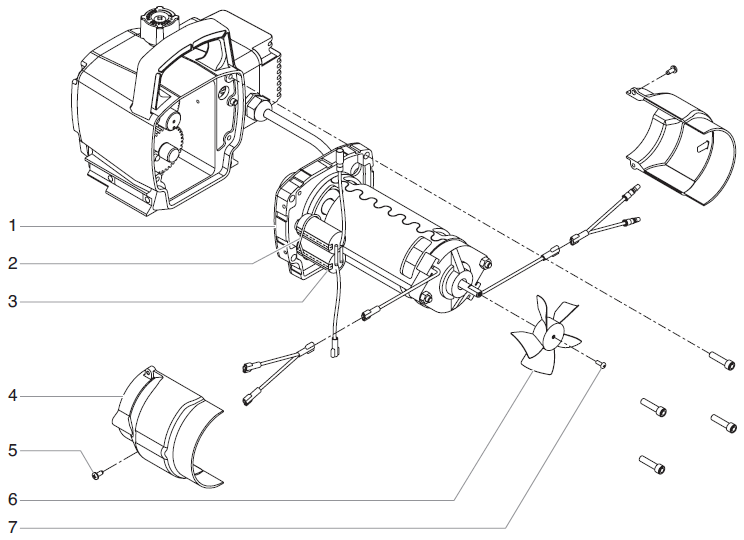

The category contains eight listed replacement products. The factory motor diagram identifies the primary motor components and separately references the motor brush kit.
| Titan Part Number | OEM Component | Application / Function |
|---|---|---|
| 0551540 | Motor Assembly | Complete factory-listed motor assembly |
| 770-099 | Tie Wrap | Wiring and component retention |
| 704-206 | Capacitor Assembly | Motor electrical circuit component |
| 704-285A | Fan Shroud | Cooling airflow management; replaces 508646 |
| 9802891 | Screw | Motor assembly fastening |
| 704-250 | Motor Fan | Motor cooling; replaces 0508648 |
| 0508645 | Motor Brush Kit | Carbon brush replacement |
| 9804916 | Fan Screw | Motor fan fastening |
How to Identify the Correct Motor Replacement Part
Identify the Symptom
Document starting difficulties, abnormal noise, overheating or visible motor damage.
Diagnose the Cause
Have qualified personnel check the motor, electrical system and associated drive components.
Match the Diagram
Locate the affected component and confirm its exact Titan OEM part number.
Verify and Order
Check fitment, required quantity and assembly contents before checkout.
Titan Advantage 400 Motor Troubleshooting Guide
Motor symptoms may have electrical, mechanical or fluid-system causes. The following guidance identifies components to consider during professional diagnosis.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Motor does not start | Power supply, controls, capacitor, brushes and motor | Follow Titan's electrical diagnostic procedure before replacing components. |
| Motor runs intermittently | Electrical connections, brushes and control system | Check for worn or damaged components using approved service methods. |
| Motor becomes unusually hot | Cooling fan, shroud, motor and mechanical load | Stop operation and investigate airflow restrictions or excessive loading. |
| Unusual vibration or noise | Fan, motor assembly, fasteners and gearbox | Inspect for mechanical damage, looseness or interference. |
| Motor runs but pumping is poor | Gearbox, drive mechanism and fluid section | Determine whether the fault originates outside the motor assembly. |
| Visible brush wear | Motor brushes and associated contact surfaces | Have an authorized technician assess brush replacement and motor condition. |
Individual Motor Part or Complete Motor Assembly?
The appropriate repair depends on the diagnosed failure, condition of the motor and Titan's service recommendations.
Replace a Serviceable Component
A damaged fan, shroud or worn brush set may be individually replaceable when the remaining motor components are serviceable.
Replace the Complete Motor
A complete motor assembly may be appropriate when the motor has substantial internal damage or replacement is specified by the manufacturer.
Inspect Adjacent Systems
Check the gearbox, fluid section and electrical controls so an unrelated fault is not mistaken for motor failure.
The factory documentation identifies the 0551540 motor assembly as including the diagram's motor components and certain gearbox-listed components. Review the current product contents before ordering individual parts alongside a complete assembly.
Explore Related Titan Advantage 400 Assemblies
Use the correct factory assembly category to locate other components associated with your repair.
Why Choose Genuine Titan Advantage 400 Motor Parts?
Genuine Titan OEM motor components are identified by manufacturer part number and intended equipment application. Using the correctly specified components helps maintain the original electrical, mechanical and cooling arrangements.
Some Titan, SprayTech and RentSpray models share selected motor components, but visually similar parts are not necessarily interchangeable. Motor assemblies, capacitors and brush kits must match the documented application.
Confirm the exact equipment model, factory diagram and OEM part number before purchasing.
Titan Advantage 400 Motor Maintenance and Safety
Before any inspection or repair, shut down the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure.
Titan's factory parts documentation states that electrical work should be performed by a Titan authorized service center. Capacitors can retain an electrical charge after power is disconnected. Do not open, test or replace electrical components without appropriate qualifications and procedures.
Keep the motor's ventilation areas clear of excessive dust and coating buildup. Inspect accessible external components for damage, and discontinue operation if the motor overheats, emits smoke or develops unusual noises.
After authorized service, verify correct component installation, cooling airflow and equipment operation according to Titan's testing instructions.
Titan Advantage 400 Motor Assembly Parts FAQ
Answers to common questions about OEM motors, capacitors, cooling fans, brush kits and replacement compatibility.
What parts are included in the Titan Advantage 400 Motor Assembly category?
The category lists a complete motor assembly, tie wrap, capacitor assembly, fan shroud, mounting screw, motor fan, motor brush kit and fan fastener.
What is the Titan Advantage 400 motor assembly part number?
Titan 0551540 is the complete motor assembly identified in the Advantage 400 factory motor parts diagram.
What is the Titan Advantage 400 motor capacitor part number?
Titan 704-206 is the factory-listed capacitor assembly. Diagnosis and replacement should be performed by qualified service personnel.
Which motor brush kit is listed for the Advantage 400?
Titan 0508645 is the motor brush kit referenced in the Advantage 400 factory parts documentation.
Does Titan 704-250 replace Titan 0508648?
Yes. The AllTitanParts listing identifies Titan 704-250 Motor Fan as replacing Titan 0508648. Confirm the exact motor application before ordering.
Why does my Titan Advantage 400 motor overheat?
Possible causes include restricted cooling airflow, a damaged fan, excessive mechanical load or an electrical fault. Stop using the sprayer and arrange appropriate diagnosis.
Can I replace individual motor parts instead of the complete motor?
Some components, including the fan, shroud, capacitor and brushes, are listed separately. The appropriate repair depends on the diagnosed failure and Titan's service instructions.
Where can I buy genuine Titan Advantage 400 Motor Assembly Parts?
Shop the Advantage 400 Motor Assembly Parts category at AllTitanParts. Use the exploded diagram and exact OEM part numbers to select the correct replacement components.
Shop Titan Advantage 400 Motor Assembly Parts
Find genuine Titan motor assemblies, capacitors, cooling fans, fan shrouds, brush kits and mounting hardware. Match the factory diagram to the correct OEM part number and order the components needed for your repair.
BUY ADVANTAGE 400 MOTOR PARTS →Need help identifying a replacement part? Call 713-931-0006.
