Titan Advantage 400 Stand Assembly Parts
Shop genuine Titan Advantage 400 Stand Assembly Parts for repairing the support structure of your electric airless paint sprayer. Find OEM left and right leg assemblies, drip cups, clips, plugs, mounting screws and nylon lock nuts.
Replace damaged stand components, inspect loose mounting hardware and identify the correct parts using the factory exploded diagram. Shop the nine listed replacement products at AllTitanParts.
Maintain Stable Support for Your Titan Advantage 400 Sprayer
The Titan Advantage 400 stand assembly supports the sprayer and provides mounting points for the machine's designated components. The left and right leg assemblies form the principal support structure, while fasteners, clips and related hardware help maintain the intended arrangement.
The stand parts diagram also identifies a drip cup and its mounting screw. The drip cup is intended to collect incidental drips at its designated location. It does not correct a leaking pump or replace the need to diagnose fluid leakage.
Damaged support legs, missing hardware, worn mounting points or improperly secured components can affect how the sprayer sits on a work surface. Replacing the correct parts helps maintain the manufacturer's specified support arrangement.
At AllTitanParts, you can compare genuine Titan OEM part numbers and locate the components needed for a targeted stand assembly repair.
Shop Titan Advantage 400 Stand Assembly Components
Locate the correct support and mounting components by matching the manufacturer's part number with the factory stand diagram.
Titan 0551526 Left Leg Assembly
Factory-listed left support leg for the Advantage 400 stand configuration. Inspect for bending, damage or compromised mounting points.
Part Number: 0551526Titan 0551524 Right Leg Assembly
Genuine OEM right support leg for the stand configuration. Check for physical damage and correct attachment to the sprayer.
Part Number: 0551524Titan 700-1041 Drip Cup
Replacement drip cup for the designated stand assembly location. Inspect for cracks, missing hardware or improper positioning.
Part Number: 700-1041Titan 226-001 Nylon Lock Nut
OEM nylon lock nut used at its designated assembly location. Replace missing or damaged fastening hardware as specified.
Part Number: 226-001Titan Advantage 400 Stand Assembly OEM Parts Reference
The stand assembly category lists nine replacement products. Use the diagram position and exact part number to identify the required component.
| Diagram Item | Titan Part Number | OEM Component | Purpose |
|---|---|---|---|
| 2 | 9885546 | Plug | Designated stand opening |
| 3 | 0551526 | Left Leg Assembly | Left stand support |
| 4 | 806-216 | Clip | Component retention |
| 5 | 0551434 | Screw | Stand fastening |
| 6 | 700-1041 | Drip Cup | Drip collection |
| 7 | 700-069 | Screw | Assembly fastening |
| 8 | 226-001 | Nylon Lock Nut | Threaded fastening |
| 9 | 0551524 | Right Leg Assembly | Right stand support |
| 10 | 9805230 | Drip Cup Screw | Drip cup mounting |
How to Identify the Correct Stand Replacement Part
Confirm the Stand Model
Verify that your Advantage 400 uses the stand configuration rather than an upright or low-boy cart.
Inspect the Component
Identify the damaged leg, missing fastener, clip, plug or drip cup.
Match the Diagram

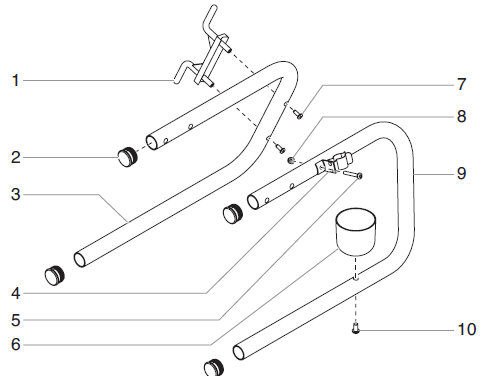

Use the factory exploded view to confirm the exact Titan OEM part number.
Verify and Order
Check the component description, quantity and fitment before checkout.
Advantage 400 Stand Parts Are Configuration-Specific
Titan's factory main assembly documentation identifies left leg assembly 0551526 and right leg assembly 0551524 as stand-only components. Do not assume these legs fit the upright cart or low-boy cart.
Stand Configuration
Uses the factory-listed left and right leg assemblies and the designated stand hardware.
Upright Cart Configuration
Uses a separate upright cart support arrangement with its own mounting and transport components.
Low-Boy Cart Configuration
Uses a separate low-boy support and cart arrangement. Consult its dedicated parts diagram.
Titan Advantage 400 Stand Assembly Troubleshooting Guide
Inspect the stand and its mounting hardware before ordering replacement parts. These observations are inspection indicators rather than definitive diagnoses.
| Observed Condition | Components to Inspect | Recommended Action |
|---|---|---|
| Sprayer does not sit level | Left and right leg assemblies | Inspect for bending, damage or uneven mounting. |
| Stand shifts during operation | Leg assemblies and fastening hardware | Stop operation and inspect for loose or damaged components. |
| Missing or loose mounting hardware | Screws and nylon lock nut | Identify the correct fastener and replace damaged or missing hardware. |
| Drip cup is damaged or missing | Drip cup and mounting screw | Inspect Titan 700-1041 and its designated mounting hardware. |
| Clip or plug is missing | Clip 806-216 and plug 9885546 | Confirm the diagram location and replace the missing component. |
| Fluid is leaking around the machine | Fluid section, connections and drip cup | Identify and repair the leak source; the drip cup is not a substitute for leak repair. |
Which Advantage 400 Stand Assembly Parts Should You Replace?
Select replacement parts based on the condition of the affected component and the factory diagram.
Damaged Support Legs
Inspect Titan 0551526 Left Leg Assembly and Titan 0551524 Right Leg Assembly for physical damage or compromised mounting points.
Missing or Worn Hardware
Match the correct screw, clip, plug or nylon lock nut to the factory diagram rather than substituting unverified hardware.
Drip Cup Replacement
Inspect Titan 700-1041 Drip Cup and Titan 9805230 Drip Cup Screw when the collection component is damaged or improperly secured.
Explore Related Titan Advantage 400 Parts
If your repair involves another machine system or a different support configuration, use the corresponding assembly category.
Need another configuration? Browse all Titan Advantage 400 assemblies, including upright cart and low-boy cart parts.
Why Choose Genuine Titan Advantage 400 Stand Parts?
Genuine Titan OEM stand components are identified by manufacturer part number and documented application. Choosing the specified support legs, clips and mounting hardware helps preserve the intended stand arrangement.
Some parts may appear in other Titan, Impact, RentSpray or SprayTech models. However, similar appearance does not establish interchangeability.
Verify the exact Advantage 400 configuration, factory diagram and OEM part number before purchasing.
Titan Advantage 400 Stand Maintenance and Safety
Before servicing the stand, turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure.
Place the machine on a stable surface and support its weight securely before removing stand legs or mounting hardware. Never rely on a partially disassembled stand to support the sprayer.
Inspect leg assemblies for cracks, bending and damaged mounting points. Check the specified fasteners, clips and plugs for damage or missing components.
Do not substitute unverified fasteners or modify the stand to accommodate incompatible parts. Follow Titan's instructions for assembly and fastening.
After reassembly, verify that the machine sits securely and that all components are properly installed before returning it to service.
Titan Advantage 400 Stand Assembly Parts FAQ
Find answers about genuine Titan support legs, drip cups, fasteners and configuration-specific replacement parts.
What parts are included in the Titan Advantage 400 Stand Assembly category?
The category lists nine replacement products: a plug, left leg assembly, clip, two screw types, drip cup, nylon lock nut, right leg assembly and drip cup screw.
What is the Titan Advantage 400 left leg assembly part number?
Titan 0551526 is the left leg assembly identified for the Advantage 400 stand configuration.
What is the Titan Advantage 400 right leg assembly part number?
Titan 0551524 is the right leg assembly identified for the Advantage 400 stand configuration.
What is Titan 700-1041 Drip Cup used for?
Titan 700-1041 is the factory-listed drip cup used to collect incidental fluid drips at its designated stand assembly location. It does not repair the source of a leak.
Which screw secures the Advantage 400 drip cup?
Titan 9805230 is listed as the drip cup screw. Confirm the diagram position and required quantity before ordering.
Can I use Advantage 400 stand legs on an upright cart or low-boy cart?
Do not assume compatibility. Titan identifies the left and right leg assemblies as stand-only components. Upright and low-boy carts have separate parts diagrams.
Why is my Titan Advantage 400 stand unstable?
Possible causes include bent support legs, damaged mounting points, missing fasteners or an uneven work surface. Stop operation and inspect the stand before reuse.
Where can I buy genuine Titan Advantage 400 Stand Assembly Parts?
Shop the Titan Advantage 400 Stand Assembly Parts category at AllTitanParts. Use the exploded diagram and exact OEM part numbers to select the correct replacement components.
Shop Titan Advantage 400 Stand Assembly Parts
Find genuine Titan left and right support legs, drip cups, clips, plugs, screws and lock nuts. Match your factory diagram and order the correct stand replacement components at AllTitanParts.
BUY ADVANTAGE 400 STAND PARTS →Need help identifying a replacement part? Call 713-931-0006.
