Titan Advantage 400 Upright Cart Assembly Parts
Shop genuine Titan Advantage 400 Upright Cart Assembly Parts for maintaining the mobility and support system of your electric airless paint sprayer. Find OEM replacement wheels, wheel spacers, hub caps and protective plugs designed for the factory upright cart configuration.
Whether you're replacing a worn wheel, correcting missing axle hardware or servicing damaged cart components, use the factory exploded diagram to identify the correct Titan OEM replacement part before ordering.
Maintain Reliable Mobility and Support for Your Titan Advantage 400
The Titan Advantage 400 upright cart assembly provides a wheeled support structure for moving and positioning the sprayer. Its factory arrangement includes a cart frame, wheels, spacers, hub caps and protective plugs.
The wheels allow the machine to roll during transport, while the spacers help maintain the intended positioning of the wheels within the cart assembly. Hub caps secure the designated axle-end arrangement, and plugs close specified openings in the cart frame.
Repeated transportation, impact damage, worn wheels or missing retaining hardware may require replacement components. Inspecting and repairing these parts helps maintain the cart's intended mechanical arrangement.
AllTitanParts makes it easier to identify genuine Titan Advantage 400 Upright Cart Assembly Parts using factory part numbers and the manufacturer's exploded diagram.
Shop Titan Advantage 400 Upright Cart Components
Explore the four individual replacement products currently listed in the category. Each component can be identified by its Titan OEM part number.
Titan 9890104 Hub Cap
Genuine OEM replacement hub cap for the upright cart axle-end arrangement. Listed as replacing Titan 704-355. Inspect when a cap is missing, damaged or no longer secure.
Part Number: 9890104Titan 0294534 Wheel Spacer
OEM spacer used in the upright cart wheel arrangement. Helps maintain the intended spacing between designated wheel and axle components.
Part Number: 0294534Titan 0278373 Wheel
Genuine OEM replacement wheel for the applicable upright cart. Inspect for cracking, excessive wear, damaged mounting surfaces or restricted rotation.
Part Number: 0278373Titan 9885546 Plug
OEM plug for designated openings in the cart frame. Replace missing or damaged plugs using the specified factory part number.
Part Number: 9885546Titan Advantage 400 Upright Cart Assembly OEM Parts Reference

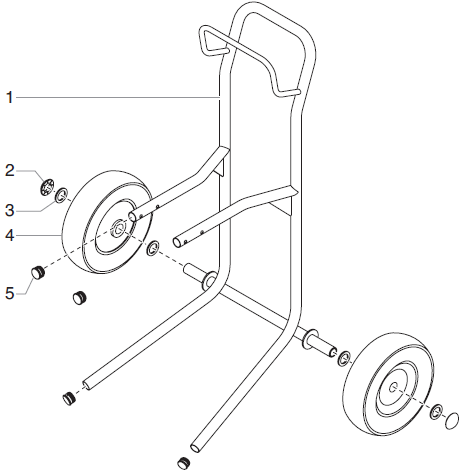

Titan's factory parts diagram identifies the complete upright cart assembly as part number 0551110. The cart weldment is identified separately as part number 0551660. The remaining four components are currently listed for individual purchase in this category.
| Diagram Item | Titan Part Number | OEM Component | Factory Quantity | Category Status |
|---|---|---|---|---|
| 1 | 0551660 | Cart Weldment, Includes Item 5 | 1 | Factory reference only |
| 2 | 9890104 | Hub Cap | 2 | Listed product |
| 3 | 0294534 | Wheel Spacer | 4 | Listed product |
| 4 | 0278373 | Wheel | 2 | Listed product |
| 5 | 9885546 | Plug | 4 | Listed product |
How to Identify the Correct Upright Cart Replacement Part
Confirm Your Cart
Verify that your Advantage 400 uses the upright cart rather than the stand or low-boy arrangement.
Inspect the Component
Identify damaged wheels, missing hub caps, worn spacers or missing frame plugs.
Match the Diagram
Locate the component on the exploded view and confirm its exact Titan OEM part number.
Verify and Purchase
Check the required quantity, replacement reference and application before checkout.
Advantage 400 Upright Cart, Low-Boy Cart and Stand Differences
Titan identifies separate support assemblies for the Advantage 400. Do not assume that wheels, cart frames or mounting components from one configuration fit another.
Upright Cart
Factory assembly 0551110 uses the designated upright cart weldment, 0278373 wheels, 0294534 spacers, 9890104 caps and 9885546 plugs.
Low-Boy Cart
Uses a separate lower-profile cart arrangement. Some hardware may share OEM numbers, but the factory diagram must establish compatibility.
Stand Configuration
Uses left and right support legs instead of the upright cart's wheeled frame. Consult the dedicated stand assembly diagram.
Titan Advantage 400 Upright Cart Troubleshooting Guide
Inspect the cart assembly before purchasing replacement parts. Similar symptoms may result from more than one worn or damaged component.
| Observed Condition | Components to Inspect | Recommended Action |
|---|---|---|
| Cart is difficult to roll | Wheels, spacers and axle arrangement | Check for damage, binding or incorrectly positioned components. |
| Wheel wobbles excessively | Wheel, spacers and hub cap | Inspect for wear, missing hardware or damaged wheel mounting areas. |
| Hub cap is missing | Titan 9890104 Hub Cap | Confirm the axle-end condition and install the specified replacement. |
| Wheel is cracked or damaged | Titan 0278373 Wheel | Replace the damaged wheel and inspect associated hardware. |
| Cart frame opening is exposed | Titan 9885546 Plug | Confirm the correct plug location and replace missing components. |
| Cart frame is bent or unstable | Cart weldment and wheel mounting areas | Stop using the cart until its structural condition has been evaluated. |
Which Advantage 400 Upright Cart Parts Should You Replace?
Choose the component that matches the diagnosed problem and the manufacturer's exploded parts diagram.
Wheel Replacement
Inspect Titan 0278373 when a wheel is cracked, excessively worn or no longer rotates properly.
Spacer and Hub Cap Replacement
Inspect Titan 0294534 and 9890104 when wheel positioning or axle-end retention is compromised.
Frame and Plug Inspection
Replace missing Titan 9885546 plugs and inspect the cart weldment for damage that may require further service.
Explore Related Titan Advantage 400 Parts
Find other machine components or compare the factory diagrams for different Advantage 400 configurations.
Need the complete model directory? Browse all Titan Advantage 400 Electric Piston Pump Parts.
Why Choose Genuine Titan Advantage 400 Upright Cart Parts?
Genuine Titan OEM cart components are identified by manufacturer part number and documented equipment application. Choosing the specified wheels, spacers, caps and plugs helps maintain the original cart arrangement.
Certain wheel hardware may also appear in other Titan equipment families. However, matching appearance does not establish interchangeability. Confirm the correct OEM number and applicable cart diagram before purchasing.
For Advantage 400 upright cart repairs, reference factory assembly 0551110 and verify the individual part number, required quantity and replacement designation.
Titan Advantage 400 Upright Cart Maintenance and Safety
Before servicing the upright cart, turn off the sprayer, disconnect electrical power and follow Titan's pressure-relief procedure.
Position the equipment on a stable, level surface and support the machine securely before removing wheels or axle components. Do not rely on a partially disassembled cart to support the sprayer.
Inspect the wheels for cracking, excessive wear and restricted rotation. Check spacers, hub caps and plugs for missing or damaged components. Inspect the cart weldment for bending, cracking or damaged mounting points.
Do not substitute unverified wheels or axle hardware. Follow the manufacturer-prescribed assembly procedure and confirm that all components are properly seated.
After service, verify that the wheels rotate correctly and the cart remains stable before returning the sprayer to use.
Titan Advantage 400 Upright Cart Assembly Parts FAQ
Find answers about genuine Titan wheels, hub caps, spacers, plugs and upright cart compatibility.
What parts are available in the Titan Advantage 400 Upright Cart Assembly category?
The category currently lists four individual replacement products: Titan 9890104 Hub Cap, 0294534 Wheel Spacer, 0278373 Wheel and 9885546 Plug.
What is the Titan Advantage 400 upright cart assembly part number?
Titan's factory manual identifies the complete upright cart assembly as 0551110 and its cart weldment as 0551660. Confirm availability separately because these are not among the four individual products currently listed.
What is the Titan Advantage 400 upright cart wheel part number?
Titan 0278373 is the wheel specified in the Advantage 400 upright cart factory diagram. The complete cart arrangement uses two wheels.
Does Titan 9890104 replace Titan 704-355?
Yes. The AllTitanParts listing identifies Titan 9890104 Hub Cap as replacing Titan 704-355. Verify the correct cart application before ordering.
How many wheel spacers are used on the Advantage 400 upright cart?
The factory parts list specifies four Titan 0294534 wheel spacers in the complete upright cart assembly. Individual product quantities should be checked before checkout.
Why is my Titan Advantage 400 upright cart wheel wobbling?
Possible causes include a damaged wheel, missing or worn spacers, an improperly secured hub cap or damaged axle components. Inspect the complete wheel arrangement before replacing parts.
Are Advantage 400 upright cart wheels interchangeable with low-boy cart wheels?
Do not assume interchangeability. The factory manual identifies different wheel part numbers for the upright and low-boy cart arrangements. Confirm the applicable diagram and exact OEM part number.
Where can I buy genuine Titan Advantage 400 Upright Cart Assembly Parts?
Shop the Titan Advantage 400 Upright Cart Assembly Parts category at AllTitanParts. Use the factory exploded diagram to identify the correct wheel, spacer, hub cap or plug before checkout.
Shop Titan Advantage 400 Upright Cart Parts Today
Find genuine Titan wheels, wheel spacers, hub caps and protective plugs. Match your factory diagram to the correct OEM part number and order the components needed for your Advantage 400 upright cart repair.
BUY ADVANTAGE 400 UPRIGHT CART PARTS →Need help identifying a replacement part? Call 713-931-0006.
