Titan Advantage 400 Main Assembly Parts
Shop genuine Titan Advantage 400 Main Assembly Parts for your electric airless paint sprayer. Find OEM motor covers, fluid section assemblies, suction sets, support legs, siphon tubes, inlet screens, return tubes and mounting hardware needed for equipment maintenance and repairs.
Whether you're repairing a damaged support component, replacing a worn fluid section or servicing the material intake system, use the factory exploded parts diagram to identify the correct Titan replacement part for your Advantage 400 configuration.
Keep Your Titan Advantage 400 Operating with the Right Replacement Parts
The Titan Advantage 400 is an electric piston pump airless sprayer designed for coating applications. Its main assembly brings together the primary machine components, including the motor enclosure, fluid section, support structure, material intake system and associated mounting hardware.
Each component has a specific function. The motor assembly supplies mechanical power, the fluid section pumps coating material, and the suction components draw material from the supply container. The support legs or cart components help position and stabilize the machine during operation.
Repeated jobsite use, coating buildup, damaged hardware and normal component wear can make repairs necessary. Choosing the correct OEM replacement part helps maintain the manufacturer's intended assembly arrangement.
AllTitanParts makes it easier to identify genuine Titan Advantage 400 Main Assembly Parts using manufacturer part numbers and factory exploded diagrams.
Shop Titan Advantage 400 Main Assembly Components
Explore important factory-listed components and use their OEM part numbers to identify the correct replacement for your sprayer.

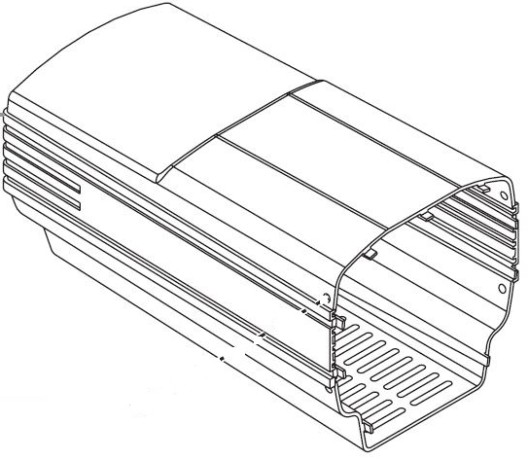

Titan 0558302 Motor Cover
Genuine OEM replacement motor cover that forms part of the protective enclosure surrounding the sprayer motor assembly. Inspect for cracking, physical damage or insecure mounting.

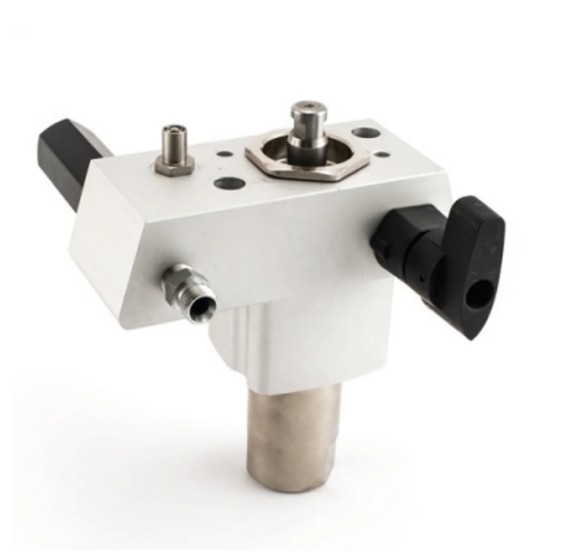

Part Number: 0558302Titan 0552754 Fluid Section Assembly
Complete fluid section assembly listed for the stand and low-boy Advantage 400 configurations. Confirm the machine arrangement before purchasing.

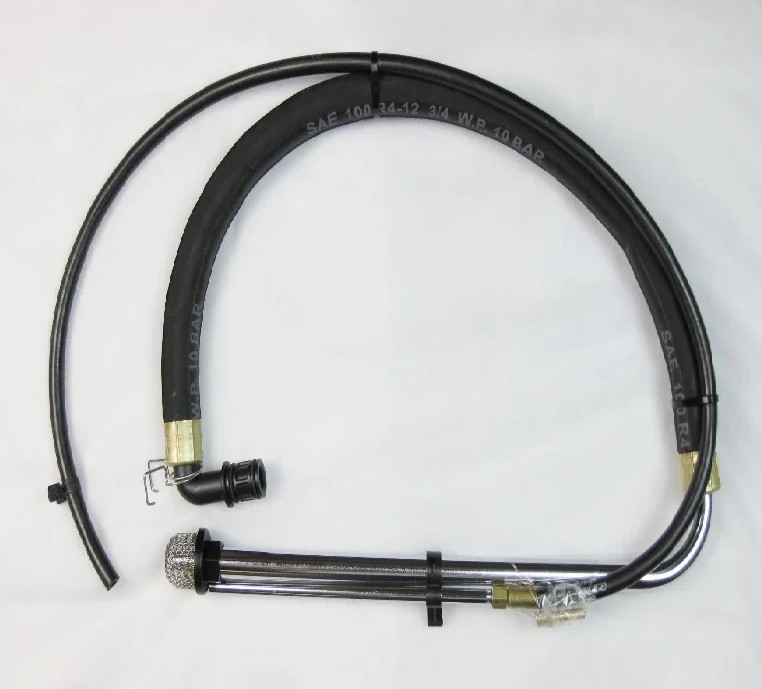

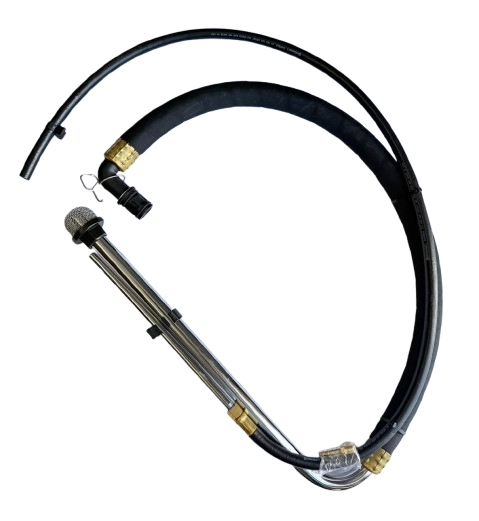

Part Number: 0552754Titan 0558672A Suction Set Assembly
Factory-listed suction set assembly for the applicable stand and low-boy arrangements. Supports coating material intake from the supply container.

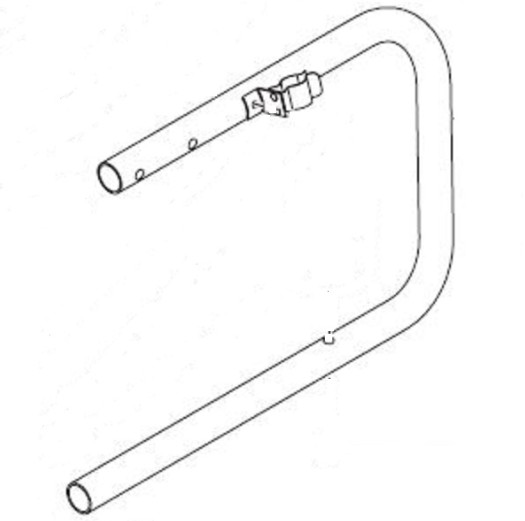

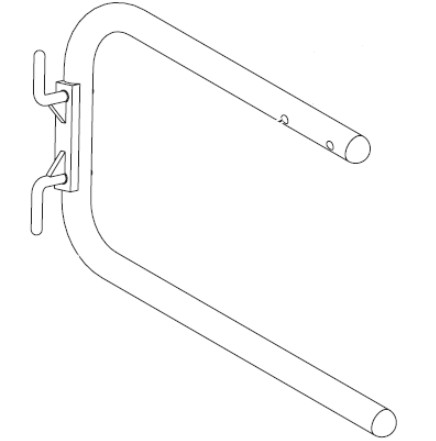

Part Number: 0558672ATitan Stand Leg Assemblies
Genuine OEM left and right leg assemblies used on the Advantage 400 stand configuration. Inspect when the sprayer has damaged or unstable supports.
Parts: 0551526 / 0551524Titan Advantage 400 Main Assembly OEM Parts Reference

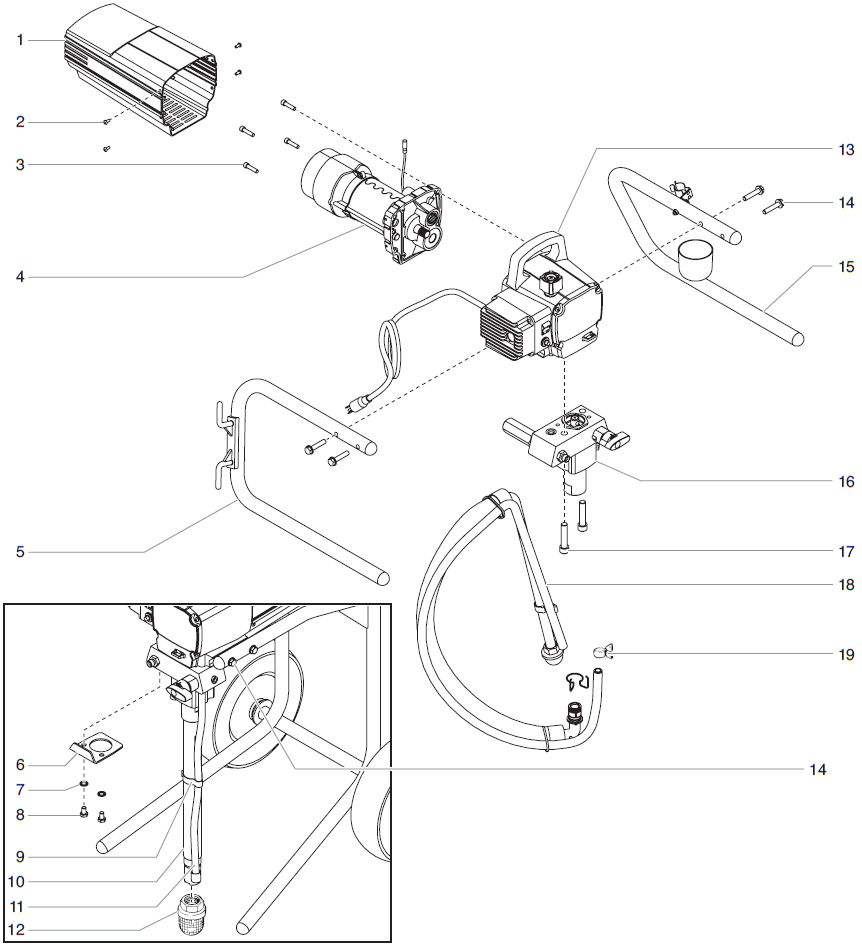

Use the following manufacturer references to identify selected components shown in the Advantage 400 factory main assembly diagram. Part applicability varies by equipment configuration.
| Titan Part Number | OEM Component | Application / Function |
|---|---|---|
| 0558302 | Motor Cover | Motor enclosure component |
| 0551440 | Screw | Motor enclosure fastening |
| 9800308 | Screw | Main assembly fastening |
| 0551526 | Left Leg Assembly | Stand configuration only |
| 0551553 | Pail Hook | Upright cart configuration only |
| 763-552 | Washer | Upright cart configuration only |

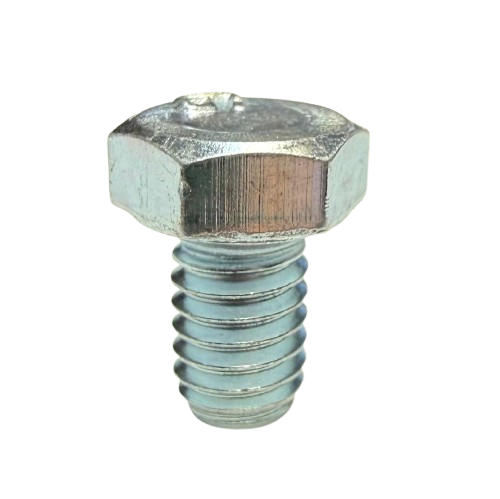

| 710-033 | Pail Bracket Bolt | Upright cart fastening |

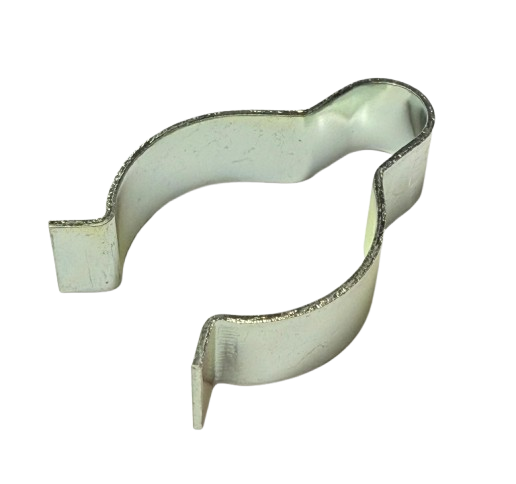

| 730-334 | Hose Tie Clamp | Upright cart hose retention |

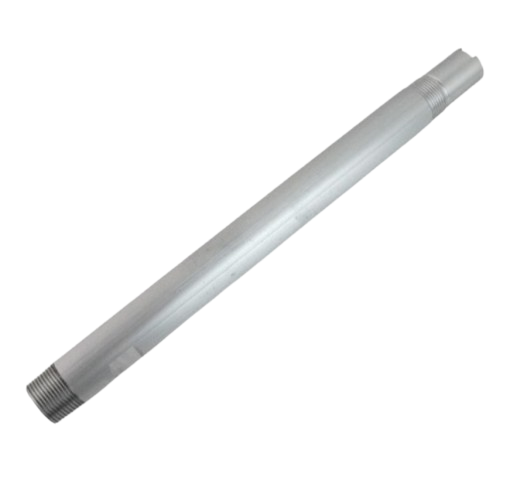

| 705-054 | Siphon Tube | Upright cart material intake |

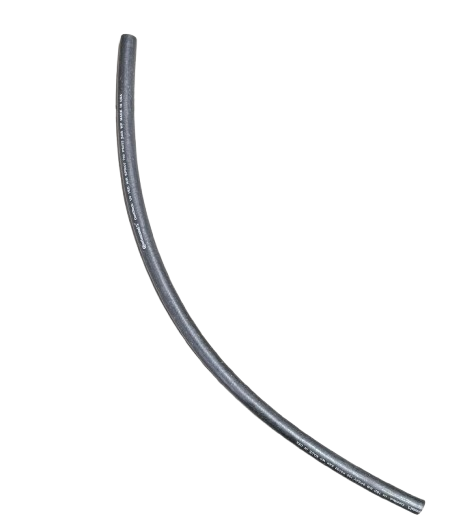

| 0551556 | Return Tube | Upright cart return line |
| 710-046 | Inlet Screen | Upright cart inlet filtration |
| 0509550 | Hexagonal Washer Cap Screw | Stand and upright cart mounting |
| 756-091 | Screw | Low-boy mounting |
| 0551524 | Right Leg Assembly | Stand configuration only |
| 0552754 | Fluid Section Assembly | Stand and low-boy configurations |
| 0552762 | Fluid Section Assembly | Upright cart configuration |

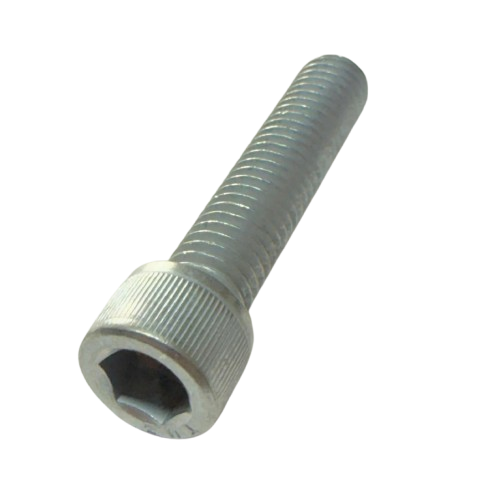

| 704-117 | Fluid Section Screw | Fluid section mounting |
| 0558672A | Suction Set Assembly | Stand and low-boy configurations |

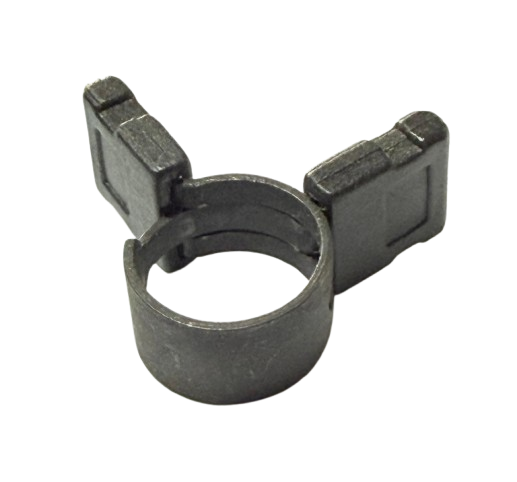

| 0327226 | Return Tube Clip | Return-line retention |
How to Identify the Correct Advantage 400 Main Assembly Part
Identify Your Configuration
Determine whether your Advantage 400 uses the stand, upright cart or low-boy arrangement.
Inspect the Component
Identify the worn, damaged or missing part and locate its position on the machine.
Match the Diagram
Use the factory exploded view to identify the exact Titan OEM part number.
Verify and Purchase
Confirm the correct configuration, required quantity and part application before checkout.
Advantage 400 Stand, Upright Cart and Low-Boy Parts
The Advantage 400 main assembly diagram identifies configuration-specific components. Confirm which machine arrangement you own before selecting replacement parts.
Stand Configuration
Uses the listed left and right leg assemblies, with the applicable stand mounting hardware, fluid section and suction set.
Upright Cart Configuration
Includes designated pail-support and material-intake components, with a configuration-specific fluid section assembly.
Low-Boy Configuration
Uses the designated low-boy mounting hardware and the factory-listed fluid section and suction set assemblies.
Titan Advantage 400 Main Assembly Troubleshooting Guide
Common equipment symptoms can involve multiple systems. Use this guide to identify components that may require inspection before purchasing replacement parts.
| Observed Condition | Components to Inspect | Recommended Action |
|---|---|---|
| Sprayer does not start | Motor system and electrical components | Follow Titan's electrical troubleshooting procedure before replacing parts. |
| Sprayer fails to prime | Suction set, inlet screen and fluid section | Check for intake restrictions, air leaks and pump-related problems. |
| Material intake is restricted | Siphon tube and inlet screen | Inspect for debris, dried coating or damaged intake components. |
| Fluid leakage near the pump | Fluid section and adjoining connections | Identify the leak location and inspect seals, fittings and mounting points. |
| Sprayer support is unstable | Leg assemblies and mounting hardware | Inspect for damaged supports, missing screws or loose connections. |
| Return tube becomes displaced | Return tube and retaining clip | Check the tube routing and designated retention hardware. |
Which Advantage 400 Main Assembly Parts Should You Replace?
Choose replacement components according to the diagnosed problem and the manufacturer's parts diagram.
Motor and Cover Components
Inspect the motor cover and its mounting hardware for physical damage. Diagnose motor problems separately using Titan's electrical service procedures.
Fluid Section and Suction Parts
Inspect the pump, suction assembly and inlet components when the machine has priming, fluid delivery or leakage problems.
Support and Mounting Hardware
Replace damaged leg assemblies, worn fasteners or missing retaining hardware with the specified OEM components.
Explore Related Titan Advantage 400 Parts
The Advantage 400 includes separate factory assembly diagrams for major machine systems. Use these categories to find more specific replacement components.
Why Buy Genuine Titan Advantage 400 Main Assembly Parts?
Genuine Titan OEM replacement components are identified by manufacturer part number and documented equipment application. Using the correctly specified components helps maintain the original assembly arrangement and reduces the risk of ordering incompatible parts.
Some Titan Advantage, Impact, RentSpray and SprayTech models share selected components. However, a shared product family or similar appearance does not establish interchangeability.
Always confirm the equipment model, factory diagram, machine configuration and exact OEM part number before purchasing.
Titan Advantage 400 Main Assembly Maintenance and Safety
Before inspecting or repairing the Advantage 400, turn off the sprayer, disconnect electrical power and follow Titan's complete pressure-relief procedure.
Never loosen pressurized fluid connections. High-pressure coating material can penetrate the skin and cause serious injury.
Inspect the motor cover, support structure, suction connections, return line and fluid section mounting points for wear, damage or loose hardware. Use the manufacturer's instructions when removing or reinstalling machine components.
Electrical and internal pump repairs should be performed according to the applicable Titan service procedures. Support the machine securely before removing stand or cart components.
After servicing, verify that components are properly secured and inspect the machine for leaks and abnormal operation using the manufacturer-prescribed testing procedure.
Titan Advantage 400 Main Assembly Parts FAQ
Find answers about genuine Titan OEM replacement parts, fluid sections, motor covers, suction assemblies and configuration-specific fitment.
What parts are included in the Titan Advantage 400 Main Assembly?
The factory main assembly includes motor enclosure components, motor and gearbox assemblies, fluid section components, suction parts, support hardware and configuration-specific cart or stand components.
What is the Titan Advantage 400 motor cover part number?
Titan 0558302 is the motor cover listed in the Advantage 400 Main Assembly. It forms part of the motor's protective enclosure.
Which fluid section assembly fits the Titan Advantage 400?
Titan's factory main assembly parts list specifies 0552754 for the stand and low-boy cart configurations and 0552762 for the upright cart configuration. Confirm your machine arrangement before ordering.
What is Titan 0558672A Suction Set Assembly used for?
Titan 0558672A is the suction set assembly specified in the main assembly diagram for the stand and low-boy configurations. It supports material intake into the pump.
Why is my Titan Advantage 400 not priming?
Possible causes include an obstructed inlet screen, damaged suction components, air entering the intake path or fluid section problems. Follow Titan's troubleshooting procedure to identify the cause.
Are Titan Advantage 400 stand and cart parts interchangeable?
Not necessarily. Titan identifies configuration-specific components for stand, upright cart and low-boy models. Use the correct exploded diagram and part number to verify fitment.
Can I use Titan Impact 400 parts on my Advantage 400?
Some Titan equipment families share individual OEM parts, but compatibility must be confirmed by manufacturer part number and documented model application. Do not assume universal interchangeability.
Where can I buy genuine Titan Advantage 400 Main Assembly Parts?
Shop Titan Advantage 400 Main Assembly Parts at AllTitanParts. Use the factory exploded diagram and OEM part numbers to select the correct replacement components for your machine.
Shop Titan Advantage 400 Main Assembly Parts Today
Find genuine Titan motor covers, fluid section assemblies, suction sets, support legs, inlet screens and mounting hardware. Match your factory diagram to the correct OEM part number and order the components needed for your repair.
BUY ADVANTAGE 400 MAIN ASSEMBLY PARTS →Need help identifying a replacement part? Call 713-931-0006.
